Ewheels EW-M34 Manual de usuario

EW-M34

Owner’s Manual

www.ewheelsdealers.com

(888) 305-0881 Sales

(888) 571-2845 - Service

-Read and follow all instructions, warning, and notes in this manual before

attempting to operate your mobility scooter for the first time.

-If there is any additional information in this manual which you do not

understand or require additional assistance for setup or operation, please

contact your authorized provider.

-Your safety to operation of this product depends on whether you completely

follow the instructions, cautions and warnings in this manual.

-These symbols below in this manual are used to identify warnings, notices,

and operation instructions. All of them are very important to your safety. It is

strongly recommended to read and understand them completely and carefully.

Warning! –Failure to heed the warnings in this manual may

result in personal injury.

Caution! –Failure to heed the cautions in this manual may

result in damage to the power scooter.

-The mobility scooters combined the modern technology with contemporary

styles, and are divided into two models as to their structure: integral and

separated. Especially the ladder has a structure for quick assembly and

disassembly that is convenient to be stores or placed at the trunk of your

vehicle while traveling. We are certain that the design features, excellent

performance and trouble-free operation of this product will ensure your daily

life more convenient.

-For your safety, please ensure that you read carefully and follow strictly all

instructions warning, and notes in this manual before attempting to operate

your mobility scooter for the first time. These items are recommended for your

benefit. Your understand is important for your safety to operate this scooter.

-Once you master how to operate and maintain your mobility scooter, it is

sure that this product will give years of trouble-free service and enjoyment.

-We appreciate your questions, comments, and suggestions about this

mobility scooter, especially its performance of safety and reliability, and the

service from your authorized provider.

Chair Console

Armrest Headlights

Battery Pack Front Bumper

Free-Wheel and Drive Lever

Table of Contents

Page 5 –Technical Specifications

Page 6 to 8 –Scooter Assembly

Page 8 –Main Scooter Components

Page 9 –Scooter Disassembly

Page 10 to 11 –Adjustments

Page 12 to 13 –Charging and Battery Information

Page 14 to 19 –Scooter Operation

Page 20 –General Guidelines

Page 21-26 –Safety Information

Page 27 to 29 –Warranty

Page 30 to 37 –Safety Manual

Technical Specifications

Model

EW-M34

Weight Capacity

300LBS

Speed:

Up to 4.5 MPH

Distance:

10 miles per charge (distance varies on terrain, riders

weight, road surface, etc.)

Electro-Mechanical Brakes:

Yes

Seat Size:

17” x 16”

Adjustable Armrests:

Yes

Headlights:

Yes (LED)

Electric Battery Gauge:

Yes

Drive Type:

Rear Wheel Drive

Under Deck Clearance:

2”

Power:

24V 12AH

Watts:

180 Watt

Motor Type:

Rear Transaxle

Amps:

12 AH Batteries

Volts:

24 Volts

Dimensions:

39” x 20” x 31-33”(LxWxH)

Floor Clearance:

2”

Front Basket:

Yes

Batteries:

X2 12 AH SLA Batteries

Throttle Type:

Delta Paddle Throttle

Can Charge Off Scooter:

Yes

Front Tire Type:

Solid Flat Free Tires

Rear Tire Type:

Solid Flat Free Tires

Charger:

Off-Board (Included)

Total Weight:

92 LBS

Heaviest Piece:

28 LBS

Total Number Of Pieces:

Cargo Box Storge:

10” x 20” x 10” (DxWxH)

Headlight:

LED Headlights

Rear lights:

Reverse Indicator Lights

Electric Horn:

Yes

Frame Warranty:

Lifetime

Drive Train Warranty:

2 Years

Electronics Warranty:

2 Years

Battery Warranty:

1 Year

Charger Warranty:

6 Months

FDA Certified:

Yes

Assembly:

Installing the Seat Post

1.)Place the seat post into the frame of the

back half.

2.)Place the seat post securing pin through a

hole in the silver seat post and through

the black seat post holding frame.

3.)Tighten the post securing and stabilizing

knob on to finish securing.

Installing the Seat

1.) Install the seat post to

the frame of the scooter.

2.) Slide the seat onto the

seat post assembly.

3.) Install and tighten

the armrests on both

sides of the seat.

Installing the Basket

1.) Unwrap basket from plastic

2.) Slide Basket onto handlebar

bracket.

3.) Ensure the basket tab is

locking the basket in place.

Installing the Battery Pack

1.)Check that the battery

securing knob is loose, and the

battery securing plate is facing

vertically with the body of the

scooter.

2.)Place the battery pack on the

scooter.

3.)Turn the battery securing

plate horizontal over the top

lip of the battery pack.

4.)Tighten down the battery

securing knob.

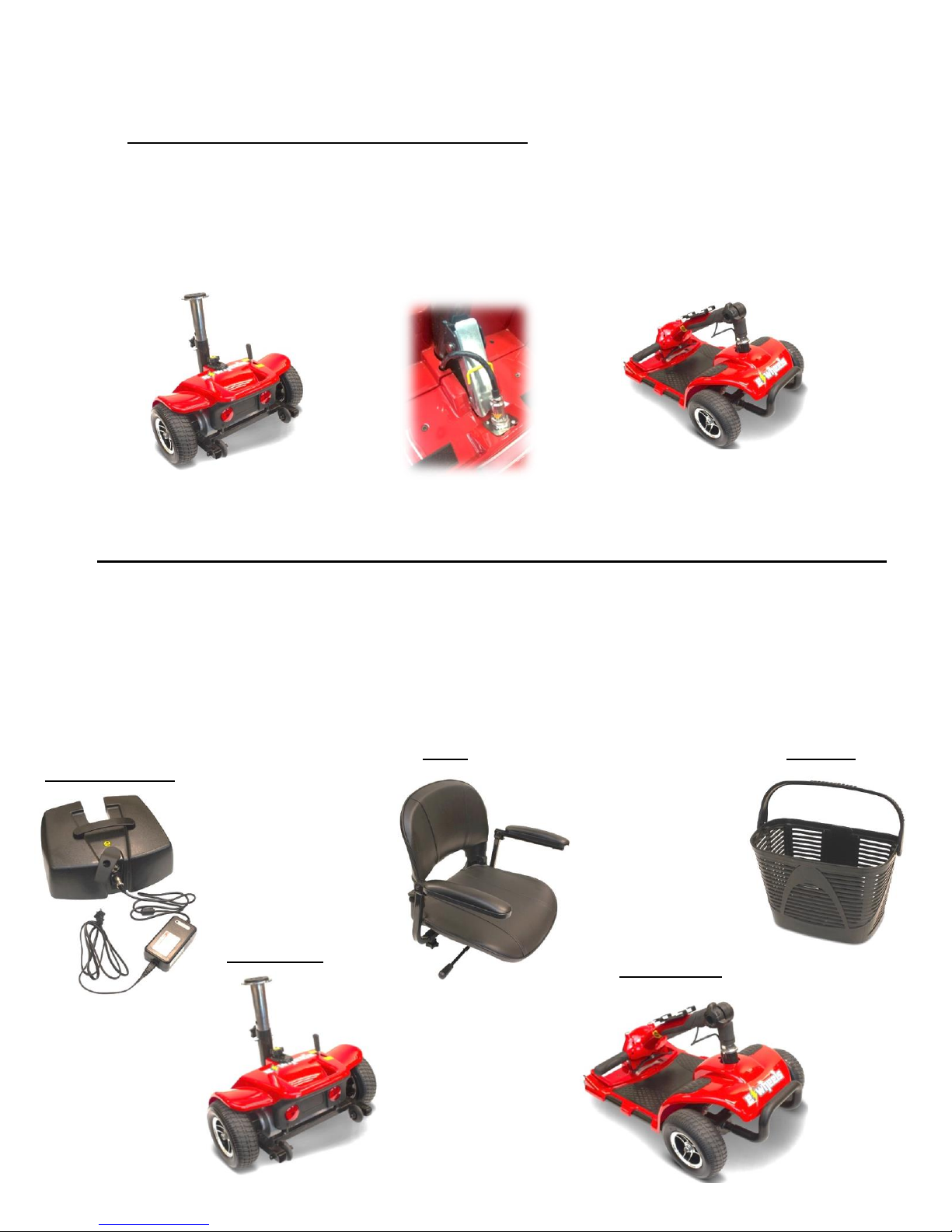

Front Half to Back Half Connection

1.)The scooter will come with the front and back half already connected.

See steps for disassembly under disassembly section of manual.

Main Scooter Components

Battery Pack

Back Half

Seat

Front Half

Basket

Disassembly:

Remove the basket, seat, and seat post the same way there were installed

on the scooter. See below for steps of disconnecting the front half of the

scooter from the back half of the scooter.

Steps for Frame Separation

1.) Spin the securing washer for the power

supply cable counter clockwise to loosen

until it is loose from the threads.

2.) Pull the power supply cable out of the socket

where it plugs into and set aside in a way

that it will not get pinched when the frame

pieces are separated.

3.) Pull the yellow grip of the release handle

to separate the two frame components

from each other. When reinstalling, make

sure the black side frame guides line up.
