ewheels EW-20 Manual de usuario
1
Table of Contents
Page 2 - Feature Guide
Page 3 - Product Specifications
Page 4 - Operation of Scooter
Page 7 - Charging and Battery Maintenance
Page 8 - Ramps and Curbs
Page 9 - General
Page 9 - Use While Under Influence
Page 9 - Safety Requirements
Page 11 –Warranty
Page 12- Safety Manual
2
Battery Access Door Front Fork Suspension Front Wheel Motor
Seat with Backrest Headlight
Rear Basket Throttle Folding Handlebar Lever
3
Technical Specifications
Model
EW-20 Black
Weight Capacity
300Lbs
Speed:
Up to 15mph
Distance:
21 miles per charge (distance varies on terrain, riders
weight, road surface, etc.)
Front Seat: Type
Executive Comfort Seat with Backrest
Front seat: Size
16“ x 13.5“ x 3.25 (depth)
Seat Cushion Height:
28” From Floor
Rear Seat: Type
N/A
Rear Seat: Size
N/A
Steering Height
42” From Ground
Rear Foot Rest:
N/A
Power:
Electric 48 volts
Watts:
500 Watts
Motor Type:
Hub Brushless Motor
Amps:
12 AH
Volts:
48 Volts
Dimensions:
55” x 26” x 38” (LxWxH)
Floor Clearance:
7”
Back Basket:
11”x 20” x 10” (DxWxH)
Batteries:
(4) 12 volt 12 amp hour SLA
Forward/Reverse switch:
Yes
High/Medium/Low Speed switch:
Yes
Front tire size:
13” x 5.0”
Rear tire size:
110/50-6.5
Charger:
48-volt Smart Charger included
Throttle Type:
Variable Twist Throttle
Key Start:
Yes
Braking System:
Rear Disc Brakes, Front Drum Brake
Drive System:
500w hub motor
Headlight:
LED light
Rear lights:
N/A
Carton Size:
63” x 36” x 54”
Scooter Weight:
128lbs
Battery Indicator:
Yes
Front Suspension:
Yes
Rear Suspension:
Yes
Electric Horn:
Yes
Warranty:
Limited –3 Year Warranty
4
Operation of Scooter:
1. Turning on the power
Insert key into ignition and turn clockwise to turn the
scooter on. The battery indicator will display the
current charge level when on. Turn the key counter-
clockwise to power off when stopped.
2. Speed Control
The black twist grip throttle controls acceleration. Twisting the throttle grip towards you will
increase the speed. Releasing the throttle grip will reduce the speed gradually while on a level
surface. The top speed capable is controlled by the three-position speed switch.
Three Position Speed Switch
“1” – Limits the top speed to around 6 MPH
“2” – Limits the top speed to around 10 MPH
“3” – Allows the machine to travel full speed
5
3. Battery Power
The current charge level will be displayed when the
scooter is turned on. The displays lights will not show
when the scooter power is turned off.
4. Horn
There is a green horn button on the left side of the
handlebars. Press button to sound the horn.
5. Headlight Switch
The headlight is controlled with the ignition key position.
Turn the key one more time to the right when the
scooter is in the on position to turn the headlight on.
6. USB Charging
There is a USB port on the handlebar assembly to be able
to recharge any electronic device that accepts a 5-volt
input. Plug the USB cord in the USB slot, and plug the
desired device in to charge.
6

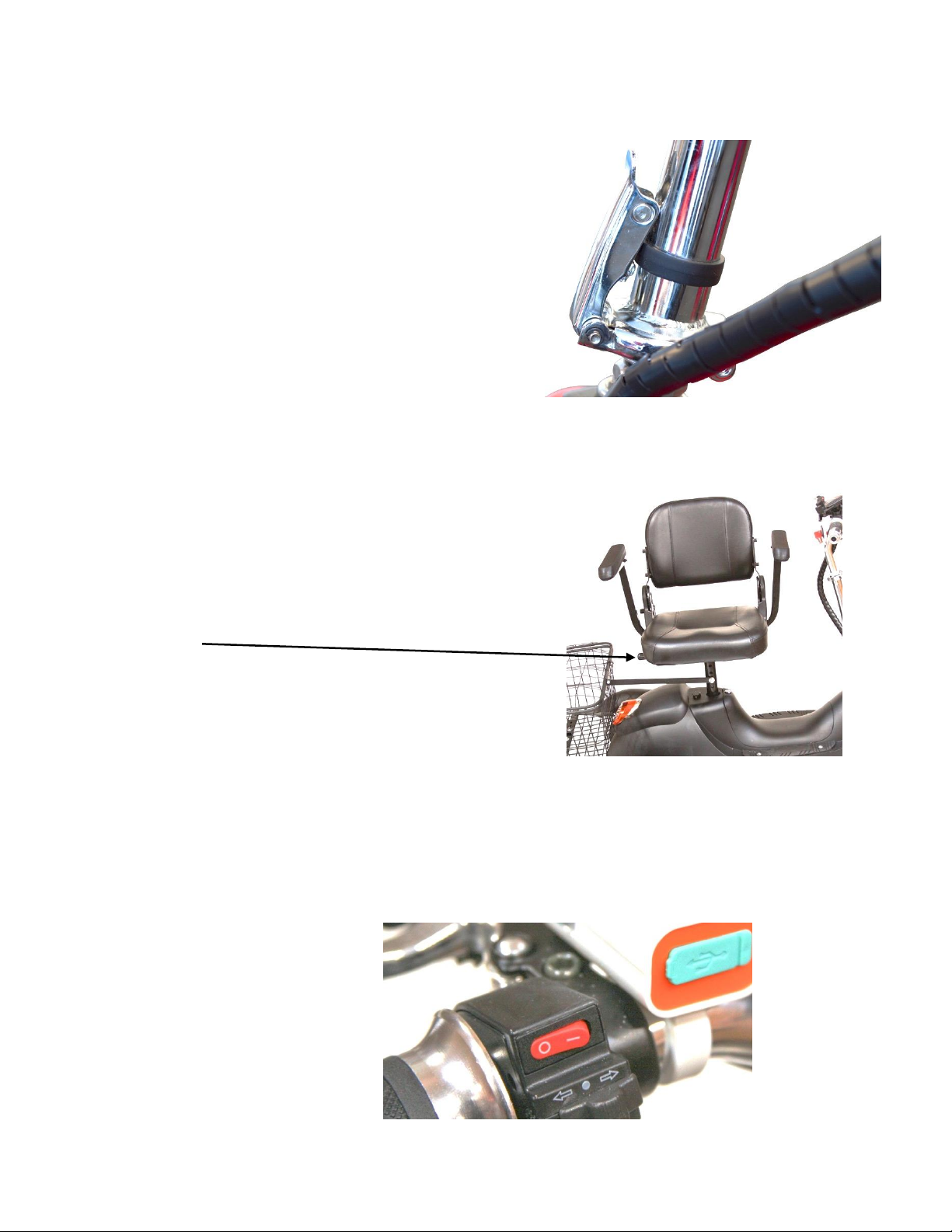

7. Handlebar Folding Clamp
The handlebars can be folded when storing or
when loading into a vehicle. To fold the
handlebars, slide the black retaining clip out of
the silver handlebar folding clamp handle.
Then, pull the clamp handle away from the
handlebar assembly. The handlebars do not
lock when folded.
8. Swiveling Seat
The seat can swivel to be able to get on and off the
machine easier. Use the handle located on the right-
hand side, right underneath the seat to swivel as
needed.
9. Forward and Reverse Switch
The forward and reverse switch is located on the left-side handlebar assembly, right after the turn
signal switch.
“O” – Is Forward
“I” – Is Reverse
7
Charging Instructions:
When the light on the charger is red, the scooter is still charging. When the light turns green, this means
the scooter is fully charged. Once fully charged, unplug within two hours to avoid overcharging.
The charging time varies depending on how charged the batteries are. If almost empty, the charge time
may take up to 8 hours. If the red lights stay on for more than 8 hours, unplug the charger.
Batteries and Battery Maintenance:
Only use sealed lead acid batteries that are deep cycle and maintenance free for your scooter.
Battery Type: (4) 12 volt, 12 AH Maintenance Free, Deep Cycle, Sealed Lead Acid.
Note:
-Do not use lithium ion batteries. They are not designed to be in this scooter.
-The useful life of a battery is quite often a reflection of the care it receives.
-Always charge the batteries in a well-ventilated area.
-The charger is intended for indoor use only.
-Replace all batteries at the same time if weak.
-If the scooter will not be used for an extended period, arrange to have the batteries recharged at
least once every month to avoid deterioration of the batteries.
Ramps and Curbs:
8
1. Check that the ramp surface is roughened to prevent slipping. Never drive across a slope or turn
sharply on a slope.
2. When driving up curbs, always check the height of the curb to ensure that it does not exceed 3”
height.
3. Always go forward up ramps and curbs.
4. Avoid stopping completely when going over small objects or obstructions.
General:
1. Always keep your feet on the scooter.
2. Do not exceed the weight capacity of 300lbs.
3. Do not attempt to lift or move the scooter by any of its removable parts. Personal injury and
damage to the scooter may result.
4. Never try to use your scooter beyond its limitations as described in the manual.
5. Do not operate your scooter if it is not functioning properly.
6. Do not connect any electrical or mechanical device to the scooter. Failure to obey this instruction
may result in injury and will void the warranty.
7. Always comply with local laws and regulations.
8. It is very important that charger plug is inserted and plugged firmly into charger port for electrical
power charging.
9. Always inspect the scooters mechanical components and tires prior to operation.
10. Know and practice the rules of safe and responsible riding.
Use While Under the Influence of Medication or Alcohol:
9
1. Check with you physician if you are taking any medication that may affect your ability to operate
your scooter safely.
2. Do not operate your scooter while you are under the influence of alcohol as this may impair your
ability to operate your scooter in a safe manner.
Safety Requirements:
Driving Surface
The EW-19 Black has the best stability and performs the best under the normal driving conditions (dry,
level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass,
gravel, etc.).
DO NOT exceed the specified climbing angle. Do not operate the scooter before you have fully read and
understood the manual.
•Always turn the scooter off and set the emergency brake before getting on or off the scooter.
•Avoid driving in loose gravel, covered soil, and sandstone.
•Do not drive the scooter in unknown road conditions.
•The scooter can ride over small obstacles within a certain height, but you must minimize the speed
and slowly drive over the obstacle.
•Do not operate the scooter under the influence of drugs or alcohol.
•Do not park on steep slopes.
•Changing the initial setting of refitting your scooter is forbidden.
