EW-11

Owner’s Manual

www.ewheelsdealers.com

(888) 305-0881 Customer Service

(888) 571-2845 Service

Table of Contents

Page 2 - Feature Guide

Page 3 - Product Specifications

Page 4 - Operation of Scooter

Page 8 - Mirror Installation

Page 9 - Charging and Battery Information

Page 10 - Ramps and Curbs

Page 11 - General

Page 11 - Use While Under Influence

Page 12 - Safety Requirements

Page 14 –Warranty

Rear Foot Pegs Charger Port Front Headlight

Rear Shocks Front Fork Suspension

2 Passenger Seat Rear View Mirrors

Rear Storage Box Throttle Front Basket

Technical Specifications

Model

EW-11 Sport

Weight Capacity

400Lbs

Speed:

Up to 18mph

Distance:

40 miles per charge (distance varies on terrain, riders

weight, road surface, etc.)

Front Seat: Type

Extended Saddle Seat with 2 rider capacity

Front seat: Size

23 “ x 13“ x 11” (LxWxH)

Front Seat:

27” from ground

Rear Seat: Type

N/A

Rear Seat: Size

N/A

Steering Height

37” from Ground

Rear Foot Rest:

Folding footrest for 2nd passenger

Power:

Electric 48 volts

Watts:

500 Watt

Motor Type:

Trans-axle motor

Amps:

20 AH

Volts:

48 Volts

Dimensions:

67” x 29” x 38”

Floor Clearance:

5”

Front Basket:

12” x 12” x 8”

Batteries:

(4) 12 volt Sealed Lead Acid Maintenance Free

Forward/Reverse switch:

Yes

High/ Low Speed switch:

3 position switch: Low/Med/High

Front tire size:

10” x 3”

Rear tire size:

10” x 3”

Charger:

48-volt Smart Charger included

Throttle Type:

Variable Twist Throttle

Key Start:

Yes

Braking System:

Front and rear drum brakes

Drive System:

500 Watt Trans-axle

Headlight:

High/Low Beam

Rear lights:

Brake Lights

Carton Size:

63” x 36” x 54”

Scooter Weight:

285lbs

Battery Indicator:

Yes

Front:

Frame suspension fork

Rear:

Two heavy duty shock absorbers

Reflectors:

Yes

Warranty:

Limited –3 Year Warranty

Operation of Scooter:

1. Turning on the power

Insert key into ignition and turn clockwise to turn

the scooter on. The battery indicator will rise to

the current charge level when on. Turn the key

counter-clockwise to power off when stopped.

2. Speed Control

Acceleration is controlled by the black twist grip

throttle. Twisting the throttle grip towards you

will increase the speed. Releasing the throttle grip

will reduce the speed. The top speed is controlled

by the three-position speed switch.

The “II” symbol limits the top speed to 6 MPH.

The “O” symbol limits the top speed to 12 MPH.

The “I” symbol allows the machine to travel full speed.

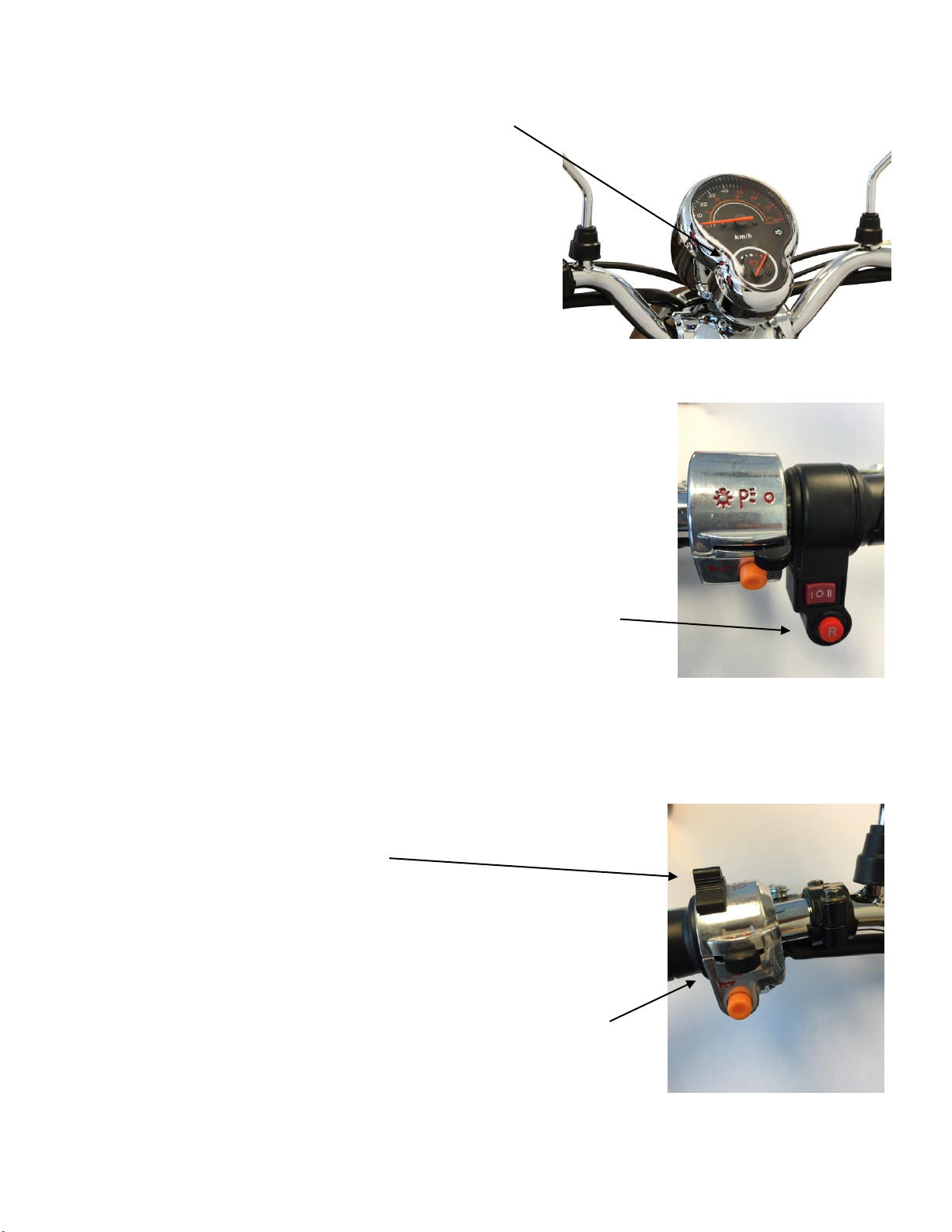

3. Battery Power Indicator

The battery power indicator will show

when the scooter is on. The battery

indicator needle will display as empty

when the scooter power is off. When

turned on, the battery indicator needle

will display the batteries current charge.

4. Forward / Reverse

The forward/reverse switch is located on the right

side of the handlebar controls. Press the “R” button

in to activate reverse. Push again to deactivate

5. High and Low Beam

The high and low beam button is located on the

left handlebar assembly.

6. Turn Signals

The turn signal button is located on the left

handlebar assembly. Push in either direction to

activate, and return the switch to the middle

position to turn the signal off.

7. Security System and Remote Start

The security system is controlled

with the security key fob. The

remote start allows you to use the

machine without inserting the key

into the ignition.

-Arm Security System

-Disarm Security System

-Panic Button

-Activate Remote Start

(Double click to activate remote start)

8. Horn

There is a yellow horn button on both sides of the

handlebars. Press button to sound the horn.

9. Running and Headlights

The lights can be turned on and off with the light

switch. To the right is off, center is running lights

only, and left activates the headlight.

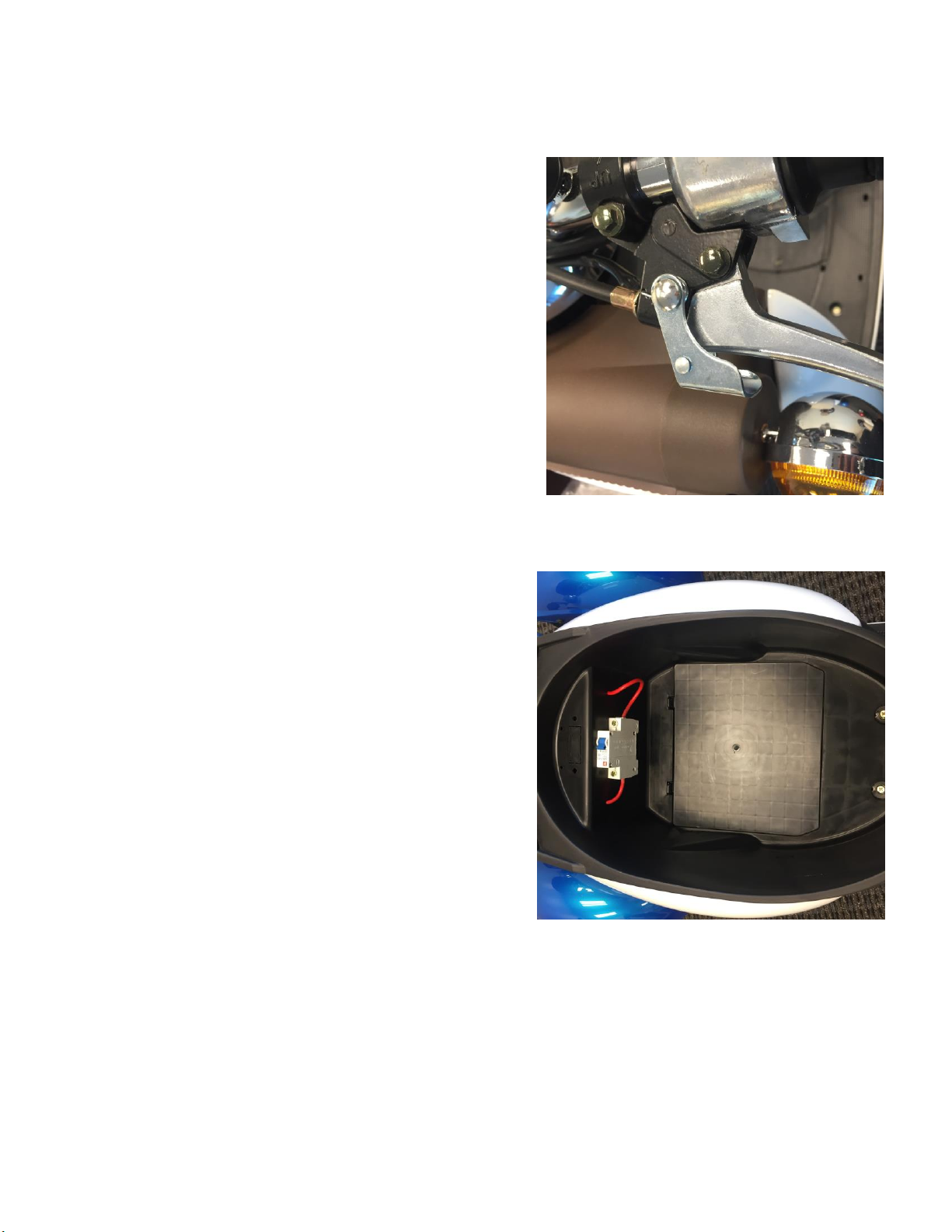

10. Parking / Emergency Brake

The parking / emergency brake is

located on the left-hand brake. The tab

holds tension in the brake lines to keep

the unit stationary while not in use.

Activate by depressing towards the

brake handle, while squeezing the

brake handle. The tab will click inwards

and active once the brake handle is

pulled approximately half way. Squeeze

the brake handle to deactivate.

11. Under Seat Compartment

Underneath the seat is the circuit

breaker, battery access, and a locked

storage compartment. To access this

compartment, turn the key counter

clockwise while in the off position. Do

not push the key inwards. (fig a)

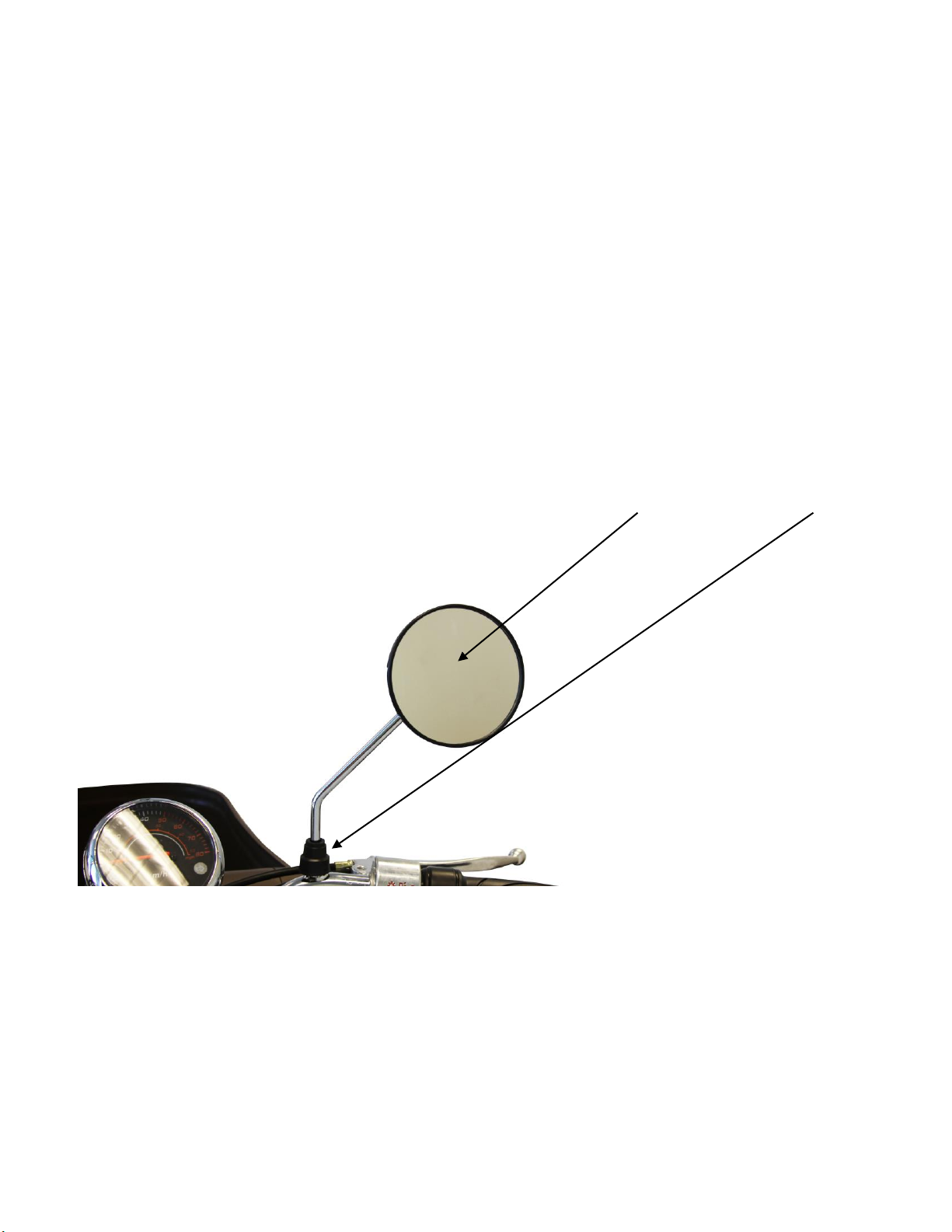

Mirror Assembly:

Your power scooter is shipped partially disassembled for protection during

shipping. After unpacking, please check whether you have received the

following main components as our standard specification (See fig 1)

1. Mirrors

2. Mirror Grommets (covers)

To attach the mirrors simply place each mirror threaded end into the mirror

post. Turn mirror clockwise and fasten mirror to scooter.

Mirrors Grommets

Charging Instructions:

The smart charger included with your scooter will shut off when the scooter is

fully charged. When the light on the charger is red, the scooter is still charging.

When the light turns green, this means the scooter is fully charged. Once fully

charged, unplug within two hours to avoid overcharging.

The charging time varies depending on how charged the batteries are. If almost

empty, the charge time may take up to 8 hours. If the red lights stays on for

more than 8 hours, unplug the charger.

Batteries and Battery Maintenance:

Only use deep-cycle batteries that are sealed lead acid and maintenance free

for your scooter. Deep cycle batteries are specifically designed to provide

power, drain down, and then accept a relatively quick charge. Lead acid

batteries can be charged as needed

Specification of the battery that we recommend:

Type: (4) 12 volt, 20 AH Sealed Lead Acid, Deep Cycle, Maintenance Free.
