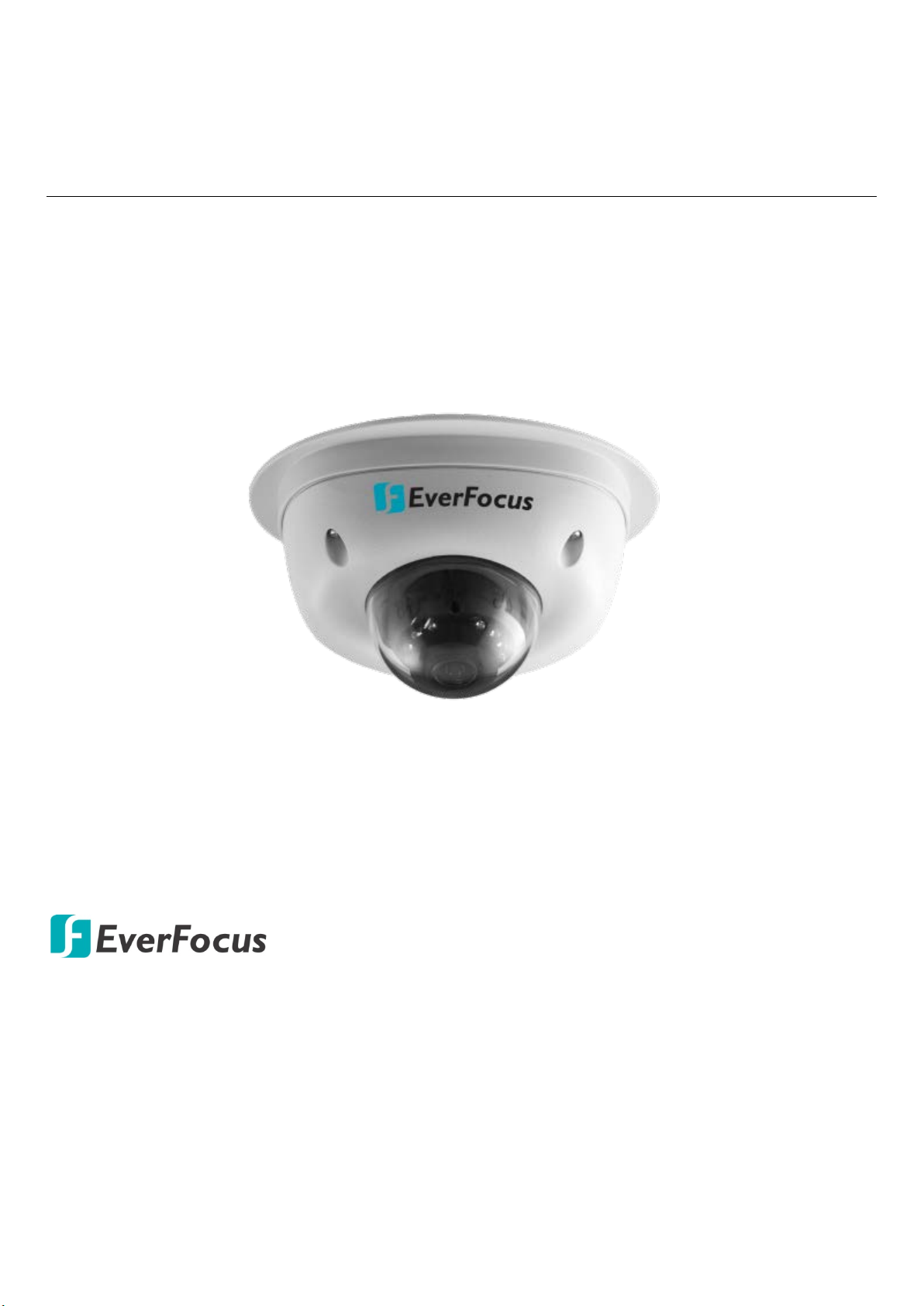

EverFocus EMN2260 Manual de usuario

EMN2260 Outdoor Mini Fixed Dome Network Camera

2MP, H265, IR & WDR

Quick Installation Guide

Release Date: January, 2020

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Physical Description

No.

Item Name

Descriptions

Light Sensor

Detects lights.

IR LEDs

IR LEDs for infrared illumination in night vision applications.

Lens

Camera Lens.

4 Micro SD Card Slot

Insert a micro SD card. Please go to the product page on

EverFocus website to see the latest Storage Compatibility List.

http://www.everfocus.com.tw

Dimensions

Packing List

Please check that there is no missing item in the package before installing.

EMN2260

Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1 (connect to the LAN/PoE cable for waterproofing)

4. Screw x 4 (to lock the upper cover)

5. Small Screw x 2 ( to lock the camera base and the mounting plate)

6. Screw Anchor x 4 (in conjunction with Screw)

7. Desiccant Bag x 1

8. Hexagon Wrench x 1

9. Mounting Sticker x 1

10.Quick Installation Guide x 1

11.Software CD x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult

your local EverFocus office or agents for more information. Please also keep the

shipping carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

Optional Accessory

You can go to the product page on EverFocus’ website to check the related optional

accessories. Please click Accessories on each Product page on EverFocus Website

www.everfocus.com.tw

2. Cables

The cables provide connections for network, power, audio input and output.

LAN / PoE Cable

12VDC Power Input

Audio Output

Audio Input

Note: To activate Audio function, the Audio function must be enabled please refer to 5.5.2

Video Streaming.

3. Installation

1. Before screwing the camera to the wall, stick the supplied Mounting Sticker on the wall /

ceiling to mark the position for installation. Drill four holes on the wall / ceiling according

to the supplied sticker and push the supplied four Screw Anchors into the four holes on

the wall / ceiling. Drill another hole in the middle of the Sticker if you wish to run the

wires into the wall / ceiling.

Wall / Ceiling

2. Check that the holes of the Mounting Sticker are correct.

Wall / Ceiling

3. There are two ways to tread the cables:

a. Through the wall / ceiling: run the cables through the hole on the wall / ceiling.

Wall / Ceiling

b. The other way is to cut the side of the mounting plate and fix the wire on it, the

placement can be arbitrarily placed on the top, bottom, left and right according to the

installation situation.

4. Connect the camera to power. You can either connect the camera to a 12VDC power

source or to a PoE switch using the PoE cable.

5. Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through

the supplied Waterproof Ring, Cable Gland, Stopper and Screw Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable.

Screw Cap

Cable Gland

d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should

be placed into the RJ-45 connector based on the following order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

6. Remove the four screws of the upper cover through the supplied Hexagon Wrench.

7. Use two supplied Small Screws to lock the camera base and the mounting plate.

8. Optionally insert a micro SD card into the card slot (please refer to 2. Physical

Description).

9. Remove the screw to adjust the pan / tilt / rotate angles of the lens.

10.Before screwing back the camera cover, remove the 2 old desiccant bags from the inside

of Camera Cover and replace them with the supplied Desiccant Bag. Screw the camera

cover back to the camera.

Remove the 2 desiccant bags

Note: Please screw back the

Camera Cover immediately

in case of reducing the

absorption capacity of the

desiccant bag inside the

camera body.

11.After adjusting the direction and angle of the lens, tighten the upper cover screws.

Wall / Ceiling

12.The installation is complete.

Wall / Ceiling

4. Accessing the Camera

You can look up the IP address of the IP camera using the IP Utility (IPU) program, which is

included in the software CD.

The default network is DHCP. However, if there is no dynamic IP address assigned to the

device, its IP will switch to 192.168.0.10. By default, the ID is admin and there is no

password. Please input a password for the first-time login.
