Everbilt Clia 100 Manual de usuario

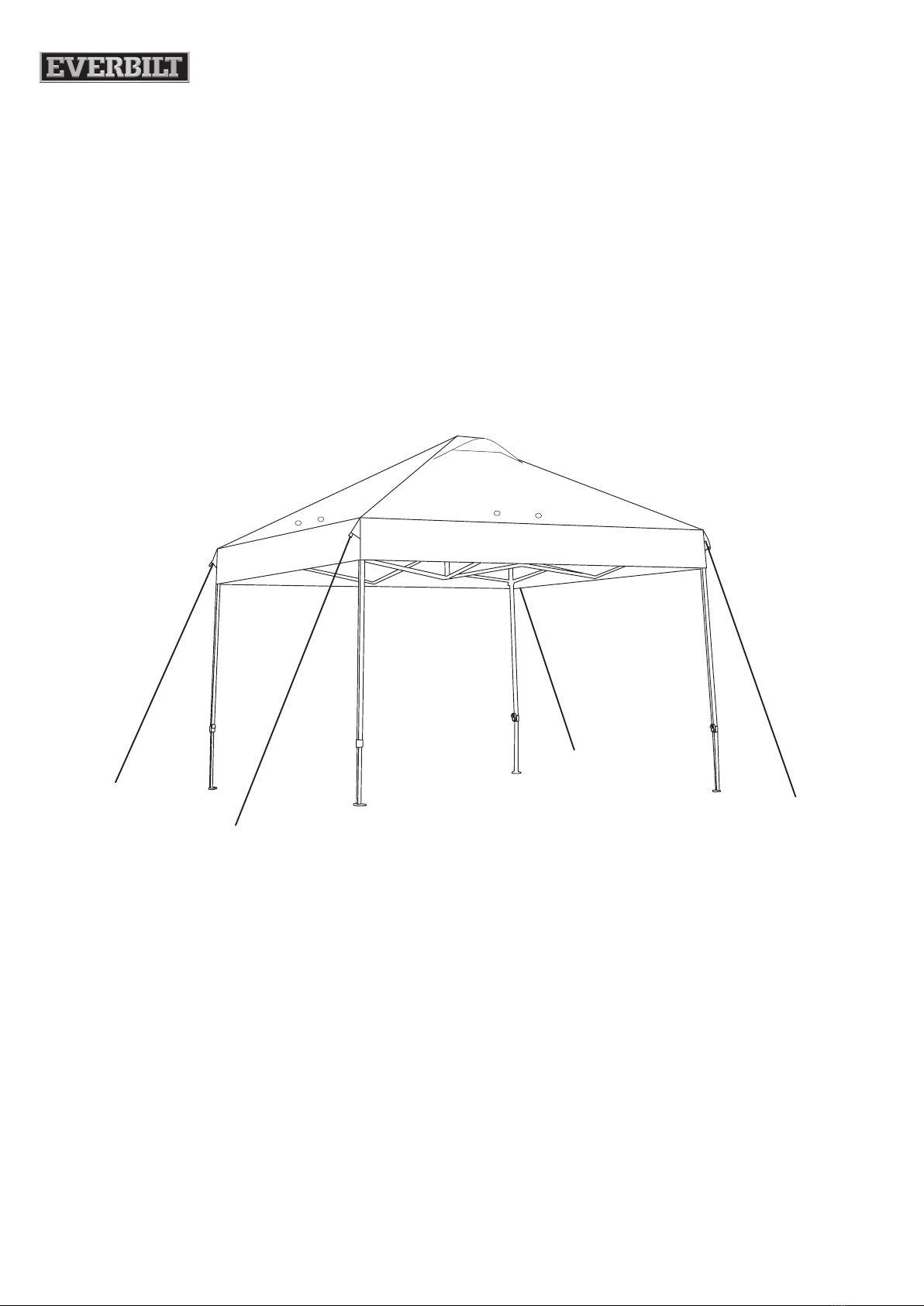

Clia 100 10 ft. x 10 ft. Canopy
ATTENTION!
IMPORTANT: READ THIS INFORMATION BEFORE PROCEEDING!
To avoid damage to your frame, please read the enclosed instruction
carefully before setting up your canopy.
C
C
Drain Holes
With two persons on the diagonal ends, lift and partially pull
the canopy frame apart.
Unfold the canopy and place on top of the canopy
frame.
Secure the canopy top to the corners of the canopy
frame using the Velcro connections.
Under the canopy, place one hand on the upper frame and
use the other hand to push the central hub straight up until
it clicks into the central pole.
Finish attaching the canopy top inside the canopy frame
using the Velcro loops.
Press the red button on each leg and raise or lower to adjust
the canopy height.
Insert a stake into the foot of each canopy leg.
Measure out each leg to a proper distance and secure four stakes to the ground. Attach the ropes to the canopy top and tie the attached
ropes to the stakes in the ground. Ensure the ropes have the proper tension by adjusting the plastic adjusters on the ropes.
Please Contact 1-800-305-1726 for further assistance.
REMOVING THE STAKES AND RETRACTING THE LEGS
Pull up all stakes from the ground.
Press the push button on each leg and retract
the legs to their original height.
UNLOCKING THE CANOPY
Go under the canopy, press the red lock button.
Pull down the central hub until it is separated
from the central pole.
FOLDING THE FRAME
Lift one leg of the frame until the two neighbouring
legs are raised off the ground. Push inward until
the frame is fully closed.
PACKING THE CANOPY IN THE STORAGE BAG
With the canopy feet facing the rollers, slide
the wheeled storage bag over the closed
canopy frame.
Close the zipper on the wheeled storage bag.
Contact the Customer Service Team at 1-800-305-1726 or visit HOMEDEPOT.com.
Please Contact 1-800-305-1726 for further assistance.
K
K
L
L
Canopy Top
Red: SP159
True Blue: SP160
Grey: SP161
To inquire about replacement parts, please call toll free 1-888-502-9589, Monday - Friday, 9:00 AM - 4:00 PM PST; or email to [email protected]
SP280
SP025
SP026
SP027
SP028
SP029
SP030
SP032
SP277
SP034
SP041
Please Contact 1-800-305-1726 for further assistance.
