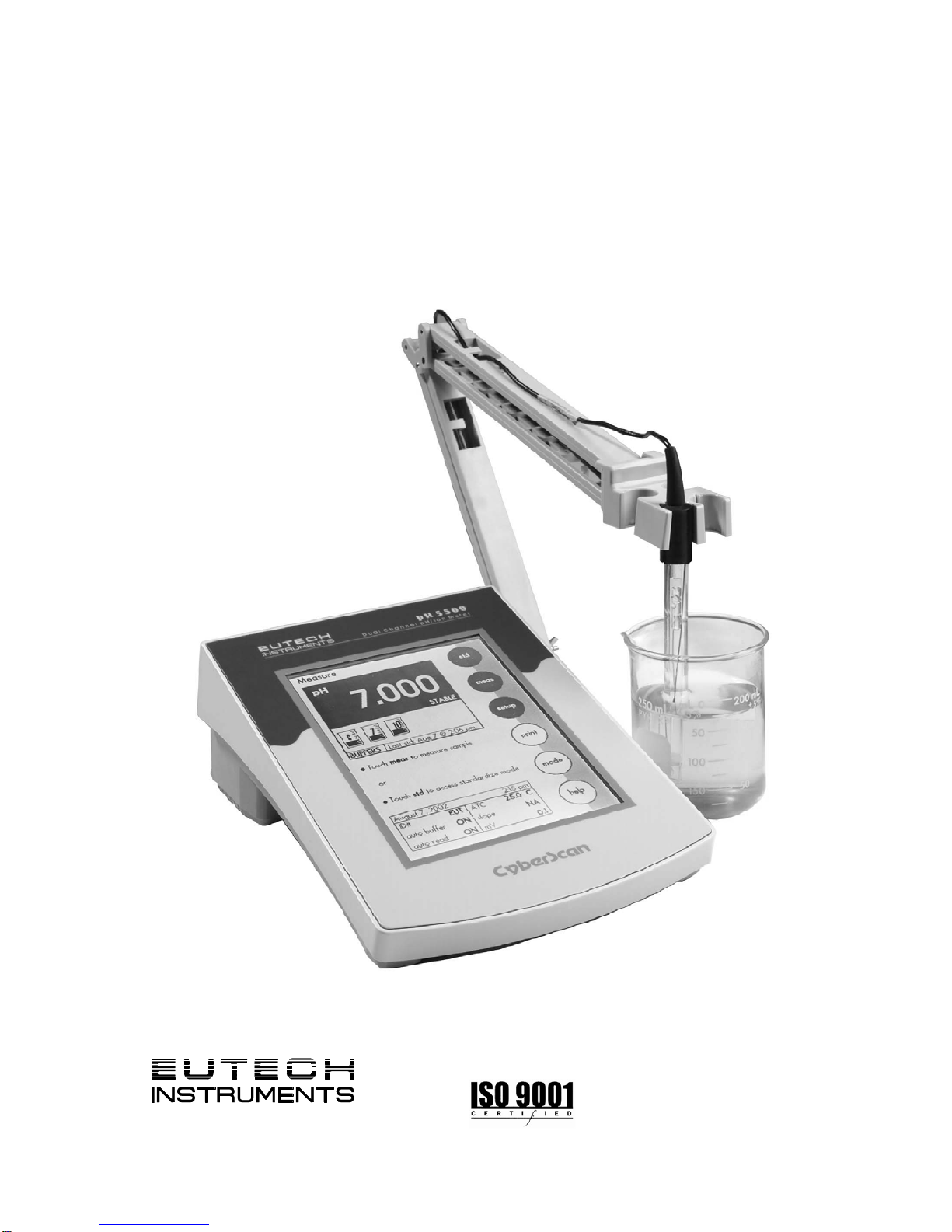

EUTECH INSTRUMENTS CYBERSCAN PH 5000 PH METER Manual de usuario

Instruction Manual

CyberScan pH 5500/ 5000

Bench pH & Ion Meter/ Bench pH Meter

Technolo

ade

68X292328

Rev. 1 07/03

PREFACE

Thank you for selecting the Eutech Instruments this CyberScan

Series 5000 bench meter. This meter measures pH, mV and ion (Ion

measurement available in CyberScan pH5500 only).

The instruction manual serves to explain the use of the CyberScan

Series 5000 bench meters as a step-by-step operational guide to

help you familiarize with the meter’s features and functions. It is

structured sequentially with illustration of diagrams that explains the

various functions and setup menus available.

This manual is written to cover as many anticipated applications and

uses of the CyberScan Series 5000 bench meters as possible. If

there are doubts in the use of the meter, please do not hesitate to

contact the nearest Eutech Instruments’ Authorized Distributors or

call us at (65) 6778-6876 for Eutech Instruments’ Customer Service

Dept. for assistance.

Kindly remember to complete the warranty card and mail it back to

your Authorized Distributors or Eutech Instruments Pte Ltd.

Eutech Instruments reserve the rights to change, make improvement

and modify specifications without prior notice and cannot accept any

responsibility for damage or malfunction to the instrument caused by

improper use.

Rev. 1 07/03

Instruction Manual CyberScan pH5500/ 5000

TABLE OF CONTENTS

1INTRODUCTION 1

1.1 Introducing the CyberScan Series 5000 1

2UNPACKING THE METER 2

3GETTING STARTED 3

3.1 Connectors 3

3.2 pH Electrodes & Ion Specific Electrodes 5

4USING THE METER 7

4.1 Touch screen Operation 8

4.2 Choosing a Channel (For CyberScan pH5500 only) 9

4.3 Button Functions 11

5SYSTEM SETUP 13

5.1 Access System Setup 14

5.2 Select Language 16

5.3 Set Date 18

5.4 Set Time 20

5.5 Set Beeper Status 22

5.6 Select Procedural Level 24

5.7 Set Print Configuration 26

5.8 Set Baud Rate 28

5.9 Set Number of Bits 29

5.10 Set Stop Bits 30

5.11 Set Parity 31

5.12 Set Operator 32

5.13 Set Display Contrast 34

5.14 Display Meter Information 36

5.15 Reset to Factory Defaults 37

6pH SETUP 38

6.1 Access pH setup 39

6.2 Set Sample ID# 41

6.3 Select Buffer Group 45

6.4 Set pH Custom Buffer Group 47

6.5 Select Buffer Recognition 49

6.6 Select Auto Read Mode 50

6.7 Set pH Stability Criteria 51

6.8 Set Default Temperature 53

6.9 Set Isopotential Point 55

6.10 Set Alarm Limits 57

6.11 Set Print Criteria 59

6.12 Set Print Interval 61

6.13 Set Data Storage Criteria 63

6.14 Set Display Resolution 65

6.15 Set Display Configuration 67

6.16 View Stored Data 69

7mV SETUP 73

7.1 Access mV Setup 74

7.2 Set Display Resolution 78

8ION SETUP 80

8.1 Access Ion Setup 81

8.2 Select Ion Method 83

8.3 Select Measurement Units 85

8.4 Select Electrode Type 87

8.5 Set Significant Digits 89

9pH OPERATION 91

9.1 Standardizing 93

9.2 pH Measurements 97

10 mV OPERATION 99

10.1 mV Measurement 100

Instruction Manual CyberScan pH5500/ 5000

11 ION OPERATION 101

11.1 Direct Reading Methods 103

11.2 Incremental Methods 109

11.3 Known Addition Method 111

11.4 Known Subtraction Method 115

11.5 Analate addition 117

11.6 Analate Subtraction 119

12 CLEANING 121

13 TROUBLE SHOOTING 122

14 COMPLIANCE 123

15 APPENDIX 124

15.1 Determining Isopotential Points Experimentally 124

15.2 Data Management 125

15.3 Factory Default Settings 126

15.4 pH Theory 128

15.5 ISE Theory 133

16 METER SPECIFICATIONS 137

17 ACCESSORIES 139

17.1 Replacement Meters and Adapters 139

17.2 General Purpose pH / ORP Electrodes SP 140

17.3 Specialty pH Electrode NP 141

17.4 pH Buffer Solutions & Single Use Sachets SP 142

17.5 ORP Solutions SP 142

18 WARRANTY 143

Instruction Manual CyberScan pH5500/ 5000

1 INTRODUCTION

1.1 Introducing the CyberScan Series 5000

Thank you for selecting a Eutech Instruments CyberScan Bench

meter. This manual describes the operation of the CyberScan Series

5000 bench meters. The state-of-art meter that you have purchased

is easy to operate and will guide you through the various functions by

displaying easy to understand prompts. This instruction manual

should answer any questions that might arise in operating your meter,

however, do not hesitate to call our Technical Support at (65)

67786876 (ext 837) or fax at (65) 67730836.

This bench meter provides microprocessor precision in a compact

benchtop design that is easy to use. One touch screen controls all

procedures, letting you:

Measure pH, absolute mV, relative mV ,

ion concentration (CyberScan pH5500 only)

Select one of three sets of standard buffer groups

Implement automatic buffer recognition

Standardize with up to five standard or customer buffers

Customise your display screen and operating parameters

Assign operator and sample identification numbers

Store 250 data points in the meter’s memory or transfer data to

a computer or printer.

Access extensive online help with just a touch a button

It all adds up to rapid, completely automatic, intuitive operation.



You will find this symbol appearing in this manual; it indicates useful

tips that ease your meter operation.

Instruction Manual CyberScan pH5500/ 5000

2 UNPACKING THE METER

The following is a listing of what you should have received with your

new CyberScan meter.

Meter package includes

Meter

Power adapter (120 VAC/ 12VDC) OR (220 VAC/ 12 VDC)

depending on order code.

Electrode arm support bracket

Electrode arm

ATC probe

Instruction Manual

If any of these items are missing, please contact your nearest

Authorized Distributor.

Accessory conductivity probes and ion selective electrodes are

available and can be ordered by contacting any Authorized Distributor

or Eutech Instruments Marketing (65) 67786876.

Instruction Manual CyberScan pH5500/ 5000

3 GETTING STARTED

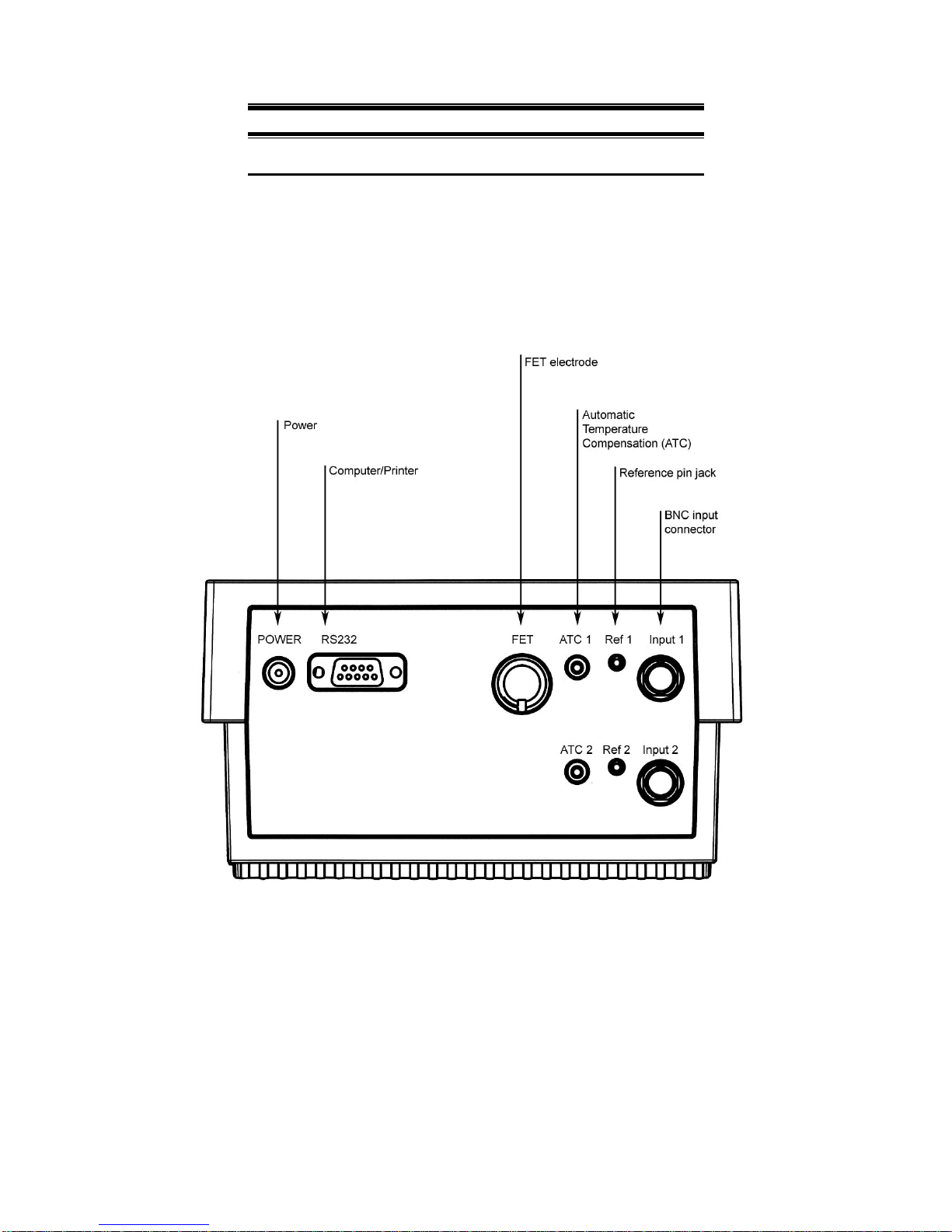

3.1 Connectors

1. Review the layout and arrangement of the rear connector panel.

Instruction Manual CyberScan pH5500/ 5000

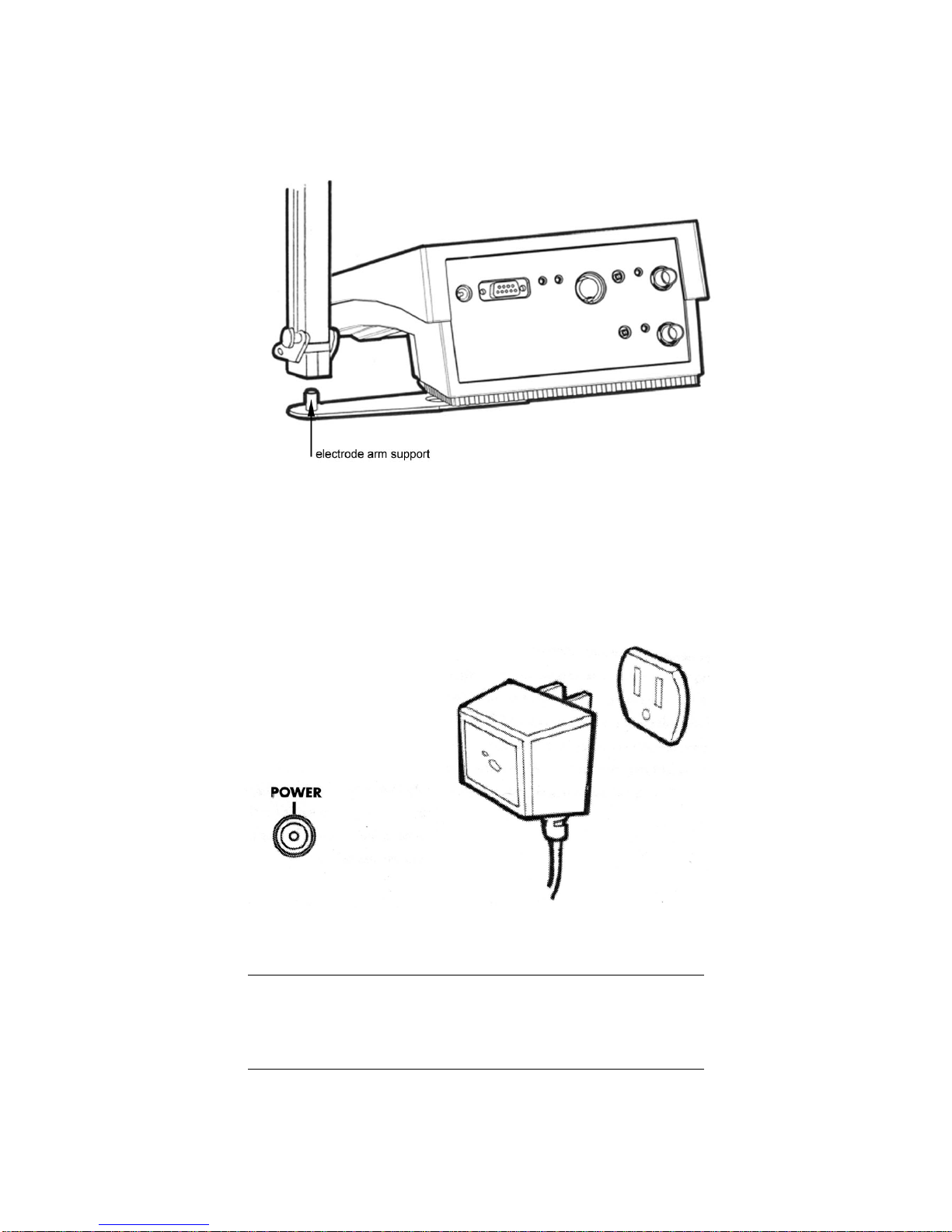

2. Connect the electrode arm to the base.

3. Connect the power cable to the connector cable to the rear

connector panel power jack and to a power source.



To connect RS232, see Data Management on Section 15.2.

Instruction Manual CyberScan pH5500/ 5000

3.2 pH Electrodes & Ion Specific Electrodes

(Ion Specific Electrode applicable for CyberScan pH5500 only)

This meter allows you to use two types of pH electrodes: the

conventional glass pH electrode and the field effect transistor (FET)

pH electrode.



If both types of pH electrodes are connected, the meter will read the

FET electrode.

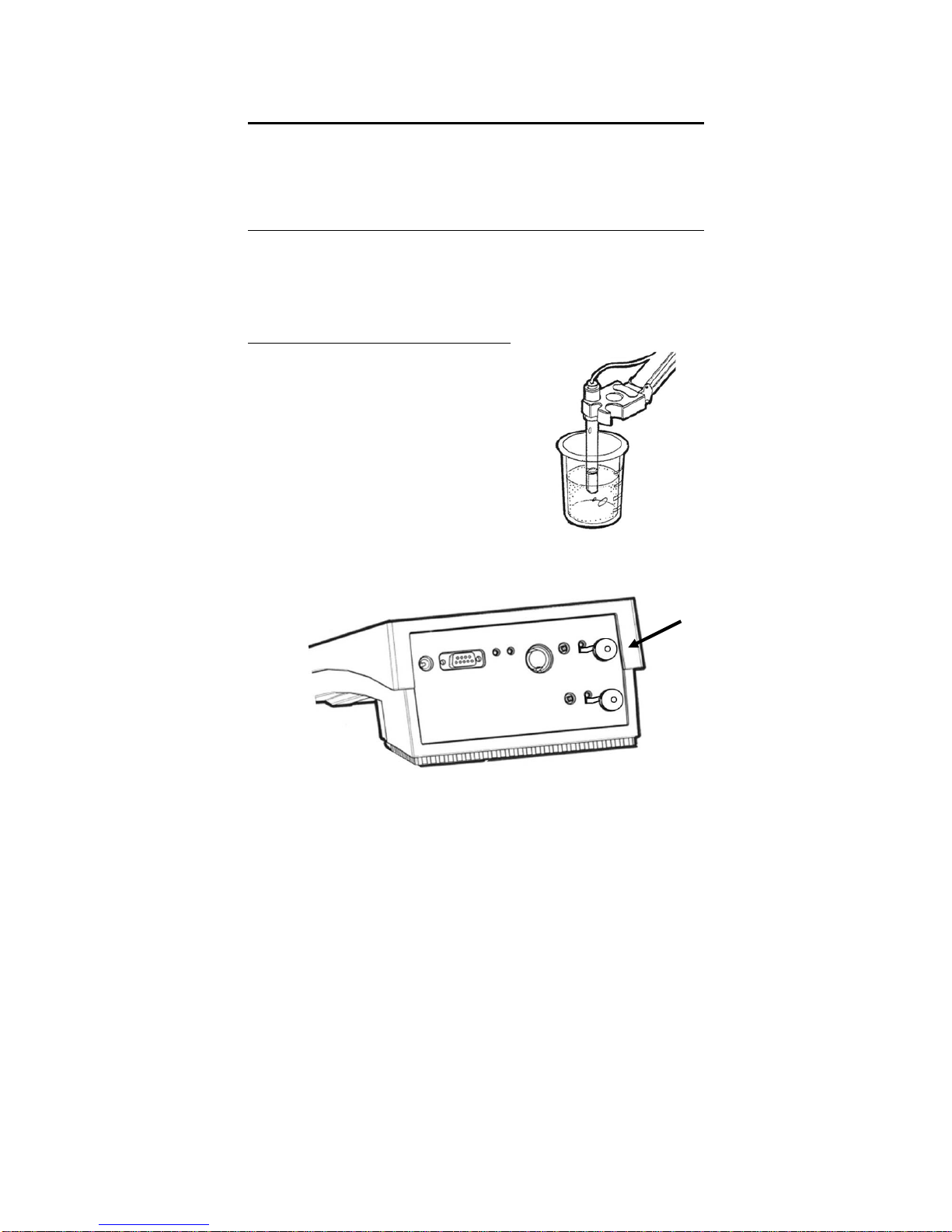

1. Carefully remove the protective

cover from the end of the electrode.

Before first using your glass pH

electrode, soak it 2-4 hours in an

electrode storage solution, pH 4

buffer, or KCI solution.

2. Remove the shorting cap on BNC connector. Connect the

combination pH electrode in to the BNC input connector.

If a combination electrode is not used, connect the indicating pH

electrode into the BNC input connector. Plug the reference

electrode into the reference pin jack. Also, install the ATC probe

into the ATC jack.

Note:

Be sure to connect all probes to the appropriate channel

connectors (for example: Input 1, Ref 1 and ATC1).
