EtherWAN EMC400 Manual de usuario

W70G-EMC400XQ2 Page 1

Installation Guide

EMC400 | 4-Slot Din-Rail Media Converter Chassis

1Unpacking

Open the carton and unpack the items. Your package

should include:

▪One 4-Slot Din-Rail Media Converter Chassis

If any items are missing or damaged, notify your

EtherWAN representative.

2Select a Location

The installation site should be free of extreme

temperatures, humidity, or excessive electromagnetic

interference. Specifically, the site should meet the

following requirements:

▪The ambient temperature should be between 0

and 45 degrees Celsius (32 to 113 degrees

Fahrenheit).

▪The relative humidity should be at least 5% and

less than 95 percent, non-condensing.

3Connect Power

Power supply is via redundant 12VDC terminal block

power inputs. However, only one power supply is

needed to operate the chassis.

▪Power supply input is 90~264VAC.

▪EMC400 Chassis Input is 12VDC.

▪Use minimum 16AWG cable for wiring.

▪Power Consumption is 19W Max. @ full

installation, depending on installed devices.

Power Input Assignment

Power 1, 2

12VDC

Terminal Block

Power Ground

Earth Ground

4Status LEDs

LED

State

Indication

PW1

Steady

PW1 on

Off

PW1 off

PW2

Steady

PW2 on

Off

PW2 off

W70G-EMC400XQ2 Page 2

Installation Guide

EMC400 | 4-Slot Din-Rail Media Converter Chassis

5Install Devices to Chassis

Each bay is equipped with a holding tray, secured to

the chassis by a retaining screw. To install a media

converter:

▪Unscrew the carrier from the desired bay first to

install a media converter onto any of the carriers.

▪Fit the media converter onto the carrier.

▪Insert the carrier to the guide rails of the bay slot

when the media converter is completely seated

onto the carrier.

▪Carefully slide in the carrier until it is fully and

firmly fitted to the power socket. Fasten the

screws on the carrier.

6Assembly, Startup, and Dismantling

Assembly: Place the device on the DIN-Rail from

above using the slot. Push the front of the device

toward the mounting surface until it audibly snaps

into place.

Startup: Connect the supply voltage to start up the

device via the terminal block.

Dismantling: Pull out the lower edge and then remove

the device from the DIN-Rail.

Manufacturer information:

EtherWAN Systems, Inc.

33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New

Taipei City, 221 Taiwan

The full product manual can be downloaded from:

www.etherwan.com

Otros manuales de Convertidor de medios de EtherWAN

EtherWAN

EtherWAN EL900 Series Manual de usuario

EtherWAN

EtherWAN EMC1600 Series Manual de usuario

EtherWAN

EtherWAN EL2326 Series Manual de usuario

EtherWAN

EtherWAN EL9020 Manual de usuario

EtherWAN

EtherWAN EL2242-BT Manual de usuario

EtherWAN

EtherWAN EL2321 Manual de usuario

EtherWAN

EtherWAN EL2321 Manual de usuario

EtherWAN

EtherWAN EL1032T Series Manual de usuario

EtherWAN

EtherWAN EL100 Manual de usuario

EtherWAN

EtherWAN EL8000 Manual de usuario

EtherWAN

EtherWAN EL110 Series Manual de usuario

EtherWAN

EtherWAN EL1033 Manual de usuario

EtherWAN

EtherWAN EL50 Series Manual de usuario

EtherWAN

EtherWAN EX42011 Manual de usuario

EtherWAN

EtherWAN EL9100 Manual de usuario

EtherWAN

EtherWAN EL900 Series Manual de usuario

EtherWAN

EtherWAN EL2211 Manual de usuario

EtherWAN

EtherWAN EL1141 Series Manual de usuario

EtherWAN

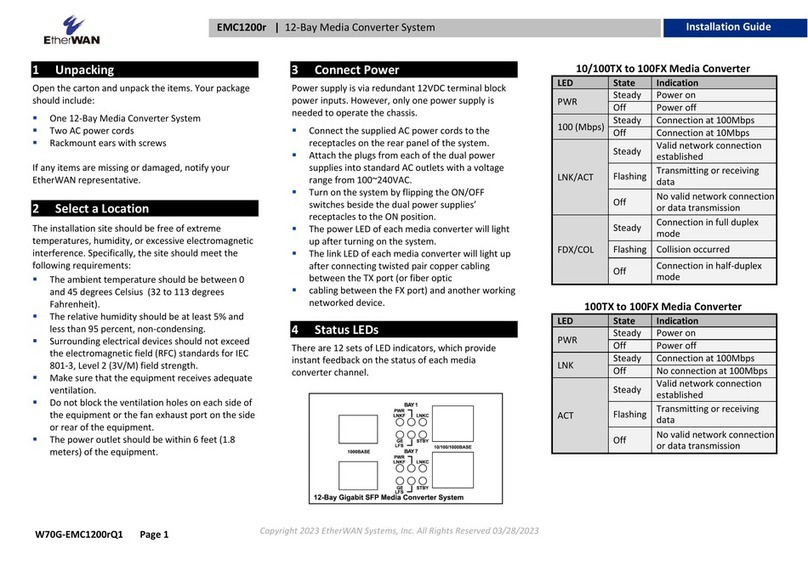

EtherWAN EMC1200R Manual de usuario

EtherWAN

EtherWAN EL2242 Manual de usuario

EtherWAN

EtherWAN EL900 Series Manual de usuario

EtherWAN

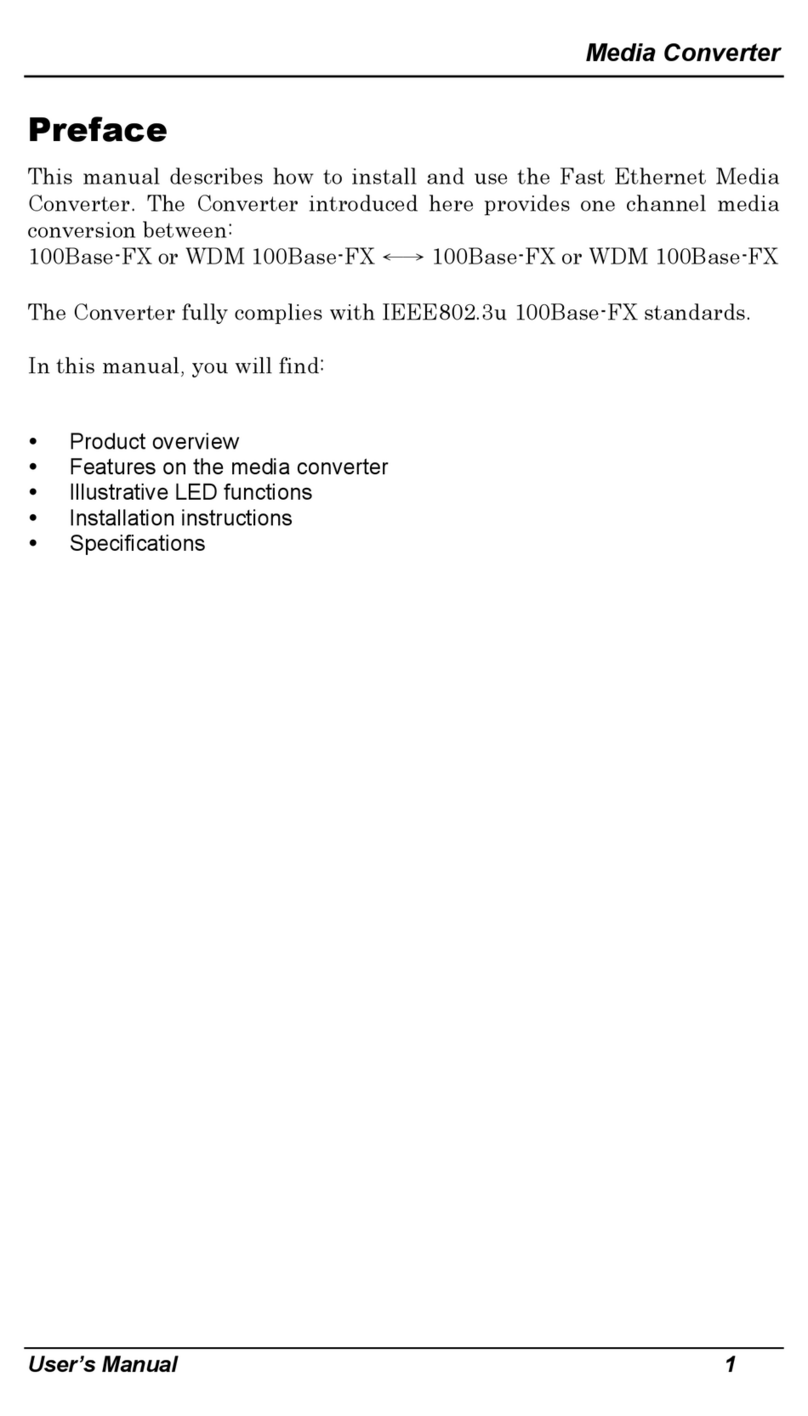

EtherWAN EM120 Manual de usuario
