EL2321 Media Converter

1 EL2321 User’s Guide

FCC Statement

The FCC (Federal Communications Commission) restricts the amount of radio

frequency emission and radiation coming from computer equipment.

The equipment introduced in this manual has been tested and found to comply with the

limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy, and if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user is required to correct the interference at his/her own expense.

Any changes or modifications not expressly approved by the manufacture would void the

user’s authority to operate the equipment.

Trademarks

Product names mentioned in this manual may be trademarks or registered trademarks

of those products.

All trademarks or brand names mentioned are properties of their respective owners.

Preface

This OAM Managed 10/100/1000BASE-TX to 1000BASE-FX or 100/1000BASE SFP

Dual Rate Media Converter can be monitored and configured through management via

SNMP or browser interface. This manual describes how to install and use the Media

Converter. The Media Converter introduced here provides one channel media

conversion solution:

10/100/1000Base-TX to 1000Base-FX or 100/1000Base SFP interface

This Media Converter fully complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX,

802.3ab 1000BASE-T, 802.3z 1000BASE-X Ethernet standards.

In this manual, you will find:

 Product overview

 Features on the media converter

 Illustrative LED functions

 Installation instructions

 System configuration

 Specifications

EL2321 Media Converter

2 EL2321 User’s Guide

Table of Contents

FCC Statement ............................................................................................................... 1

Trademarks..................................................................................................................... 1

Preface ............................................................................................................................ 1

Table of Contents .......................................................................................................... 2

Introduction .................................................................................................................... 3

Product Overview ....................................................................................................... 3

Product Features ........................................................................................................ 4

Packing List ................................................................................................................ 4

Physical Ports ............................................................................................................. 5

Port Status LEDs ........................................................................................................ 5

Installation ...................................................................................................................... 6

Selecting a Site for the Equipment ............................................................................. 6

Connecting to Power .................................................................................................. 6

Installing in a Chassis ................................................................................................. 6

System Configuration ................................................................................................... 7

Logging on to the Media Converter ............................................................................ 7

Main Menu / Local Device Information ....................................................................... 8

Local Setting ............................................................................................................... 9

Remote Setting ......................................................................................................... 19

Logout ....................................................................................................................... 27

Reset Button................................................................................................................. 28

Specifications .............................................................................................................. 28

EL2321 Media Converter

3 EL2321 User’s Guide

Introduction

The EL2321 Media Converter provides one channel for media conversion between

10/100/1000Base-TX to 1000Base-FX fixed fiber or 100/1000Base SFP interface with

link-fault-pass-through function. It is 802.3ah OAM compliant, and can be used as a

stand-alone device or with an EtherWAN chassis as shown below.

Product Overview

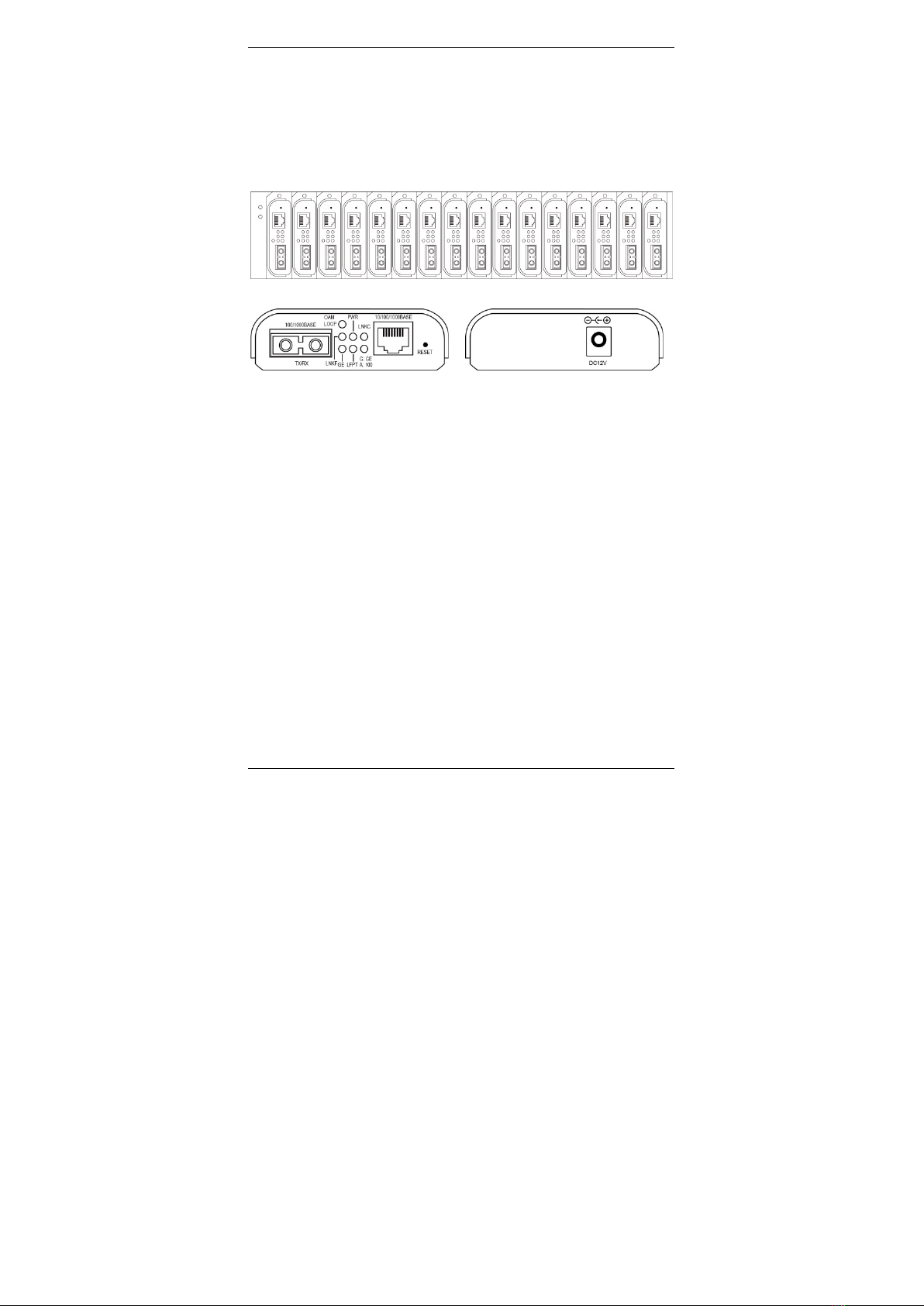

Figure 1:

EL-2321 Media Converter with link-fault-pass-through function

NOTE: Chassis is ordered separately.

EL2321 Media Converter

4 EL2321 User’s Guide

Product Features

 Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T,

802.3z 1000BASE-X

 Complies with IEEE 802.3ah OAM standard

 Supports SNMP V1, V2 Management

 Supports IN-BAND Loop Back and Diagnostic

 Gigabit transmission supports 9K bytes jumbo frame

 One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber

transmission

 Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure

for half duplex

 Auto-Negotiation, Auto-MDI/MDIX

 Full wire-speed forwarding rate

 Supports Wall Mounting installation or use with EMC1600 media converter chassis

system.

Packing List

When you unpack this product package, you will find the items listed below. Please

inspect the contents, and report any apparent damage or missing items immediately to

your authorized reseller.

 The Media Converter

 User’s Manual

 AC to DC Power Adaptor

EL2321 Media Converter

5 EL2321 User’s Guide

Physical Ports

This converter provides one 10/100/1000Base-TX RJ45 port and one 1000Base-FX

fixed fiber port or a 100/1000 Dual Rate SFP socket. For the 100Base and 1000Base

dual rate SFP socket, it provides options of multi-mode/single-mode or WDM

multi-mode/single-mode fiber. For the RJ45 TX port supports auto negotiation and auto

MDIX.

Port Status LEDs

The LED indicators give you instant feedback on status of the converter:

LED State Indication

PWR (Green) Steady Power On

Off Power Off

Copper Port

Speed

Steady Green: Copper Port connection at the speed of

1000Mbps

Amber: Copper Port connection at the speed of

100Mbps

Off Copper Port connection at the speed of 10Mbps

LNKC (Green)

Steady A valid network connection is established on TX port

Flashing Data transmitting

OAM LOOP

(Green)

Steady When device in OAM Active Mode

Flashing Blinks for 4 seconds if loopback testing pass, when

device in OAM Passive Mode

GE Steady Fiber port connection at the speed of 1000Mbps

Off Fiber port connection at the speed of 100Mbps

LNKF (Green) Steady A valid network connection is established on TX port

Flashing Data transmitting

LFPT (Green) Steady LFPT function enabled

Off LFPT function disabled

EL2321 Media Converter

6 EL2321 User’s Guide

Installation

This chapter gives step-by-step installation instructions for the Converter.

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where it will not be

subjected to extreme temperatures, humidity, or electromagnetic interference.

Specifically, the site you select should meet the following requirements:

 The ambient temperature should be between 0 to 50 degrees Celsius (32 and 122

degrees Fahrenheit).

 The relative humidity should be less than 95 percent, non-condensing.

 Surrounding electrical devices should not exceed the electromagnetic field (RFC)

standards for IEC 801-3, Level 2 (3V/M) field strength.

 Make sure that the equipment receives adequate ventilation. Do not block the

ventilation holes of the equipment.

 The power outlet should be within 1.8 meters of the product.

Connecting to Power

This Converter is a plug-and-play device.

Connect the supplied AC to DC power adapter to the receptacle at the back of the

converter.

Attach the plug into a standard AC outlet.

Installing in a Chassis

The Converter is designed to fit into any of the expansion slots on an EtherWAN

rackmount chassis.

 Unscrew the carrier from the desired expansion slot on the chassis.

 Fit the converter onto the carrier.

 When the converter is completely seated onto the carrier, insert the carrier to the

guide rails of the expansion slot.

 Carefully slide in the carrier until it is fully and firmly fit the chassis.

 Fasten the carrier to the chassis by the screws.

NOTE: Never insert any converter into the chassis directly without using the

supplied carriers. The carriers allow secure and consistent placement of the

converters into the chassis’ backplane without causing any damage.

EL2321 Media Converter

7 EL2321 User’s Guide

System Configuration

This chapter provides network managers and system administrators with information

about how to configure the OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX

Dual Rate Media Converter via the Web Browser.

Logging on to the Media Converter

The default IP Address for the media converter is 192.168.1.10. Enter the factory default

Username (admin). Enter the factory default Password (no password). Then click on the

“Login” button to log on.

EL2321 Media Converter

8 EL2321 User’s Guide

Main Menu / Local Device Information

The information displayed on this page gives specific device information, network

information, and port status for the EL2321 and for a remote device that supports OAM.

EL2321 Media Converter

9 EL2321 User’s Guide

Local Setting

IP Configuration

DHCP Client: Click “DHCP Client” drop-down menu to choose “Disable” or “Enable”

from the “DHCP Client” drop-down list to disable or enable DHCP Client setting for the

media converter. You will need to set the IP Address, Subnet Mask, and Gateway

manually if DHCP Client is disabled. The IP Address will be provided by DHCP Server if

DHCP Client is enabled.

IP Address: Click in “IP Address” text box and type a new address to change the IP

Address.

Subnet Mask: Click in “Subnet Mask” text box and type a new address to change the

Subnet Mask.

Gateway: Click in the “Gateway” text box and type a new address to change the

Gateway.

Description: Click in the “Description” text box and type a description for the media

converter. Description field can only be a number, in English, or “*@_-“.

Apply: Click “Apply” button when you have finished the IP Configuration.
