ETC Source Four Mini LED Manual de usuario

Part Number: 7063M1220 Rev: D

Released: 2017-04

Source Four Mini™LED

User Manual

ETC

and Source Four Mini

™

are either registered trademarks or

trademarks of Electronic Theatre Controls, Inc. in the United

States and other countries.

All other trademarks, both marked and not marked, are the

property of their respective owners.

ETC intends this document, whether printed or electronic, to be

provided in its entirety. This product is intended for professional

use only. Read this entire document before using this product.

Table of Contents

Table of Contents i

Introduction . . . . . . . . . . . . . . . . . . . . . . . 1

Basic assembly . . . . . . . . . . . . . . . . . . . . . . 2

Installing a lens tube. . . . . . . . . . . . . . . . . 3

Installing a canopy or track fixture . . . . . 3

Installing a canopy fixture. . . . . . . . . . . . . . . . 4

Installing a track fixture . . . . . . . . . . . . . . . . . 6

Using the AD1 track adapter . . . . . . . . . . . 7

Adjustments . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting the yoke position . . . . . . . . . . . . . . 8

Setting the angle with the yoke . . . . . . . . 8

Locking the rotation on the canopy and

track fixtures. . . . . . . . . . . . . . . . . . . . . . . . 8

Focusing the beam . . . . . . . . . . . . . . . . . . . 9

Shaping the beam . . . . . . . . . . . . . . . . . . . . . . 9

Projecting a pattern . . . . . . . . . . . . . . . . . 10

Using the color frame holder . . . . . . . . . . . . 10

Adjusting the C-clamp on the portable

fixture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cleaning the glass lens . . . . . . . . . . . . . . 11

ii Table of Contents

Source Four Mini LED User Manual 1

Introduction

The Source Four Mini LED has three available mounting options. The portable

fixture includes a miniature C-clamp and yoke-mounted driver. The canopy-

mount fixture and track-mount fixture both include an integral driver. There

are four lens tube sizes available for each mounting option: 19°, 26°, 36°,

and 50°.

WARNING:

Please note the following safety warnings before use:

• Do not mount the fixture on or near combustible

surfaces.

• Do not operate the fixture without a lens installed.

• Always hang the fixture with the retaining clip on the

color frame holder in the locked position.

WARNING:

To reduce the risk of fire and electric shock, use the

track-mount fixture only with the DataTrack

™

(EUTRAC

)

track system.

AVERTIR:

Pour éviter le risque d'incendie ou de choc électrique

avec le modèle adaptateur pour rail, utiliser uniquement

avec une alimentation par rail DataTrack (EUTRAC).

Portable TrackCanopy

2Source Four Mini LED User Manual

Basic assembly

Color frame

retainer clip

Yoke

Pattern

holder slot

Shutter barrel

Color frame

Shutters x4

Lens tube

Beam focus knob

Safety cable

attachment

point

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, EXPOSURE

TO EXCESSIVE UV RADIATION, OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To reduce the risk of FIRE, ELECTRIC SHOCK, EXPOSURE TO

EXCESSIVE UV RADIATION, OR INJURY TO PERSONS:

1) Do not touch hot lens, guard, or enclosure.

2) Do not remain in light if skin feels warm.

3) Do not look directly at lighted lamp.

4) Keep lamp away from materials that may burn.

5) External temperature after 5 minutes of full-brightness operation

50°C (122°F).

6) External temperature when steady state is achieved 67°C (152.6°F).

SAVE THESE INSTRUCTIONS

Source Four Mini LED User Manual 3

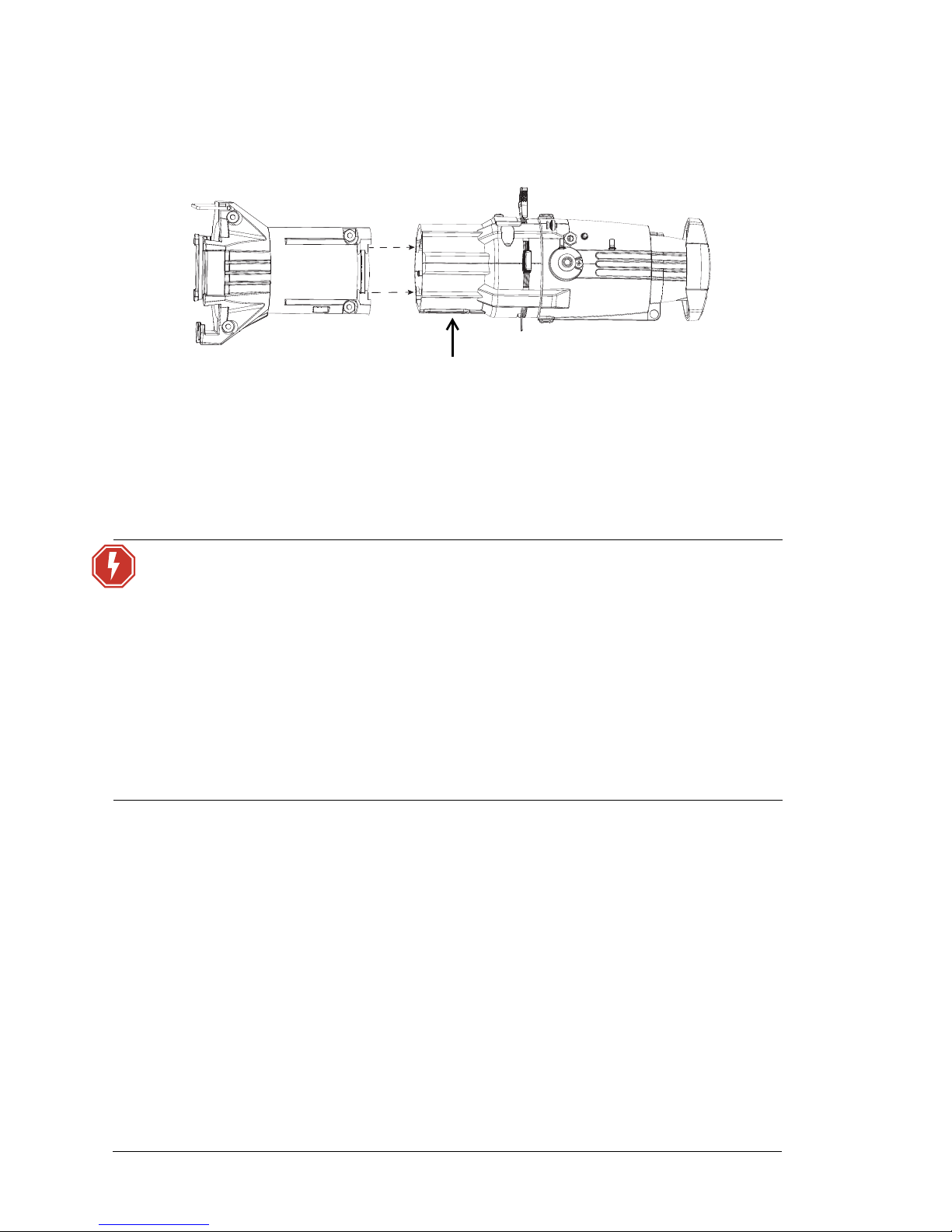

Installing a lens tube

A lens tube must be installed prior to use of the Source Four Mini LED. There

are four lens tube sizes available: 19°, 26°, 36°, and 50°.

1: Unscrew the beam focus knob from the loose lens tube.

2: Slide the lens tube into the shutter barrel.

3: Install the beam focus knob.

Installing a canopy or track fixture

WARNING:

• TURN OFF POWER at main fuse or breaker box and

verify that the power is off before proceeding with

installation.

• Wiring must meet local and national codes.

• Do not mount the fixture on or near combustible

surfaces.

• Do not operate the fixture without a lens installed.

• Always hang the fixture with the retaining clip on the

color frame holder in the locked position.

Beam focus knob

4Source Four Mini LED User Manual

Installing a canopy fixture

1: Remove the mounting plate from the fixture by removing the two

canopy screws and the ground screw. Set the ground screw safely

aside.

2: Using the mounting plate screws, secure the mounting plate to the

installed electrical box, which is not included.

Electrical box

(not provided)

Mounting plate

Canopy screws

Ground braid

Mounting plate

screws

Canopy plate

(four indentations

allow for multiple

screw nesting

positions)

Ground screw

Source Four Mini LED User Manual 5

3: Place the copper ground braid loop over the ground screw and attach

the ground screw to the electrical box.

4: Connect the building ground wire to the ground wire on the fixture,

following local electrical codes.

5: Connect your supply power wires to the lamp wiring using the included

two-position WAGO®connectors.

• For 120V fixtures: Connect the black wire to line and the white wire

to neutral.

• For 230V fixtures: Connect the brown wire to line and the blue wire

to neutral.

6: While keeping in mind the mounting plate orientation, use the canopy

screws to secure the fixture to the mounting plate.

7: Open all four of the shutter blades by sliding them outward until they

stop.

8: Install a gobo and gel as desired and confirm that they are properly

secured.

9: Restore power at the main fuse.

10: Focus the fixture as desired.

CAUTION:

The metal canopy plate has built-in indentations

allowing the mounting plate screws to nest into the

canopy plate. For an ideal flush mount installation you

may need to rotate the plate to accommodate these

indentations. See the following image.

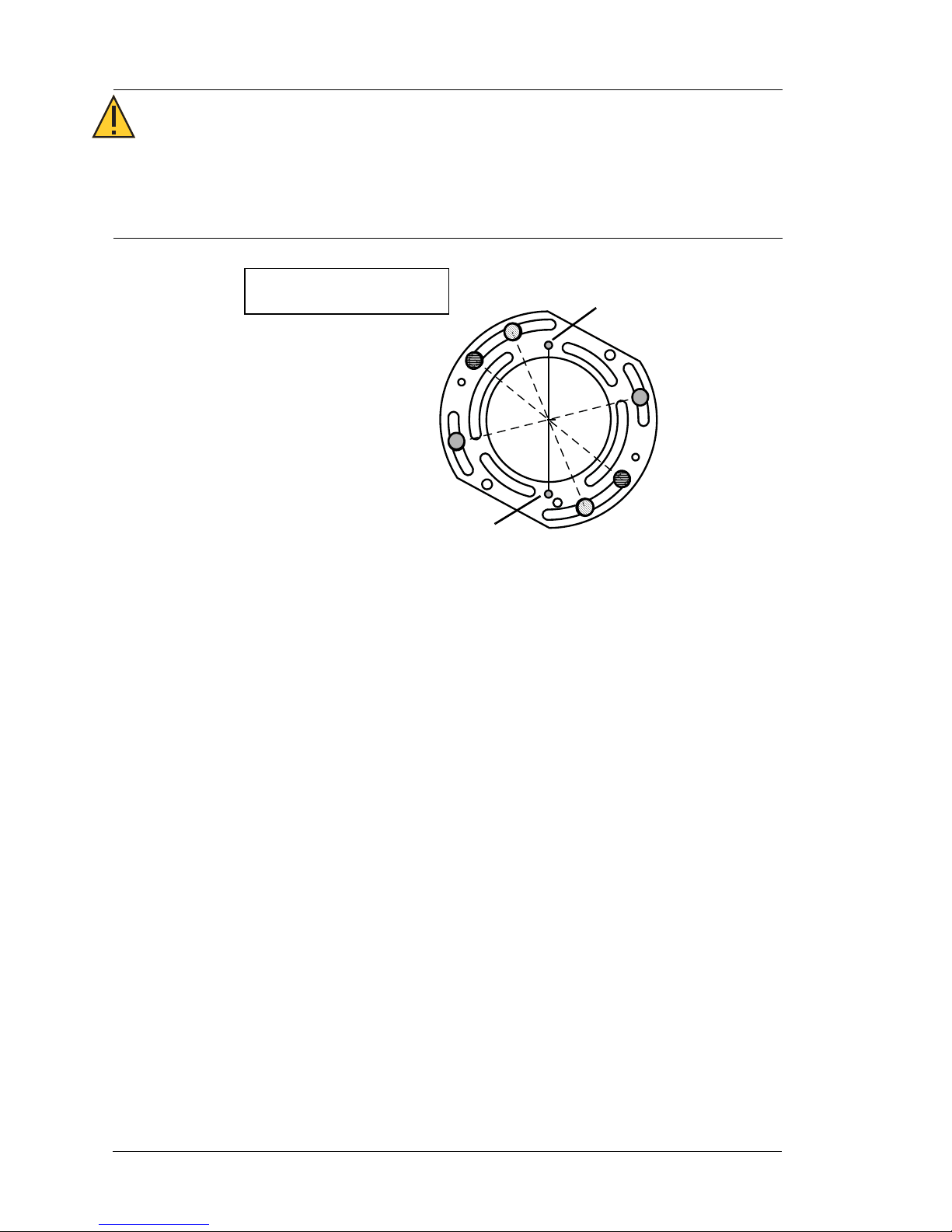

Canopy screw hole

Mounting plate screw

installation detail

Canopy screw hole

Install the mounting plate screws in one of the three position-pairings

shown. Only the slots on the outer circumference will allow a true flush

mounting.

6Source Four Mini LED User Manual

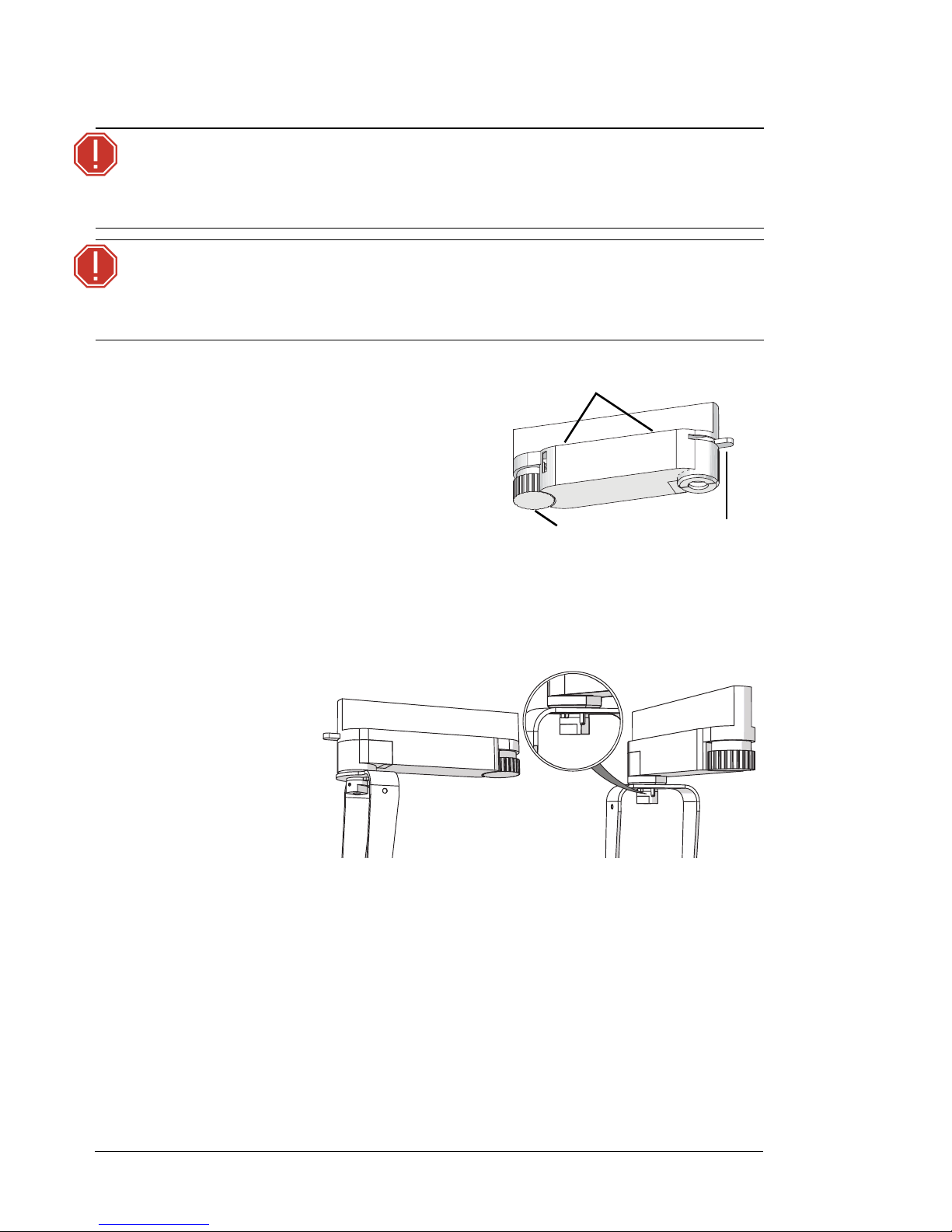

Installing a track fixture

1: Insert the track adapter into the

track. The adapter will only fit one

way into the track with the tabs of

the adapter in the groove of the

track.

2: Lock the adapter into place.

3: Select circuit 1 or 2 using the circuit

selection wheel. (The 230V track

adapter has a three-circuit selector

knob.)

4: Focus the fixture.

5: Lock the fixture into place using the yoke lock.

WARNING:

To reduce the risk of fire and electric shock, use the

track-mount fixture only with the DataTrack (EUTRAC)

track system.

AVERTIR:

Pour éviter le risque d'incendie ou de choc électrique

avec le modèle adaptateur pour rail, utiliser uniquement

avec une alimentation par rail DataTrack (EUTRAC).

Circuit

selection wheel

Lock

Tabs

Cable protection posts on

both the yoke lock and the

yoke prevent the fixture

from rotating a full 360°.

To lock the yoke in place

use a 1.5 mm Allen wrench.
