EVOLVE SERIES: Disassembly Instructions
DISASSEMBLY
22min
EVOLVE SERIES Assembled
APPLIES TO: Entire EVOLVE Series & the EDV-SLD
EVOLVE SERIES: Disassembly
DISASSEMBLY
2min
EVOLVE SERIES Components for breakdown
B
C
A: Wire Management Clip
- Plastic
B: Wire Management
Channel
- Plastic
C: Wire Management Pole
Clip
- Plastic
Material Identification
A
Recommended Tools
Gloves Goggles Phillips Screwdriver
EVOLVE SERIES: Disassembly
DISASSEMBLY
10min
EVOLVE SERIES Components for breakdown
A: Scews
- Steel
B: Vesa Plate
- Steel
C: Screws
- Steel
Material Identification
C
A
B
Recommended Tools
Gloves Goggles Phillips Screwdriver
EVOLVE SERIES: Disassembly
DISASSEMBLY
5min
EVOLVE SERIES Components for breakdown
A: Scews
- Steel
B: End Caps
- Plastic
C: Slider
- Steel

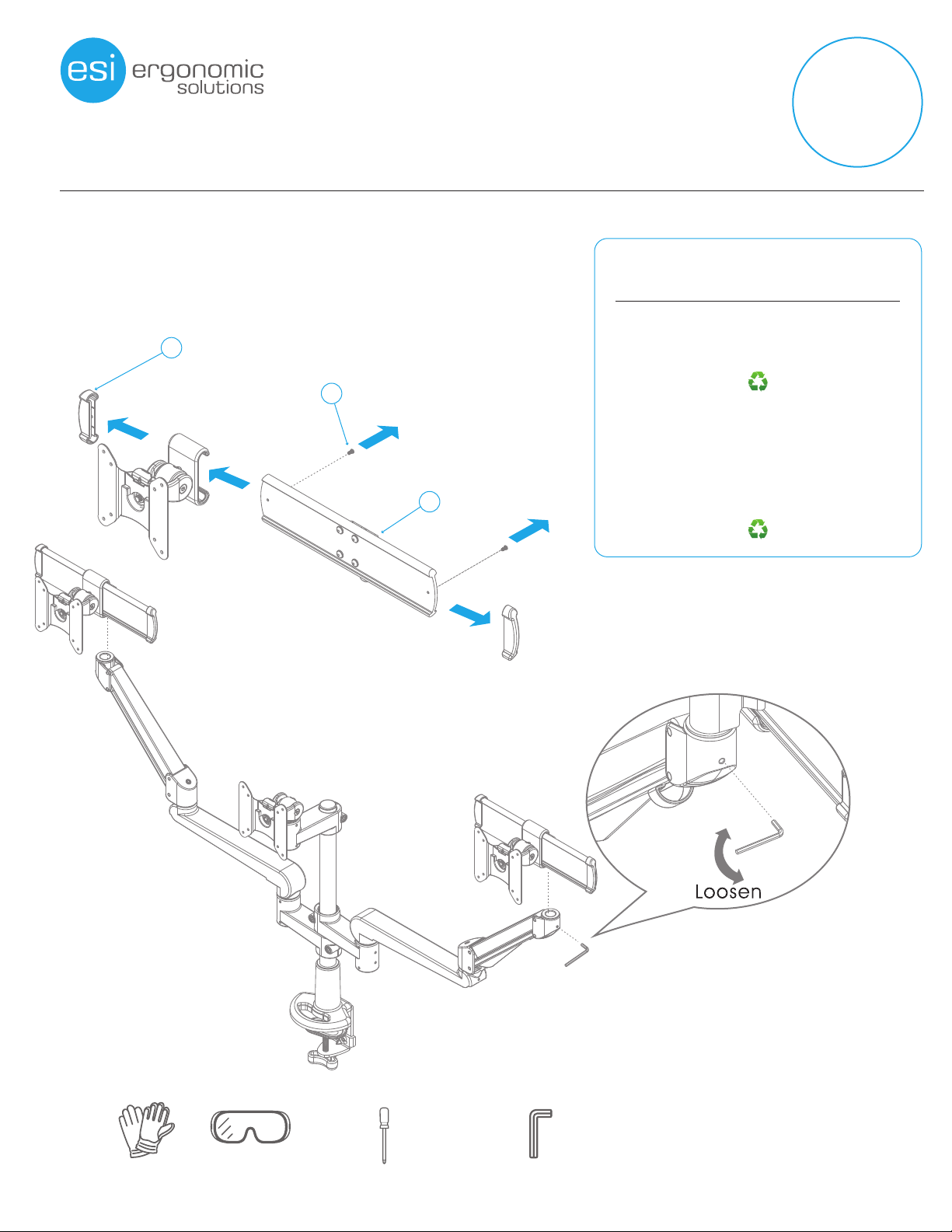

Material Identification
2mm Allen Wrench
A
B
C
Recommended Tools
Gloves Goggles Phillips Screwdriver
EVOLVE SERIES: Disassembly
DISASSEMBLY
5min
EVOLVE SERIES Components for breakdown
A: Vesa Mount
- Steel
B: Motion Arm
- Steel
C: Arm Stem
- Steel
D: Fixed Arm
- Steel
E: Pole
- Steel
F: Grommet
- Steel
G: Adhesive Pad
- Rubber
Material Identification
A
B
D
E
F
C
G
Recommended Tools
Gloves Goggles 5mm Allen Wrench
