Escali C136 Manual de usuario

PROFESSIONAL DIGITAL COUNTING SCALE

C - Series

OPERATING MANUAL

INTRODUCTION

Congratulations on your purchase of our Professional Digital Counting Scale.

In order to ensure the scale continues to deliver peak performance, please

read these operation instructions carefully and thoroughly prior to initial usage.

IMPORTANT

1. Read all instructions before operating the scale.

2. Follow the basic safety precautions for all office equipment when using this

scale.

3. The manufacturer does not warrant this unit to be waterproof. Do not

expose this product to rain or moisture.

4. Do not use the scale in direct sunlight. Keep it away from heating

appliances such as an oven, stove, etc.

5. This scale does not contain any user-serviceable parts. Do not

disassemble.

6. Use the scale for its intended purpose only.

Note: The display value may be affected by electromagnetic influences, e.g.

when a radio is operated in the immediate vicinity of the device. The product

can be used for its intended purpose again when the interference is

discontinued, but may need to be switched on again to re-start.

PARTS DESCRIPTION

SYMBOLS

1) Insufficient sample size

2) Insufficient unit weight

3) Battery Low

4) Accumulating

M+

Stainless Steel

Scale Platform

Bubble

Leveler

Weight

Display

Unit

Weight

Display Total Pcs

Display Numeric and

Function Keys

Cancel Upper

& Lower Limit

Unit Weight

Recall

Rechargeable

Battery Door

Power On/off

Switch

AC Socket Level Adjusting

feet Upper &

Lower Limit

Setting

Unit Weight

Setting

5) Cancel Accumulating MC

OPERATION

LEVEL THE SCALE

When the scale is put to use at a new place, adjust the level of the scale by turning the 4

level adjusting feet until the bubble is located in the middle position of the bubble.leveler.

ACTIVATING THE SCALE

1. Turn on the “power on/off switch”

2. All LCD displays will light up and display 9,8,7,6,5,4,3,2,1,0,A,B,C,D,E,F in turn until

the LCD displays as shown :

SET UP UNIT WEIGHT

Example : 4 pcs of pencil :

(A). Unit weight of item is unknown

1. Turn on the scale.

2. Place the samples on the platform and the exact weight of samples will be displayed.

3. Input the quantity of the samples, Then press “SET UNIT” key,

Remark: the unit weight will be stored in the scale and can be recalled by

pressing the “UNIT WGT” key.

(B). Unit weight of item is known

1. Turn on the scale.

2. Input the unit weight of the samples.

3. Press “UNIT WGT” key. The unit weight of the sample is stored in the scale.

COUNTING

1. The scale is powered on

2. Put objects on the scale platform

3. Press “UNIT WGT” key.

4. The quantity of the objects will be shown on the TOTAL (PCS) display.

ACCUMULATE COUNTING:

1. Repeat COUNTING procedures above (1) to (4).

2. Press “M+” key.

3. The ‘UNIT WEIGHT” display will show followed by .

4. After 2 seconds, the scale will return to the counting model

5. Take off the first samples and put the second samples (e.g. 30 pcs) on the scale

platform.

6. Press “M+” key.

7. The ‘UNIT WEIGHT” display will show followed by .

8. Repeat the procedures until all the samples are counted.

9. Press “ZERO” key and “CE”, to clear the “WEIGHT” and “UNIT WEIGHT” display.

10. The total accumulated quantity will be displayed by pressing “M+” key.

11. Press “MC” key to cancel the accumulated quantity.

WEIGHT ACCUMULATING

1. When the “UNIT WEIGHT” display shows 0, place samples on the scale platform.

2. Press “M+” key. The weight will be stored.

3. Take off the first samples from the scale and put the second samples on the scale

platform.

4. Repeat procedure (2) until all the samples are weighted.

5. To recall the accumulated weight, press “M+” key when “WEIGHT” and “UNIT

WEIGHT” display show “0”.

6. Cancel the accumulated weight by pressing the “MC” key.

SELECTING WEIGHT UNIT

When the scale is power on, press the “KG/LB” key repeatedly to change weight unit

according to following sequence:

kg --- g --- lb

Displays 3 modes, e.g. “kg” mode F1.500kg

“g”modeF1500g

“lb” mode F3.32lb

UPPER AND LOWER QUANTITY LIMIT SETTING

1. Turn the scale on.

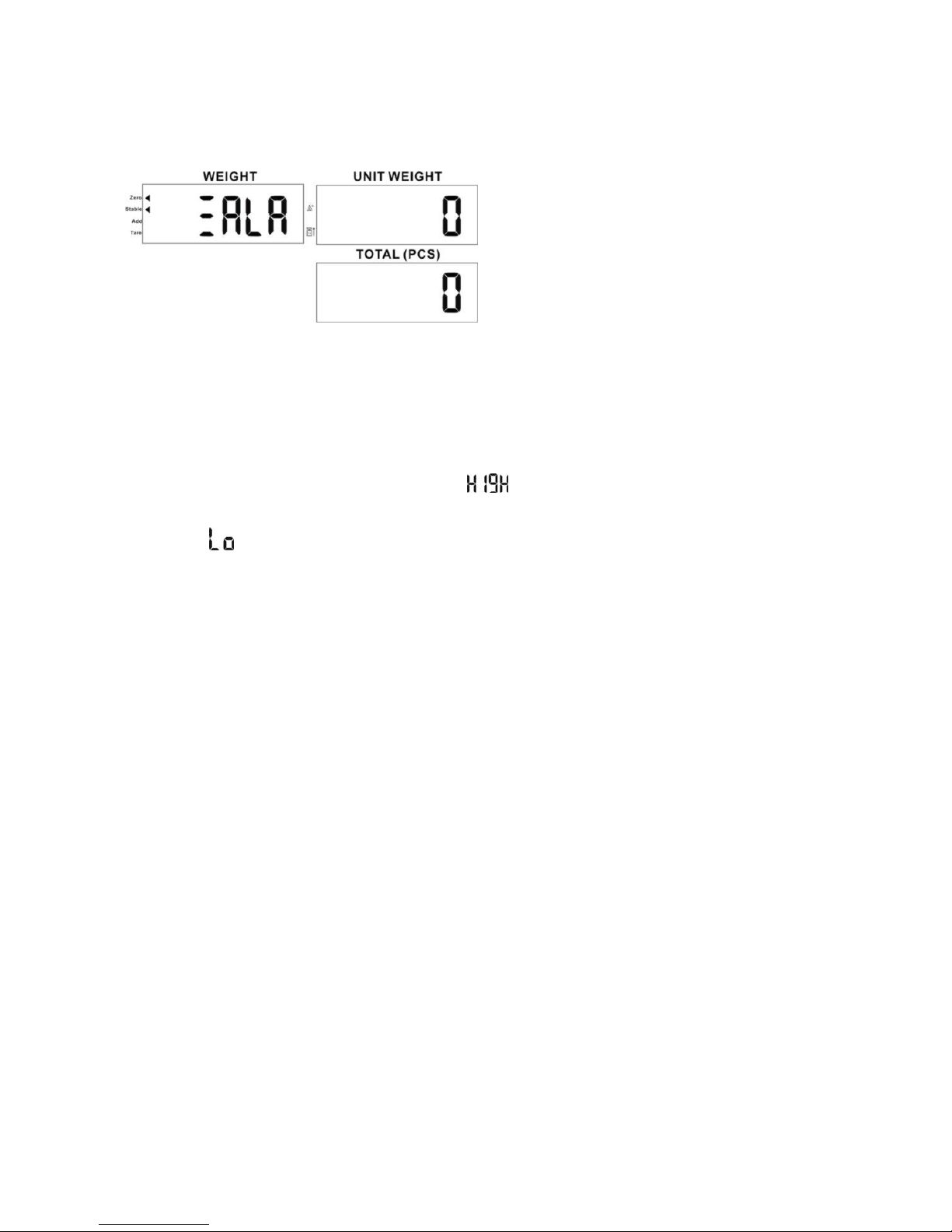

2. Press “PRESET QTY” key, the 3 LCD will show as below.

3. Input the upper limit quantity in the “UNIT WEIGHT” display. Then press “M+” key to

confirm.

4. Input the lower limit quantity in the “TOTAL (PCS)” display. Then press “M+” key to

confirm.

5. Place the samples on the scale platform. When the quantity arrives at the upper limit,

the scale will alarm with a beep sound. The “WEIGHT” display will show the weight,

the “UNIT WEIGHT” display will show .

6. If the quantity of the sample is below the lower limit, scale will alarm with beep, beep

sound. The “WEIGHT” display will show the weight, the “UNIT WEIGHT” display will

show .

7. The upper & Lower quantity limit can be cancelled by pressing the “CANCEL

PRESET” key.

USING THE TARE MODE:

1. Turn the scale on.

2. “0.000” will be shown on the “Weight” display after a few seconds.

3. Place an item on the weighing platform and read the value accordingly.

4. Press the “TARE” key, the weight of this item will be eliminated and the reading will

change to “0.000”.

5. Place next item on the weighing platform and get the reading.

Note: The scale will display a negative reading when you remove all items. Press the

“TARE” or “ZERO” key once and the negative reading will disappear.

OVERLOAD

When the loading capacity exceeds the maximum capacity of the Digital Scale, the word

“O_Ld” will be displayed on the “Weight” LCD screen. Remove the item(s) from the scale

platform to avoid damage to the scale.

EL BACK-LIGHT

The EL Back-light will automatically light up when the scale is in operation. It will turn-off

automatically when the scale is idle..

POWER OFF

The scale can be powered off manually by pressing the “On/Off” switch.

BATTERY STATUS

When the battery is low, a symbol will be displayed. Recharge the

battery by plugging the AC cable to the AC main.

MAINTENANCE

Clean with a soft cloth. Do not immerse directly into water or detergent, scrub

with abrasive material or use corrosive cleanser.

TECHNICAL SPECIFICATIONS

Model No. C136 C3315 C6630

Maximum Capacity 6kg / 13lb 15kg / 33 lb 30kg / 66lb

Graduation 0.5g / 0.1oz 1g / 0.1oz 2g / 0.1oz

Minimum sample weight 20d

Minimum unit weight 0.2d

Operating Temperature 0°C ~ +40°C

Power Source 6V 4AH Rechargeable Battery with AC cable

Remark : d= graduation
