Escali BF180 Manual de usuario
Body Analyzing
Digital Scale
Measuring What’s Next™
Model: BF180
User’s Guide
Escali®
www.escali.com
2
Initial Set Up and User Profile Creation
1. Remove the insulating battery strip before using. Ensure the batteries are correctly
seated within the terminals.
2. Select your desired unit of measure by pressing the unit button located on the
bottom of the scale near the battery compartment.
Warning! Do not use this product if you have a pacemaker or other internal electronic
medical devices.

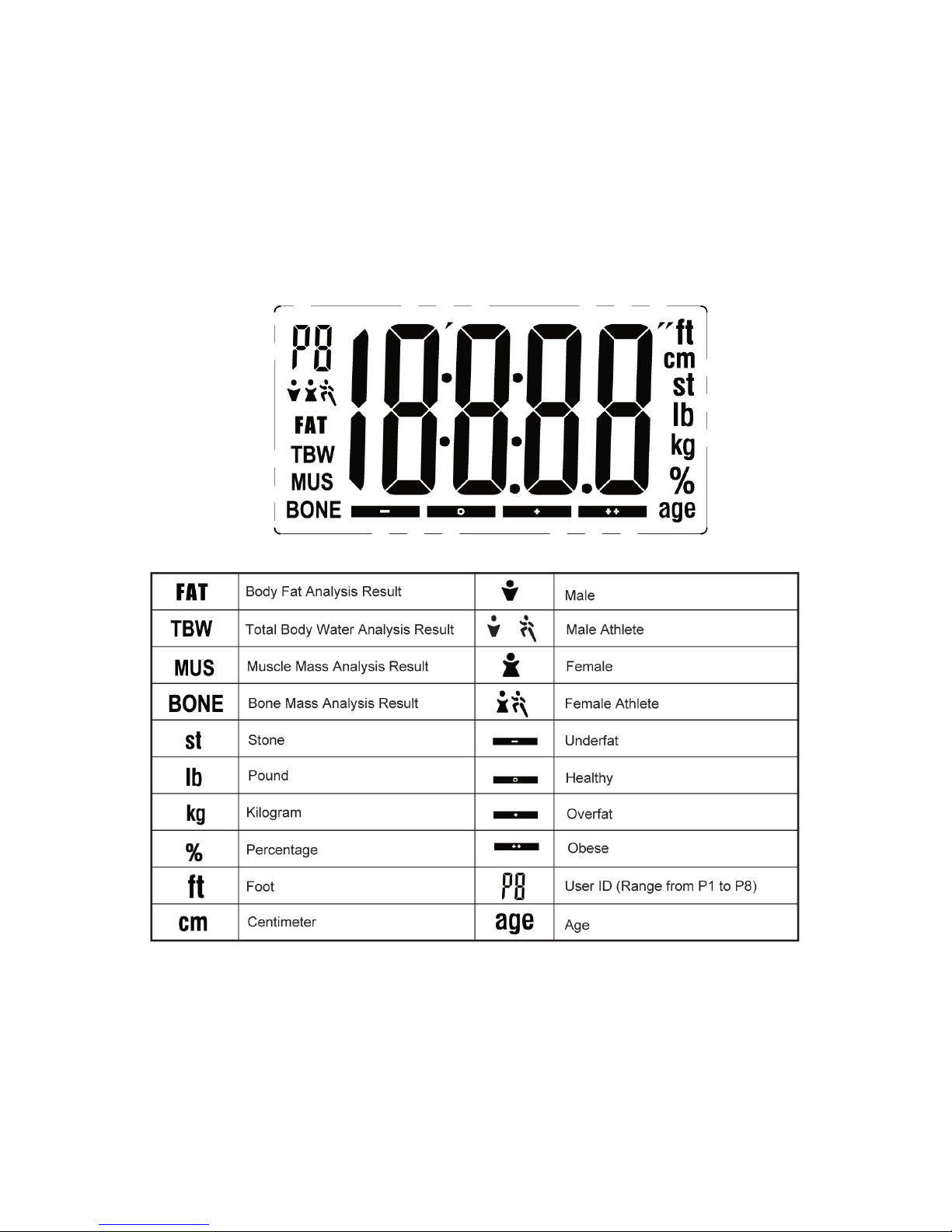

Display Diagram
Thank you for choosing the Escali Body Analyzing Digital Scale. This precision state-of-the-
art measuring instrument is most accurate when weighing on a flat hard surface. This
scale will not function correctly on carpet. The scale’s electronic sensors are sensitive;
avoid dropping or jarring the scale and store it where it will be protected from impact.
3
3. With the scale off, press SET to enter profile set up and edit mode.
4. Use the arrow buttons to select your desired profile number. Press SET to confirm.
5. Use the arrow buttons to select your gender. Available options include: Female,
Male, Female Athlete, Male Athlete. Press SET to confirm.
6. Use the arrow buttons to select your height. Press SET to confirm.
7. Use the arrow buttons to select your age. Press SET to confirm.
8. The scale will now display “0.0”. Step on the scale with clean and dry bare feet. The
scale will take a body weight measurement to associate to your User Profile for
automatic User Profile detection upon future use. Finally, the scale will begin body
composition analysis and display all results three times before turning itself off.
9. To program other users, or edit preexisting profiles, repeat steps 3 through 7.
How To Weigh Yourself and Measure Body Composition
1. Ensure you have created a User Profile before regular use.
See Initial Set Up and User Profile Creation.
2. Stand barefooted on the scale with your feet directly over the
two metal sensors.
3. The scale will measure and display body weight before beginning body analysis; “o”
will move across the LCD. Do not step off the scale until it displays your body fat %.
4. The scale will display body fat %, total body water %, muscle mass and bone mass
measurements three times before turning itself off.
5. If the scale is unable to automatically select between two similar User Profiles, the
scale will ask the user to confirm which User Profile to associate the measurement
with. Use the arrow buttons to select the correct User Profile.
6. If the scale cannot automatically select a User Profile based on the initial weight
measurement, the scale will not attempt a body analysis.
7. If the user is wearing shoes or socks the scale will only measure body weight.
4
Proper Use and Maintenance
1. Make sure your scale is at room temperature and on a stable horizontal surface free
of vibration.
2. This scale is not waterproof. Do not expose to moisture.
3. This scale is a precision instrument and must be handled with extreme care. Avoid
rough treatment, shaking and vibration.
4. Do not disassemble this scale, or the warranty will be void.
5. The display value may be affected by electromagnetic disturbances such as operating
near a radio. If this occurs, move the device that is causing the disturbance, turn the
scale off and restart.
Understanding Body Composition Measurements
Body Fat Analysis (%)
Body Water Analysis (%)
Age Female
Underfat Healthy Overfat Obese
10-39 < 21% 21-33% 33-39% 39-80%
40-59 < 23% 23-34% 34-40% 40-80%
60-80 < 24% 24-36% 36-42% 42-80%
Age Male
Underfat Healthy Overfat Obese
10-39 < 8% 8-20% 20-25% 25-80%
40-59 < 11% 11-22% 22-28% 28-80%
60-80 < 13% 13-25% 25-30% 30-80%
Age Female Male
Normal Normal
10-12 > 60% > 64%
13-18 > 58.5% > 63.5
19-30 > 56% > 62.5%
31-40 > 53% > 61%
41-50 > 52% > 60%
51-60 > 51% > 59%
60+ > 50% > 58%
5
Muscle Mass (%)
Average Estimated Bone Mass (lb./kg.)
Understanding Error Messages
Female Male
Normal Normal
> 34% > 40%
Female
Body
Weight
< 99.1 lb. 99.1 - 132.3 lb. > 132.3 lb.
< 45 kg. 45 - 60 kg. > 60 kg.
Bone
Mass
4 lb. 5 lb. 5.5 lb.
1.8 kg. 2.2 kg. 2.5 kg.
Male
Body
Weight
< 132.3 lb. 132.3 - 165.3 lb. > 165.3 lb.
< 60 kg. 60 - 75 kg. > 75 kg.
Bone
Mass
5.5 lb. 6.5 lb. 7 lb.
2.5 kg. 2.9 kg. 3.2 kg.
6
Escali’s liability is limited to two (2) times the cost of the product.
Product Support
24/7 Online support: https://escali.zendesk.com
Email support: feedback@escali.com
Phone support: 1-952-469-1965
Product Warranty
Your Escali scale is guaranteed to be free of defects in materials and workmanship and
protected by a Lifetime Limited Warranty. Please visit our website for more information.
www.escali.com
