ESAB Origo Mig C151 Manual de usuario

Valid for serial no. 736-xxx-xxxx0463 326 001 GB 20120528

Origo™

Mig C141/ C151

Mag C171/ C201/ C251

Instruction manual

- 2 -

- 3 -

TOCe

Rights reserved to alter specifications without notice.

1 SAFETY 4...........................................................

2 INTRODUCTION 6...................................................

2.1 Equipment 6................................................................

3 TECHNICAL DATA 6.................................................

4 INSTALLATION 8....................................................

4.1 Location 8..................................................................

4.2 Assembly of components 8...................................................

4.2.1 Mig C141 9............................................................

4.2.2 Mig C151 10............................................................

4.2.3 Mag C171/C201/C251 11.................................................

4.3 Electrical installation 11.......................................................

4.4 Mains power supply 12........................................................

4.5 Recommended fuse sizes and minimum cable areas 12...........................

5 OPERATION 12.......................................................

5.1 Connection and control devices 13.............................................

5.2 Welding without gas 14.......................................................

5.3 Wire feed pressure 14........................................................

5.4 Replacing and inserting wire 14................................................

5.5 Overheating protection 15.....................................................

6 MAINTENANCE 15....................................................

6.1 Inspection and cleaning 15....................................................

7 FAULT TRACING 16..................................................

8 ORDERING OF SPARE PARTS 16......................................

DIAGRAM 17............................................................

ORDER NUMBER 23.....................................................

WEAR PARTS 24........................................................

ACCESSORIES 26.......................................................

- 4 -

ba47e

1 SAFETY

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or

near the equipment observes all the relevant safety precautions. Safety precautions must meet the

requirements that apply to this type of equipment. The following recommendations should be ob

served in addition to the standard regulations that apply to the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the equip

ment. Incorrect operation of the equipment may lead to hazardous situations which can result in in

jury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

Sits operation

Slocation of emergency stops

Sits function

Srelevant safety precautions

Swelding and cutting

2. The operator must ensure that:

Sno unauthorised person is stationed within the working area of the equipment when it is

started up.

Sno-one is unprotected when the arc is struck

3. The workplace must:

Sbe suitable for the purpose

Sbe free from drafts

4. Personal safety equipment

SAlways wear recommended personal safety equipment, such as safety glasses, flame-proof

clothing, safety gloves.

SDo not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become

trapped or cause burns.

5. General precautions

SMake sure the return cable is connected securely.

SWork on high voltage equipment may only be carried out by a qualified electrician.

SAppropriate fire extinquishing equipment must be clearly marked and close at hand.

SLubrication and maintenance must not be carried out on the equipment during operation.

CAUTION

Read and understand the instruction manual before

installing or operating.

- 5 -

ba47e

WARNING

Read and understand the instruction manual before installing or operating.

Arc welding and cutting can be injurious to yourself and others. Take precautions when welding and

cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard

data.

ELECTRIC SHOCK - Can kill

SInstall and earth the unit in accordance with applicable standards.

SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

SInsulate yourself from earth and the workpiece.

SEnsure your working stance is safe.

FUMES AND GASES - Can be dangerous to health

SKeep your head out of the fumes.

SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS - Can injure eyes and burn skin.

SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

SProtect bystanders with suitable screens or curtains.

FIRE HAZARD

SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE - Excessive noise can damage hearing

SProtect your ears. Use earmuffs or other hearing protection.

SWarn bystanders of the risk.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

WARNING

Do not use the power source for thawing frozen pipes.

CAUTION

This product is solely intended for arc welding.

Dispose of electronic equipment at the recycling facility!

In observance of European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment and its implementation in accordance with national law, electrical and/or

electronic equipment that has reached the end of its life must be disposed of at a

recycling facility.

As the person responsible for the equipment, it is your responsibility to obtain

information on approved collection stations.

For further information contact the nearest ESAB dealer.

ESAB can provide you with all necessary welding protection and accessories.

- 6 -

ba47e

2 INTRODUCTION

Mig C141, Mig C151, Mag C171, Mag C201 and Mag C251 are step controlled power sources of a

compact design, intended for welding with solid steel, stainless steel or aluminium wire as well as

tubular wire with or without shielding gas.It is possible to weld with homogeneous wire/shielding gas

and weld with gasless tubular wire by switching the + and - connections on the switching terminal by

the wire feed unit.

ESAB's accessories for the product can be found on page 26.

2.1 Equipment

The power source is supplied with:

SWelding gun

SReturn cable with return clamp

SShelf for gas cylinder (C151-C251)

SInstruction manual

3 TECHNICAL DATA

Mig C141 Mig C151 Mag C171

Voltage 220-230V, 1∼50/60Hz 220-230V, 1∼50/60Hz 220-230V, 1∼50/60Hz

Permissible load at

100% duty cycle 42A/16.1V 67A/17.4V 76A/17.8V

60 % duty cycle 54A/16.7V 87A/18.3V 98A/18.9V

50 % duty cycle - 95A/18.7V -

25 % duty cycle 83A/18.2V - 155A/21.7V

20 % duty cycle 100A/17.0V 150A/16.0V 170A/21.0V

Setting range (DC) 35A/15.7V-83A/18.2V

(130A/13.4)

30A/15.5V-95A/18.7V

(150A/16.0V)

30A/15.5V-155A/21.7

V (170A/21.0)

Open circuit voltage 18.7-25.1V 17.3-24.3V 22.4-44.5V

Open circuit power 75W 110W 270W

Power factor at max load 0.91 0.92 0.91

Control voltage 220-230V, 50/60Hz 220-230V, 50/60Hz 42V, 50/60Hz

Wire feed speed 2.0-14m/min 2.0-14m/min 1.0-17m/min

Burnback time - - 0.02-0.25s

Spot welding - - 0.2-2.5s

Welding gun connection fixed fixed EURO

Wire dimension range 0.6-0.8(Fe)

1.0(Al)

0.8(cored)

0.8(CuSi)

0.6-0.8(Fe)

1.0(Al)

0.8(cored)

0.8(CuSi)

0.6-0.8(Fe)

1.0(Al)

0.8(cored)

0.8-1.0(CuSi)

Max diameter/weight

of wire bobbin

200mm/5kg 200mm/5kg 300mm/15kg

Dimensions lxwxh 650x300x550 650x300x550 860x420x730

Weight 25kg 37,5kg 59kg

- 7 -

ba47e

Mag C171Mig C151Mig C141

Operating temperature -10 ÷+40oC -10 ÷+40oC -10 ÷+40oC

Enclosure class IP 23 IP 23 IP 23

Application classifica

tion

Mag C201 Mag C251

Voltage 220-230V, 1∼50/60Hz 220-230V, 1∼50/60Hz

Permissible load at

100% duty cycle 90A/18.5V 110A/19.5V

60 % duty cycle 115A19.7V 140A/21.0V

30 % duty cycle - 200A/24.0V

23 % duty cycle 185A/23.3V -

20 % duty cycle 200A/23.0V 250A/21.0V

Setting range (DC) 30A/15.5V-185A/23.3V

(200A/23.0V)

40A/16.0V-200A/24.0V

(250A/21.0V)

Open circuit voltage 19.6-44.9V 19.0-41.5V

Open circuit power 120W 200W

Power factor at max load 0.89 0.92

Control voltage 42V, 50/60Hz 42V, 50/60Hz

Wire feed speed 1.0-17m/min 1.9-19m/min

Burnback time 0.02-0.25s 0-0.25s

Spot welding 0.2-2.5s 0.2-2.5s

Welding gun connection EURO EURO

Wire dimension range 0.6-1.0(Fe)

1.0(Al)

0.8-1.0(cored)

0.8-1.0(CuSi)

0.6-1.2(Fe)

1.0-1.2(Al)

0.8-1.2(cored)

0.8-1.0(CuSi)

Max diameter/weight

of wire bobbin

300mm/15kg 300mm/15kg

Dimensions lxwxh 860x420x730 860x420x730

Weight 68kg 94kg

Operating temperature -10 ÷+40oC -10 ÷+40oC

Enclosure class IP 23 IP 23

Application classifica

tion

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at

a certain load without overloading. The duty cycle is valid for 40°C.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

- 8 -

ba47e

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

4 INSTALLATION

The installation must be carried out by a professional.

Note!

Connect the power source to the electricity mains with a network impedance of (C141 - 0.41; C151 -

N/A; C171 - N/A; C201 - 0.32; C251 - 0.212) ohm or lower. If the network impedance is higher, there

is a risk of flicker in the illuminators.

CAUTION

This product is intended for industrial use. In a domestic environment this product may

cause radio interference. It is the user's responsibility to take adequate precautions.

4.1 Location

Position the welding power source in such a way that its cooling air inlets and outlets

are not obstructed.

4.2 Assembly of components

For packing and shipment of the machine the wheels are detached from the unit.

Before use attach the wheels according to instruction.

WARNING!

- 9 -

ba47e

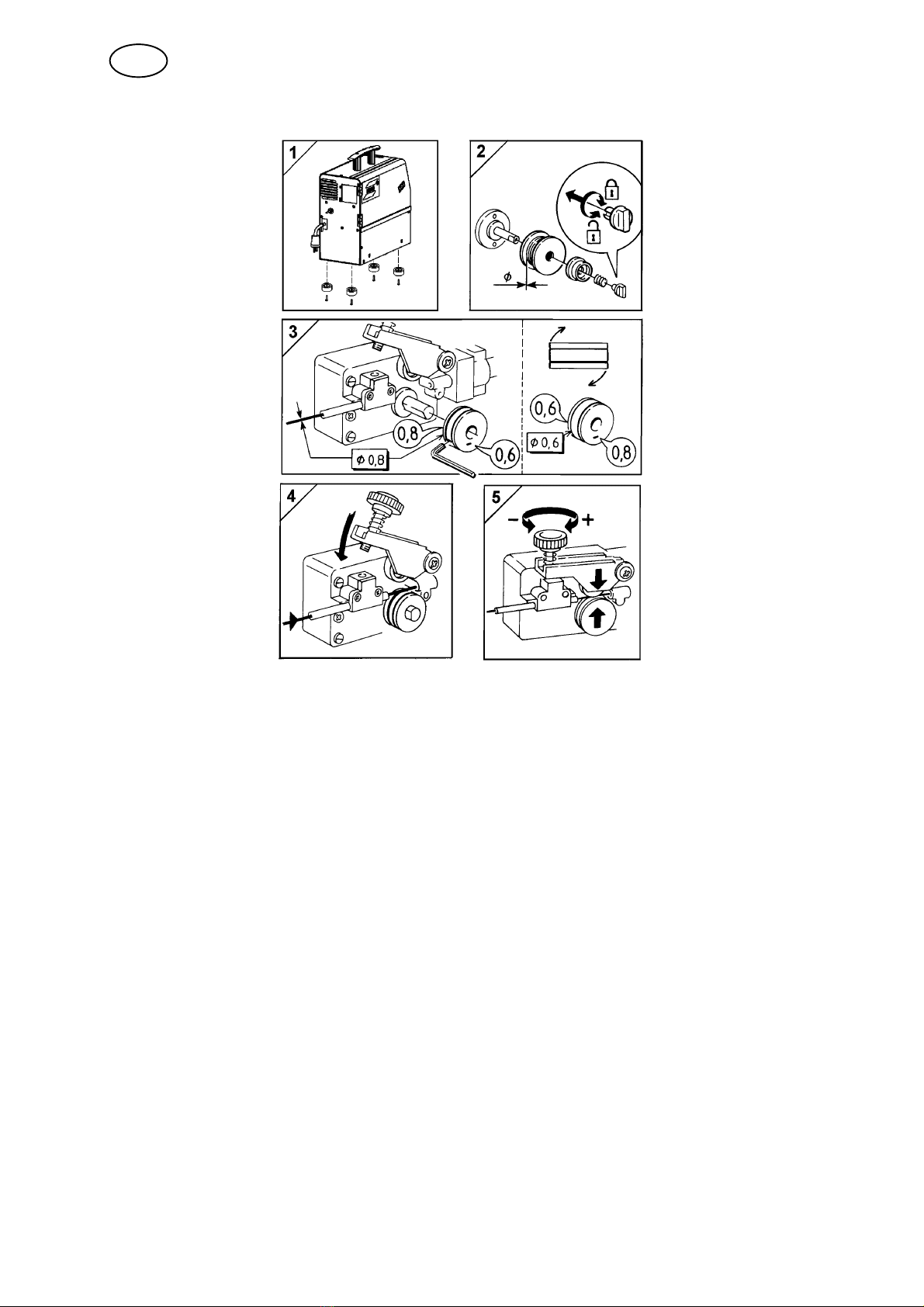

4.2.1 Mig C141

- 10 -

ba47e

4.2.2 Mig C151
