ESAB Origo Mig 4001i Manual de usuario

Origo™, Aristo®

Instruction manual

0460 740 001 GB 20170604 Valid for: 833-xxx-xxxx, 852-xxx-xxxx

Mig 4001i

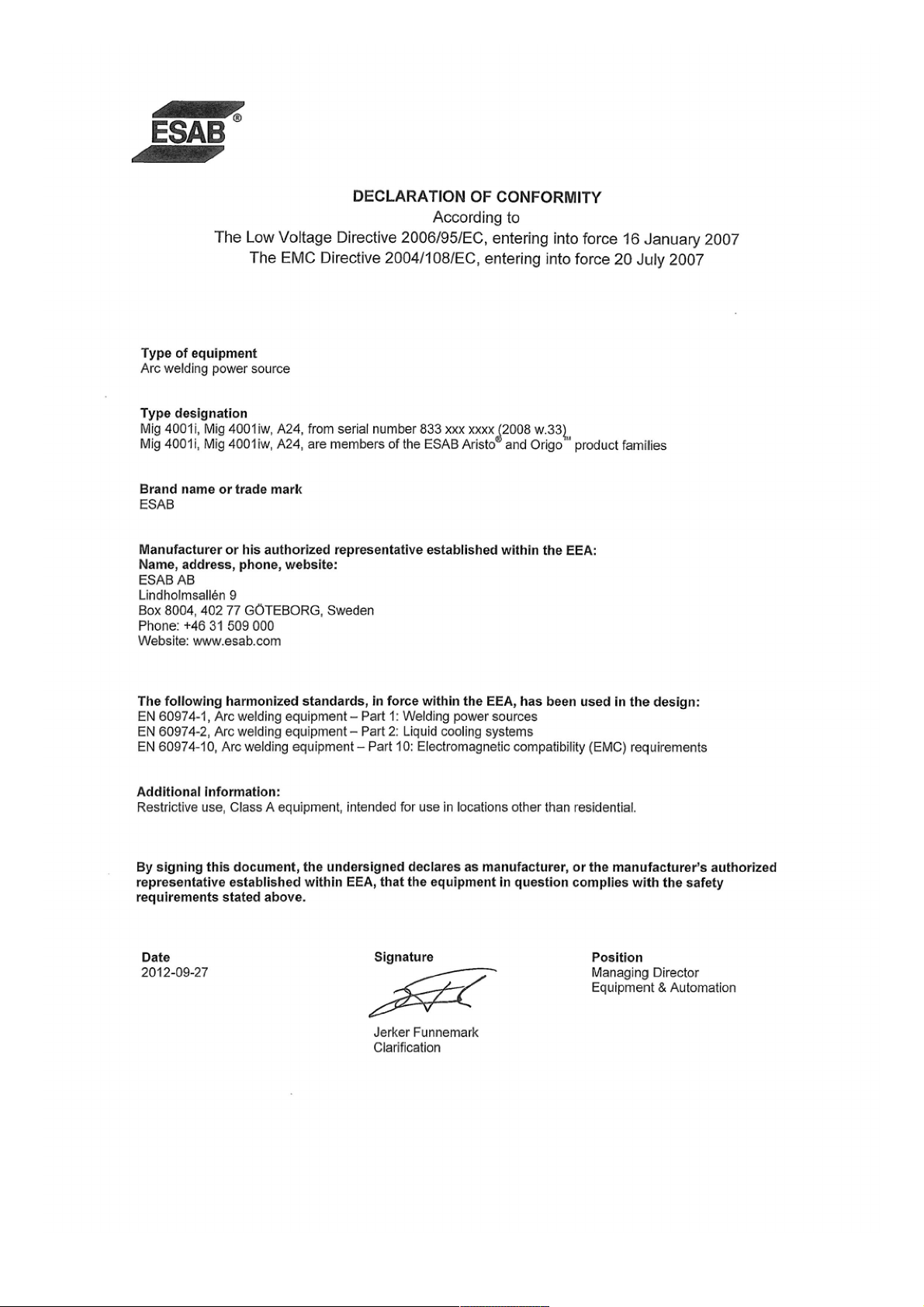

TABLE OF CONTENTS

0460 740 001 © ESAB AB 2017

1SAFETY ......................................................................................................... 4

1.1 Meaning of symbols ................................................................................. 4

1.2 Safety precautions ................................................................................... 4

2INTRODUCTION............................................................................................ 7

2.1 Equipment ................................................................................................. 7

2.2 Control panel A24..................................................................................... 7

3TECHNICAL DATA ........................................................................................ 8

4INSTALLATION.............................................................................................. 10

4.1 Lifting instructions ................................................................................... 10

4.2 Location..................................................................................................... 10

4.3 Mains supply............................................................................................. 10

5OPERATION .................................................................................................. 12

5.1 Connections and control devices ........................................................... 12

5.2 Connection of welding and return cable ................................................ 12

5.3 Turning on the power source .................................................................. 12

5.4 Fan control ................................................................................................ 13

5.5 Overheating protection ............................................................................ 13

5.6 MIG/MAG and FCAW-S welding .............................................................. 13

5.7 TIG welding ............................................................................................... 13

5.8 MMA welding............................................................................................. 14

6MAINTENANCE............................................................................................. 15

6.1 Power unit ................................................................................................. 15

6.2 Welding torch............................................................................................ 15

7TROUBLESHOOTING ................................................................................... 16

8ORDERING SPARE PARTS .......................................................................... 17

DIAGRAM ............................................................................................................. 18

ORDERING NUMBERS........................................................................................ 20

SPARE PARTS LIST............................................................................................. 21

ACCESSORIES .................................................................................................... 22

Rights reserved to alter specifications without notice.

1 SAFETY

0460 740 001 -4- © ESAB AB 2017

1 SAFETY

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!

Means immediate hazards which, if not avoided, will result in immediate,

serious personal injury or loss of life.

WARNING!

Means potential hazards which could result in personal injury or loss of

life.

CAUTION!

Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual

and follow all labels, employer´s safety practices and Safety

Data Sheets (SDSs).

1.2 Safety precautions

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety

precautions must meet the requirements that apply to this type of equipment. The following

recommendations should be observed in addition to the standard regulations that apply to

the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the

equipment. Incorrect operation of the equipment may lead to hazardous situations which can

result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

○ its operation

○ location of emergency stops

○ its function

○ relevant safety precautions

○ welding and cutting or other applicable operation of the equipment

2. The operator must ensure that:

○ no unauthorised person is stationed within the working area of the equipment

when it is started up

○ no-one is unprotected when the arc is struck or work is started with the

equipment

3. The workplace must:

○ be suitable for the purpose

○ be free from drafts

1 SAFETY

0460 740 001 -5- © ESAB AB 2017

4. Personal safety equipment:

○ Always wear recommended personal safety equipment, such as safety glasses,

flame-proof clothing, safety gloves

○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which

could become trapped or cause burns

5. General precautions:

○ Make sure the return cable is connected securely

○ Work on high voltage equipment may only be carried out by a qualified

electrician

○ Appropriate fire extinguishing equipment must be clearly marked and close at

hand

○ Lubrication and maintenance must not be carried out on the equipment during

operation

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions

when welding and cutting.

ELECTRIC SHOCK - Can kill

• Install and ground the unit in accordance with instruction manual.

• Do not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing.

• Insulate yourself from work and ground.

• Ensure your working position is safe

ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health

• Welders having pacemakers should consult their physician before welding.

EMF may interfere with some pacemakers.

• Exposure to EMF may have other health effects which are unknown.

• Welders should use the following procedures to minimize exposure to

EMF:

○ Route the electrode and work cables together on the same side of

your body. Secure them with tape when possible. Do not place your

body between the torch and work cables. Never coil the torch or

work cable around your body. Keep welding power source and

cables as far away from your body as possible.

○ Connect the work cable to the workpiece as close as possible to the

area being welded.

FUMES AND GASES - Can be dangerous to health

• Keep your head out of the fumes.

• Use ventilation, extraction at the arc, or both, to take fumes and gases

away from your breathing zone and the general area.

ARC RAYS - Can injure eyes and burn skin

• Protect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing.

• Protect bystanders with suitable screens or curtains.

NOISE - Excessive noise can damage hearing

Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY

0460 740 001 -6- © ESAB AB 2017

MOVING PARTS - Can cause injuries

• Keep all doors, panels and covers closed and securely in place. Have only

qualified people remove covers for maintenance and troubleshooting as

necessary. Reinstall panels or covers and close doors when service is

finished and before starting engine.

• Stop engine before installing or connecting unit.

• Keep hands, hair, loose clothing and tools away from moving parts.

FIRE HAZARD

• Sparks (spatter) can cause fire. Make sure that there are no inflammable

materials nearby.

• Do not use on closed containers.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION!

This product is solely intended for arc welding.

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Class A equipment is not intended for use in residential

locations where the electrical power is provided by the

public low-voltage supply system. There may be potential

difficulties in ensuring electromagnetic compatibility of class

A equipment in those locations, due to conducted as well

as radiated disturbances.

NOTE!

Dispose of electronic equipment at the recycling

facility!

In observance of European Directive 2012/19/EC on Waste

Electrical and Electronic Equipment and its implementation

in accordance with national law, electrical and/or electronic

equipment that has reached the end of its life must be

disposed of at a recycling facility.

As the person responsible for the equipment, it is your

responsibility to obtain information on approved collection

stations.

For further information contact the nearest ESAB dealer.

ESAB has an assortment of welding accessories and personal protection equipment

for purchase. For ordering information contact your local ESAB dealer or visit us on

our website.

2 INTRODUCTION

0460 740 001 -7- © ESAB AB 2017

2 INTRODUCTION

Mig 4001i is a welding power source intended for MIG/MAG welding, as well as for welding

with powder filled cored wire (FCAW-S), TIG welding and for welding with coated electrodes

(MMA).

ESAB accessories for the product can be found in the "ACCESSORIES" chapter of

this manual.

2.1 Equipment

Mig 4001i can be supplied with or without cooling unit. The cooling unit can be retro fitted.

The power source is supplied with:

• 5 m return cable with contact clamp

• 5 m mains cable with 32 Amp connector

• instruction manual for the welding power source

• instruction manual for the control panel (if applicable)

• instruction manual for the cooling unit (if applicable)

Instruction manuals in other languages can be downloaded from the Internet: www.esab.com

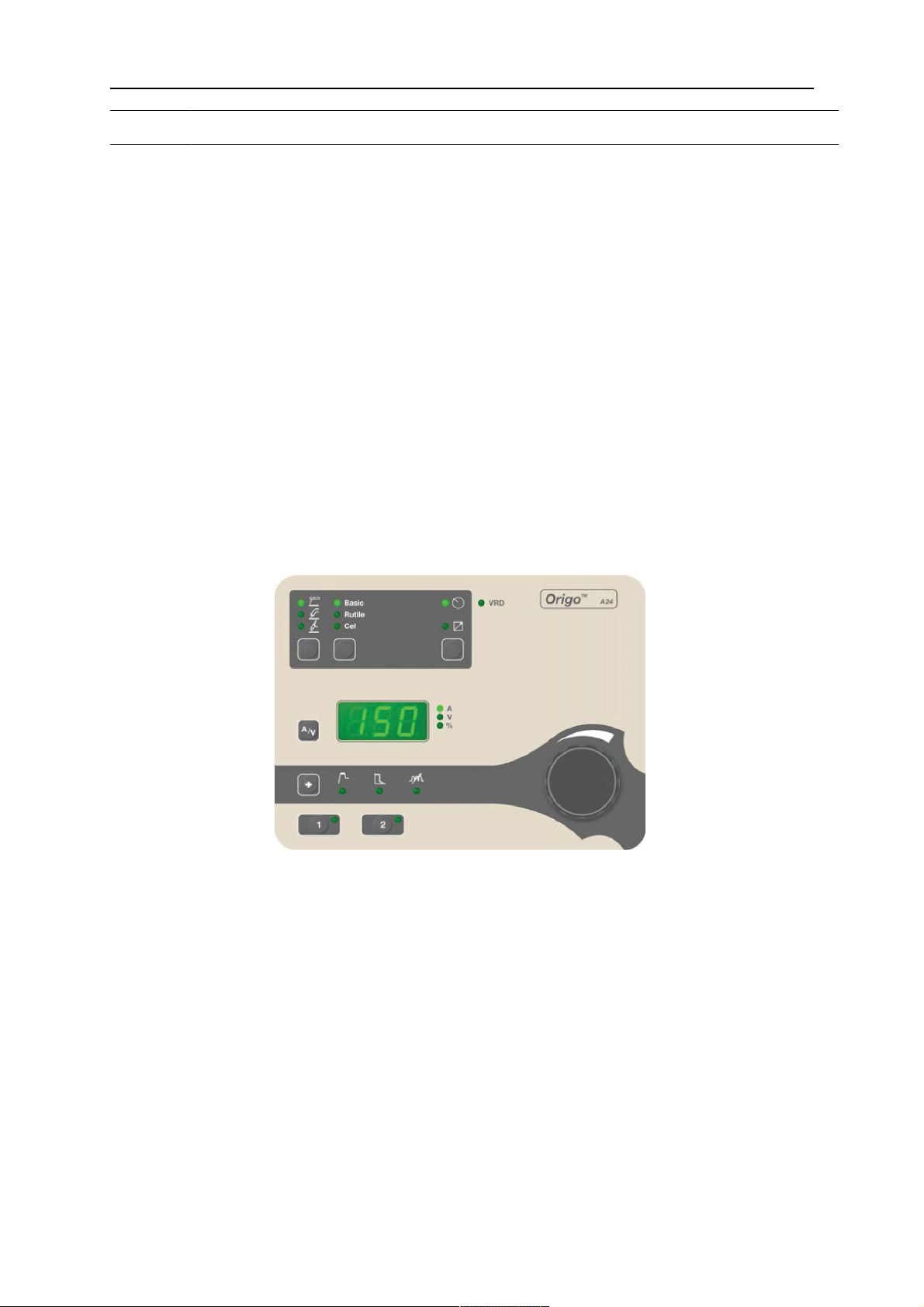

2.2 Control panel A24

Welding process parameters are controlled via the control panel. See the separate

instruction manual for a detailed description of the panels.

3 TECHNICAL DATA

0460 740 001 -8- © ESAB AB 2017

3 TECHNICAL DATA

Mig 4001i

Mains voltage 400 V ±10 %, 3 ~ 50/60 Hz

Mains supply Ssc min 2.2 MVA

Primary current

Imax MIG/MAG 26 A

Imax TIG 20 A

Imax MMA 27 A

No-load power demand when in energy-saving

mode 6.5 min. after welding

60 W

Setting range

MIG/MAG 20 A / 15 V - 400 A / 34 V

TIG 4A/10V-400A/26V

MMA 16A/21V-400A/36V

Permissible load at MIG/MAG

30 % duty cycle 400 A / 34 V

60 % duty cycle 320 A / 30 V

100 % duty cycle 250 A / 26.5 V

Permissible load at TIG

30 % duty cycle 400 A / 26 V

60 % duty cycle 320 A / 22.8 V

100 % duty cycle 250 A / 20 V

Permissible load at MMA

30 % duty cycle 400 A / 36 V

60 % duty cycle 320 A / 32.8 V

100 % duty cycle 250 A / 30 V

Power factor at maximum current

MIG/MAG 0.89

TIG 0.91

MMA 0.89

Efficiency at maximum current

MIG/MAG 85 %

TIG 81 %

MMA 85 %

Open-circuit voltage without VRD function 1) 91 V DC

VRD function deactivated 2) 58 V DC

VRD function activated 2) < 35 V

Operating temperature -10 to +40°C

Transportation temperature -20 to +55°C

Constant sound pressure when idling < 70 db (A)

3 TECHNICAL DATA

0460 740 001 -9- © ESAB AB 2017

Mig 4001i

Dimensions l × w × h 652 x 249 x 423 mm

with cooling unit 714 x 249 x 693 mm

Weight 43.5 kg

with cooling unit 63.5 kg

Insulation class H

Enclosure class IP23

Application class

1) Valid for power sources without VRD specification on the rating plate.

2) Valid for power sources with VRD specification on the rating plate. The VRD function is

explained in the instruction manual for the control panel.

Mains supply, Ssc min

Minimum short circuit power on the network in accordance with IEC 61000-3-12.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or

cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.

Enclosure class

The IP code indicates the enclosure class, i.e. the degree of protection against penetration

by solid objects or water.

Equipment marked IP23 is intended for indoor and outdoor use.

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

4 INSTALLATION

0460 740 001 - 10 - © ESAB AB 2017

4 INSTALLATION

The installation must be carried out by a professional.

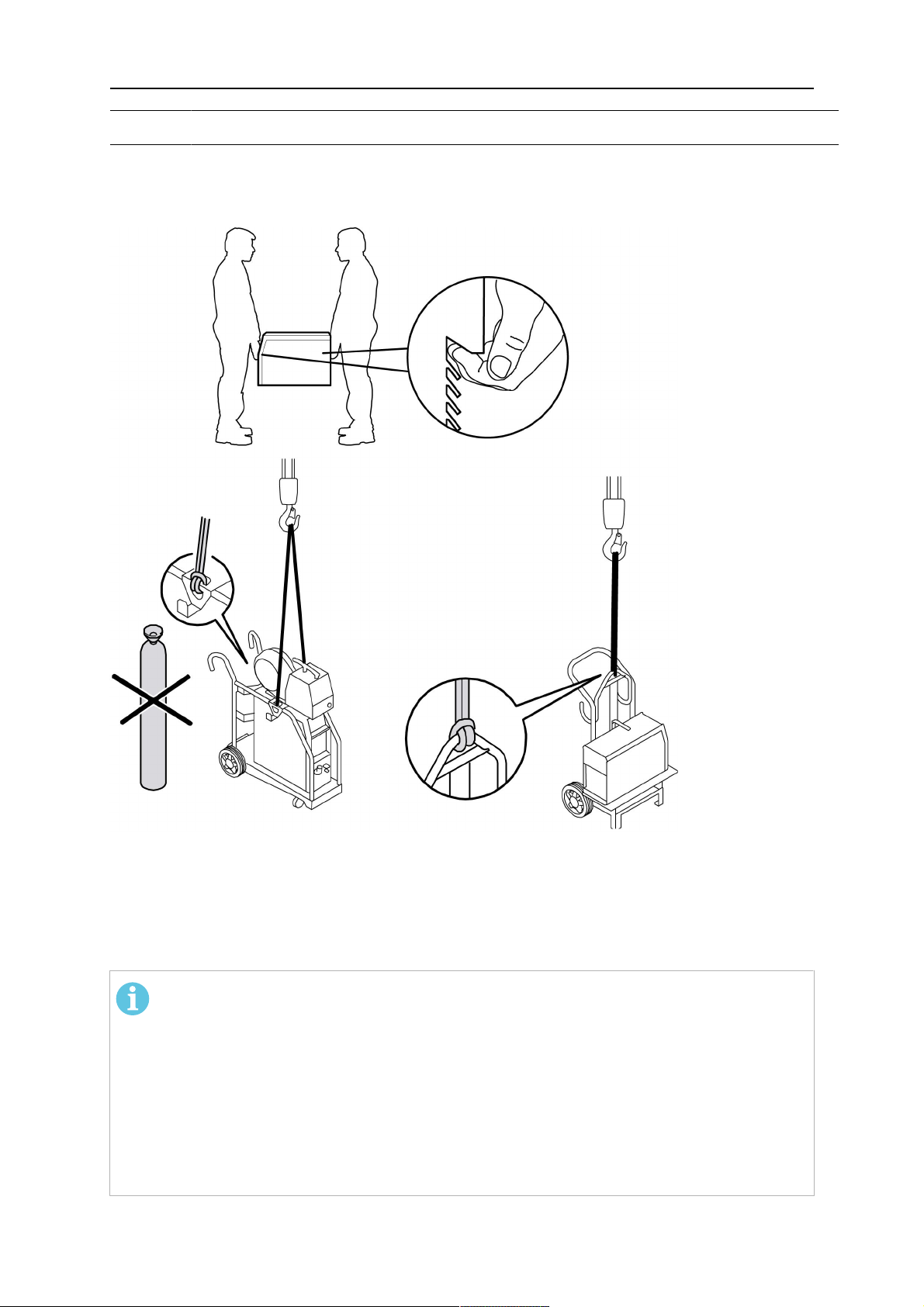

4.1 Lifting instructions

4.2 Location

Position the welding power source such that its cooling air inlets and outlets are not

obstructed.

4.3 Mains supply

NOTE!

Mains supply requirements

This equipment complies with IEC 61000-3-12 provided that the short-circuit

power is greater than or equal to Sscmin at the interface point between the user's

supply and the public system. It is the responsibility of the installer or user of the

equipment to ensure, by consultation with the distribution network operator if

necessary, that the equipment is connected only to a supply with a short-circuit

power greater than or equal to Sscmin. Refer to the technical data in the

TECHNICAL DATA chapter.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de ESAB

ESAB

ESAB Migmaster 300i cvcc Guía de instalación y uso

ESAB

ESAB Multimaster 300 Manual de usuario

ESAB

ESAB Origo Mig 4002c Manual de usuario

ESAB

ESAB Cadd Tig 1500i TA34 Manual de usuario

ESAB

ESAB Rogue EMP 210 PRO Manual de usuario

ESAB

ESAB Aristo Mig C3000i Manual de usuario

ESAB

ESAB Thermal Dynamics CUTMASTER 40 Manual de usuario

ESAB

ESAB A2 Multitrac Manual de usuario

ESAB

ESAB Fabricator EM 400i Manual de usuario

ESAB

ESAB Aristo WeldCloud Mig U5000i Manual de usuario

ESAB

ESAB Powercut 650 Manual de usuario

ESAB

ESAB Origo Tig 3001i Manual de usuario

ESAB

ESAB SDE-100 Manual de usuario

ESAB

ESAB CaddyArc 150 Manual de usuario

ESAB

ESAB Warrior 400i CC/CV Manual de usuario

ESAB

ESAB Mig 4004i Manual de usuario

ESAB

ESAB Origo Mig 4002cw Manual de usuario

ESAB

ESAB Origo Mig 652c Manual de usuario

ESAB

ESAB Origo Mig C170 3ph Manual de usuario

ESAB

ESAB Aristotig255 AC/DC DTE 255 Manual de usuario

ESAB

ESAB Super Bantam 225 AC Manual de usuario

ESAB

ESAB Origo Arc 256 Guía

ESAB

ESAB EMP 205ic AC/DC Actualización de firmware

ESAB

ESAB AristoFeed 30 4 Series Manual de usuario

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manual de usuario
