Automatic welding machine

333 534--003 9612

A6 TFD1/TFD2/

TGD1

Simplified ser

ice manual

LIST OF CONTENTS Sida

SAFETY 4.....................................................

TECHNICAL DESCRIPTION 5...................................

INSTALLATION 10...............................................

OPERATION 11.................................................

MAINTENANCE 13..............................................

TROUBLESHOOTING 14.........................................

DIMENSION DRAWING 15........................................

DIAGRAM 17....................................................

SPARE PARTS LIST A6 TFD1/TFD2/TGD1 19.......................

Rights reserved to alter specifications without notice.

-- 3 --

mvarnen1

WARNING

ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS.

TAKE PRECAUTIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY

PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA.

ELECTRIC SHOCK -- Can kill

SInstall and earth the welding unit in accordance with applicable standards.

SDo not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing.

SInsulate yourself from earth and the workpiece.

SEnsure your working stance is safe.

FUMES AND GASES -- Can be dangerous to health

SKeep your head out of the fumes.

SUse ventilation, extraction at the arc, or both, to keep fumes and gases from

your breathing zone and the general area.

ARC RAYS -- Can injure eyes and burn skin.

SProtect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing.

SProtect bystanders with suitable screens or curtains.

FIRE HAZARD

SSparks (spatter) can cause fire. Make sure therefore that there are no

inflammable materials nearby.

MALFUNCTION

SCall for expert assistance in the event of malfunction.

READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE

INSTALLING OR OPERATING THE EQUIPMENT

PROTECT YOURSELF AND OTHERS!

-- 4 --

df00f1ea

SAFETY

Users of ESAB automatic welding machines have ultimate responsibility for ensuring

that anyone who works on or near the equipment observes all the relevant safety

precautions.

The following recommendations should be observed in addition to the standard

regulations that apply to the work place.

All work must be carried out according to the specified instructions by personnel who

are thoroughly familiar with the operation of the welding machine.

Incorrect or unintentional operation of the equipment may lead to a hazardous

situation which can result in injury to the operator and damage to the equipment.

1. Anyone who uses the automatic welding machine must be familiar with:

Sits operation

Sthe location of emergency stops

Sits function

Srelevant safety precautions

To make this easier each switch, pushbutton or potentiometer is marked with a

symbol or text that indicates its function when activated.

2. The operator must ensure that:

Sno unauthorized person is stationed within the working area of the machine

when it is started up.

Sthat no--one is in a hazardous position when the carriage or slide mechan-

isms are operated.

3. The work place must:

Sbe clear of mechanical components, tools, or other obstructions that could

prevent the operator from moving freely within the working area.

Sbe organized so that there is free access to the emergency stop.

4. Personal safety equipment

SAlways wear recommended personal safety equipment, such as safety

glasses, flame--proof clothing, safety gloves.

SDo not wear loose--fitting items, such as scarves, bracelets, etc., which could

become trapped.

5. General precautions

Live electrical components are normally shielded from accidental contact.

SMake sure the return cable is connected securely.

SWork on high voltage components may only be carried out by a qualified

electrician.

SAppropriate fire extinguishing equipment must be clearly marked and close

at hand.

SLubrication and maintenance must not be carried out on the equipment dur-

ing its operation.

-- 5 --

cfa4d1ea

TECHNICAL DESCRIPTION

The A6 TFD1 automatik welding machine is mounted on a tractor unit and intended for DC

or AC submerged--arc welding of butt and fillet welds.

The A6 TFD2 automatik welding machine with two welding heads is mounted on a tractor

unit and intended for DC or AC submerged--arc welding of butt and fillet welds.

The A6 TGD1 automatik welding machine is mounted on a tractor unit and intended for DC

MIG/MAG--welding of butt and fillet welds.

Welding head position is adjustable by means of vertical and horisontal crossslides, with an

angular slide for angular adjustment.

A6 TFD1 A6 TFD2 A6 TGD1

Permissible load 1500 A DC/AC 1500 A DC/AC 600 A DC

Wire diameter

solid wire

hollow wire

3,0--6,0 mm 3,0--6,0 mm 1,0--2,4 mm

1,6--3,2 mm

Wire feed speed, max. 4,2 m/min 4,2 m/min 17,5 m/min

Travel speed, max. 2,5 m/min 2,5 m/min 2,5 m/min

Wire weight, max. 30 kg 30 kg 30 kg

Flux hopper volume 10 l 10 l

Weight (excl. wire and flux) 110 kg 158 kg 100 kg

Brake hub torque 1,5 Nm 1,5 Nm 1,5 Nm

Sideways tipping angle, max. 25_25_25_

Control voltage 42 V AC 42 V AC 42 V AC

-- 6 --

cfa4d1ea

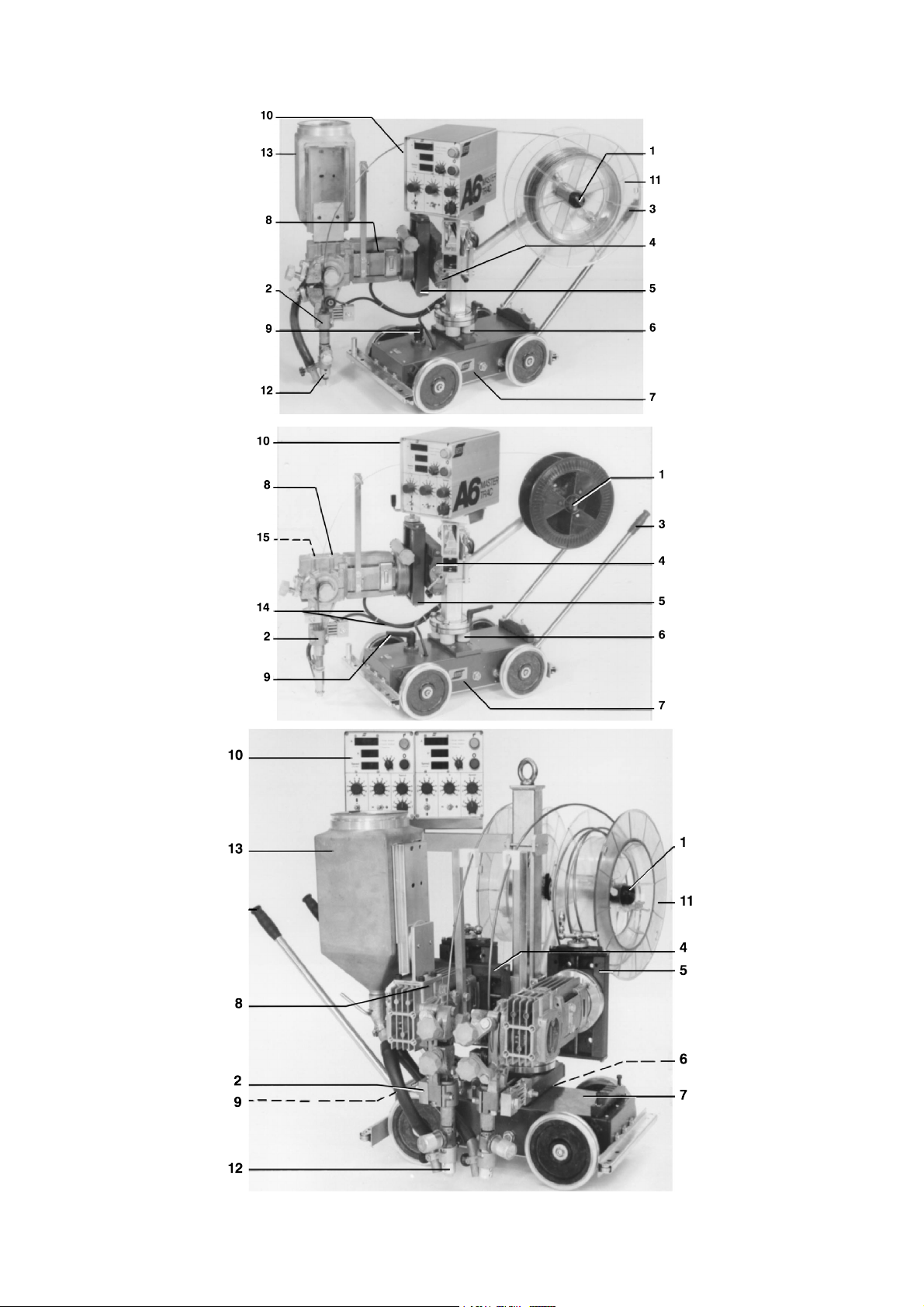

TheA6Tautomaticweldingmachineconsistsof: (See the pictures on page 7)

1. Brake hub

2. Wire straightener

for feeding and straightening the filler wire before it enters the contact device and contact

jaws or contact tip, and to carry weld ing current from the shunt to the contact device.

The straightener clamp can be rotated around the wire drive unit gearbox, e,g. when

welding with leading or trailing wire and when fillet welding.

3. Handle

for adjusting the position of the tractor, manual transport or adjustment while welding is

in progress.

4. Slide, hand--operated for transverse adjustment of the welding head

5. Slide, hand--operated for vertical adjustment of the welding head

6. Insulator, for galvanic insulation of live parts, e.g. the welding head and the carriage

7. Tractor unit

with four wheels, of which two are grooved for use on rails. The tractor is powered by a

geared motor with chain drive to the two axles, so that all four wheels are driven.

Motor supply voltage 42 V

Motor speed 3220 rpm

Motor torque 27 Ncm (0.27 Nm)

Gear ratio 187.5:1

Gearbox output torque 22.5 Nm

Final reduction ratio 64:15

Sprocket ratio 1:1

8. Wire feed motor, A6 VEC (see instructions 333 533--003)

Wire feed motor with reduction gear 42 V (A6 TFD1/A6 TFD2)

Motor speed 4000 rpm

Gear ratio 156,1

Wire feed motor with reduction gear 42 V (A6 TGD1)

Motor speed 8000 rpm

Gear ratio 74:1

9. Control lever, for disengaging the drive for manual transport

10. PEG 1 control box

Additional parts:

11. Wire reel, for max. 30 kg of filler wire

12. Flux hopper

13. D35 contact equipment, intended for use with 3.0 -- 6.0 mm wire

Additional parts for the A6 TGD1:

14. Hoses, for gas and cooling water (14/6.3 mm)

15. Solenoid valve, 42 V

A6 TGD1

A6 TFD1

A6 TFD2

-- 7 --

cfa4d1ea

-- 8 --

cfa4d1ea

Extra accessories for the A6 TFD1 A6 TFD2 and A6 TGD1 Ordering no.

Fine wire straightener (not for the A6 TFD2)

when accurate wire straightening is required for single wire

not exceeding 2.5 mm diameter

332 565--880

Guide wheel bogey (not for the A6 TFD2) 6711 257--80

Rail set (2 m) 6715 039--80

Guide rail with magnets (3 m), (several lengths of guide rail can be used together) 154 203--880

Extra accessories for the A6 TFD1 (submerqed-arc welding)

Fine wire straightener

when accurate wire straightening is required for twin wire not

exceeding 2.5 mm diameter

145 787--880

D20 contact equipment for single wire:

without contact tip and feed roller

with contact tip and feed rollers for 1.6 -- 3.0 mm

wire with contact tip and feed rollers for 3.0 -- 5.0 mm wire

334 289--880

--881

--882

D35 contact equipment for single wire (L=Length of the contact device)

without contact jaws and feed rollers (L=220 mm)

with contact jaws and feed rollers for 3.0 -- 6.0 mm (L=220 mm)

without contact jaws and feed rollers (L=275 mm)

with contact jaws and feed rollers for 3.0 -- 6.0 mm (L=275 mm)

334 290--880

--881

--882

--883

D35 contact equipment for twin wire, with fine wire straightener and flux nozzle

without contact tip and feed rollers (L=220 mm)

without contact tip and feed rollers (L=275 mm)

without contact jaws and feed rollers (L=220 mm)

without contact jaws and feed rollers (L=275 mm)

with contact tip and feed rollers 1.2-- 2.5 mm (L=220 mm)

with contact tip and feed rollers 1.2-- 2.5 mm (L=275 mm)

with contact jaws and feed rollerc3 2.5-3,0 mm (L=220 mm)

with contact jaws and feed rollers 2.5-3,0 mm (L=275 mm)

with flux tube

334 291--880

--881

--882

--883

--884

--885

--886

--887

153 299--880

Contact tube curved, D20, for use in fillet welding 155 197--001

Flux funnel, for D20 contact equipment with insulating sleeve 145 221--881

Flux funnel

for D35 contact equipment, including

Insert, height 18 mm

Insert, height 30 mm

2549 008--80

2549 003--02

2549 003--01

OPC flux recovery unit, (see instruction manual 333 125--001) 148 140--880

Wire reel, steel 416 492--880

-- 9 --

cfa4d1ea

Guide lamp

for D35 contact equipment

for D20 contact equipment

153 143--880

--882

Strip cladding head, for welding 30--100 mm strip 155 972--880

Accessory set for air/arc gouging 153 592--880

Conversion set

consisting of a wire feed unit for an A6 SFD1 for conversion of an existing

A6 TFD1 automatic welding machine to MIG/MAG--welding

(wire diameter 1.0 -- 3.2 mm)

334 299--880

Extra accessories for the A6 TFD2 (submerged--arc welding)

OPC flux recovery unit, (see instruction manual 333 125--001) 148 140--880

Guide lamp (for D35 contact equipment) 153 143--880

Extra accessories for the A6 TGD1 (MIG/MAG welding)

Wire reel, plastic, for 30 kg of wire 153 872--880

-- 1 0 --

cfa4i1ea

INSTALLATION

Connecting the automatic welding machine to the welding Power source

1. Dimension drawing: see fig. on page 15 and on page 16.

2. Adjust the automatic welding machine for butt or fillet welding as shown on page 15.

3. A6 VEC wire feed motor: see instruction manual 333 533--003

4. PEG1 control box: see instruction manual 333 470--001

5. Connection instructions, see page 17.

SDC welding:

Connect control cable (08) for A6 TFD1 resp. (15) for A6 TGD1 between the weld-

ing power source and the PEG1 control box.

Connect the welding current lead carrying a cable lug (07) resp. (08) between the

welding power source and the current shunt

SAC welding:

Connect control cable (08) between the auxiliary control box (11) and the PEG1 con-

trol box. Connect the auxiliary control box (11) to the welding power source.

Connect the welding current lead (07) between the welding power source and the

current shunt.

SConnect the return cable between the welding power source and the workpiece

SConnect the measurement cable (09) resp. (16) between the workpiece and the

welding power source, or between the workpiece and the PEG1 control box

(e.g. as might be required when a power source from another manufacturer is being

used)

SConnect the A6 VEC geared motor to the PEG1 control box

SConnect the guide lamp, if used, to the PEG1 control box

Loading with wire

1. Replacement of the coil

SRemove the wire reel from the brake hub (2) and take off one end (3).

SPlace the coil (1) of wire on the reel and replace the end (3)

SFit the wire reel or disposable reel on the brake hub (2):

Note the position of the carrier

IMPORTANT!

To prevent the wire drum from slipping off the

brake hub; Secure the drum with the red retaining knob,

as shown on the warning lable (right) by the brake hub.

Otros manuales para A6 TFD1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de ESAB

ESAB

ESAB CIGWELD CutSkill 60 Manual de usuario

ESAB

ESAB ET 210iP Advanced Manual de usuario

ESAB

ESAB Aristo U6 Manual de usuario

ESAB

ESAB Warrior 500i CC Manual de usuario

ESAB

ESAB EMP 210 Manual de usuario

ESAB

ESAB CaddyTig HF Manual de usuario

ESAB

ESAB HandyPlasma 550 Guía de configuración

ESAB

ESAB Aristo WeldCloud Mig U5000i Manual de usuario

ESAB

ESAB RobustFeed AVS Manual de usuario

ESAB

ESAB Aristotig255 AC/DC DTE 255 Manual de usuario

ESAB

ESAB Renegade EC 1000 Manual de usuario

ESAB

ESAB PT-26 Manual de usuario

ESAB

ESAB Origo Tig 3000i Manual de usuario

ESAB

ESAB Rogue ES 180i Pro Manual de usuario

ESAB

ESAB Origo Mig 4002cw Manual de usuario

ESAB

ESAB Railtrac B42V Manual de usuario

ESAB

ESAB Aristo Origo Feed 3004 Manual de usuario

ESAB

ESAB Origo Mig L305 Manual de usuario

ESAB

ESAB AristoFeed 30 Manual de usuario

ESAB

ESAB heliarc 160i Manual de usuario

ESAB

ESAB Origo Mig 4002cw Manual de usuario

ESAB

ESAB Origo Mig 4004i A44 Manual de usuario

ESAB

ESAB CoolMidi 1800 Manual de usuario

ESAB

ESAB Rustler EM 280C PRO Manual de usuario

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manual de usuario
