Epson MovieMate 30s Hoja de especificaciones

1Unpack your MovieMate

The Epson MovieMate projector is designed for use virtually anywhere at

home. However, MovieMate and its accessories should not be exposed

to water, smoke, direct heat or sunlight, or left outside for long periods

of time. As with typical electronic equipment, please avoid exposure of

MovieMate to moisture, dust, smoke, and other environmental factors

which may result in damage to internal electronics over time. See the

Epson America, Inc. Limited Warranty in your User’s Guide for additional

details on the use of your MovieMate 30s Series.



1⁄2



of this sheet.



MovieMate

Power cordBatteries

Epson MovieMate

™

30s Series

Lens cap User’s Guide

Quick Setup

Remote control VGA-to-component

video cable adapter

PepperUG_QS_CPD22196.indd 1

2Choose a location

You can use your MovieMate just about anywhere—in the living room, bedroom,

or even outside. You can use it with an optional subwoofer and screen, or simply

project on a wall and use the built-in audio system.

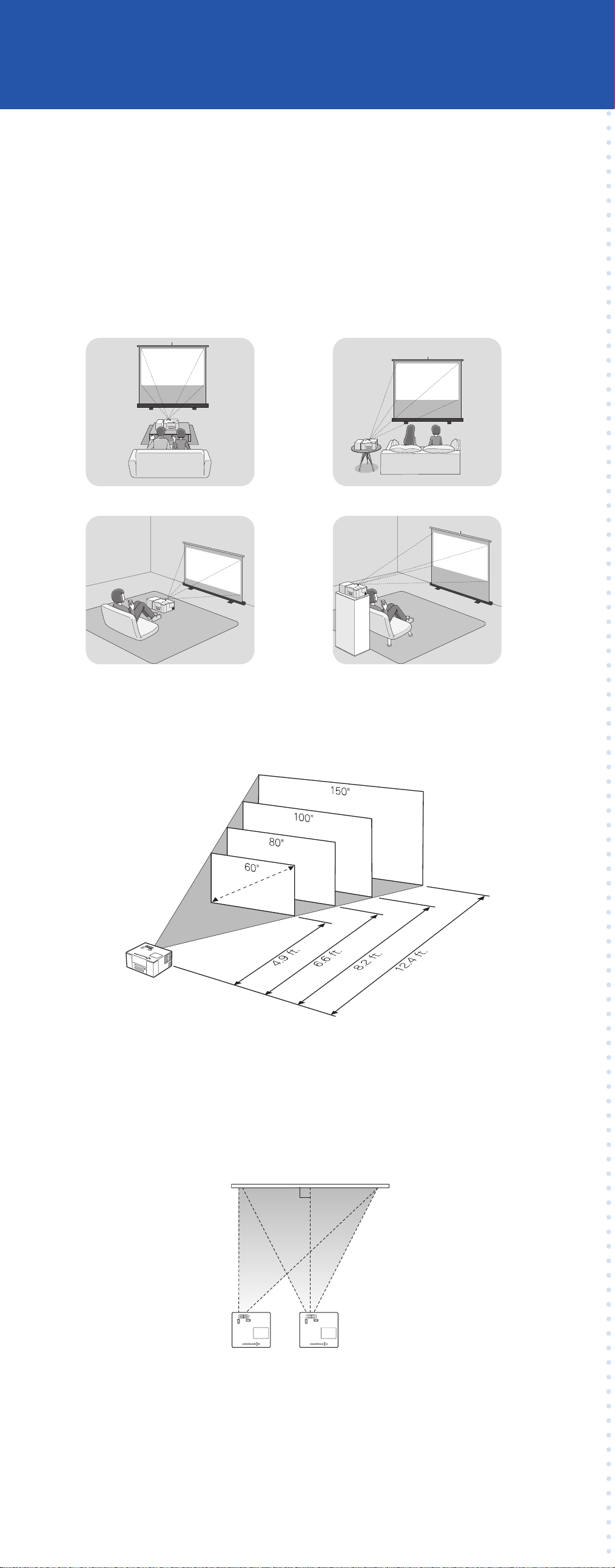

The following pictures show four different setups.

 If you want an 80-inch diagonal size image, place MovieMate about

1⁄2feet away from the wall or screen. The following diagram shows the

approximate image size (measured diagonally) at various distances.

 If you want to project against a wall, choose a flat white wall with a smooth

surface for best results.

 MovieMate doesn’t have to be directly in front of the screen or wall, but it

has to face straight ahead (at a 90-degree angle to the projection surface).

 If the image is too low, too high, or off to the side, you can use the quick

image adjustment dials to adjust the position. See section 5 on the back

of this sheet.

 Make sure you have a grounded electrical outlet, power strip, or extension

cord to plug MovieMate into.

PepperUG_QS_CPD22196.indd 1

Turn over

3Set up MovieMate

1If you have an optional screen, set it up following the instructions

included in the screen box. If you have an optional subwoofer,

set it up as described in the User’s Guide.

2Put the batteries in the remote control.

3The remote control buttons can glow in the dark. Expose the remote

control to light for several minutes so the buttons can absorb light

before using it.

4Plug in MovieMate and turn it on using the power switch.

The Power and Image Off lights turn on orange.

4Start a DVD movie

1Press the button to open the DVD tray.

2Insert the DVD and close the tray. If the movie doesn’t start

automatically, press the Power button or

the Image On/Off button.

3Adjust the volume if necessary.

Power switch

Lights

6/21/06 11:26:42 AM

5Adjust the image

1If the image is too low, too high, or off to the side, use the quick

image adjustment dials to adjust its position.

If the picture looks like this or this

straight ahead. Make sure you position MovieMate at a 90-degree

angle to the screen or wall. You can then use the left/right quick

image adjustment dial to center the image.

2Use the zoom ring to adjust the size of the image.

3Use the focus ring to sharpen the image.

4To enlarge or reduce the aspect of the ratio of the image,

press the button on the remote control.

6End a DVD movie

1Press to stop playing the DVD.

2Press to open the tray and remove the DVD. Close the tray.

3Press the Power button to turn off the lamp.

Left/right dialUp/down dial

Zoom ring

Focus ring

PepperUG_QS_CPD22196.indd 2 6/21/06 11:26:46 AM

4When you hear two beeps, turn off the MovieMate power switch.

5Unplug MovieMate.

6Attach the lens cover when you’re not using MovieMate.

quick

Any problems?

If you don’t find the solution to your problem here, see your

MovieMate 30s Series User’s Guide for more troubleshooting tips.

No picture appears on the screen

 Make sure MovieMate is turned on and warmed up. Turn on the main

power switch on the front and then press the Power button.

 Make sure the lens cover is off.

 The image may be off the screen. Use the up/down and left/right lens

shift dials to adjust its position. See section 5 at the left.

 Make sure MovieMate is not tilted. Tilting it more than 5 degrees up

or down may cause problems. Use the up/down lens shift dial

to adjust the image position.

The picture is blurry or out of focus

 Adjust the focus using the focus ring. See section 5 at the left.

 Make sure the lens cover is off.

 Make sure MovieMate is placed the correct distance from the screen:

no closer than 2.4 feet and no farther than 37 feet.

The picture is taller on the left or right side

Make sure MovieMate is level and facing straight ahead, at a 90-degree

angle to the screen or wall.

The remote control doesn’t work

 Make sure the toggle switch is in the

correct position: set it to -123 to

use the numeric buttons, or to Func.-

to use the other functions of these buttons.

 Check the batteries.

Function/numerics

toggle switch

Epson is a registered trademark and Exceed Your Vision is a trademark of Seiko Epson Corporation.

Epson MovieMate is a trademark and PrivateLine is a registered trademark of Epson America, Inc.

General notice: Other product names used herein are for identification purposes only and may be trademarks

of their respective owners. Epson disclaims any and all rights in those marks.

Printed in XXX CPD-22196

Any questions?

Look here for answers:

MovieMate 30s Series User’s Guide

Instructions for all MovieMate features, including connecting a cable or

satellite TV receiver, game console, MP3 player, sound system, optional

subwoofer, and more.

Telephone Support Services

To use the Epson PrivateLine®Support service, call (800) 637-7661

and enter the PIN on the Epson PrivateLine Support card that came

with your MovieMate. This is the fastest way of speaking to a live

representative, and it’s free. This service is available 6 AM to 6 PM, Pacific

Time, Monday through Friday, for the duration of your warranty period.

You can also speak with a projector support specialist by dialing one of

these numbers:

U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time,

Monday through Friday

Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time,

Monday through Friday

Toll or long distance charges may apply.

Electronic Support Services

Epson provides technical assistance through electronic support

services 24 hours a day at http://support.epson.com.
