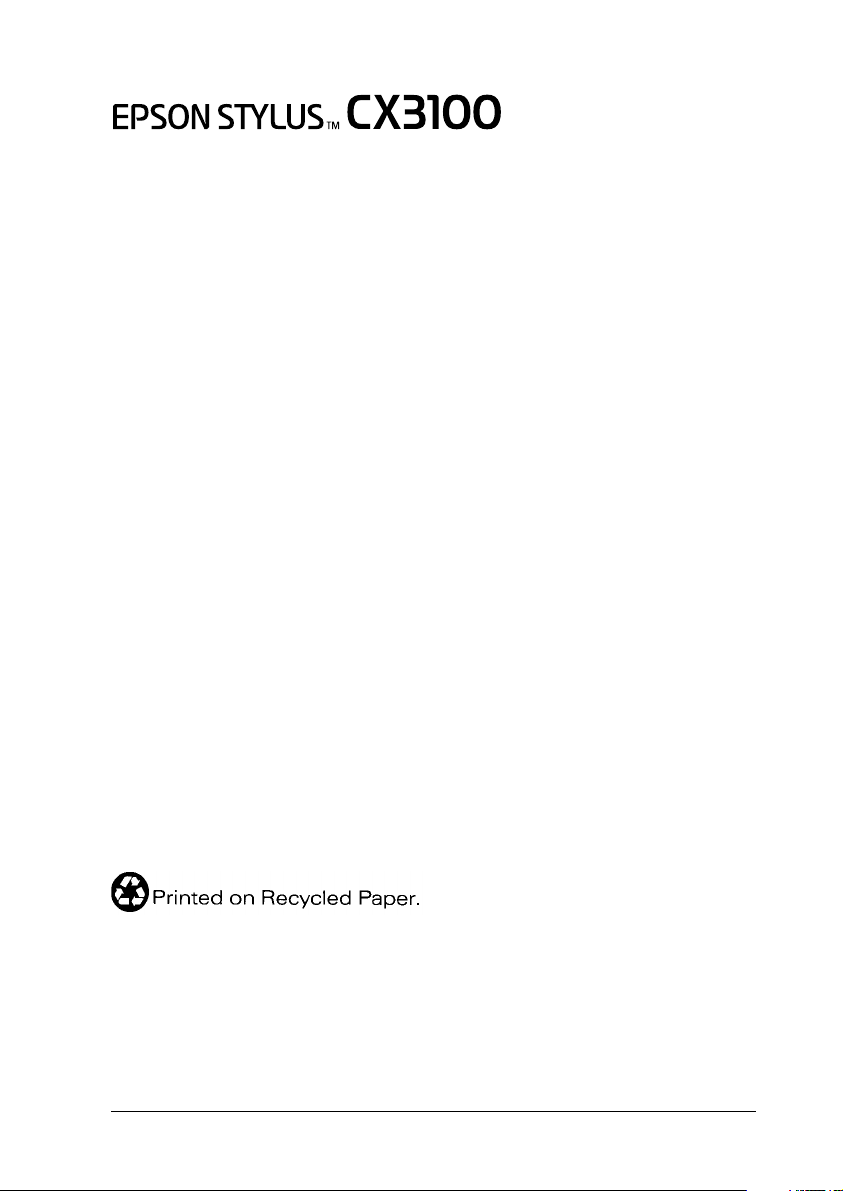

Epson Stylus CX3100 Manual de usuario

Where to Find Information

Copy Guide (this document)

Describes how to use this product as a copy machine. It also

explains how to use the Control Panel, change ink cartridges and

check the condition of this product.

Online Reference Guide

Provides basic information on printing and scanning, and

describes detailed functions of the printer software and the

scanner software. Information is also available on maintenance,

troubleshooting tips, technical specifications, and customer

support.

Online Help

Provides you with detailed information on the printer driver and

EPSON TWAIN. You can access the online help by clicking the

Help button in the driver dialog box.

All in One Product

system, or transmitted in any form or by any means, electronic, mechanical, photocopying,

recording, or otherwise, without the prior written permission of SEIKO EPSON

CORPORATION. The information contained herein is designed only for use with this EPSON

product. EPSON is not responsible for any use of this information as applied to other

products.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of

this product or third parties for damages, losses, costs, or expenses incurred by the purchaser

or third parties as a result of: accident, misuse, or abuse of this product or unauthorized

modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly

comply with SEIKO EPSON CORPORATION's operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from

the use of any options or any consumable products other than those designated as Original

EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.

SEIKO EPSON CORPORATION shall not be held liable for any damage resulting from

electromagnetic interference that occurs from the use of any interface cables other than

EPSON Approved Products by SEIKO EPSON CORPORATION.

EPSON is a registered trademark and EPSON ESC/P and EPSON Stylus are trademarks of

SEIKO EPSON CORPORATION.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used herein are for identification purposes only and may be

trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

Copy Guide

Stylus CX Parts

edge guide sheet feeder paper support

feeder guard

output tray

On button

document cover

scanner unit

transportation

lock lever document table

Control Panel

iii

Contents

Safety Instructions

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Chapter 1 Using the Control Panel

Control Panel Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Menu Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Selecting a language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Chapter 2 Copying

Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Loading the Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Making Copy Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Placing Your Document on the Document Table . . . . . . . . . .11

Copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Copy Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Standard Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Reduced Margin Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

BorderFree Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Small Margin Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Mirror Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Repeat Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

2-up Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Chapter 3 Replacing Ink Cartridges

Replacing an Ink Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Checking the Ink Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Chapter 4 Maintenance and Transporting

Checking the Print Head Nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Clearing the Jammed Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Transporting this Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Chapter 5 Troubleshooting

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Attention Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter 6 Contacting Customer Support

Overview of the Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 7 Product Specifications

Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Safety Instructions 1

Safety Instructions

Read all of the instructions in this section when setting up and

using this product.

When choosing a place for this product

❏Avoid places subject to rapid changes in temperature and

humidity. Also, keep this product away from direct sunlight,

strong light, and heat sources.

❏Avoid places subject to dust, shocks, and vibrations.

❏Leave enough room around this product to allow for sufficient

ventilation.

❏Place this product near a wall outlet where the plug can be easily

unplugged.

❏Place this product on a flat, stable surface that extends beyond this

product base in all directions. If you place this product by the wall,

leave more than 10 cm between the back of this product and the

wall. This product will not operate properly if it is tilted at an angle.

❏When storing or transporting this product, do not tilt it, stand it on

its side, or turn it upside down; otherwise, ink may leak from the

cartridge.

❏Leave more than 22cm between the base of this product and the

edge of the surface it is setting on; otherwise, this product may fall

if tipped forward possibly causing injury.

When choosing a power source

❏Use only the type of power source indicatedon the label on the back

of this product.

❏Be sure your AC power cord meets the relevant local safety

standards.

❏Do not use a damaged or frayed power cord.

❏If you use an extension cord with this product, make sure that the

total ampere rating of the devices plugged into the extension cord

does not exceed the cord's ampere rating. Also, make sure that the

total ampere rating of all devices plugged into the wall outlet does

not exceed the wall outlet's ampere rating.

❏If you plan to use this productin Germany, the building installation

must be protected by a 10 or 16 amp circuit breaker to provide

adequate short-circuit protection and over-current protection for

this product.

2Safety Instructions

When handling ink cartridges

❏Do not open the ink cartridge packages until just before you install

them.

❏Do not shake used ink cartridges; this can cause leakage.

❏Keep ink cartridges out of the reach of children. Do not allow

children to drink from or otherwise handle the cartridges.

❏Be careful when you handle used ink cartridges, as there may be

some ink remaining around the ink supply port. If ink gets on your

skin, wash the area thoroughly with soap and water. If ink gets into

your eyes, flush them immediately with water. If discomfort or

vision problems remain after a thorough flushing, see a doctor

immediately.

❏Do not touch the green IC chip that is located on the back of the

cartridge.

❏Do not remove or tear the blue label on the cartridge; this can cause

leakage.

❏Store each ink cartridge so that the bottom of its packaging faces

down.

When using this product

❏Do not put your handinside this product ortouch the inkcartridges

during printing.

❏Do not block or cover the openings on this product.

❏Do not attempt to service this product yourself.

❏Unplug this product and refer servicing to qualified service

personnel under the following conditions:

The power cord or plug is damaged; liquid has entered this

product; this product has been dropped or the cover damaged; this

product does not operate normally or exhibits a distinct change in

performance.

❏Do not insert objects into the slots on this product.

❏Take care not to spill liquid on this product.

❏Leave the ink cartridges installed. Removing the cartridges can

dehydrate the print head and may prevent this product from

printing.

When using the LCD panel

❏Only use a dry, soft cloth to clean the display. Do not use liquid or

chemical cleansers.

❏If the display on this product is damaged, contact your dealer.

❏If the liquid crystal solution contained in the LCD panel leaks out

and gets on your hands, wash them thoroughly with soap and

water, if the liquid crystal solution gets into your eyes, flush them

immediately with water, if discomfort or vision problems remain

after a thorough flushing, see a doctor immediately.

Using the Control Panel 3

Chapter 1

Using the Control Panel

Control Panel Functions

You can control most copy functions from the Control Panel.

Note:

When you make a copy using a control panel function, a moiré

(cross-hatch) pattern may appear on your printout. To eliminate the

moiré, change the reduce/enlarge ratio or shift the position of the

document.

When you press the

POn button to turn on this product, the LCD

panel shows the current copy mode, as well as the copy settings

on quality, reduce/enlarge, paper size, and number of copies.

Also, you can see and use the ink drop icon to check the amount

of ink left. This state of the LCD panel is called the “normal

display”.

Copy

Error

Scan

Recall Reset Copies

Value

B&W

Stop

Return to Top

Color

Enter

Reset all(3sec)

Save(3sec)

Otros manuales para Stylus CX3100

Tabla de contenidos

Otros manuales de Impresora de Epson

Epson

Epson ColorPage EPL-C8200 Manual de usuario

Epson

Epson DFX-5000+ Dimensiones

Epson

Epson R320 - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson WorkForce Pro WF-C4810 Series Manual de instrucciones

Epson

Epson R340 - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson NPD4736-00 EN Manual de usuario

Epson

Epson LQ-630 Manual de usuario

Epson

Epson WorkForce WF-7610 Manual de usuario

Epson

Epson Stylus Color 400 Hoja de especificaciones

Epson

Epson 2000P - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson WorkForce WF-2960DWF Manual de usuario

Epson

Epson TM-U200 Series Manual de usuario

Epson

Epson WorkForce WF-100W Manual de usuario

Epson

Epson B-500DN Manual de instrucciones

Epson

Epson 980N - Stylus Color Inkjet Printer Manual de uso y mantenimiento

Epson

Epson C I - 4 0 4 Manual de usuario

Epson

Epson SureColor SC-P906 Manual de usuario

Epson

Epson TM-T82X Manual de uso y cuidado

Epson

Epson 2000P - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson STYLUS SX218 Manual de instrucciones

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson M1180 Manual de instrucciones

Epson

Epson R2400 - Stylus Photo Color Inkjet Printer Manual de instrucciones

Epson

Epson Stylus Photo 925 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario
