Epson LQ-570+ Printer Operation

Introduction The following pages give the basic information required for an ACD Manager user to

operate the printer supplied to produce reports.

Before any printing can take place the printer must be in the following condition:

1. The printer is loaded with paper.

2. The paper feed lever on the top right of the printer should be fully forward.

3. The printer isswitched ON (if not press the Operate button).

4. The Power ON lamp is illuminated.

5. The Draft lamp is illuminated.

The printer is supplied setup to use Draft font which will give the quickest output and give

the longest ribbon life. The font can be changed by pressing the 'Font' button. The current

font will be shown by the adjacent indicator lamp.

The paper feed mechanism is supplied to use pull tractor feed. This method is

recommended as it gives least possibility of the paper jamming in the printer. This is

important as the ACD Autoprint normally takes place at night when the system is

unattended.

Printer Settings

To enable the printer to operate correctly with the ACD Manager the DIP switches behind

the cover on the front of LQ-570+ printer should be set as shown below. These setting

switches should be changed when the printer is switched off, otherwise the new settings will

not be registered by the printer.

Epson LQ-570+ Printer Operation Printer Parts

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 4

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

Printer Parts

Epson LQ-570+ Printer Operation Installing the Ribbon Cartridge

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 5

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

Installing the Ribbon Cartridge

Before installing the ribbon cartridge, make sure that the power cord is not plugged

into an electrical outlet.

1. Raise the paper-guide cover and rest it on the printer cover. Lift the paper guide

up and off. Lift the printer cover up and off. Grasp both ends of the clear plastic

paper-tension unit; lift up the front of the unit and then lift it off.

Warning: Never move the print head whilst the printer is turned on; this can

damage the printer. Also, if you just used the printer, the print head may be hot. Let

it cool for a fewminutes before touching it.

2. Slide the print head to the middle of the printer.

3. Turn the ribbon-tightening knob in the direction of the arrow. This removes any

slack in the ribbon and makes it easier to install. Next, hold the ribbon cartridge

by its handle and push it firmly down into position; then press on both ends of

the cartridge to make sure the plastic hooks fit into the slots.

4. Use a pointed object, such as a ball point pen, to guide the ribbon between the

print head and ribbon guide. Turn the ribbon-tightening knob to help feed the

ribbon into place.

Epson LQ-570+ Printer Operation Installing the Ribbon Cartridge

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 6

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

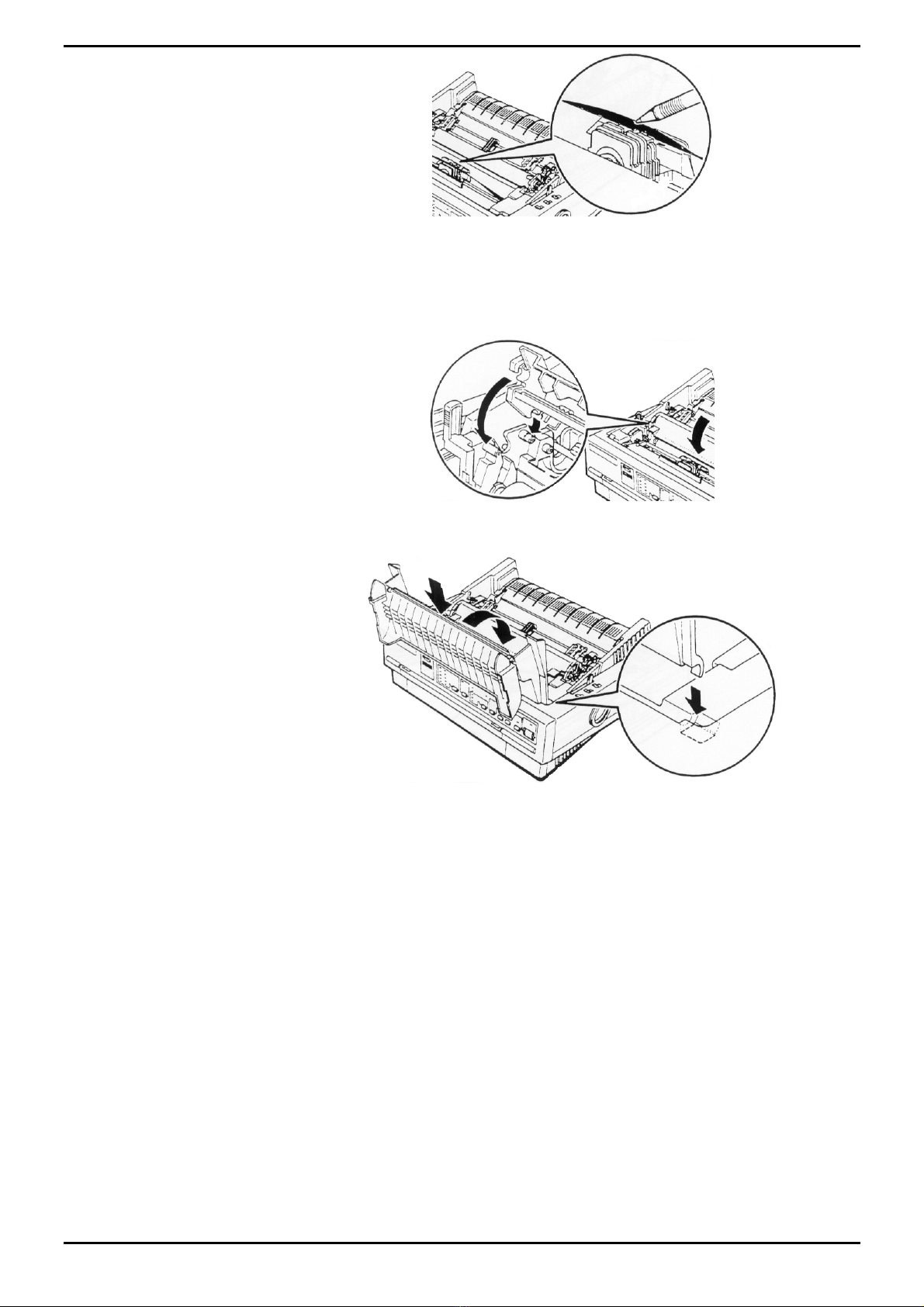

5. Slide the print head from side to side to make sure it moves smoothly. Also

check that the ribbon is not twisted or creased.

6. Replace the paper-tension unit by placing it on the printer's mounting pegs; then

lower the front of the unit into place. Press on the front of both sides of the

paper-tension unit until you feel it click into place.

7. Replace the printercover by first inserting the front tabs into the slots on the

printer; then lower it into place.

Note: You install the optional #7768 or#7770 film ribbons in the same way as you

install the ribbon cartridge. However, you should follow the guidelines below when

using a filmribbon:

– Print on ordinary paper only.

– Move the paper-thickness lever to the next lowest position.

Epson LQ-570+ Printer Operation Attaching the Paper Guide

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 7

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

Attaching the Paper Guide

1. Place the notches on the paper guide straight down over the mounting posts on

the printer.

2. Lower the paper guide until it stops in the upright position. Raise the paper

guide cover and rest it against the paper guide.

Epson LQ-570+ Printer Operation Loading Continuous Paper with the Pull Tractor

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 8

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

Loading Continuous Paper with the Pull Tractor

By placing the tractorin the pull-tractor position, you can load paper from the rear,

front, or bottom. The steps are the same for all paper paths.

Note: When the tractor isin the pull-tractor position, do not use the TEAR-OFF

button or the LOAD/EJECT button to feed the paper back to the standby position.

1. Make sure the printeris turned off and the paper guide and the printercover are

removed.

2. Make sure the tractor is in the pull-tractor position and the paper-release lever is

in the pull-tractor position.

3. Release the tractor's sprocket units by pulling the sprocket lock leversforward.

4. Slide the left sprocket unit to approximately 12 mm (l/2 inch) from the far left

position and push the sprocket lock lever back to lock the sprocket unit in place.

Then slide the right sprocket unit to match the width of your paper, but do not

lock it in place. Move the paper support so it is midway between the sprocket

units.

5. If you are inserting paper in the front paperslot, remove the front coverand

slide the edge guide completely to the left.

Epson LQ-570+ Printer Operation Loading Continuous Paper with the Pull Tractor

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 9

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

6. Make sure your paperhas a clean, straight edge. Insertthe paper into the

desired paper slot (rear, front, or bottom) until it emerges between the platen

and print head.

7. Pull the paper up untilthe perforation between the first and second pages is

even with the top of the printer's ribbon.

8. If you insert paper through the front paper slot, re-attach the front cover.

9. Fit the first fourholes of the paper over the sprocket pins.

10. Close the sprocket covers.

11. Slide the right sprocket unit to remove any slack in the paper. Then lock it in

place by pushing the sprocket lock lever back.

12. Place the notches on the paper guide straight down over the mounting posts on

the printer.

13. Slightly lift the paper guide and then lower it untilit rests on the printer.

14. Slide both edge guides to the middle of the paper guide.

15. Turn on the printer.

16. If necessary, adjust the paperposition using the micro-feed feature.

Epson LQ-570+ Printer Operation Loading Continuous Paper with the Pull Tractor

Printer Setup Manual Epson LQ-570+ Printer Operation - Page 10

SDX ACD Manager 5.2 38DHB0002UKBP - Issue 1 (March 1999)

Caution: Use the knob on the right side of the printer only to clear paper jams when

the printer is off.Otherwise, you may damage the printer or cause it to lose the

top-of-form position.

17. To replace the printer cover, insert the front tabs into the slots on the printer and

then lower the cover into place. Raise the paper-guide cover and rest it on the

paper guide.
