INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70 1

Installation Manual on

Continuous ink supply system (CISS)

For printer EPSON C82/C80/C70

Thank you for using the “INKSYSTEM” Continuous ink supply system. It is the

best device for an inkjet printer, and it will definitely decrease your printing costs.

Before using this system, please read this manual carefully. The pictures in this manual

may be different with the real ones. It’s just for your reference.

Note: The pictures in this manual may be different with the real ones. Here just

for your reference.

I. Opening Guide

1. Accessories

1) Continuous ink supply system ……………………………………………1

2) Air Filter ………………………………………………………………….1

3) Sponge …………………………………………………………………….1

4) Injector …………………………………………………………………….1

5) Long needle …………………………………………………………….....1

6) Short needle …………………………………………………………….....1

7) Protection clamp …………………………………………………………..1

8) Installation Manual ………………………………………………………..1

9) Certificate on free installation………………………………………………1

Pic. 1-1 Pic. 1-2

2. Inspection before installation

A. Check whether all the accessories are present.

B. Check whether the system is retrieved normally or too much air is remained in

the connecting tubes (length over 20cm).

II. Printer test

2 INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70

1. Check printer status to see whether it is normal or not, and check its

mechanics for smooth and any damage.

2 Enter nozzle test option (2-1), print nozzle test sheet to see whether nozzle is

normal (2-2,2-3).

Pic. 2-1 Pic. 2-2, 2-3

3. If printer is alright, please print a picture to see the result.

Ill. Installation Procedures

1. Remove ink from the air balance tube

Place the system on the table, check if there is any ink in each of the air balance

tube. If yes, you need to remove the ink in the balance tubes by the following steps:

1) Pull out the sealed plug of the balance tube (3-1-1).

2) Use the injector to draw all ink out.

3) Put the sealed plug back.

4) Put the sealed plug back.

4) Pull refill plug out.

5) Inject ink to the ink tanks according to their color.

6) Put refill plug back.

7) Check all the plugs to make sure they are completely sealed.

Pic. 3-1-1 Pic.3-1-2

2. Replace the air balance plugs

INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70 3

Put this system on the right side of printer, tidy up ink flow tubes, pull out an air

balance plug and replace it with an air filter with the bigger side downwards.

3. Move out cartridge holder

Insert screwdriver like, screw screwdriver like until take cartridge cover off.

4. Install the system ink cartridges

Take cartridges out. Install CISS cartridges according to printer indication and

press cartridge down to the place.

5. Attach tubes

Tear sponge seal off. Tidy up ink tube. Stick rack onto the printer cover like.

Make sure that tube and rack will not fall off while printing. Do not twist ink tube.

6. Check wire length

Move cartridge holder to left side, then to right side, check if the tube is too long

or too short. Move cartridge holder to right side, check if ink tube will fall down during

movement, if fall down, then the holder will be blocked during printing. Generally,

before shipment, we have adjusted the tube to the right size, please double check before

printing.

7. Adjust wire length

If step 6 is ok, then there is no need to go through this step.

If the tube length is too short then lengthen it, if too long then shorten. If the tube falls

down, you need adjust the angle of sticker to prevent falling.

8. Take place meter off

Tidy up ink tube. Tear seal off, attach fixation like. Press ink tube while closing

printer cover to avoid deforming of ink tube.

9. Prepare for printing

Plug power wire on (3-9-1), turn printer on. Check whether printer and ink tube

can run normally. Close printer cover and check whether it is strange noise while

printing.

Pic. 3-9-1

10. Check printer nozzle

4 INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70

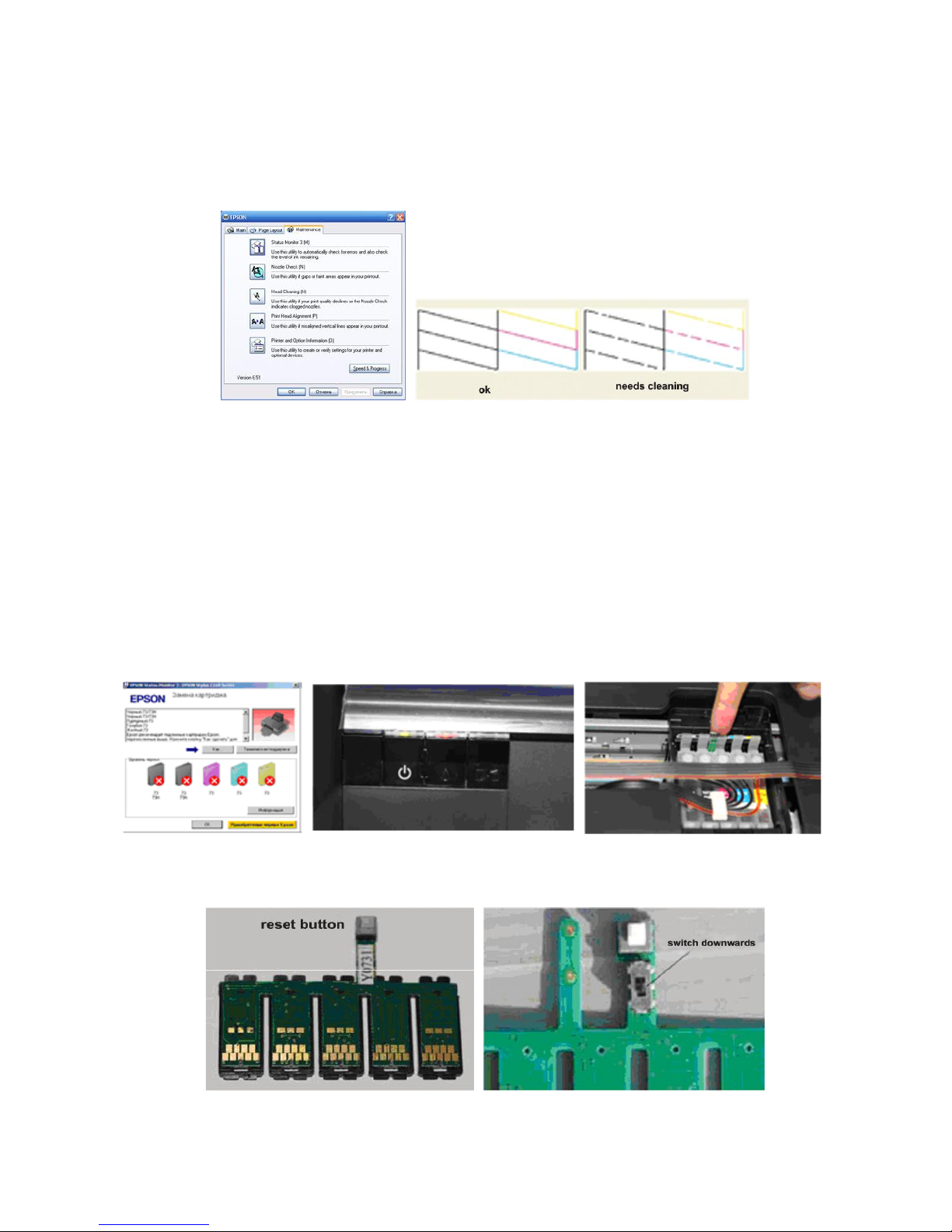

Enter printer nozzle inspection option (3-10-1), print nozzle test sheet. If it is ok

(3-10-2)), then can run printer. If line is missing (3-10-3), please clean the nozzle. If just

one color is missing (maybe there is air in nozzle). If it is still a little line missing after

several times cleaning, please turn printer off and let printer stay turned off for one hour

or more. Please contact local distributor if still have problem.

Pic.3-10-1 Pic. 3-10-2, 3-10-3

IV. Notice

It requires to change cartridges while printing (4-1-1) and ink light flash (4-1-2).

Press ink button to move out cartridge holder. Press chip reset button for 3 seconds (4-

1-3), repress ink button to move back cartridge holder, then ink amount shows 99%

again. Redo nozzle inspection and printer can run normally if it is alright. (Black and

other colors can be handled by the same method).

Note: Distinguish two kinds of chips (4-1-4). The manipulation is the same. The

difference is that the chips with transferred switch should be switched downwards (4-1-

5), otherwise, chips can not be recognized.

Pic. 4-1-1 Pic. 4-1-2 Pic. 4-1-3

Pic. 4-1-4 Pic. 4-1-5

INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70 5

V. Removing used continuous ink supply system

Replace air filters with air plugs (5-1-1).Move out cartridge holder and take the

rack off. Take the cartridges out (5-1-2) and place the cartridges on the tissue with the

ink flow nozzle downwards, and let the tissue at the same level with the system ink tank

(5-1-3).

Pic. 5-1-1 Pic. 5-1-2 Pic. 5-1-3

VI. Refill ink

During printing, if you found out that the ink level in the tank is below the red

line, please add ink according to the methods.

VII. Check air balance tube

During printing, if you find some abnormal cases, such as bad output, ink drip out

on paper, then you need to check the air balance tube to see if exist ink. If yes, please do

according to the manual of "ink pump out from balance tube”.

VIII. Warnings

1. During printing, please do not take cartridges over than the printer. Please keep

ink tank and printer in the same level.

2. During printing, do not inverse, lift up or lower ink tanks.

3. Please do not block up ink tanks for curiosity or for fear of less ink

4. Use CISS at clean environment and within the temperature range 15-35

degrees.

IX. Product Warranty

INKSYSTEM warrants its products to be free from defects in material or

workmanship. Rarely the equipment partly or completely fails within the warranty

period. In these cases we do everything possible to ensure that our customers are

satisfied with the purchase.

The INKSYSTEM CISS installation is free in any of the representative offices.

Please adhere to the following points to receive a warranty service as soon as

possible:

When accepting the product check if the warranty certificate is filled in

correctly.

6 INSTALLATION MANUAL ON CISS FOR PRINTER EPSON C82/C80/C70

Try to avoid mechanical damages when operating the product: chippings, dents,

fractures, scratches, etc.

Demonstrate the failed device to the service center managers (the warranty repair

or replacement can be provided only upon the failed product availability).

We cannot provide a warranty repair under several conditions:

If the warranty certificate is wrongly filled in.

If the device has mechanical damages: chippings, dents, fractures, scratches, etc.

If the identification information was removed or the information identification

has been complicated in any possible way: additional notes, stickers, etc.

If the user has previously performed a repair or change in the internal parts of the

device.

If the equipment has previously been repaired in a service center that is not an

«INKSYSTEM» representative center.

If the device was installed by the user.

If the defect appeared under the circumstances of insuperable forces, accidents,

intended or careless actions of the user or a third party.

If the ink used was not manufactured by “INKSYSTEM” (South Korea)

If the printing limit was exceeded –more than 100 000 prints.

The “INKSYSTEM” Company excludes for itself any liability for incidental,

consequential, indirect, special, or punitive damages of any kind to people, pets or

property if the stated damages have been affected because of rules and operational

conditions / product installation disregard. The Company also excludes any liability for

intentional or careless actions of the user or third parties, for loss of revenue or profits,

loss of business, loss of information or date, or other financial loss arising out of or in

connection with the sale, installation, maintenance, use, performance, failure, or

interruption of the possibility of such damages.

Warranty certificate

(Product)

Continuous ink supply system

(Model Name)

_____________________________________

(Serial №)

_____________________________________

(Date of Purchase)

_____________________________________

(Warranty Period)

1 year from the date of retail purchase

Seller company

SEAL

The warranty conditions are agreed and accepted. No claims against the product appearance

and the list of equipment.

Customer’s signature
