Epomaker SK61 Series Manual de servicio

Epomaker SK61/GK61 Extended Manual Version 1.3

SK61/GK61

Extended Manual

Epomaker SK61/GK61 Extended Manual Version 1.3

Comments by Epomaker

If you think any part of this manual needs correction, adjustment or updating, sent the team a

message at [email protected]. You can also send a message there if you have any

issues with your keyboard.

Warranty Information

Epomaker’s Warranty covers any factory defects that might affect the proper functionality of

your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your

product is defective we will send you a replacement unit. Replacement units might require you

to send the defective unit back to Epomaker.

We provide a 1 year warranty for our products when bought from our website (Epomaker.com).

Your item will not be covered by your 1 year warranty if the inspection shows any sign of

modification or changes unsupported by the original product, these include: Changing internal

components, Assembling and reassembling the product, Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our stores, you do not have a warranty with us if

you bought the item from another reseller or likewise. You are required to contact them to

resolve issues.

Where To Buy

Website

http://epomaker.com/

Amazon US

https://www.amazon.com/s?me=A31XCF3C216O31&marketplaceID=ATVPDKIKX0DER

Amazon UK

https://www.amazon.co.uk/s?k=EPOMAKER

Amazon DE

https://www.amazon.de/s?k=EPOMAKER

Aliexpress

https://www.aliexpress.com/store/5877346

Epomaker SK61/GK61 Extended Manual Version 1.3
Table of Contents
Comments by Epomaker 2
Warranty Information 2
Where To Buy 2
Unboxing 5
What's included in the Box 5
Epomaker Manual (SK61/GK61): 6
Keyboard Information 8
Keyboard Keycap Dimensions 9
Changing Modes/Layers 9
Setting Up Keyboard/Bluetooth 10
Windows 10 Bluetooth 10
iOS Bluetooth Setup 12
MacOS Bluetooth 14
Linux Bluetooth Pairing 16
Downloading Software for your Epomaker SK61/GK61 17
Windows Download 17
MacOS and Linux Download (GUI): 19
Lighting Section 24
Creating an Lighting (.LE) Files 24
Edit Driver Layer Colours 27
Add Onboard Lighting Effects 29
Uploading Lighting “LE” Files 30
Downloading Lighting “LE” Files 31
Creating Frame Based Lighting Effects 32
Layout Section 40
Changing Keyboard Language Settings 40
Windows 40
MacOS 42
Remapping A Single Key 45
Remapping A Key Combination 47
Creating a New Macro Category 49
Creating a Macro 50
Recording a Macro 52
Editing a Macro 53
Assigning A Macro To A Key 54
Frequently Asked Questions 56

3

Epomaker SK61/GK61 Extended Manual Version 1.3
I see “Not Support Device” 56
Combination of the FN key + Another key 57
My Mac Delete key is not working 57
My GK6X Plus Driver is in Chinese 59
I can’t seem to press anything on my MacOS screen 59
My Keyboard is not showing up in my Bluetooth 59
How do I check my battery and what does the indicator mean? 60
My Left-Alt is stuck at an orange-yellow colour 60

4

Epomaker SK61/GK61 Extended Manual Version 1.3

Unboxing

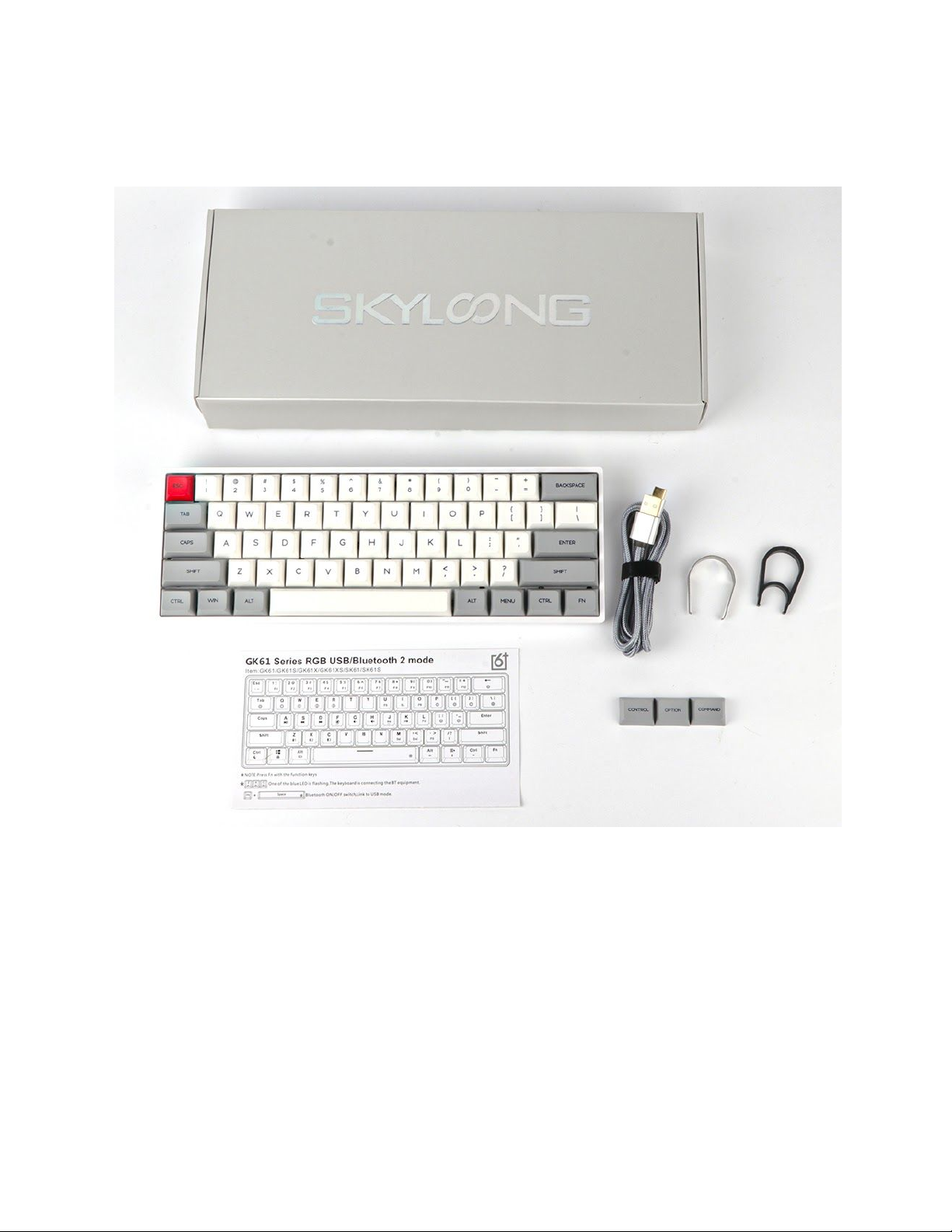

What's included in the Box

Note: This might change depending on availability

1. Epomaker SK61/GK61

2. Epomaker Keycap Set

3. Epomaker SK61/GK61 Manual

4. USB A to USB C Braided Cable (1.5m / 4.9ft)

5. Keycap and Switch Puller

6. 3 MacOS keys

Epomaker SK61/GK61 Extended Manual Version 1.3

Epomaker Manual (SK61/GK61):

Epomaker SK61/GK61 Extended Manual Version 1.3

Media Keys

FN + A: Play/Pause

FN + S: Previous

FN + D: Next

FN + F: Mute

FN + G: Volume -

FN + H: Volume +

Bluetooth Settings

FN + Space: Bluetooth On/Off

FN + Z:  Long Press: First Bluetooth Equipment Pair

Short Press: Connect/Disconnect to First Bluetooth Equipment

FN + X: Long Press: Second Bluetooth Equipment Pair

Short Press: Connect/Disconnect to Second Bluetooth Equipment

FN + C: Long Press: Third Bluetooth Equipment Pair

Short Press: Connect/Disconnect to First Bluetooth Equipment

Other Keyboard Settings

FN + Tab: 3 Seconds Press to Lock/Unlock Keyboard

FN + Win: Lock/Unlock Windows Key

FN + Left Ctrl: Keyboard Sleeping Options - 0.. Never Sleep.. 1.5min.. 9:45mins..

FN + Function (Standard Layer)

FN + 1: F1

FN + 2: F2

FN + 3: F3

FN + 4: F4

FN + 5: F5

FN + 6: F6

FN + 7: F7

FN + 8: F8

FN + 9: F9

FN + 0:  F10

FN + -: F11

FN++: F12

Numpad Keys

FN + U: PS

FN + I: SL

FN + O: PB

FN + <: End

FN + >: PD

FN + J: Ins

FN + K: HM

Epomaker SK61/GK61 Extended Manual Version 1.3

FN + L: PU

FN + M: Del

Backlight Settings

FN + Backspace: Backlight On/Off

FN + ]}: Backlight Mode 1-5 (Modify)

FN + {[: Backlight Mode 6-9

FN + \|: Pause/Play Light Effect

FN + Down Arrow: Backlight Brightness -

FN + Up Arrow: Backlight Brightness +

FN + Left Arrow: Backlight Effect Speed -

FN + Right Arrow: Backlight Effect Speed +

Keyboard Modes

Standard Mode: Standard Mode

FN + Q (Driver Mode): Q White Light LED

FN + W (Layer 1): W Light White LED

FN + E (Layer 2): E Light White LED

FN + R (Layer 3): R Light White LED

Keyboard Information

Keyboard Model: Epomaker SK61/GK61 Optical Keyboard

Keyboard Size: 295 x 105 x 45mm

Keyboard Weight: 0.768kg

Battery Capacity: 1900mAh Lithium Polymer Battery

Keycap Material: PBT Thermal Sublimation

Case Material: ABS Plastic

Layout: 61 Keys

Technology: Gateron Optical (SK) or Gateron Mechanical (GK)

Epomaker SK61/GK61 Extended Manual Version 1.3

Keyboard Keycap Dimensions

The “units” of a keycap refer to a comparison between a one “unit” standard key. This is such

that a 2u key will be two units of a 1u key.

Changing Modes/Layers

The following modes are available on your GK61/SK61

Standard Layer

In this layer, you have preset configurations for the buttons to be pressed which you can see in

the manual above. You can put onboard lighting on here by using the software and accessing it

using FN + ]

The default on this layer is the following:



Macice Blue, RGB, Spectral Cycle, Windmill and

Rainbow Waves

Driver Layer (FN + Q): Q light will light up when this mode is selected. Driver mode layer

only works when the keyboard is connected wired, and allows you to modify the backlight

colours in real-time. You can assign larger macros while connected through a cable vs storing it

on-board.

Layer 1: Onboard memory layer, The “W” key will light up when this mode is selected.

This layer will work without having to be connected wired, but you’re limited to what lighting you

saved onboard (similar to the “standard layer”).

Layer 2: Onboard memory layer, The “E” key will light up when this mode is selected.

MacOS layer. This layer is the same as Layer 1 and 3, but by default has the keys rebinded to

match a MacOS keyboard and the Backspace key will be binded to delete. This can be changed

in the driver.

Epomaker SK61/GK61 Extended Manual Version 1.3

Layer 3: Onboard memory layer, The “R” key will light up when this mode is selected.

This layer will work without having to be connected wired, but you’re limited to what lighting you

saved onboard (similar to the “standard layer”).

Setting Up Keyboard/Bluetooth

Windows 10 Bluetooth

1. First, charge the keyboard via a USB port on your computer until it has decent charge.

2. Power on the keyboard using FN + Space. This will put your Epomaker SK61/GK61 in

Bluetooth mode.

3. Long Press Either FN + Z, FN + X, or FN + C for about three seconds. The key will start

to flash red and green. This means that the keyboard is in pairing mode.

4. Press the windows key, and type “Bluetooth” into the search.

5. Select “Bluetooth and other device settings”
