Installation and Maintenance Instructions

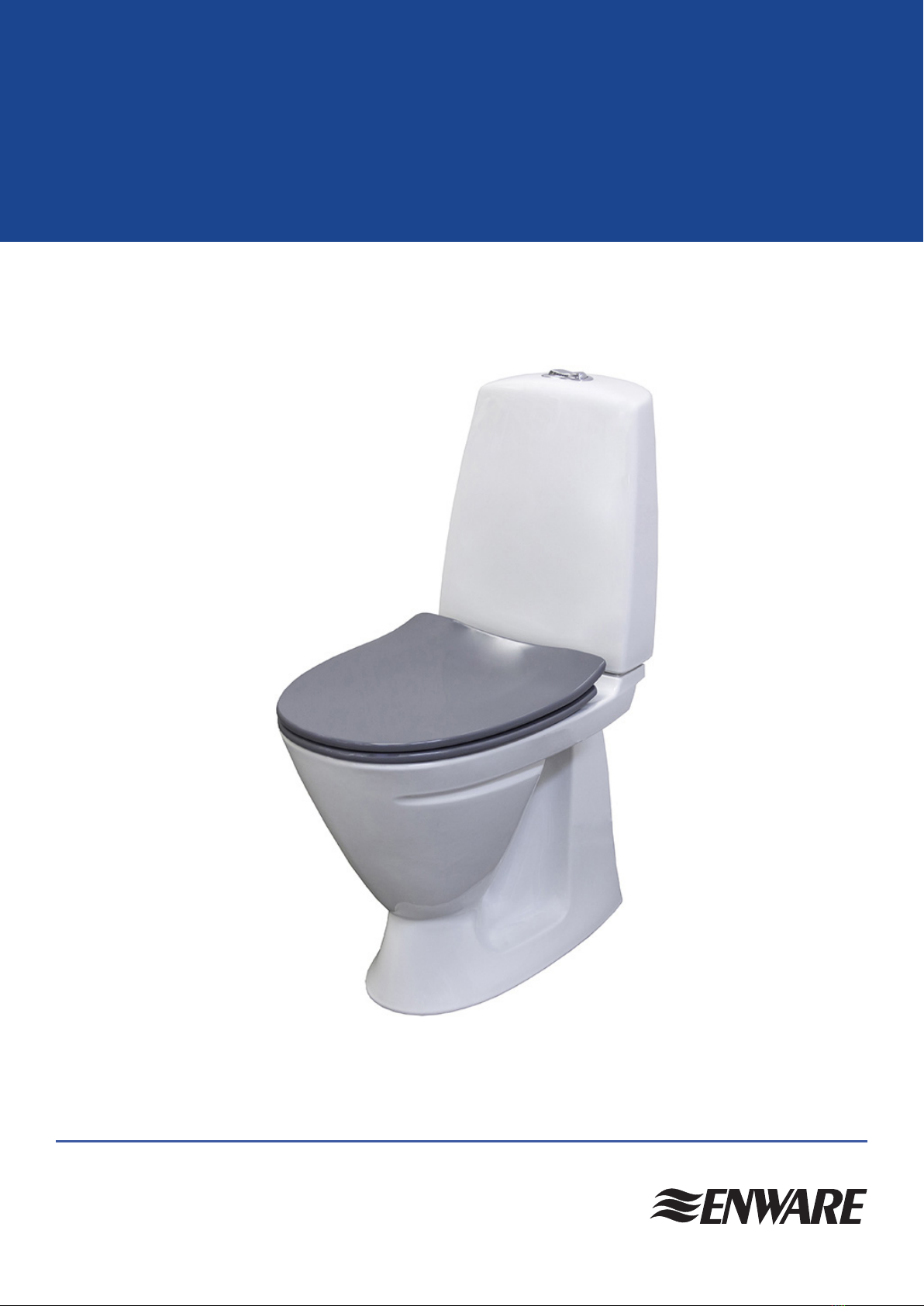

IFO SIGN WC

RAISED / STANDARD HEIGHT TOILET

Call 1300 369 273

www.enware.com.au

Enware Australia Pty Limited

9 Endeavour Rd Caringbah NSW 2229 Australia

Ph: 02 8536 4000 info@enware.com.au

2 Call 1300 369 273 www.enware.com.au

contents

Page

Product Description 3

Contents 6

Installation 7

Floor Mounting Method 9

Access to Cistern Internal Components 13

Adjusting Flush Volume 14

Installation - Accessories 16

Maintenance 17

Cleaning 18

Troubleshooting 18

Spare Parts 19

Warranty 20

www.enware.com.au Call 1300 369 273 3

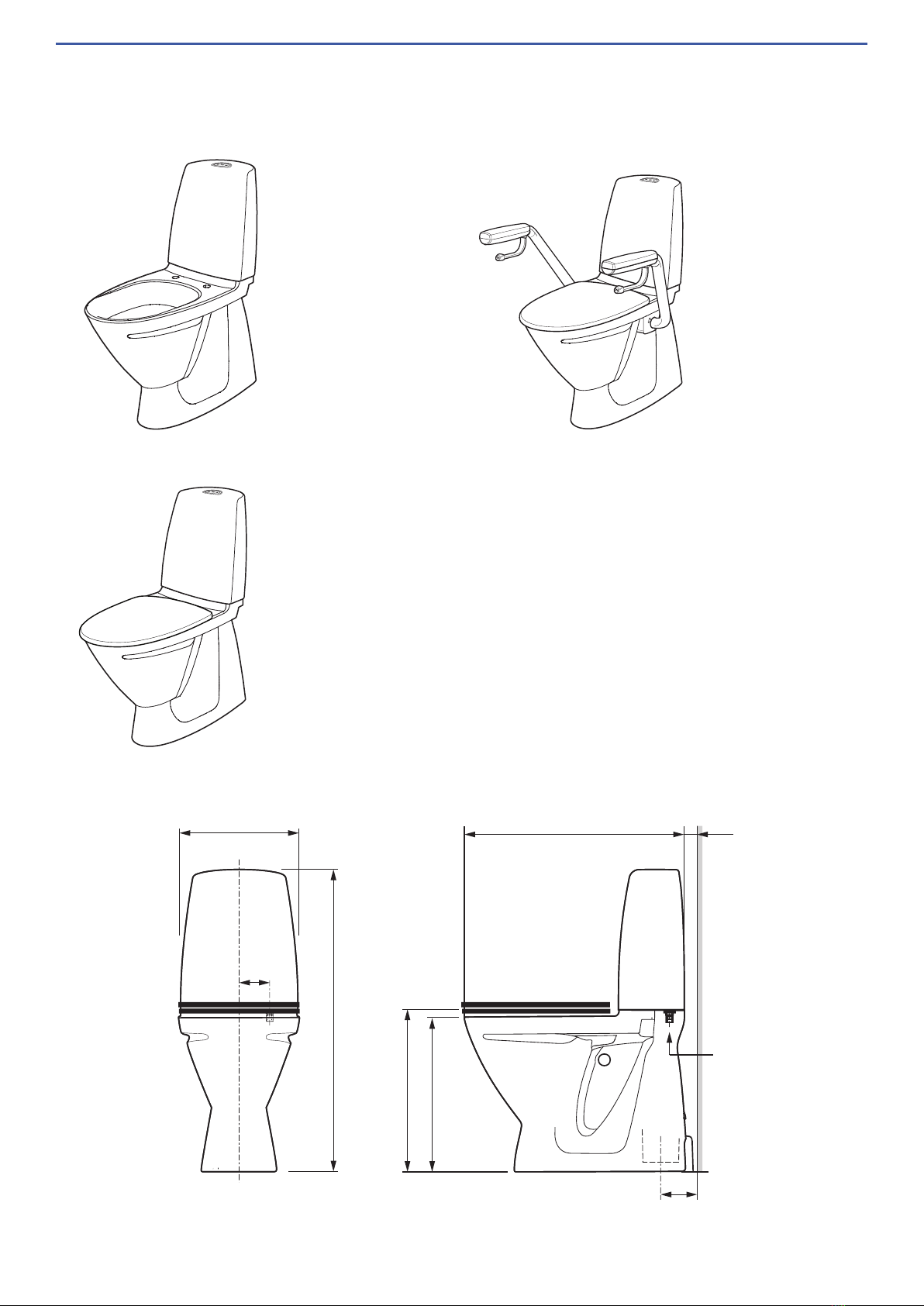

6861 Model (Raised Height S-Trap)

6860 68626861 6872

Bottom

Inlet

Connec

tion

670

30 min.

clearance

100 min.

480

to top of seat

460

900

360

FRONT VIEW SIDE VIEW

6860 68626861 6872

CARE6861

CARE101S, CARE102S,

CARE301S, CARE302S, CARE303S,

CARE501S, CARE502S, CARE503S

CAREAMBS

IFO6861 CARE600

CARE601

4 Call 1300 369 273 www.enware.com.au

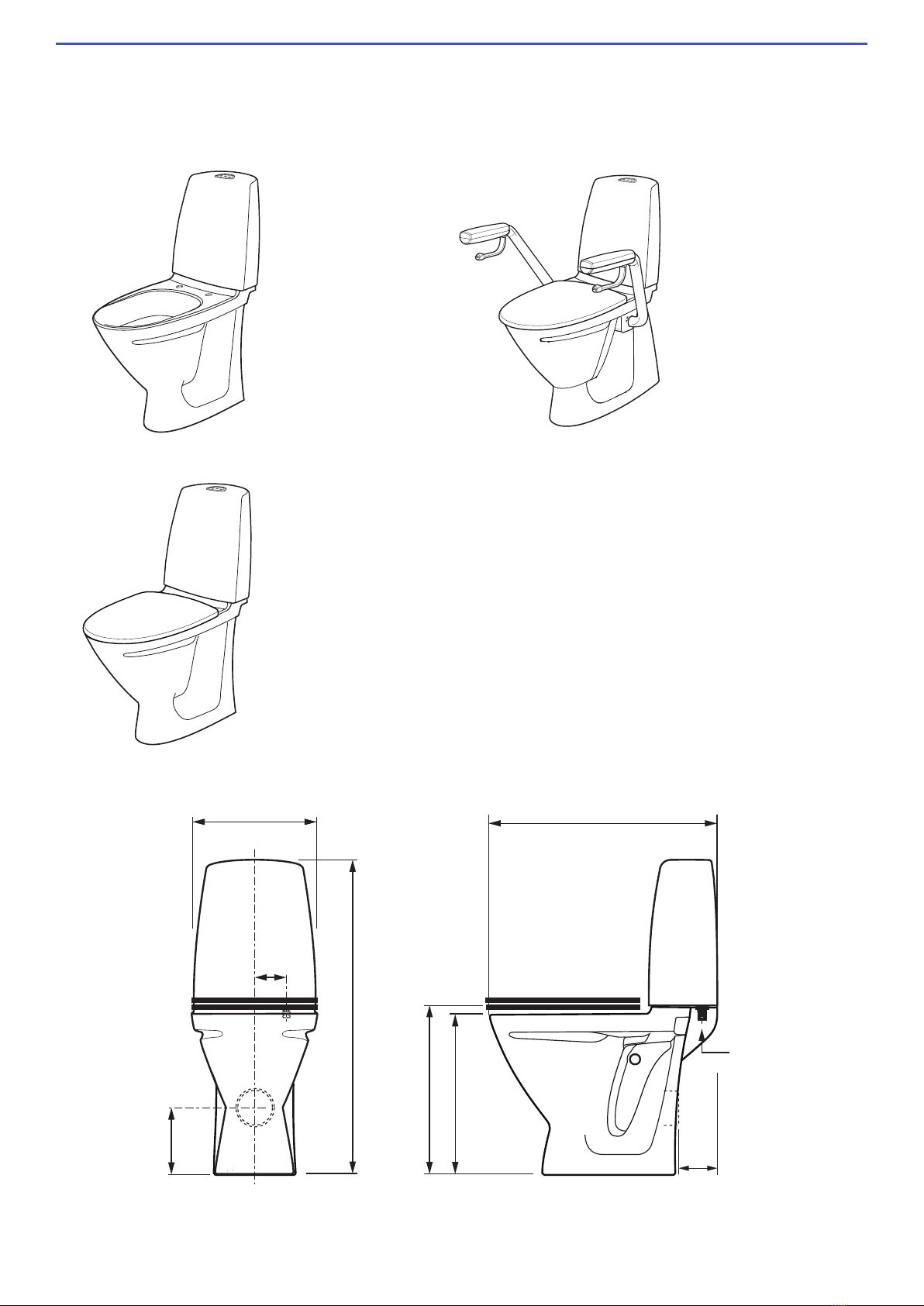

6872 Model (Raised Height P-Trap)

6860 68626861 6872

670

480

to top of seat

460

900

360

Bottom

inlet

connec

tion

190

120

FRONT VIEW SIDE VIEW

CARE6872

CARE101P, CARE102P,

CARE301P, CARE302P, CARE303P,

CARE501P, CARE502P, CARE503P

CARE602

CARE603

6860 68626861 6872

IFO6872

www.enware.com.au Call 1300 369 273 5

CARE602

CARE603

6860 Model (Standard Height S-Trap)

6860 68626861 6872

IFO6860

Bottom

Inlet

Connec

tion

670

30 min.

clearance

100 min.

420

860

360

FRONT VIEW SIDE VIEW

6860 68626861 6872

IFO6862

670

420

860

360

Bottom

inlet

connec

tion

190

120

FRONT VIEW SIDE VIEW

6862 Model (Standard Height P-Trap)

6 Call 1300 369 273 www.enware.com.au

Installation shall be in accordance with the AS/NZS3500 series of Standards, the Plumbing

Code of Australia (PCA), and the manufacturer’s instructions.

Installations not complying with AS/NZS 3500, the PCA or the manufacturer’s instructions

may void the product and performance warranty provisions.

Enware Australia advises:1. Due to ongoing Research and Development, speciﬁcations may

change without notice; 2. Component speciﬁcations may change on some export models.

All measurements are in millimetres.

contents

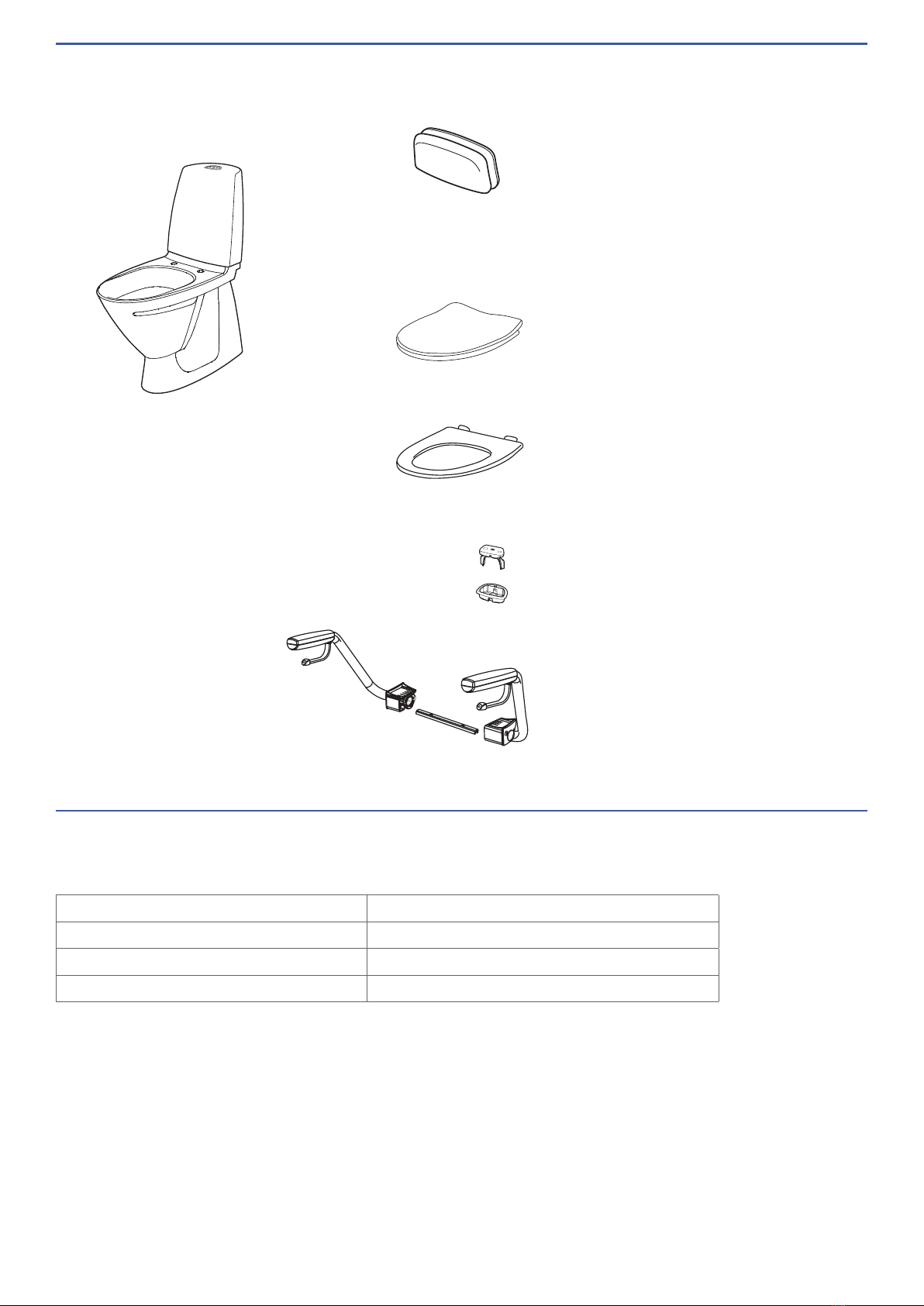

IFO733

90610

196763

98303

598308

796766

98951

96760

91370 23

96773 24

96761

14 96759

91965 för 6893/6894

Water Supply Inlet Pressure Min. 50 kPa - Max. 500 kPa

Inlet Connection 1/2” BSP

Water Inlet Connection Method Bottom Inlet

Outlet Connection DN100 DWV PVC Pan Collar

TECHNICAL INFORMATION

technical data

Rear Cover

Toilet Seat (With Lid)

[OPTIONAL]

Toilet Seat (No Lid)

[OPTIONAL]

Raised Flush Button

[OPTIONAL]

IFO98125 Support Arms

[OPTIONAL]

www.enware.com.au Call 1300 369 273 7

installation

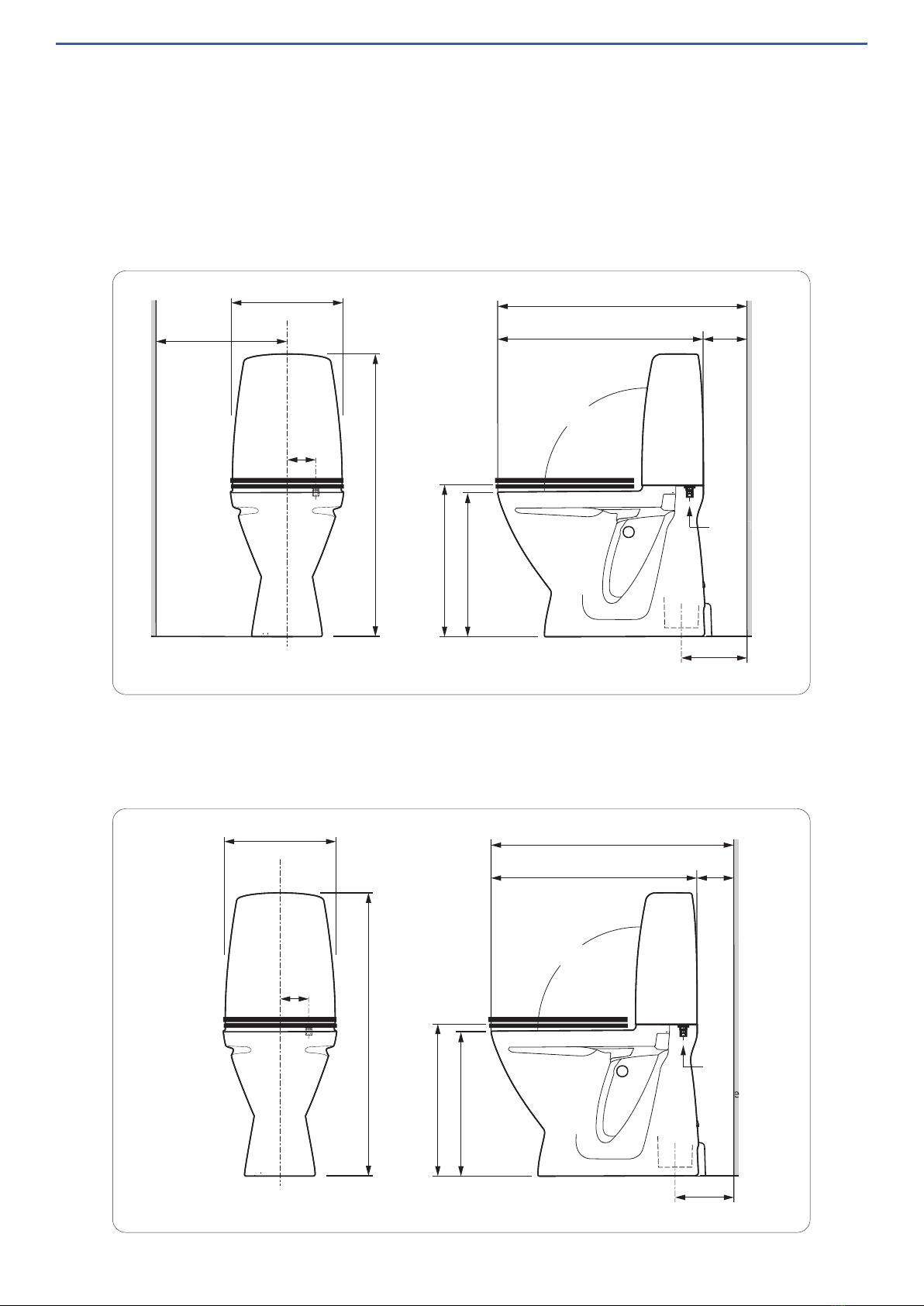

1428.1 Set Out / Disabled

in accordance with AS 1428.1 - Performance Solution

Bottom

Inlet

Connection

670

200

480

to top of seat

460

900

360

FRONT VIEW SIDE VIEW

800

130

450 - 460

95°

(Pressalit Sign IFO553 / 554 Seat)

Institutional / Health Set Out

Set out typical for hospitals which allows for substantial air circulation and free coving

Bottom

Inlet

Connection

670

170

480

to top of seat

460

900

360

FRONT VIEW SIDE VIEW

770

100

95°

(Pressalit Sign IFO553 / 554 Seat)

Detemine location and set out for the toilet pan.

Set out for S-trap pan for various applications is shown below.

8 Call 1300 369 273 www.enware.com.au

165

Finished wall

surface

With no arm support system

Finished wall

surface

280

Min.

280 Min.

With arm support system

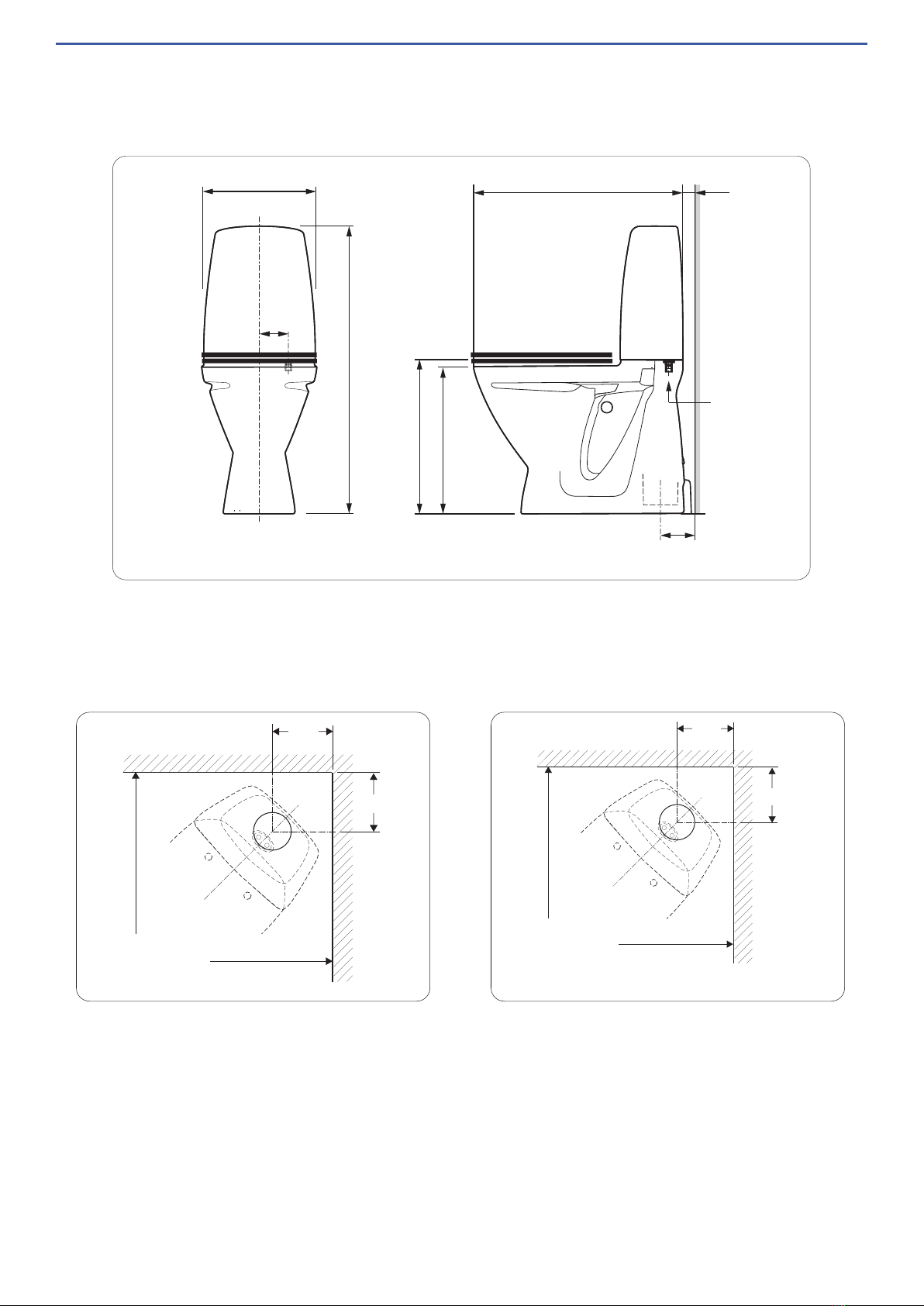

Minimum Set Out

The minimum to still allow air circulation behind the WC pan

Bottom

Inlet

Connection

670

30 min.

clearance

100 min.

480

to top of seat

460

900

360

FRONT VIEW SIDE VIEW

(Pressalit Sign IFO553 / 554 Seat)

45 ° Corner Set Up

www.enware.com.au Call 1300 369 273 9

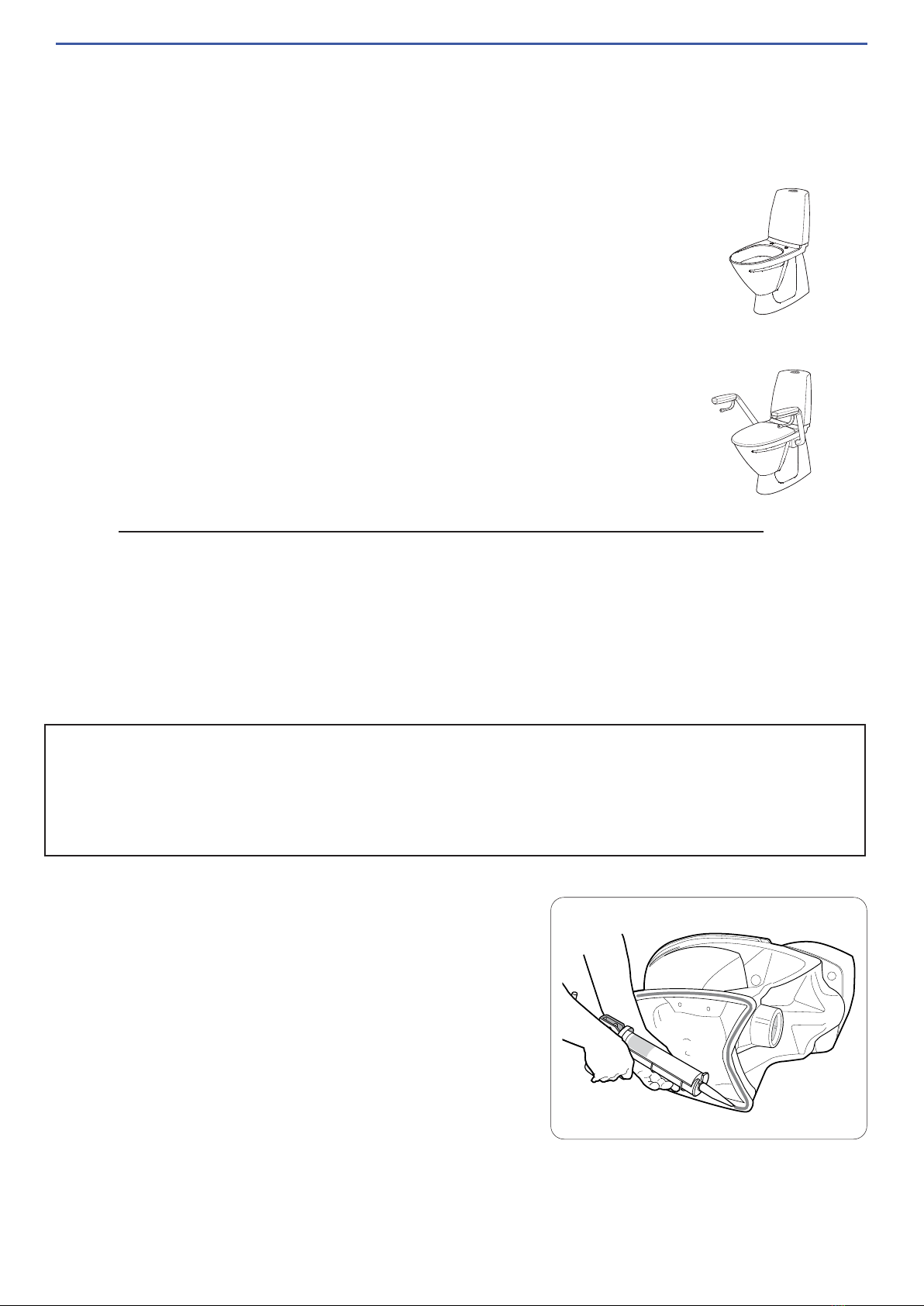

Floor Mounting Method

Determine ﬂoor ﬁxing requirements according to the quality and strength of the ﬂoor material,

and the site risk assessment.

If there are no support arms, or there is no possibility of using

support arms in future, use:

• Silicone sealant ﬁxing (Tiled or similar hard ﬂoor only. No Vinyl);

• Pan Screw ﬁxing; or

• Bracket ﬁxing (Optional - IFO98015 Bracket sold separately.)

If toilet has support arms or may have support arms in future

(raised height toilet models only), use:

• Pan Screw ﬁxing; or

• Bracket ﬁxing (Optional - IFO98015 Bracket sold separately.)

Fixing With Silicone Sealant:

Determine if this method of ﬁxing to the ﬂoor would be suitable according to the site risk

assessment. This method of ﬁxing is only suitable for tiled or similar hard ﬂoor surfaces. It is

not suitable for vinyl ﬂoors, or for toilets with support arms.

IMPORTANT - For Toilets with Support Arms:

Due to the extra force applied to the toilet pan by support arms, the toilet pan must be ﬁxed

to the ﬂoor using stainless steel Pan Screws or a Floor Fixing Bracket. Fixing the toilet pan

with only silicone sealant is not considered to be an adequate method of ﬁxing.

Ensure the ﬂoor surface and bottom surface of pan

are clean and dry - free of dust, moisture and grease.

Apply silicone sealant to the entire bottom contact

surface of pan and around the perimeter, to achieve

good adhesion and to create a strong bonding

between the pan and the ﬂoor.

Use white blind cover plugs supplied to plug the

screw holes on the pan.

10 Call 1300 369 273 www.enware.com.au

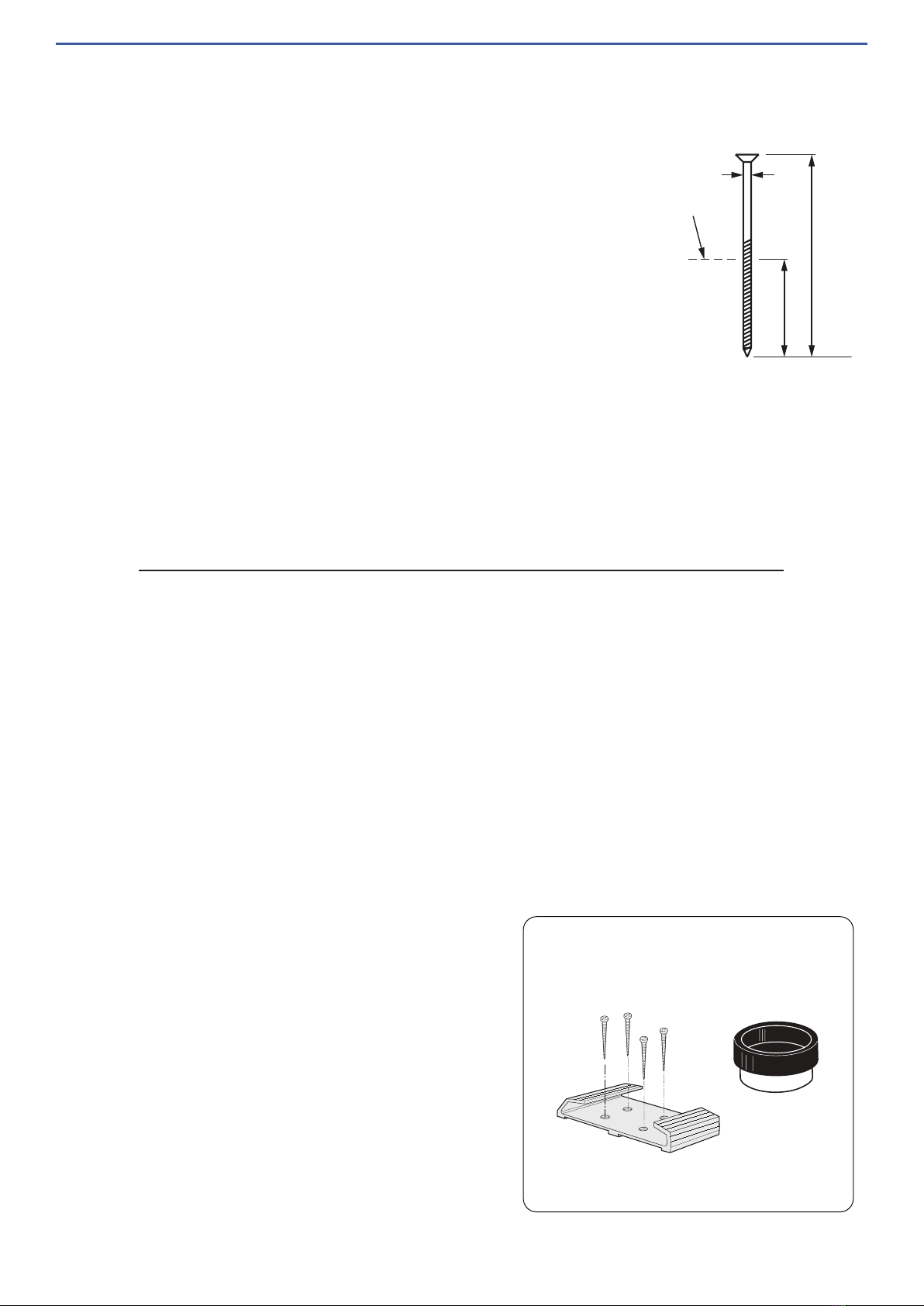

Fixing With Pan Screws:

Determine if using pan screws would be appropriate according

to the quality and strength of the ﬂoor material, and the site

risk assessment, taking into account the thickness of ﬂoor

surface and mortar bed, the distance to structural concrete

slab, and the impact of the penetration of waterprooﬁng

membrane.

Ensure the pan screws can be ﬁxed onto ﬂoor material with

adequate structural integrity and strength. If pan screws

are not long enough or they cannot be ﬁxed onto ﬂoor

with adequate strength, use ﬂoor mounting bracket with

appropriate ﬁxings. (Floor mounting bracket IFO98015 sold

separately.)

Proceed to Installing the Pan next page.

105

Base level

of pan

Pan Screw

Fixing With Floor Mounting Bracket:

(IFO98015 Floor Mounting Bracket sold separately.)

Carry out a site risk assessment taking into account the quality, strength and the thickness

of mortar bed, the distance to structural concrete slab, and the impact of the penetration of

waterprooﬁng membrane. Determine which one of the following installation methods would

be suitable, according to the site risk assessment.

Bracket Method 1: Fixing With Screws

Bracket is ﬁxed onto ﬂoor, by ﬁrst drilling into ﬂoor

then ﬁxing with appropriate screws. It must be

ensured that the ﬁxing screws can be ﬁxed onto

ﬂoor material with adequate structural integrity and

strength. (Refer to IFO98015 Instructions for more

details.)
