EnGenius EOC5611P Manual de usuario

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

Wireless 802.11 a/b/g Outdoor AP

EOC5611P

2.4GHz / 5GHz 54Mbps 802.11 a/b/g 24V Po

EOC5611P is a long range outdoor wireless Access Point / Client Bridge that

operates in both 5GHz and 2.4GHz frequency It provides high bandwidth up to

54Mbps and features dual polarization antenna with high transmitted output

power as well as superior sensitivity EOC5611P extends radio coverage, avoids

unnecessary roaming between Access Points and ensures a stable wireless

connection while reduces the number of required equipments

EOC5611P provides user friendly interface including user friendly distance

control ranges from 1KM up to 30KM and RSSI LED indicator offering real time

signal status It comes with PoE injector for convenient outdoor installation

EOC5611P enforces transmission security with full support of latest encryption

mechanism including 64/128-bit WEP, WPA and WPA2 With 14dBi internal

antenna and superior performance, EOC5611P makes an optimal wireless

solution for both small and large scale projects

Package Content

 1 x Wireless 802 11a/b/g Outdoor Device(EOC5611P)

 1 x PoE Injector (EPE-1212)

 1 x Power Adaptor(24V/1A)

 1 x CD with User’s Manual

 1 x QIG

 1 x Metal strap

 2 x Special screw set

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

Features

Wireless

- 5GHz / 2.4GHz It works in 5GHz / 2.4GHz frequency spectrum

- High output power Transmit output power programmable for ifferent country selections

- High Data Rate High spee transmitting rate up to 54Mbps, supports large payloa such as vi eo

streaming

- ultifunction application Access Point/Client Bri ge/Client Router/WDS AP/WDS CB

- Long range transmitting Transmit power control an istance control (ACK timeout)

- Signal Strength Display LED in icators have the best transmit an receive signal for traffic

communication. An RF signal strength status shown LEDs of 3 colors, making network buil -up easier

- Narrow Bandwidth Provi e 5MHz/10MHz/20MHz ban wi th selection.

- ultiple SSID 4 SSID supporte . Each SSID can set itself wireless or WAN access setting.

- QoS(W ) Enhance performance an ensity

Networking

- PPPoE Point-to-Point Protocol over Ethernet at Client Router mo e. This function will keep trying when

faile or isconnecte

- PPTP Point-to-Point Tunneling Protocol (PPTP) is a metho for implementing virtual private networks

- VPN Pass Through

Security

- 802.11i WEP, WPA, WPA2 (Encryption support TKIP/AES)

- AC address functions MAC a ress filter (AP mo e)

- 802.1x IEEE802.1x Authenticator

- Station isolation L2 Isolation

anagement

- Firmware Upgrade Upgra ing firmware via web browser, setting are reserve after upgra e

- Reset & Backup Reset to factory efault. User can export all setting into a file via WEB

- IB MIB I, MIB II(RFC1213), Private MIB

- SN P V1, V2c

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

Technical Specifications

Hardware Specification

Memory 32MB SDRAM

Flash 8MB

Physical Interface 1 x 10/100 Fast Ethernet RJ-45

1 x Reset Button

1 x Antenna Switch ( Internal and External Switch )

2 x SMA Connector ( One is for 2 4GHz and another is for 5GHz )

LED indicators Power/ Status

LAN (10/100Mbps)

WLAN (Wireless is up)

3 x Link Quality (Client Bridge mode)

• Green: Good Quality

• Yellow: Marginally Acceptable Quality

• Red: Bad Quality

Power Requirements Active Ethernet (Power over Ethernet) Proprietary PoE design

Power Adapter 24V / 1A DC

Regulation Certifications FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17, EN60950,

IC Certification

RF Specification

Frequency Band 802.11a = 5 150~5 350GHz, 5 470~5 725GHz, 5 725~5 825GHz

802.11b/g = 2 412~2 472GHz

Modulation Technology OFDM = BPSK, QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Operating Channels 802.11a =

See the Table1

802.11b/g = 11 for North America, 14 for Japan, 13 for Europe

Receive Sensitivity (Typical)

802.11a

-92dBm @ 6Mbps,

-73dBm @ 54Mbps

802.11g

-92 dBm @ 6Mbps,

-75 dBm @ 54Mbp

802.11b

-97 dBm @ 1Mbps

-91 dBm @ 11Mbps

Available transmit power

(Average power)

(The Max. Power may be

different depending on

local regulations)

FCC ETSI

Frequency Power Frequency Power

5 150~5 350

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5 150~5 350

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5 470~5 725

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

5 470~5 725

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

20dBm@54Mbps 20dBm@54Mbps

5 725~5 825

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

5 725~5 825

GHz

I 802.11a

26dBm@6~24Mbps

24dBm@36Mbps

22dBm@48Mbps

20dBm@54Mbps

2 412~2 462

GHz

I 802.11g

26dBm@6~24Mbps

24dBm@36Mbps

23dBm@48Mbps

22dBm@54Mbps

2 412~2 472

GHz

I 802.11g

26dBm@6~24Mbps

24dBm@36Mbps

23dBm@48Mbps

22dBm@54Mbps

2 412~2 462

GHz

I 802.11b

27dBm@1~11Mbps

2 412~2 472

GHz

I 802.11b

27dBm@1~11Mbps

Antenna Specification

Gain 14dBi

Radiation Directional

Frequency Band Range 5.1-5.9GHz

Horizontal -3dB Bandwidth 35

Internal Antenna

(Dual Polarization)

Vertical -3dB Bandwidth 15

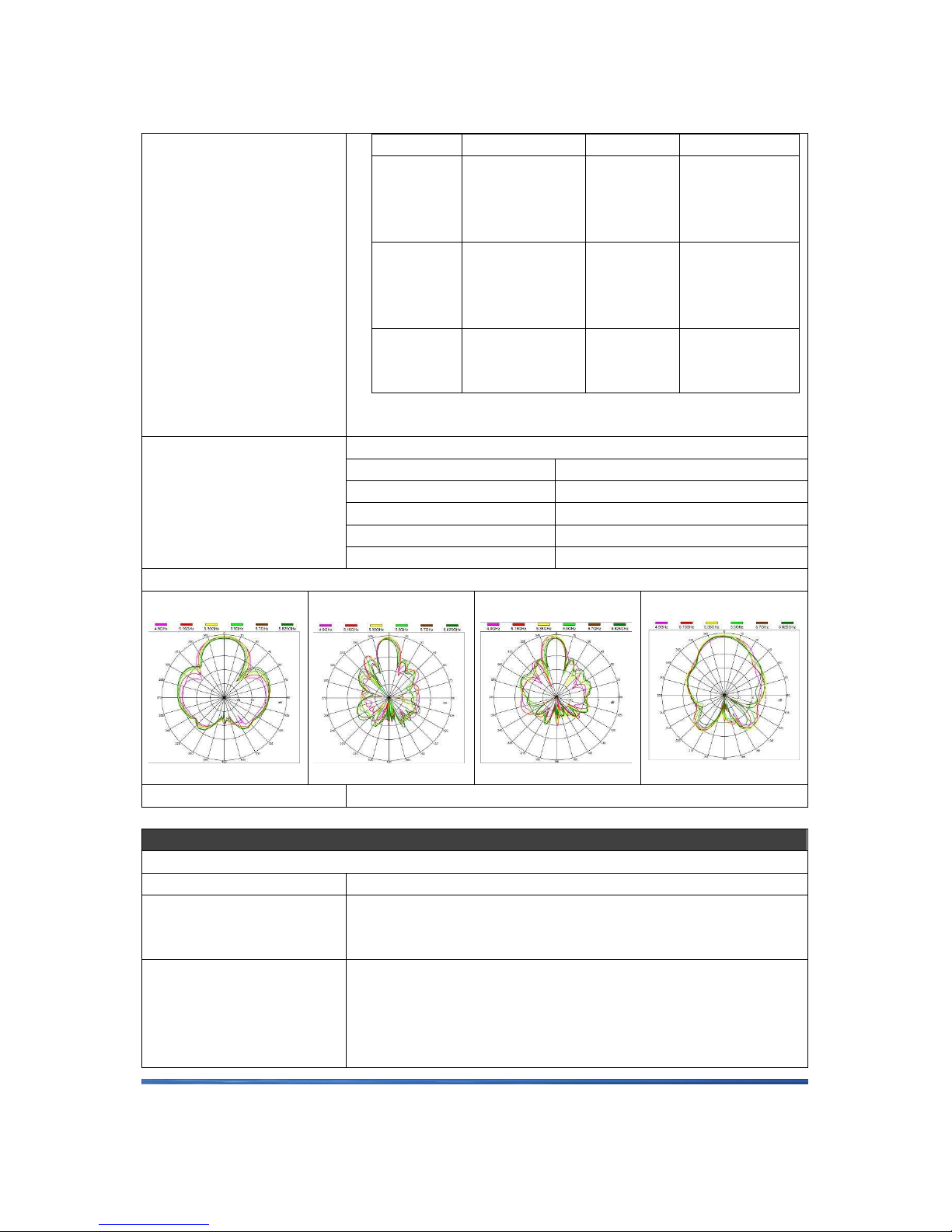

Antenna Pattern

Horizontal Azimuth

Horizontal Elevation

Vertical Azimuth

Vertical Elevation

External Antenna 2 x SMA connector (for 2 4GHz and 5GHz individually)

Software Features

General

Topology Infrastructure

Protocol / Standard IEEE 802 3 (Ethernet)

IEEE 802 3u (Fast Ethernet)

IEEE 802 11a/b/g (5GHz/2 4GHz WLAN)

Operation Mode 802.11 a/b/g

Access Point

Client Bridge

Client Router

WDS AP/CB

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

LAN DHCP Server

DHCP Client

VPN VPN Pass through

Wireless Channel Selection (Setting varies by countries)

Transmission Rate

11 a/b/g：54, 48, 36, 24, 18, 12, 11, 9, 6, 5 5, 2, 1 Mbps

Long distance transmission : 1km to 30km (Ack timeout)

Auto Channel Selection

Traffic Shaping

Transmit power table

AP Detection

Narrow Bandwidth 5MHz/10MHz/20MHz Support

Signal Strength indication using LEDs

PPPoE & PPtP ( CR mode )

Preferred SSID

MSSID & VLAN Tagging

Security WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

802 1x Authenticator

L2 Isolation

Hide SSID in beacons

MAC address filtering, up to 50 field

Wireless STA (Client) connected list

QoS WMM

Management

Configuration Web-based configuration (HTTP)

Firmware Upgrade - Upgrade firmware via web-browser

- Keep latest setting when f/w update

Administrator Setting Administrator password change

Reset Setting - Reboot (Press 1 second)

- Reset to Factory Default (Press 5 seconds)

System monitoring Status, Event Log

SNMP V1, V2c

MIB MIB I, MIB II (RFC1213)

Backup & Restore Settings through Web

Time setting NTP (Auto-setting of time)

Time setting manually

nvironment & Mechanical

Temperature Range Operating -20°C~70°C

Storage -30°C to 80°C

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 2/2/2012

Humidity (non-condensing) 0%～95% typical

IP Rating IP55

Dimensions 260mm (L) x 84mm (W) x 55mm (H)

Weight 300g

Table1

(Americas (FCC)):

2 412 to 2 462 GHz; 11 channels

5 180 to 5 320 GHz; 8 channels

5 500 to 5 700 GHz, 8 channels (excludes 5 600 to 5 640 GHz)

5 745 to 5 825 GHz; 5 channels

(China):

2 412 to 2 472 GHz; 13 channels

5 745 to 5 825 GHz; 5 channels

( TSI):

2 412 to 2 472 GHz; 13 channels

5 180 to 5 320 GHz; 8 channels

5 500 to 5 700 GHz, 11 channels

(Israel):

2 412 to 2 472 GHz, 13 channels

5 180 to 5 320 GHz; 8 channels

(Korea):

2 412 to 2 472 GHz; 13 channels

5 180 to 5 320 GHz; 8 channels

5 500 to 5 620 GHz, 7 channels

5 745 to 5 805 GHz, 4 channels

(Japan2):

2 412 to 2 472 GHz; 13 channels

5 180 to 5 320 GHz; 8 channels

(Singapore):

2 412 to 2 472 GHz; 13 channels

5 180 to 5 320 GHz; 8 channels

5 745 to 5 825 GHz; 5 channels

(Taiwan):

2 412 to 2 462 GHz; 11 channels

5 280 to 5 320 GHz; 3 channels

5 500 to 5 700 GHz, 11 channels

5 745 to 5 825 GHz; 5 channels
