ENFORCER EV-Y1201-A2WQ Manual de usuario

Model #

Lens

Resolution

Voltage

Style

Color

EV-Y1201-A2WQ

2.8mm

1080p

12VDC

Bullet

White

EV-Y1201-AMWQ

2.8~12mm

1080p

12VDC

Bullet

White

EV-Y2201-A2WQ

2.8mm

1080p

12VDC

Rollerball

White

EV-Y2201-A2GQ

2.8mm

1080p

12VDC

Rollerball

Gray

EV-Y2201-AMWQ

2.8~12mm

1080p

12VDC

Rollerball

White

EV-Y2201-AMGQ

2.8~12mm

1080p

12VDC

Rollerball

Gray

EV-Y2201-AMWAQ

2.8~12mm

1080p

12VDC

Dome

White

4-in-1 HD TVI, CVI, AHD, Analog Cameras

On-Screen Display Manual

EV-Y2201-AMWQ shown

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

2SECO-LARM U.S.A., Inc.

Programmable Features................................... 2

How to use the OSD Controller ........................ 3

Switching between HD Analog Outputs ........... 3

Navigating the OSD.......................................... 3

Menu Diagram.............................................. 4~6

Lens.................................................................. 7

Exposure ...................................................... 7~9

Backlight..................................................... 9~10

Table of Contents:

Multiple Output Formats

Select between multiple different formats:

AHD, CVI, TVI, and CVBS

Exposure

Adjust the shutter speed, automatic gain

control (AGC), and defog settings

Digital Wide Dynamic Range (D-WDR)

Provide clear images even under

circumstances where backlight illumination

can vary

Back Light Compensation (BLC)

Adjust the exposure to properly display the

subject in front of bright light sources

Highlight Suppression Back Light

Compensation (HSBLC)

Define target areas and remove spotlights to

make certain objects visible

White Balance

Adjust the picture’s color temperature/image

color

Day & Night

Adjust the level of ambient light that triggers

the camera to switch between color and B/W

modes

Noise Reduction (DNR)

Adjust for less interference on the screen in

an area with low illumination

Privacy

Block out or distort a portion of the image

Motion Detection

Detect and highlight motion in the scene

Programmable Features:

White Balance.................................................11

Day & Night...............................................12~13

Noise Reduction (NR).....................................13

Special ......................................................14~17

Adjust..............................................................18

Exit..................................................................19

Troubleshooting ..............................................20

Warranty .........................................................20

Note: All screen images in this manual are simulated.

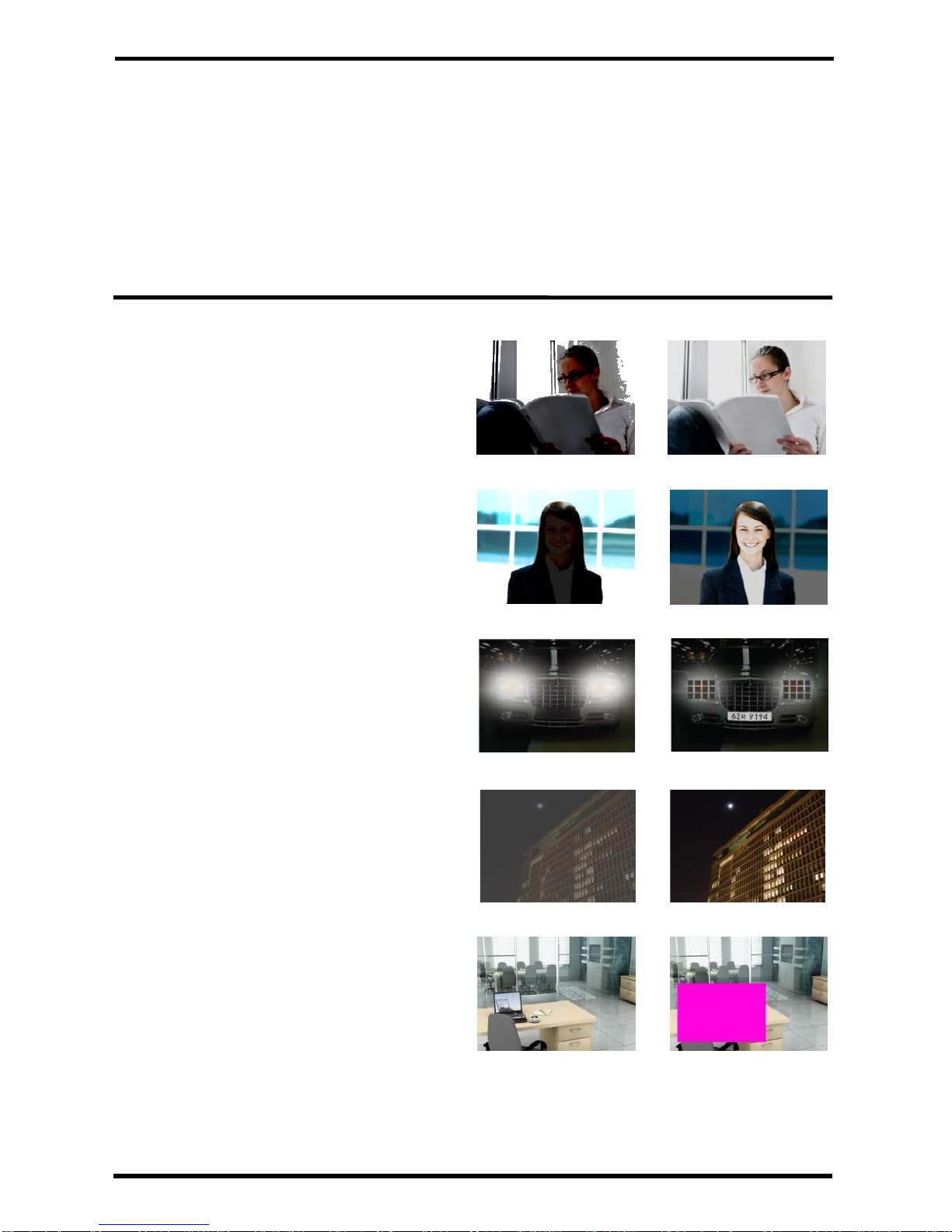

D-WDR OFF

D-WDR ON

BLC OFF

BLC ON

HSBLC ON

HSBLC OFF

DNR OFF

DNR ON

Privacy OFF

Privacy ON

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

SECO-LARM U.S.A., Inc. 3

How to use the OSD Controller:

Switching between HD Analog Outputs:

Navigating the OSD:

1. Press down (enter) on the joystick.

The Main Menu will be displayed on the

monitor.

2. Move to and highlight the required function by

moving the joystick up and down.

3. Select the required function by pressing enter

on the joystick.

4. Change the menu setting by moving the

joystick left or right.

5. After choosing the settings, move the cursor to EXIT and select the option to SAVE & END,

RESET, or NOT SAVE.

6. Press enter on the joystick to make the selection and leave the OSD menu.

NOTE: A submenu is available where the menu displays.

1. Press down on the joystick to open the on-screen display (OSD) menu.

2. Use the joystick to navigate the OSD menu.

3. To select an item, press down (enter) on the joystick.

To set format via the OSD controller, press the controller in the direction of the desired setting,

hold for 5 seconds, and release when the camera restarts. See chart below.

OSD

Controller

Direction

Format Setting

CVI

Down

TVI

Left

CVBS

Right

AHD

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

4SECO-LARM U.S.A., Inc.

Menu Diagram:

MAIN MENU

SETTING

SETTING OPTIONS

LENS

(PAGE 7)

MANUAL

SET FOR FIXED LENS CAMERAS

MODE

INDOOR

OUTDOOR

MIN SHUTTER: 1/30

MAX SHUTTER: 1/60, FLK, 1/240, 1/480, 1/1000,

1/2000, 1/5000, 1/10000, 1/50000

IRIS SPEED: 0~15

EXPOSURE

(PAGES 7~9)

SHUTTER

AUTO, 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, X2,

X4, X6, X8, X10, X15, X20, X25, X30

AGC: 0~15

SENS-UP

OFF

AUTO

SENS-UP: X2, X4, X6, X8, X10, X15, X20, X25, X30

BRIGHTNESS: 1~100

D-WDR

OFF

LEVEL: 0~8

AUTO

DEFOG

OFF

AUTO

POS/SIZE: ADJUST POSITION AND SIZE OF BOX

GRADATION: 0~2

DEFAULT: RESET TO DEFAULT SETTINGS

BACKLIGHT

(PAGES 9~10)

OFF

BLC

LEVEL: LOW / MIDDLE / HIGH

AREA: ADJUST POSITION AND SIZE OF BOX

DEFAULT: RESET TO DEFAULT SETTINGS

HSBLC

SELECT: AREA 1 / AREA 2 / AREA 3 / AREA 4

DISPLAY

ON: ADJUST POSITION AND SIZE OF BOX

OFF

BLACK MASK: ON / OFF

LEVEL: 0~100

MODE

ALL DAY

NIGHT

AGC LEVEL: 0~255

DEFAULT: RESET TO DEFAULT SETTINGS

WHITE BAL

(PAGE 11)

ATW

AWC-> SET: PRESS ENTER TO SET

INDOOR

OUTDOOR

MANUAL

BLUE: 0~100

RED: 0~100

AWB

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

SECO-LARM U.S.A., Inc. 5

Menu Diagram (continued):

MAIN MENU

SETTING

SETTING OPTION

DAY&NIGHT

(PAGES 12~13)

EXT

D->N (DELAY): 0~60

N->D (DELAY): 0~60

AUTO

D->N (AGC): 1~255

D->N (DELAY): 0~60

N->D (AGC): 1~255

N->D (DELAY): 0~60

COLOR

B/W

BURST: OFF / ON

IR SMART

OFF

LEVEL: 0~15

AREA: ADJUST POSITION AND SIZE OF BOX

IR PWM: OFF / 1~100

(PAGE 13)

2DNR: OFF / LOW / MIDDLE / HIGH

3DNR: OFF / LOW / MIDDLE / HIGH

SPECIAL

(PAGES 14~17)

CAM TITLE

OFF

ON: A/B/C… 1/2/3…

D-EFFECT

FREEZE: OFF / ON

MIRROR: OFF / MIRROR / V-FLIP / ROTATE

NEG. IMAGE: OFF / ON

MOTION

OFF

SELECT: AREA 1 / AREA 2 / AREA 3 / AREA 4

DISPLAY

ON: ADJUST POSITION AND SIZE OF BOX

OFF

SENSITIVITY: 0~100

COLOR: GREEN / BLUE / WHITE / RED

TRANS: 0.00 / 0.25 / 0.50 / 0.75 / 1.00

ALARM

VIEW TYPE: ALL / OFF / BLOCK / OUTLINE

OSD VIEW: ON / OFF

ALARM OUT.: ON / OFF

TIME: 0~15

DEFAULT: RESET TO DEFAULT SETTINGS

PRIVACY

OFF

SELECT: AREA 1 / AREA 2 / AREA 3 / AREA 4

DISPLAY

OFF

MOSIAC: ADJUST POSITION AND SIZE OF BOX

INV.: ADJUST POSITION AND SIZE OF BOX

COLOR: ADJUST POSITION AND SIZE OF BOX

COLOR: WHITE / BLACK / RED / BLUE / YELLOW / GREEN /

CYAN / USER

TRANS: 0.25 / 0.50 / 0.75 / 1.00

DEFAULT: RESET TO DEFAULT SETTINGS

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

6SECO-LARM U.S.A., Inc.

Menu Diagram (continued):

MAIN MENU

SETTING

SETTING OPTION

SPECIAL

(PAGES 14~17)

LANGUAGE: ENG / CHN1 / CHN2 / GER / FRA / ITA / SPA / POL / RUS / POR / NED / TUR

DEFECT

LIVE DPC

OFF

AGC LEVEL: 0~255

LEVEL: 0~100

WHITE

DPC

OFF

POS/SIZE: ADJUST POSITION AND SIZE OF BOX

START: CLOSE THE IRIS THEN PRESS ENTER

DPC VIEW: OFF / ON

LEVEL: 0~100

AGC: 0~14

SENS-UP: X2, X4, X6, X8, X10, X15, X20, X25, X30

BLACK

DPC

OFF

POS/SIZE: ADJUST POSITION AND SIZE OF BOX

START: PRESS ENTER

DPC VIEW: OFF / ON

LEVEL: 0~100

RS485

CAMID: 0~255

ID DISPLAY: OFF / ON

BAUD RATE: 2400 / 4800 / 9600 / 19200 / 38400

ADJUST

(PAGE 18)

SHARPNESS

AUTO

LEVEL: 0~10

START AGC: 0~255

END AGC: 0~255

OFF

MONITOR

LCD

BLACK LEVEL: 0~60

GAMMA: USER / 0.45 / 0.50 / 0.55 / 0.55 / 0.60 / 0.65 / 0.70 / 0.75 /

0.80 / 0.85 / 0.90 / 0.95 / 1.00

BLUE GAIN: 0~100

RED GAIN: 0~100

CRT

BLACK LEVEL: 0~60

BLUE GAIN: 0~100

RED GAIN: 0~100

LSC: OFF / ON

VIDEO OUT: NTSC / PAL

COMET: OFF / ON

EXIT

(PAGE 19)

SAVE & END

RESET

NOT SAVE

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

SECO-LARM U.S.A., Inc. 7

Exposure:

This function is used to select the camera’s lens operation.

1. Select LENS on the Main Menu screen.

2. Select the desired Lens operation by moving the joystick to the left or right and pressing enter

to enter the sub-menu (if applicable).

3. Use the joystick to adjust the settings.

4. Select RETURN to return to the Main Menu screen.

-MANUAL: Select MANUAL mode for manual

or fixed lens.

-DC: Select DC mode for DC Auto Iris lens.

oMODE: Select INDOOR or OUTDOOR

mode

INDOOR: Use for indoor installations.

OUTDOOR: Use for outdoor

installations. Enter menu to adjust

settings.

MIN SHUT: The minimum shutter speed is preset to 1/30.

MAX SHUT: Set the maximum shutter speed to FLK, 1/60~1/50000 (Default:

1/5000).

oIRIS SPEED: Set the reaction speed of the iris from 0~15 (Default: 0).

oRETURN: Return to the Main Menu screen.

Lens:

This function is used to select the camera’s exposure settings, including shutter speed, AGC,

Sens-Up, brightness, WDR, and defog settings.

1. Select EXPOSURE on the Main Menu screen.

2. Press enter to enter the Exposure menu screen.

3. Select the desired Exposure operation by moving the joystick up or down, and select the

desired setting by moving the joystick left or right and pressing enter to enter the sub-menu (if

applicable).

4. Select RETURN to return to the Main Menu screen.

-SHUTTER: Set the shutter speed to AUTO,

1/30~1/5000, x2~x30 (Default: AUTO).

NOTE: If LENS is set to DC AUTO IRIS then

SHUTTER is not available in this menu.

-AGC: Adjust the Auto Gain Control (AGC) for

better picture brightness in low light

conditions. Adjust from 0~15 (Default: 15).

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

8SECO-LARM U.S.A., Inc.

-SENS-UP: Activates the digital slow shutter

for use in darker images.

oOFF: Turn SENS-UP off.

oAUTO: Turn SENS-UP to automatic mode.

Enter menu to adjust settings.

SENS-UP: Higher values increase the

brightness of the image but also

potentially increase after images.

Adjust from x2~x30 (Default: x4).

RETURN: Return to the EXPOSURE

menu screen.

NOTE: This option is only available if SHUTTER is set to AUTO or 1/30 and if AGC is not set

to 0.

-BRIGHTNESS: Adjust the camera’s brightness from 0~100 (Default: 40).

-D-WDR: Adjust the camera’s digital wide

dynamic range (D-WDR) settings to provide

clear images even under intense back light

conditions.

oOFF: Turn D-WDR off.

oON: Turn D-WDR on. Enter menu to

adjust settings.

LEVEL: Higher values increase the

D-WDR effect. Adjust from 0~8

(Default: 5).

RETURN: Return to the EXPOSURE

menu screen.

oAUTO: Turn D-WDR to automatic mode.

Exposure (continued):

D-WDR OFF

D-WDR HIGH

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

SECO-LARM U.S.A., Inc. 9

Backlight:

-DEFOG: Adjust the camera’s defog settings

for clearer images in environments with fog or

mist.

oOFF: Turn DEFOG off.

oAUTO: Turn DEFOG to automatic mode.

Enter menu to adjust settings.

POS/SIZE: Adjust the position and

size of the defog mask.

GRADATION: Higher values increase

the effect of the defog mask. Adjust

from 0~2 (Default: 0).

DEFAULT: Return the DEFOG settings to their default values.

RETURN: Return to the EXPOSURE menu screen.

-RETURN: Return to the Main Menu screen.

Exposure (continued):

This function is used to control the light level to overcome strong backlight conditions.

1. Select BACKLIGHT on the Main Menu screen.

2. Select the desired Backlight operation by moving the joystick to the left or right and pressing

enter to enter the sub-menu (if applicable).

3. Use the joystick to adjust the settings.

4. Select RETURN to return to the Main Menu screen.

-OFF: Turn the BLC or HSBLC functions off.

-BLC: Select Back Light Compensation (BLC)

to correct the exposure of the subjects that

are in front of a strong backlight. Enter menu

to adjust settings.

oLEVEL: Set the BLC level between LOW,

MIDDLE, or HIGH (Default: MIDDLE).

oAREA: Adjust the position and size of the

BLC zone.

oDEFAULT: Return the BLC settings to their

default values.

oRETURN: Return to the MAIN MENU screen.

BLC OFF

BLC ON

ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog)

10 SECO-LARM U.S.A., Inc.

Backlight (continued):

-HSBLC: Select Highlight Suppression Back

Light Compensation (HSBLC) to improve the

clarity of the picture by blocking a strong

backlight. Enter menu to adjust settings.

oSELECT: Select the HSBLC area to be

modified. Up to 4 areas can be used.

oDISPLAY: Turn the selected HSBLC area

ON or OFF (Default: ON).

oBLACK MASK: Select whether the HSBLC

areas will display a black mask or not

(Default: ON).

oLEVEL: Adjust the sensitivity of the HSBLC area. Adjust from 0~100 (Default: 70).

oMODE: Select whether the HSBLC will be appear ALL DAY or only during the NIGHT

(Default: ALL DAY).

ALL DAY: The HSBLC areas are active at all times.

NIGHT: The HSBLC areas are only active when a given AGC level is reached.

AGC LEVEL: Higher values will block out stronger light sources. Adjust from 0~255

(Default: 48).

RETURN: Return to the HSBLC menu.

oDEFAULT: Return the HSBLC settings to their default values.

oRETURN: Return to the MAIN MENU screen.

HSBLC OFF

HSBLC ON

Otros manuales para EV-Y1201-A2WQ

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de ENFORCER

ENFORCER

ENFORCER ENFORCER EV Series Manual de usuario

ENFORCER

ENFORCER Elite EV-2606-NJEQ Manual de usuario

ENFORCER

ENFORCER ENFORCER EV-1626-NWGQ Manual de usuario

ENFORCER

ENFORCER EV-N2806-2W4D Manual de usuario

ENFORCER

ENFORCER EV-2706-NFGQ Manual de usuario

ENFORCER

ENFORCER EV-4605-N3SQ Manual de usuario

ENFORCER

ENFORCER EV-N1506-NW4WQ Manual de usuario

ENFORCER

ENFORCER EV-N2806-2W4WQ Manual de usuario

ENFORCER

ENFORCER EV-1026-N2SQ Manual de usuario

ENFORCER

ENFORCER EV-Y4201-A2SQ Manual de usuario

ENFORCER

ENFORCER EV-6600-N2BQ Manual de usuario

ENFORCER

ENFORCER EV-Y2201-A2WQ Manual de usuario

ENFORCER

ENFORCER EV-Y6201-A3WQ Manual de usuario

ENFORCER

ENFORCER EV-1223C12 Manual de usuario

ENFORCER

ENFORCER EV-5105-N1SQ Manual de usuario

ENFORCER

ENFORCER EV-1026-N2SQ Manual de usuario

ENFORCER

ENFORCER EV-Y2501-AMWAQ Manual de usuario

ENFORCER

ENFORCER EV-Y2251-A2WQ Manual de usuario

ENFORCER

ENFORCER EV-Y2201-AMWAQ Manual de usuario

ENFORCER

ENFORCER EV-Y5105-N2SQ Manual de usuario

ENFORCER

ENFORCER EV-Y2501-A2WWQ Manual de usuario

ENFORCER

ENFORCER EV-1324C12 Manual de usuario

ENFORCER

ENFORCER EV-Y6221-A3WQ Manual de usuario

ENFORCER

ENFORCER EV-1026-N2SQ Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
