Eneo VKC-14140F2810IR Instrucciones de instalación

Full Manual

1/3” Day/Night Camera with IR Illumination

VKC-14140F2810IR

VKC-14140F650IR

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06~07

Composition

p.07

Dimensions

p.08

Part Names

p.09

Installation Instructions

p.10~11

Operating Instructions

p.12~31

Specifications

p.32~33

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

• 1/3” High density Sony CCD (960H)

• 750TVL High-Resolution

•True WDR (Wide Dynamic Range)

• TDN with Dual Filter Switcher

• Selectable f=2.8~10mm F1.4 Mega-pixel, DC Auto Iris vari-focal lens

f=6~50mm F1.4 DC Auto Iris vari-focal lens

• Improved noise reduction 2D+3DNR

• Improved IR-Optimizer

• DIS(Digital Image Stabilizer), LSC (Lens shading compensation)

• Scene preset select, Motion detection, Polygon privacy mask(up to 15),

E-Zoom, Defog, Sens-up, BLC/HLC, Flickerless, Anti-CR, Flip

IR Shade compensation

• External Zoom & Focus adjustment

• IR-LED 70pcs

• LED ON/OFF Control

• Up the Coaxial (UTC) communication

• RS-485 control (Option)

• OSD MENU & Video Sub-out port for easy installation & maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Dual Window, 3-Axis bracket

• IP67 protection

ULTRA CLEAR RESOLUTION CAMERA

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

This is an ultra-clear resolution camera which realizes over 750TVL resolution

and a crisp color reproduction with SONY 960H CCD and Effio-V(Effio-A)

Enhanced image signal processor.

Features

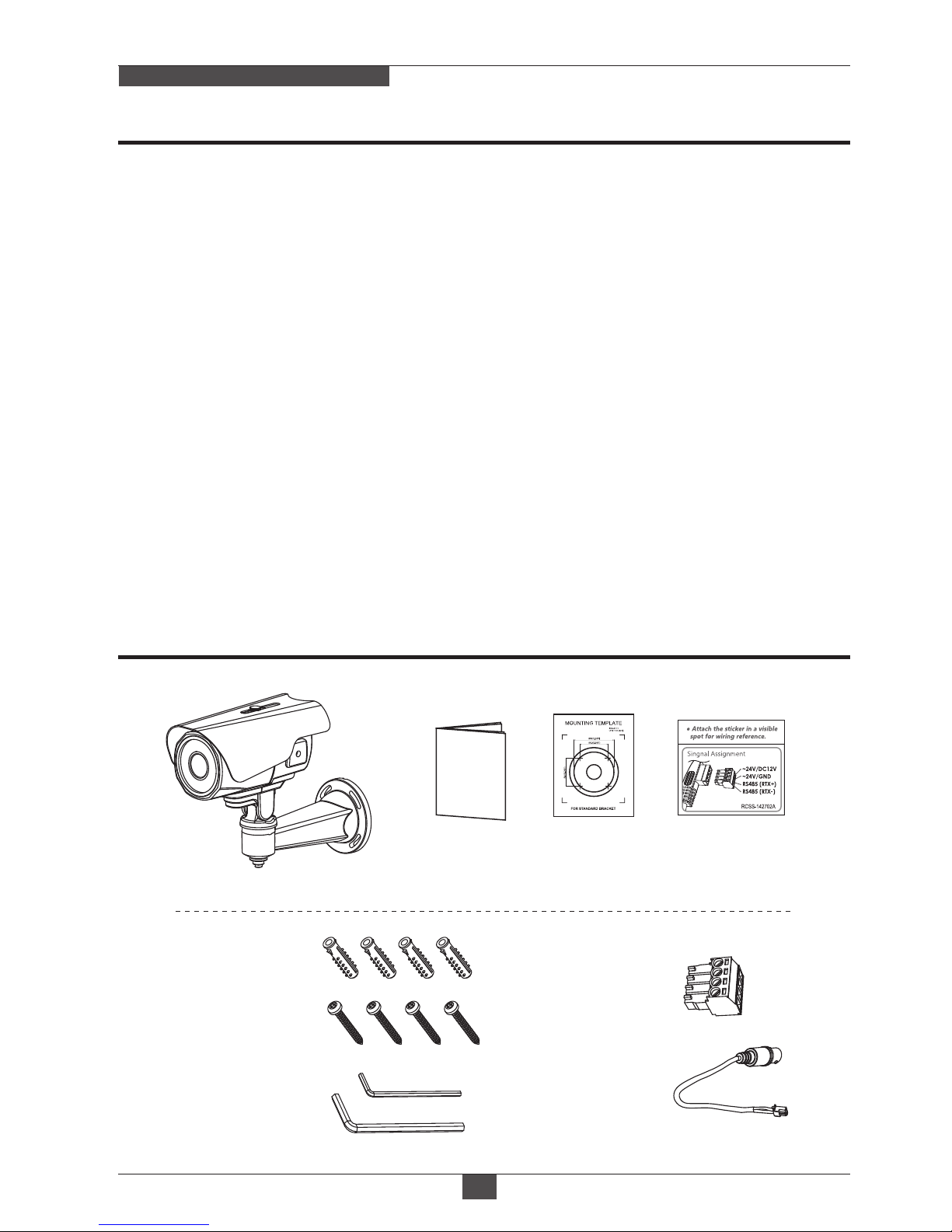

Composition

Operating

Instruction

Camera

Mounting

Template

Torque Wrench:

3mm (1pc)

5mm (1pc)

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Video Sub-out

Cable (1pc)

•With Effio-V Enhanced digital imaging system,

- Delivers the crystal clear images providing 750TVL resolution in conjunction

with SONY 960H High density CCD.

- VKC-14140F2810(650)IR are provided ‘TRUE WDR’ function

- Color signal processing provides the optimum balance between the luminance

and chroma signals for high color reproducibility even for the detail scene

which contains very high spatial frequency.

- Incorporates 2D+3DNR signal processing.

Cable Signal

Sticker

Wiring Connector:

(1pc)

ULTRA CLEAR RESOLUTION CAMERA

Dimensions

(unit : mm)

Ø100

115

225

175

214

297

ULTRA CLEAR RESOLUTION CAMERA

Part Names

CAUTION

• Care should be taken the cable is NOT to be damaged, kinked or exposed

in the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun

or spot light.

REAR

VIEW

FOCUS / ZOOM

adjusting Screws

DUAL WINDOW

SUN-SHIELD

FIXING BOLT

POWER

CABLE

FRONT CASE

OSD Setup

CONTROL COVER

BRACKET REAR CASE

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

Torque Wrench (5mm)

Pan & Tilt adjustments

• Unlock the screw on the camera

bracket through using the torque

wrench(5mm) supplied.

• Set the camera’s viewing angle

then lock the screw on the bracket.

Tilt

Inclination

Pan

1. Locate the mounting template at the installation position and drill the wall.

Insert the anchors to the drilled holes

2. Place the bracket on pre-drilled position and fix it through using mounting

screws.

3. Route the Power cable to the connecting place.

Fix the camera bracket through using mounting screws (4x30mm).

4. Set the camera’s viewing angle and adjust zoom/focus of lens by using the

torque wrench.

Mounting Screw

: 4x30mm

Plastic Anchor

: 6 x 30mm
