Eneo MPD-72M2812M0A Manual de usuario
EN
User Manual
1/2.8” HD Dome, Fixed,
Day&Night, 1920x1080, WDR,
Infrared, 2.8-12mm, IP67
MPD-72M2812M0A
Safety Precaution
03
MPD-72M2812M0A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
MPD-72M2812M0A
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
MPD-72M2812M0A
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~12
Operating Instructions
p.13~29
Specifications
p.30
MPD-72M2812M0A
Features
Key Features
06
• Full-HD 2Mega pixel CAMERA, 1920x1080(30p/25p)
• The best low light performance with SONY’s STARVIS sensor
• Video output EX-SDI1.0,2.0 / HD-SDI / TVI mode / AHD mode / CVI mode
or CVBS Selectable
• TVI mode / AHD mode / CVI mode, Video Transmission Distance
over Coax.; 500M
• f=2.8~12mm F1.4, 5Mega pixel Motorized zoom lens
• Automatically removable IR Cut filter by Dual filter switcher
• SNAP Focus by Motorized Zoom lens
• Motorized Zoom & Focus Adjustment
• Sensitivity of Color 0.08 Lux(LED off), B/W 0.005 Lux (LED off)
• True WDR (Wide Dynamic Range), 30/25fps
• ROI (Region of Interest) WDR mode:
- Proper compensation of exposure for each inside and outside of
interested area.
- Better contrast and No motion ghost effect
• Improved Noise figure with the enhanced 3D-NR
• Motion Detection, Privacy Mask, Defog, Sens-up(~x32), ACE(D-WDR),
Sharpness, Mirror/Flip, BLC/HLC, Anti-Saturation, Smart IR, Title Set
• Top performance at low light sensitivity (Sens-up On)
• Selectable Digital output 1080p or 720p
• OSD Menu & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• UTC control through HD-TVI (Pelco-C, Hikvision) / AHD
• Built-in 2pcs High power IR-LEDs
• 3-Axis gimbal
• Double side Anti-scratch hard coated clear bubble dome
• Flush mount (option: Surface mount and various adaptors)
• IP67 / IK10 protection
• AC24/DC12V Dual power

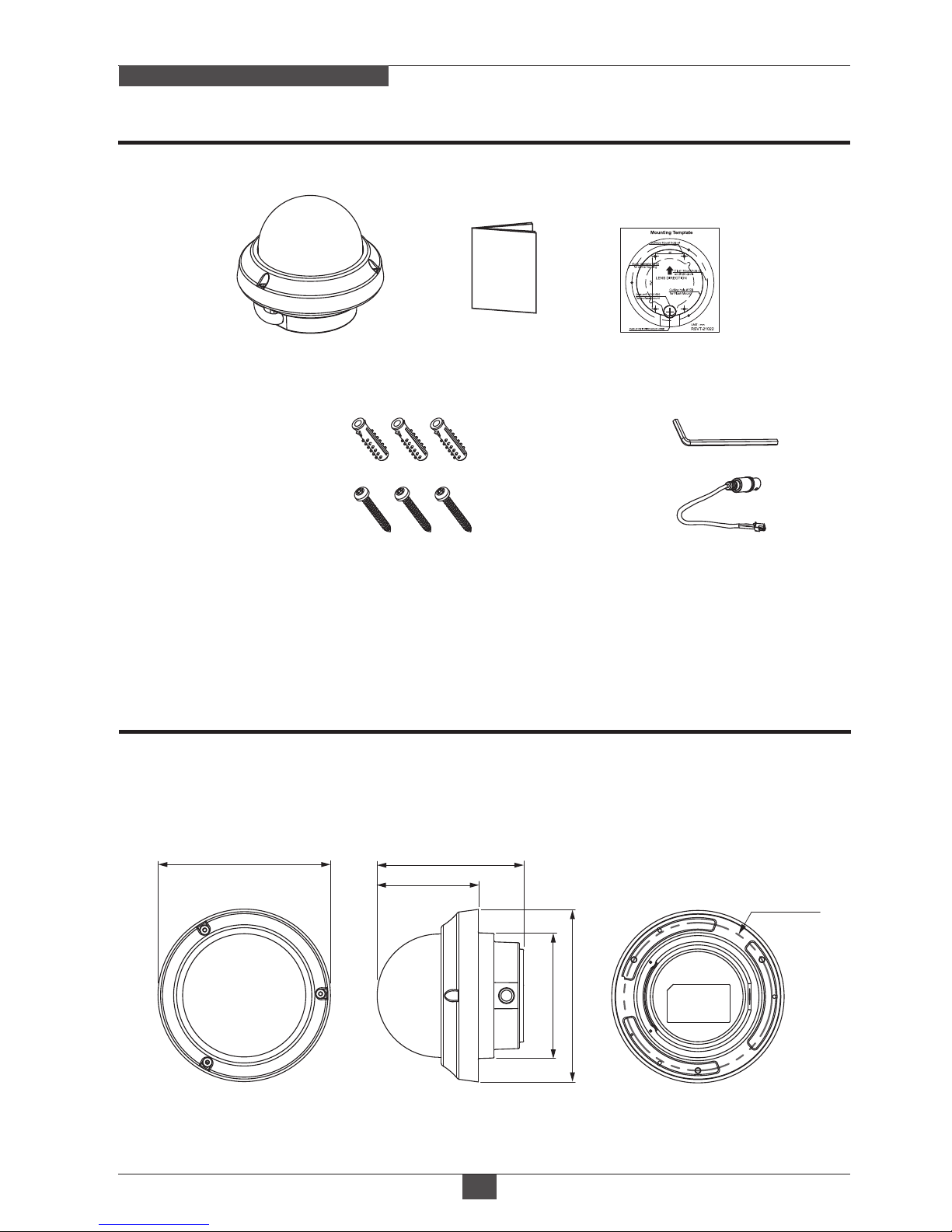

07
Composition
MPD-72M2812M0A
Dimensions
(unit : mm)
Mounting Template
Operating
InstructionDome Camera
Torque Wrench:
3mm (1pc)
Video Sub-out
Cable (1pc)
Mounting Screw:
4 x 30mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
PCD Ø120
119
Ø102
Ø140
82
Ø140
MPD-72M2812M0A
Part Names
08
BUBBLE DOME
3-AXIS GIMBAL
DOME COVER
SAFTY WIRE
FLUSH MOUNT
LENS
POWER CABLE
VIDEO OUTPUT
POWER CABLE
[ BOTTOM VIEW ]
POWER SUPPLY
CONNECTOR
POWER
CABLE
OSD Menu Control board
MPD-72M2812M0A
Installation Instructions
09
• Surface mount
• Pole mount adaptor
• Tilted mount
• Wall mount
(Requires additional
Surface mount)
• Tilted junction mount
■ Optional Mounting Accessories
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench
supplied.
3. Set the camera’s viewing angle.
4. Put the dome cover to the dome base unit and tighten the assembly screws.
- Place the dome base unit on pre-drilled position and fix it through using mounting
screws (4x30mm).
- Route the power source cable and connect cables.
- In the case of installation with optional mounting accessories(Surface mount
or Tilted mount), the power cable should be fixed to the flush mount by using
the fixing screw and cable holder as illustrated.
Mounting Screw
(4x30mm)
Plastic Anchor
(6x30mm)
Torque
Wrench
MPD-72M2812M0A
Installation Instructions
10
■Option 2.
Installation with Surface mount / Tilted mount
■Option 1.
Installation with Flush mount / Tilted Junction mount
3
1
Cable Holder
Video Output
Cables
2
①Cable is unfixed on the Dome base.
②Connect the power cable to their repective connections.
①Cable is unfixed on the Dome base.
②Tie up the VIDEO OUTPUT cables with cable holder.
③Tie up the POWER SUPPLY cable with cable holder as illustrated.
④Connect the wiring connector to their repective connections.
Cable Holder
Power Supply
•In the case of installation with Flush/ Surface/ Tilted mount, IP protection
rating is not guaranteed.
• If power/video connectors are exposed to water or rain, separate protection
shield is essential.
CAUTION
