Brief Operating Instructions

Levelflex FMP50

HART

Geführtes Radar

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

– Internet: www.endress.com/deviceviewer

– Smart phone/tablet: Endress+Hauser Operations App

KA01053F/00/EN/17.17

71385681

Levelflex FMP50 HART

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Levelflex FMP50 HART Table of contents

Endress+Hauser 3

Table of contents

1 Important document information ................................................. 4

1.1 Symbols ............................................................................. 4

2 Basic safety instructions .......................................................... 6

2.1 Requirements for the personnel ............................................................ 6

2.2 Designated use ........................................................................ 6

2.3 Workplace safety ...................................................................... 7

2.4 Operational safety ......................................................................7

2.5 Product safety ......................................................................... 7

3 Product description ............................................................... 8

3.1 Product design ........................................................................ 8

4 Incoming acceptance and product identification ................................... 9

4.1 Incoming acceptance .................................................................... 9

4.2 Product identification ................................................................... 9

5 Storage, Transport ............................................................... 11

5.1 Storage conditions .................................................................... 11

5.2 Transport product to the measuring point ................................................... 11

6 Mounting ....................................................................... 12

6.1 Mounting requirements ................................................................ 12

6.2 Mounting the device ................................................................... 16

6.3 Post-installation check ................................................................. 23

7 Electrical connection ............................................................ 24

7.1 Connection conditions .................................................................. 24

7.2 Connecting the measuring device ......................................................... 37

7.3 Post-connection check ..................................................................40

8 Commissioning via wizard ....................................................... 41

9 Commissioning (via operating menu) ............................................ 42

9.1 Display and operating module ............................................................ 42

9.2 Operating menu ...................................................................... 45

9.3 Unlock the device ..................................................................... 46

9.4 Setting the operating language ........................................................... 46

9.5 Configuration of a level measurement ...................................................... 47

9.6 User-specific applications ............................................................... 48

Important document information Levelflex FMP50 HART

4 Endress+Hauser

1 Important document information

1.1 Symbols

1.1.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Symbol Meaning

Protective Earth (PE)

A terminal which must be connected to ground prior to establishing any other connections.

The ground terminals are situated inside and outside the device:

• Inner ground terminal: Connects the protectiv earth to the mains supply.

• Outer ground terminal: Connects the device to the plant grounding system.

1.1.3 Tool symbols

A0011219 A0011220 A0013442 A0011221 A0011222

Cross-head

screwdriver

Flat blade

screwdriver Torx screwdriver Allen key Hexagon wrench

Levelflex FMP50 HART Important document information

Endress+Hauser 5

1.1.4 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation.

Reference to page.

Reference to graphic.

… Series of steps.

Result of a step. Visual inspection.

1.1.5 Symbols in graphics

Symbol Meaning

1, 2, 3 ... Item numbers

… Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

Hazardous area

Indicates a hazardous area.

Safe area (non-hazardous area)

Indicates the non-hazardous area.

1.1.6 Symbols at the device

Symbol Meaning

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions.

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables.

Basic safety instructions Levelflex FMP50 HART

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Designated use

Application and measured materials

The measuring device described in these Operating Instructions is intended only for level

measurement of liquids. Depending on the version ordered the device can also measure

potentially explosive, flammable, poisonous and oxidizing materials.

Observing the limit values specified in the "Technical data" and listed in the Operating

Instructions and supplementary documentation, the measuring device may be used for the

following measurements only:

‣Measured process variables: level

‣Calculated process variables: Volume or mass in arbitrarily shaped vessels (calculated from

the level by the linearization functionality)

To ensure that the measuring device remains in proper condition for the operation time:

‣Use the measuring device only for measured materials against which the process-wetted

materials are adequately resistant.

‣Observe the limit values in "Technical data".

Incorrect use

The manufacturer is not liable for damage caused by improper or non-designated use.

Verification for borderline cases:

‣For special measured materials and cleaning agents, Endress+Hauser is glad to provide

assistance in verifying the corrosion resistance of wetted materials, but does not accept any

warranty or liability.

Residual risk

The electronics housing and its built-in components such as display module, main electronics

module and I/O electronics module may heat to 80 °C (176 °F) during operation through heat

transfer from the process as well as power dissipation within the electronics. During operation

the sensor may assume a temperature near the temperature of the measured material.

Danger of burns due to heated surfaces!

‣For high process temperatures: Install protection against contact in order to prevent burns.

Levelflex FMP50 HART Basic safety instructions

Endress+Hauser 7

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with the manufacturer.

Repair

To ensure continued operational safety and reliability,

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from the manufacturer only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate. It meets general safety standards and legal requirements.

NOTICE

Loss of degree of protection by opening of the device in humid environments

‣If the device is opened in a humid environment, the degree of protection indicated on the

nameplate is no longer valid. This may also impair the safe operation of the device.

2.5.1 CE mark

The measuring system meets the legal requirements of the applicable EC guidelines. These are

listed in the corresponding EC Declaration of Conformity together with the standards applied.

Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

Product description Levelflex FMP50 HART

8 Endress+Hauser

2.5.2 EAC conformity

The measuring system meets the legal requirements of the applicable EAC guidelines. These

are listed in the corresponding EAC Declaration of Conformity together with the standards

applied.

Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark.

3 Product description

3.1 Product design

3.1.1 Levelflex FMP50

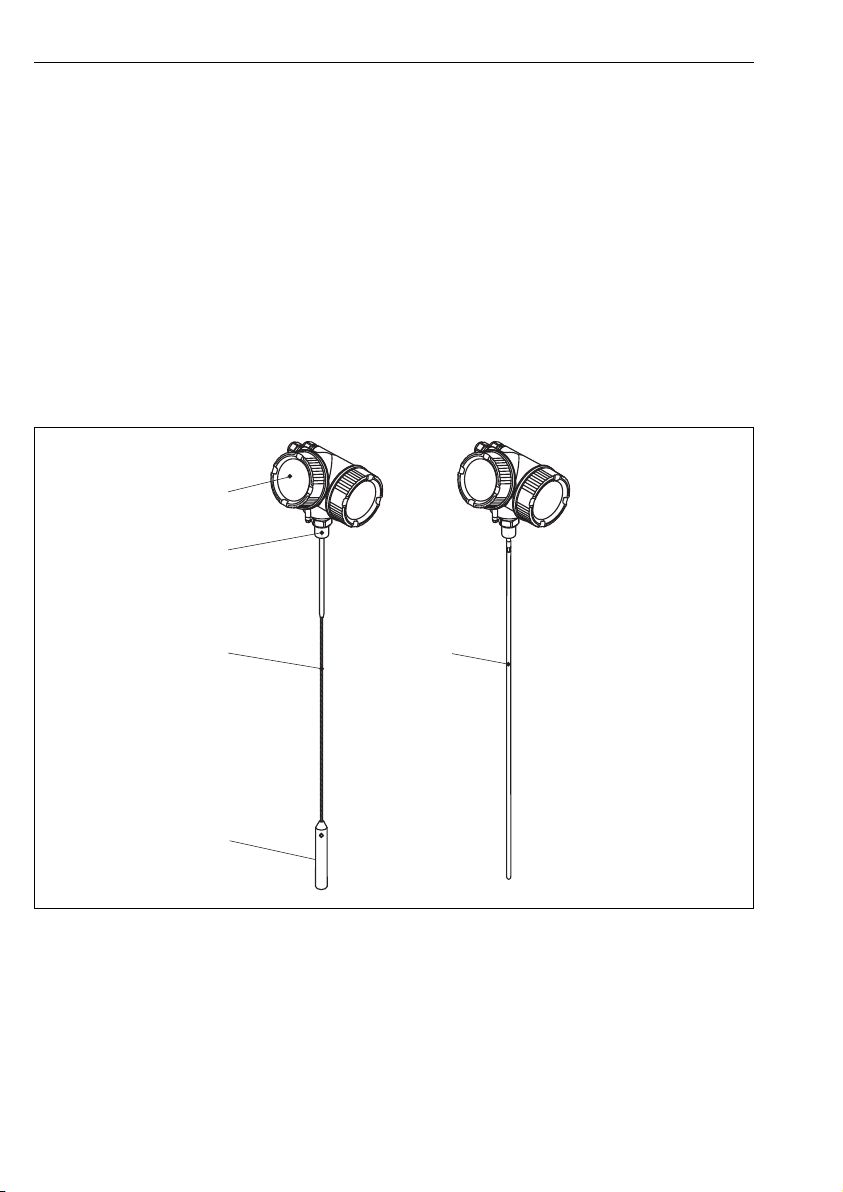

A0013771

 1 Design of the Levelflex

1 Electronics housing

2 Process connection (Thread)

3 Rope probe

4 End-of-probe weight

5 Rod probe

Levelflex FMP50 HART Incoming acceptance and product identification

Endress+Hauser 9

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Upon receipt of the goods check the following:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• Is the DVD with the operating tool present?

If required (see nameplate): Are the Safety Instructions (XA) present?

If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center.

4.2 Product identification

The following options are available for identification of the measuring device:

• Nameplate specifications

• Order code with breakdown of the device features on the delivery note

• Enter serial numbers from nameplates in W@M Device Viewer

( www.endress.com/deviceviewer ): All information about the measuring device is

displayed.

• Enter the serial number from the nameplates into the Endress+Hauser Operations App or

scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations

App: all the information for the measuring device is displayed.

Incoming acceptance and product identification Levelflex FMP50 HART

10 Endress+Hauser

4.2.1 Nameplate

Order code:

Ext. ord. cd.:

Ser. no.:

Order code:

Ext. ord. cd.:

Ser. no.:

A0021952

 2 Example of a nameplate

1 Order code

2 Serial number (Ser. no.)

3 Extended order code (Ext. ord. cd.)

4 2-D matrix code (QR code)

For detailed information about interpreting the nameplate specifications, refer to the

Operating Instructions for the device.

Only 33 digits of the extended order code can be indicated on the nameplate. If the

extended order code exceeds 33 digits, the rest will not be shown. However, the complete

extended order code can be viewed in the operating menu of the device in the Extended

order code 1 to 3 parameter.

Otros manuales para Levelflex FMP50

Tabla de contenidos

Otros manuales de Radar de Endress+Hauser

Endress+Hauser

Endress+Hauser Micropilot FMR67B Manual de usuario

Endress+Hauser

Endress+Hauser Hart Micropilot FMR60B Manual

Endress+Hauser

Endress+Hauser Micropilot M FMR245 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex M FMP41C Manual

Endress+Hauser

Endress+Hauser Levelflex FMP53 FOUNDATION Fieldbus Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot M FMR250 Manual de usuario

Endress+Hauser

Endress+Hauser micropilot S FMR 532 Manual de usuario

Endress+Hauser

Endress+Hauser FOUNDATION Fieldbus Micropilot FMR51 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot M FMR244 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR20 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP53 FOUNDATION Fieldbus Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR66B PROFINET with Ethernet-APL Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP53 PROFIBUS PA Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP51 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot NMR81 Instrucciones de uso

Endress+Hauser

Endress+Hauser PROFIBUS PA Levelflex FMP51 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR53 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex M FMP43 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR20 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR56 Especificaciones técnicas

Endress+Hauser

Endress+Hauser micropilot M FMR 240 Manual de usuario

Endress+Hauser

Endress+Hauser HART Micropilot S FMR533 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manual de usuario

Endress+Hauser

Endress+Hauser micropilot S FMR 533 Manual de usuario

Manuales populares de Radar de otras marcas

SAW D2L

SAW D2L Valentine One Gen2 Manual de usuario

Raymarine

Raymarine Raytheon R20X Manual de usuario

Simrad

Simrad CA34 Manual de usuario

ECHOMAX

ECHOMAX Active-X-Band Manual de usuario

AGD

AGD 340 Manual de usuario

Kustom Signals

Kustom Signals Eagle 3 Manual de usuario

SYMEO

SYMEO STU Manual de usuario

Axis

Axis D2110-VE Manual de usuario

MALA

MALA MIRA Manual de usuario

Emerson

Emerson ROSEMOUNT 5300 Manual de usuario

Rosemount

Rosemount 5300 Series Manual de usuario

TERMA

TERMA SCANTER 5102 Manual de usuario

GSSI

GSSI UtilityScan Manual de usuario

Acconeer

Acconeer A111 Manual de usuario

Crosley

Crosley CR37 Manual de usuario

AGD

AGD 318 Manual de usuario

Cobra

Cobra SLR 650G Manual de usuario

Faselase

Faselase D10 Manual de usuario
