Quick Operation Guide
EMTOP Technology Co.,Ltd.
www.emtop-tech.com
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
i
Table of Contents
Product Overview...........................................................................................................................1
1. Packing List.......................................................................................................................1
2. Factory Default Conditions.............................................................................................1
Preparations.................................................................................................................................... 2
1. Setting Up HyperTerminal.............................................................................................. 2
2. Hardware Connects.........................................................................................................6
Linux Operating System...............................................................................................................8
1. Create System TF Card..................................................................................................8
2. Update of TF Card System Image................................................................................ 9
3. Update eMMC................................................................................................................ 10
Technical Support and Warranty............................................................................................. 11
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
1
Product Overview
1. Packing List
SBC-8MX8MM×1
Serial Cable (USB To TTL)×1
12V Power Adapter×1
Cross-Over Network Cable×1
MIPI To HDMI_LVDS Adapter Board X1
2. Factory Default Conditions
A Linux system is already programmed in the on-board EMMC and supports
HDMI by default; If another display mode is required, please refer to the Display
Mode Configurations in user manual.
SBC-IMX8MM has no CR1220 battery installed on board; Please purchase it if
necessary.
SBC-IMX8MM Single Board Computer preferably boots from EMMC by default, if
you want to boot from TF Card, you need to press Boot Button before Power up
Wiki
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
2
Preparations
1. Setting Up HyperTerminal
1）Click Start >Programs >Accessories >Communications >HyperTerminal
on your PC’s desktop;
Figure 1 Start HyperTerminal
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
3
2）Enter a name in the Name field and select an icon below, and then click OK;
Figure 2 Enter a Name
3）Select the port to be used and click OK;
Figure 3 Select Port
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
4

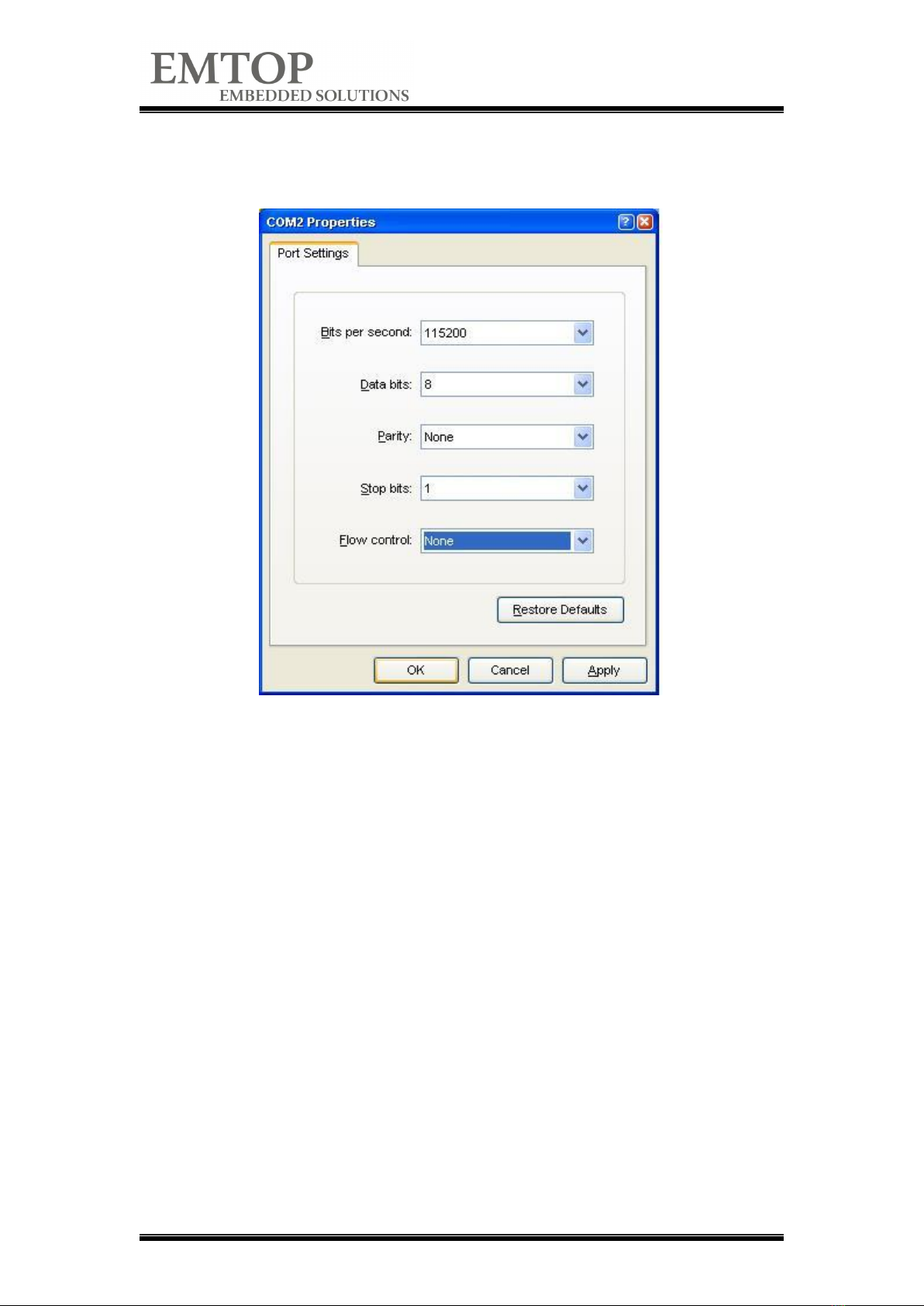

4）Please configure the port you selected as shown in the following window, and
then click OK;
Figure 4 Configure Port
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
5
5）HyperTerminal has been set up successfully.
Figure 5 HyperTerminal Window
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
6
2. Hardware Connects
Figure 6 Hardware Connections
Table 1 Connection Details
No.
Descriptions
No.
Descriptions
1
Connect Serial Cable
4
Connect a Power Adapter
2-3
Connect HDMI Adapter Board
5-6
If you want to boot from TF card,
Need Press boot button before
Power Up
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
7
EMTOP TECHNOLOGY
Copyright © 2017 Emtop Technology SBC-IMX8MM Quick Operation Guide
8
Linux Operating System
1. Create System TF Card
Download HP USB Disk Storage Format Tool 2.0.6 , and use it to format TF card; the
figure shown below is the tool’s interface;
Figure 7 Format TF Card
Select FAT32 in the File system drop-down menu, and then click Start to format
TF card.
Note:
It is not recommended to use other versions of HP USB Disk Storage Format Tool.
HP USB Disk Storage Format Tool will erase the partitions of TF card.
