USER MANUAL

Elo Touch Solutions

ET1302L

UM600243 Rev B

User Manual ET1302L

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or

by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) make no representations or warranties

with respect to the contents herein, and specifically disclaim any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise

this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo, Elo (logo), Elo Touch,Elo Touch Solutions and TouchPro are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation.

User Manual ET1302L

Table of Contents

Section 1: Introduction ............................................................................................................................................................................................................................... 4

Section 2: Installation................................................................................................................................................................................................................................. 5

Section 3: Mounting ................................................................................................................................................................................................................................... 9

Section 4: Operation ................................................................................................................................................................................................................................ 12

Section 5: Technical Support................................................................................................................................................................................................................... 15

Section 6: Safety & Maintenance............................................................................................................................................................................................................. 17

Section 7: Regulatory Information............................................................................................................................................................................................................ 18

Section 8: Warranty Information............................................................................................................................................................................................................... 25

User Manual ET1302L

Section 1: Introduction

Product Description

Your new touch monitor combines the latest developments in touch technology and display design with reliability for use in high-traffic environments.

This touch monitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high-quality display performance. ET1302L supports

full HD 1920 x 1080. Its LED backlight significantly reduces power consumption and eliminates the need for mercury (compared to CCFL-backlit panels).

Other features that enhance this LCD monitor’s performance are USB Type-C (display, touch and video), Plug & Play compatibility, remote on-screen

display (OSD) controls and flexible mounting options.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks to user safety.

See the Safety & Maintenance Section for more information.

This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new touch

monitor, read through this manual, especially the Installation, Mounting, and Operation Sections.

User Manual ET1302L

Section 2: Installation

Unpacking the Touch Monitor

Open the carton and verify that the following items are present:

•

Touch monitor with stand: E683204 (or without stand: E683595)

•

Quick Install Guide

•

HDMI cable

•

Touch USB Cable (USB Type-A to Type-C)

•

Power brick

•

Europe power cord

•

North America power cord

•

EEI Label

•

3 x tie wraps

•

2 x cable cover screws

User Manual ET1302L

Connector Panel

Note: Cable tie-down points can be used to tie down the cables with tie wraps. Simply loop the tie wraps through the cable tie-down points and around the

cable to secure cable connections.

Touch Monitor Connections

Source without USB Type-C Power Delivery function:

Connect one end of the HDMI or VGA-DB15-to-MICRO cable (sold separately Elo P/N: E710549) to the

monitor’s HDMI/VGA input connector and the other end to yourHDMI/VGA video source (tighten the

video cable’s screws on the VGA connector for best performance).

Connect the USB touch cable (USB Type-A to Type-C) between the monitor’s USB-C connector and your PC’s USB port. This cable only supports USB2.0.

Connect the audio cable between the monitor’s Audio line-in and your audio source (you can also use built-in audio via your HDMI cable)

Connect the power adaptor’s input connector to the power source. Connect the power adaptor’s DC output connector to the monitor’s input power jack.

The touch monitor ships in an OFF state. Press the power button to turn it on.

Source with USB Type-C (W/O Power Delivery function):

Connect the USB Type-C to Type-C cable (sold separately Elo P/N: E710364) between the monitor’s USB-C connector and your PC’s USB port.

Connect the power adaptor’s input connector to the power source. Connect the power adaptor’s DC output connector to the monitor’s input power jack.

The touch monitor ships in an OFF state. Press the power button to turn it on.

USB Type-C for everything - Source with USB Type-C (w/ Power Delivery function 15V 1.8A / 20V 1.35A):

Connect the USB Type-C to Type-C cable (sold separately Elo P/N: E710364) between the monitor’s USB-C connector and your PC’s USB Type-C port.

User Manual ET1302L

The touch monitor ships in an OFF state. Press the power button to turn it on.

*Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues.

This USB type C monitor is powered by USB port which complies with LPS and SELV circuit according to IEC 60950-1:2005, or complies with ES1 and PS2 circuit

according to IEC 62368-1:2014.

User Manual ET1302L

Installing Touch Technology Software Drivers

No additional drivers are required for your projected-capacitive touch monitor with Windows 7, Windows 10 and most versions of Mac OS X, Android or

Linux as it will use the built-in HID drivers in the Operating System. If the monitor is used with the Windows XP operating system, follow the steps below

to install the Windows XP touch driver.

To download the latest touch drivers:

1. Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

2. Select the “Touch Drivers” from “Product Category” dropdown menu.

3. Select the operating system from “Operating System” dropdown menu.

4. Click on the driver version required for your touchscreen display.

User Manual ET1302L

Section 3: Mounting

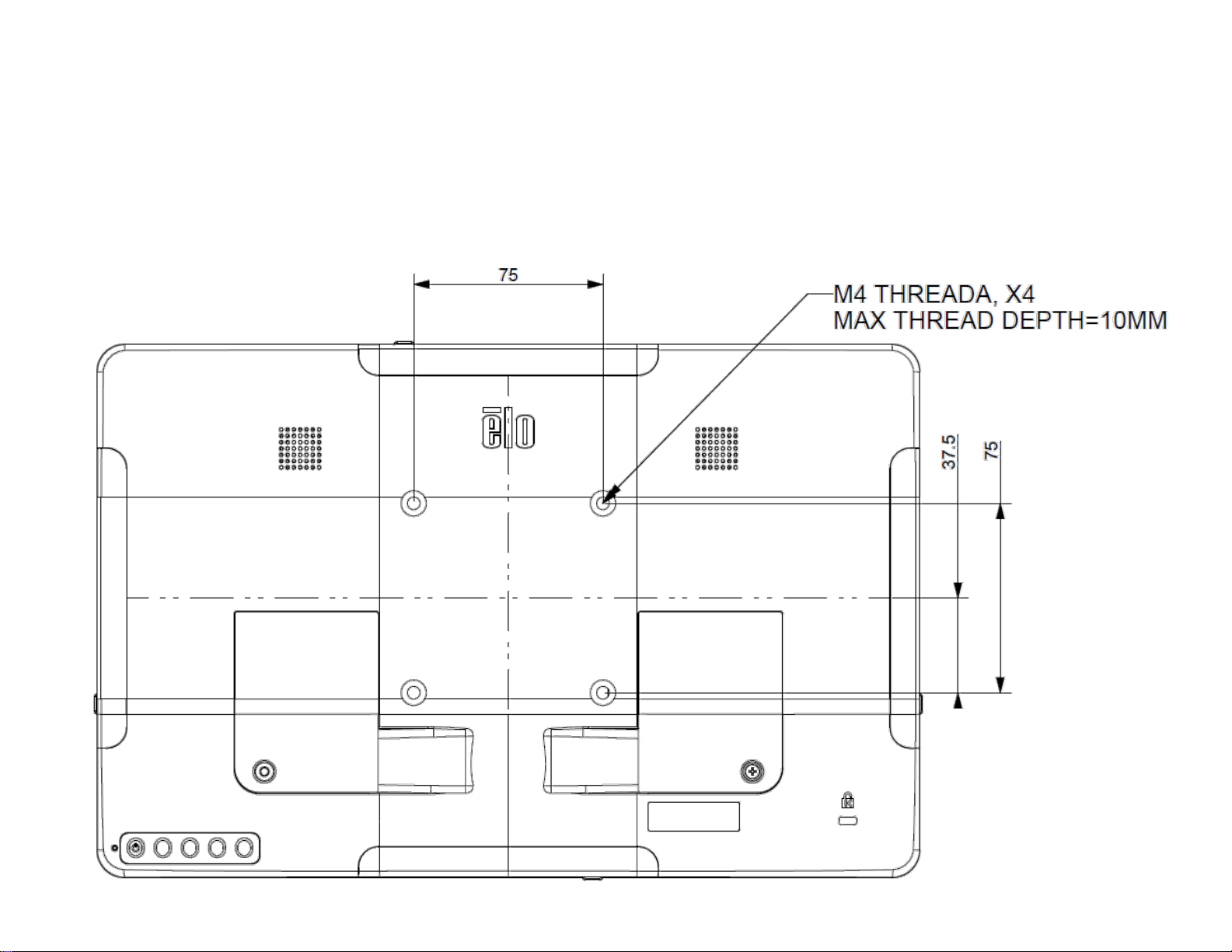

Rear VESA Mount

A four-hole 75 x 75 mm mounting interface for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access

the mounting interface. The VESA FDMI-compliant counting is coded VESA MIS-D, 75, C.

User Manual ET1302L

Base Mount

ET1302L base mounting options are shown below.
