Elo TouchSystems ET2294L Manual de usuario

USER MANUAL

Elo Touch Solutions

90 Series Open Frame Touch Displays

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Elo 2794L o cerca

il tuo prodotto tra le migliori offerte di Monitor

User Manual - 90 Series

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or

by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties

with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and IntelliTouch are trademarks of Elo and its Affiliates. Windows is a trademark

of Microsoft Corporation.

User Manual - 90 Series

Table of Contents

Section 1: Introduction ............................................................................................................................................................................................................................. 4

Section 2: Installation .............................................................................................................................................................................................................................. 4

Section 3: Mounting ................................................................................................................................................................................................................................. 7

Section 4: Operation ................................................................................................................................................................................................................................ 9

Section 5: Technical Support ................................................................................................................................................................................................................. 14

Section 6: Safety & Maintenance .......................................................................................................................................................................................................... 16

Section 7: Regulatory Information ......................................................................................................................................................................................................... 17

Section 8: Warranty Information ............................................................................................................................................................................................................ 21

User Manual - 90 Series

Section 1: Introduction

Product Description

Your new touch display combines Elo Touch Solutions touch the latest developments in touch technology

and display design with the reliability for use in high-traffic environment.

This touch display incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The

90 Series offers sizes that range from 10.1 inch to 27 inch and resolutions that range from 800x600 to Full HD 1920x1080. The LED

backlight significantly reduces power consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that

enhance this LCD monitor’s display’s performance are Plug & Play compatibility, remote on-screen display (OSD) controls and flexible

mounting options.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your

unit and prevent risks to user safety. See the Safety & Maintenance Section for more information.

This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering

on your new touch display, read through this manual, especially the Installation, Mounting, and Operation Sections.

Section 2: Installation

Unpacking the Touch Display

Open the carton and verify that the following items are present:

•

Touch!display!with protective film for its face

•

User Manuals CD

•

Japanese language regulatory information pamphlet

•

Quick Install Guide

•

VGA cable

•

USB cable (not available for ETXX9XL-0NXX models)

•

Mounting brackets

•

OSD remote

User Manual - 90 Series

Connector Panel & Interfaces

12V DC IN DP VGA OSD Connector Touch USB COM

Touch Display Connections

Connect the DP or VGA video cables between the monitor’s DP/VGA input connectors and your DP/VGA

video source. Tighten the video cable’s screws for best performance on VGA connector.

Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port. (Not applicable for EXX9XL-0NXX models)

Connect a 12VDC power supply to the monitor’s input power jack.

The touch!display!ships in an ON state, video should be displayed on your monitor already.

User Manual - 90 Series

Installing the Touch Technology Software Drivers

Some software installation may be required for your touch display to work with your computer. No additional drivers are required for your projected-capacitive

touch display with Windows 7 and 8 operating systems, as it uses Windows HID drivers.

To download the latest touch drivers

Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

Select the operating system from “Operating System” dropdown menu.

Select the technology from “Technologies” dropdown menu.

Click on the driver version required for your touch!display.

Click “Accept” once you are directed to the “Driver License Agreement” page.

Enter your email address, Click on “Next Step”. Your driver download will start automatically.

If you are a new user, fill in the required information and click on “Register”. Your driver download will start automatically.

User Manual - 90 Series

Section 3: Mounting

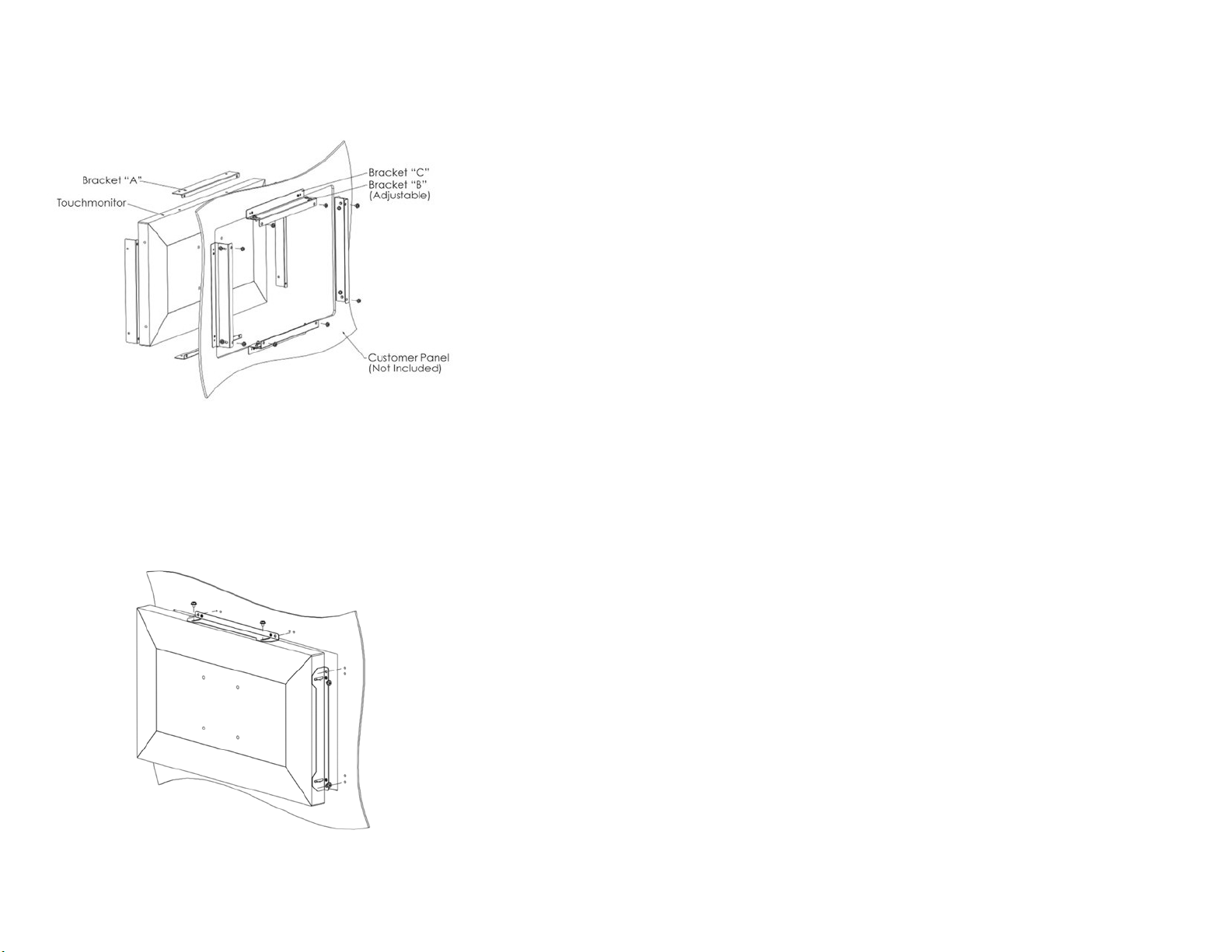

Flush Mount

Flush-mount Bracket Installation Notes:

Bracket shape varies for each model, drawing for illustration purposes

only. See dimensional drawing for exact dimensions.

Attach bracket “A” To touch!display!(all four sides) with M4 screws (included)

Attach bracket “C’ to customer panel per drawing (all four sides)

Attach bracket “B” to bracket “C” on all four sides with M4 screws (included)

Adjust depth of bracket “B” so monitor is flush with customer panel

Place touch!display!into customer panel opening

Secure touch!display!to bracket “B” from behind with M4 screws (included)

Side Bracket Mount

Side-mount Bracket Installation Notes:

Bracket shape varies for each model, drawing for illustration

purposes only. See dimensional drawing for exact dimensions.

User Manual - 90 Series

Rear VESA Mount

A four-hole (200x100mm for 2794 and 75x75mm, 100x100mm for the rest size)

mounting pattern for M4 screws is provided on the rear of the monitor.

The VESA FDMI-compliant counting is coded: VESA MIS-E,C.

ET1093L!

ET1291L!

ET1590L!

ET1593!L!

ET1790L!

ET1990/1991L!

ET2094L!

ET2293/2294L!

ET2494L!

ET2794L!

75!x!75!mm!

(depends!on!

different!

model)!

100x100!mm!

!X!

200x100!mm!

!X!

User Manual - 90 Series

Section 4: Operation

Power

The touch display ships in an ON state.

To turn the touch display on or off, press the touch display power button on the OSD controller

once. The power status LED on the OSD controller functions according to the following table.

Touch Display/Computer Module Status LED Status

OFF OFF

SLEEP PULSING

ON ON

The system consumes low power when in SLEEP and OFF modes. For detailed power consumption

specifications, refer to technical specifications on the Elo website http://www.elotouch.com

Touching the screen will bring the attached host PC out of SLEEP mode (similar to moving the mouse or pressing a keyboard key).

To improve reliability and reduce wasteful power consumption, disconnect the AC power cable from the monitor when long periods of disuse are planned.

Touch

Your touch display is factory-calibrated and should not need manual calibration (unless the input video is not fully

scaled to the native resolution, or the touch experience needs to be calibrated to a specific user).

User Manual - 90 Series

IntelliTouch Plus TouchscreenTechnology

When connected to Windows 7 computers, the touch display can report 2 simultaneous touches.

When connected to Windows XP computers, the touch display reports single touches.

The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image,

if needed, through the calibration function in the Elo driver control panel.

The IntelliiTouch Plus driver will only support multiple monitors if they

are all using the IntelliTouch Plus touch technology.

To use multiple IntelliTouch Plus monitors, double click on the EloConfig

desktop shortcut to open up the Elo Touchscreen Configuration screen

Select “Match Touch to Display...” to calibrate multiple monitors.

Projected Capacitive Touch Technology

When connected to Windows 7 or 8 computers, the touch display can report 10 simultaneous touches.

When connected to Windows XP computers, the touch display reports single touches.

No additional drivers are required for this technology to work, it uses Windows HID drivers.

Refer to Section 2, “Installing the Touch Technology Software Drivers” to find instructions to download touch drivers for Windows XP

No calibration is required for this technology.
