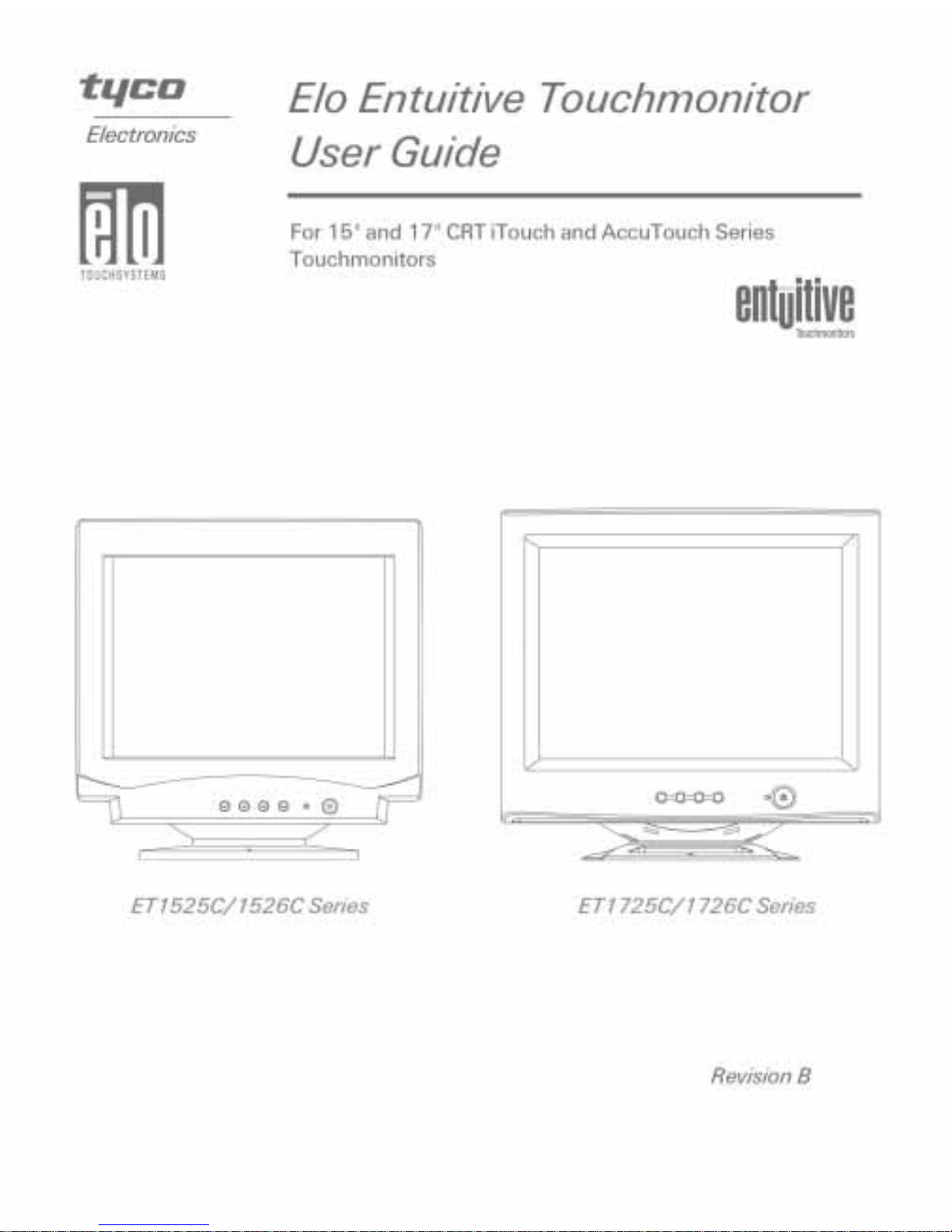

Elo TouchSystems ET 1725C Series Manual de usuario

Elo Entuitive Touchmonitor

User Guide

For 15" and 17" CRT iTouch and AccuTouch

Series Touchmonitors

ETXX25C/26C-4XXWE-3 Series Models

ETXX25C/26C-7XXWE-1 Series Models

Revision B

P/N 008553

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

iTouch, IntelliTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 1

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Installing the Base . . . . . . . . . . . . . . . 4

Uninstalling the Base. . . . . . . . . . . . . . 5

Selecting a Suitable Location . . . . . . . . . 5

Connecting Your Touchmonitor . . . . . . . . . . 6

Installing the Driver Software . . . . . . . . . . . 9

Installing the Serial Touch Driver for Windows

XP, Windows 2000, Me, 95/98 and NT 4.0 . 10

Installing the Touch Driver for MS-DOS and

Windows 3.1 . . . . . . . . . . . . . . . 11

Chapter 3

Operation 13

About Touchmonitor Adjustments . . . . . . . . 13

Touchmonitor Controls . . . . . . . . . . . . . 14

Using the On Screen Display (OSD) . . . . . 14

Locking/Unlocking the OSD Functions . . . . 15

OSD Adjustments . . . . . . . . . . . . . . 16

Chapter 4

Troubleshooting 21

Appendix A

Touch Technology 23

Touchscreens: An Overview. . . . . . . . . . . 23

iTouch Touchscreens . . . . . . . . . . . . . . 24

Appendix B

Touchmonitor Safety 25

Care and Handling of Your Touchmonitor . . . . 26

Appendix C

Technical Specifications 27

Touchmonitor Specifications . . . . . . . . . . 27

Signal PINOUT for 15" and 17" Monitors . . 31

Power Consumption . . . . . . . . . . . . . . . 32

Preset Timing Table . . . . . . . . . . . . . . . 33

Regulatory Information 35

Warranty 37

Index 39

Table of Contents

1-1

CHAPTER

HAPTER

NTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new high-resolution touchmonitor combines the reliable

performance of Elo’s touch technology with the latest advances in CRT display

design. This combination of features creates a natural flow of information

between a user and the touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

About the Product

Your CRT touchmonitor is a color display with the following features:

• 14-inch viewable image 0.28mm dot pitch CDT for 15" and 15.9-inch

viewable image 0.27mm dot pitch CDT for 17".

• Supports a wide range of screen refresh rates with flicker-free picture quality.

• Plug and Play functionality automatically adjusts the monitor to its optimum

performance.

• VESA DPMS (Display Power Management Signaling).

• VESA DDC1/2B compatibility.

• Patented touch technology from Elo TouchSystems.

• RS-232 or USB touch interface.

1-2 Elo Entuitive Touchmonitor User Guide

2-3

CHAPTER

HAPTER

NSTALLATION

AND

ETUP

This chapter discusses how to install your CRT touchmonitor and how to install

Elo TouchSystems driver software.

Unpacking Your Touchmonitor

Check that the following 8 items are present and in good condition:

Base

USA power cable

Serial cable

VGA cable European power cable

USB cable

CD (with e-manual)

and Quick Installation

Guide

2-4 Elo Entuitive Touchmonitor User Guide

Installing the Base

• Carefully turn the touchmonitor upside-down.

• Place the base against the bottom of the monitor so that the base fasteners are

aligned with appropriate slots.

• Push the base towards the front of the monitor until you hear a “click” and

the latch locks into position.

• Carefully turn the touchmonitor right-side up.
