Elo TouchSystems Entuitive ET1X45C-4SWE-1 Series Manual de usuario

Elo Entuitive Touchmonitor

User Guide

For 15", 17" and 19" CRT Kiosk Series

Touchmonitors

ET1X45C-4SWE-1 Series Models

ET1X45C-4UWE-1 Series Models

Revision A

P/N 008572

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

www.elogaming.com

iii

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, SecureTouch, iTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 1

Chapter2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Connecting Your Touchmonitor . . . . . . . . . . 4

Removing the Back Cover . . . . . . . . . . . 4

Touchmonitor Connections. . . . . . . . . . . 4

Connect the Video Cable. . . . . . . . . . . . 5

Connect the Serial or USB Touchscreen Cable 5

Connect the Power Cable . . . . . . . . . . . 6

Attach the Back Cover . . . . . . . . . . . . . 7

Installing the Driver Software . . . . . . . . . . . 8

Installing the Touch Driver for Windows XP,

Windows 2000, Me, 95/98 and NT 4.0 . . . . 9

Installing the Touch Driver for MS-DOS and

Windows 3.1 . . . . . . . . . . . . . . . . 9

Chapter3

Operation 11

About Touchmonitor Adjustments . . . . . . . . 11

Touchmonitor Controls . . . . . . . . . . . . . 12

Using the On Screen Display (OSD) . . . . . 12

OSD Adjustments . . . . . . . . . . . . . . 13

Chapter4

Troubleshooting 17

Appendix A

Touch Technology 19

Touchscreens: An Overview. . . . . . . . . . . 19

iTouch Touchscreens . . . . . . . . . . . . . . 20

Appendix B

Touchmonitor Safety 21

Appendix C

Technical Specifications 23

Touchmonitor Specifications . . . . . . . . . . 23

Signal PINOUT for 15",17" and 19" Monitors 26

Power Consumption . . . . . . . . . . . . . . . 27

Preset Timing Table . . . . . . . . . . . . . . . 28

Regulatory Information 29

Warranty 31

Index 33

Table of Contents

1-1

CHAPTER

HAPTER

NTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new high-resolution touchmonitor combines the reliable

performance of Elo’s touch technology with the latest advances in CRT display

design. This combination of features creates a natural flow of information

between a user and the touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

About the Product

Your CRT touchmonitor is a color display with the following features:

• 13.8-inch viewable image 0.28mm dot pitch CDT for 15".

• 15.7-inch viewable image 0.27mm dot pitch CDT for 17".

• 18-inch viewable image 0.25mm dot pitch CDT for 19".

• Supports a wide range of screen refresh rates with flicker-free picture quality.

• Plug and Play functionality automatically adjusts the monitor to its optimum

performance.

• VESA DPMS (Display Power Management Signaling).

• VESA DDC1/2B compatibility.

1-2 Elo Entuitive Touchmonitor User Guide

• Patented iTouch technology from Elo TouchSystems.

• Either RS-232 serial or USB touch interface.

• Full sheetmetal enclosure adds protection and security.

2-3

CHAPTER

HAPTER

NSTALLATION

AND

ETUP

This chapter discusses how to install your CRT touchmonitor and how to install

Elo TouchSystems driver software.

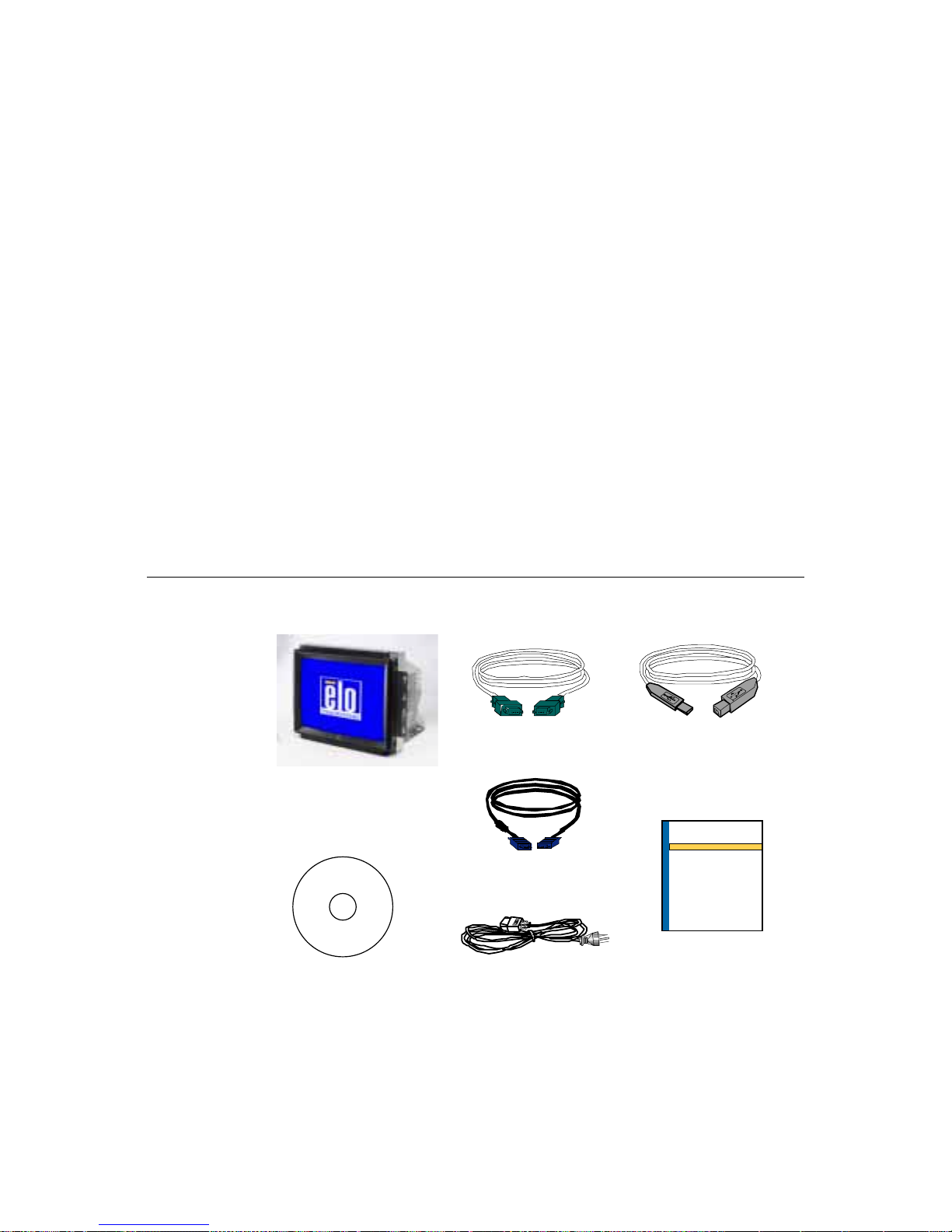

Unpacking Your Touchmonitor

Check that the following 6 items are present and in good condition:

CRT Touchmonitor

Serial cable

VGA cable

CD Software

Quick Installation

Software

Quick Installation Guide

Guide

USB cable

monitor power cord

2-4Elo EntuitiveTouchmonitorUserGuide

Connecting Your Touchmonitor

Important:

Before connecting the cables to your touchmonitor and PC, be sure that the computer

and touchmonitor are turned off.

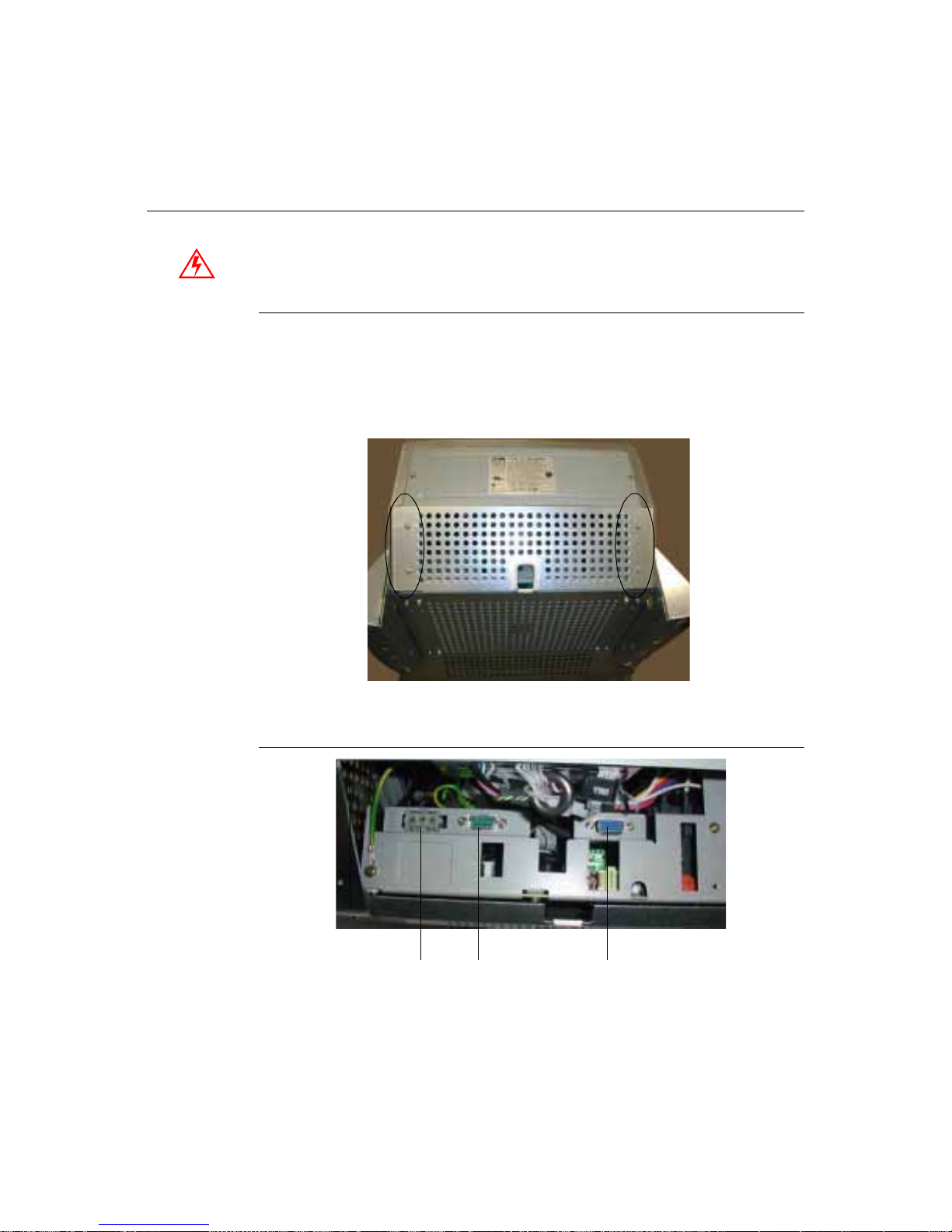

Removing the Back Cover

Note:

You will need a Phillips screwdriver to remove the back cover.

• In order to access the touchmonitor connections, unscrew the four screws on

the back cover.

• Remove the back cover to expose the touchmonitor connections.

Touchmonitor Connections

Female 15-pin video

connector

Female 9-pin

serial or USB

touchscreen

connector

Power

2-5

Connect the Video Cable

• Connect one end of the video cable to the video connector on your PC and

the other end of the cable to the video connector on your monitor. Secure the

cable by turning the thumbscrews on each connector.

Connect the Serial or USB Touchscreen Cable

• Depending on your monitor, connect either the serial or USB touchscreen

cable. Connect one end to the appropriate port on the back of your computer.

Connect the other end of the cable to the touchscreen connector on your

touchmonitor. The touchscreen cable connectors should fit snugly into the

connectors on your touchmonitor and computer. Secure the cable by turning

the thumbscrews on each connector.

video cable

video cableserial or USB cable

2-6Elo EntuitiveTouchmonitorUserGuide

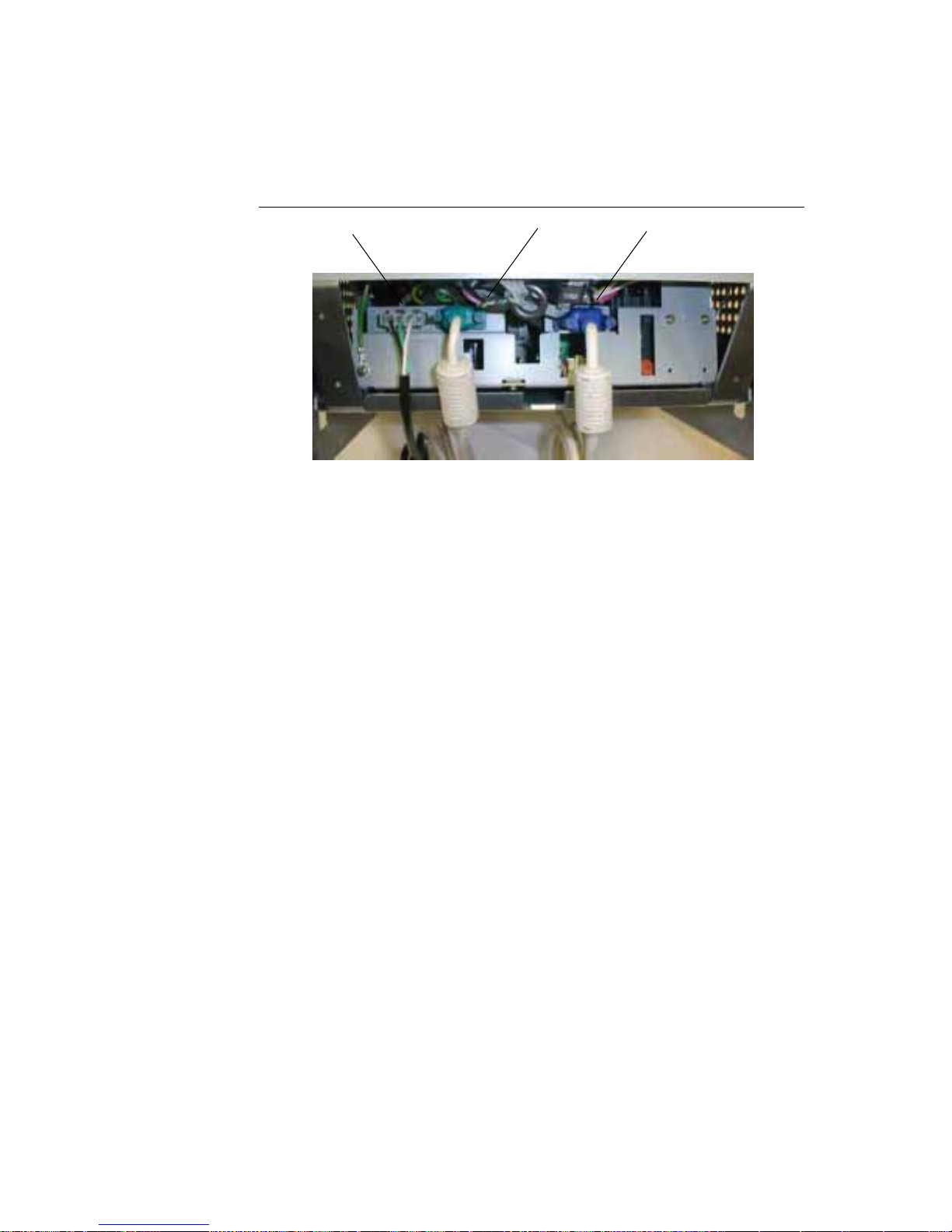

Connect the Power Cable

• Connect the power cable to the AC connector on your touchmonitor. To

protect your equipment against risk of damage from electrical surges in the

power line, plug the touchmonitor’s power cord into a switched surge

protector, and then connect the surge protector to a grounded (three-pronged)

AC electrical outlet.

video cable

serial or USB cable

power cable
