Ella's Bubbles Standard Manual de usuario
Standard
ACRYLIC WALK IN
BATHTUB
OWNERS MANUAL
&XVWRPHU6XSSRUW800.480.6850
(PDLO[email protected]
ellasbubbles.com
Table of Contents
ellasbubbles.com 3/22/23
Warranty Activation Form MUST be completed for both the Owner and Installer to validate the warranty.
Failure to complete both pages (26 and 27) will void the warranty on this bathtub.
Completed Ella Warranty Activation Forms can be emailed to [email protected],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608
IMPORTANT
Unpacking and Inspecting.............................................................................................................................................................1
Moving your Ella Walk In Bath..................................................................................................................................................... 2
Warnings and Lables................................................................................................................................................................. 3 - 4
Important Safety Instructions............................................................................................................................................... 5 - 6
Required Steps Prior to Installation........................................................................................................................................... 7
Door and Frame Adjustments............................................................................................................................................. 11-13
Service Access and Door Seal.................................................................................................................................................... 14
Reversible Extension Kit............................................................................................................................................................... 15
Side Panel Cutting Adjustments............................................................................................................................................... 16
Finishing installation.................................................................................................................................................................... 17
Operations Instructions...................................................................................................................................................... 18 - 20
Cleaning and Maintenance........................................................................................................................................................ 21
Warranty................................................................................................................................................................................... 22 - 24
Ella 2" T-Type Single Port Floor Drain........................................................................................................................................ 8
Drain Installation....................................................................................................................................................................... 9 -10
After inspecting the crate and accepting
the product please unpack the crate as
shown in images. When the product is
unpacked please remove front apron
with access panels and end panel before
carrying into the house. By removing the
apron and access panels you will be able
to grab on to the frame to carry tub
inside. Do not lift the bathtub by the
plumbing or other parts. Avoid hitting the
sides or the bottom not to break off the
air jets or other parts of the bathtub.
Inspect the plumbing or other parts that
may have loosened in transit or by
carrying the tub inside your home.
Upon receiving your walk-in bathtub
please inspect the crate and carton for
any damages. If damages found please
take few pictures of damages with your
phone and record the details on the
shippers delivery document and ask the
driver ti sign it. If you think product
maybe damaged note that on the
delivery document and call 800-
Damages must be recorded on shippers
delivery documents for proper claim
processing.
Unpacking and Inspecting
Details on Page 5
WARNING
REMOVE END PANELS BEFORE ATTEMPTING
TO MOVE OR CARRY. FAILURE TO DO SO CAN
LEAD TO DAMAGING AIR JETS AND OTHER
COMPONETS OF THE BATHTUB.
ellasbubbles.com 3/22/23
Page 1 of 24
WARNING: Lift and carry the tub only by the frame. Protect the bottom of the tub to
avoid breaking the air jets positioned on the bottom of the tub.
WARNING: Do not carry the walk in tub by the panels. Be careful when carrying the
tub, avoid front panel contact with the floor or stairs to prevent damages. Make sure
no
loose parts are hanging down. Remove all four (4) access panels before carrying the
tub to prevent them from falling out and breaking.
•Remove all four (4) access panels
before moving the tub
•Take off the screw caps
•Unscrew the screws with a
Philips head screwdriver
•Remove the end access panel
Large Access Panel (1)
Small Access Panel (2)
Toe Kick Access (3)
- Access to parts
- Option to lower the Threshold
White Screw Caps
End Access Panel (4)
Side Panel
Panel
Moving your Ella Walk in Bath
Frame
Deck
Water Supply Lines
End Access
ellasbubbles.com 3/22/23
Page 2 of 24
Warnings and Labels
You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT DAMAGE OR
INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN ASSUMPTION OF ALL
LIABILITY BY SAID INSTALLER
NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as not to
damage cardboard crate or its wooden pallet. Do not dispose of shipping material until installation is
complete. Please visit our website, www.ellasbubbles.com for complete details of return/exchange
policy.

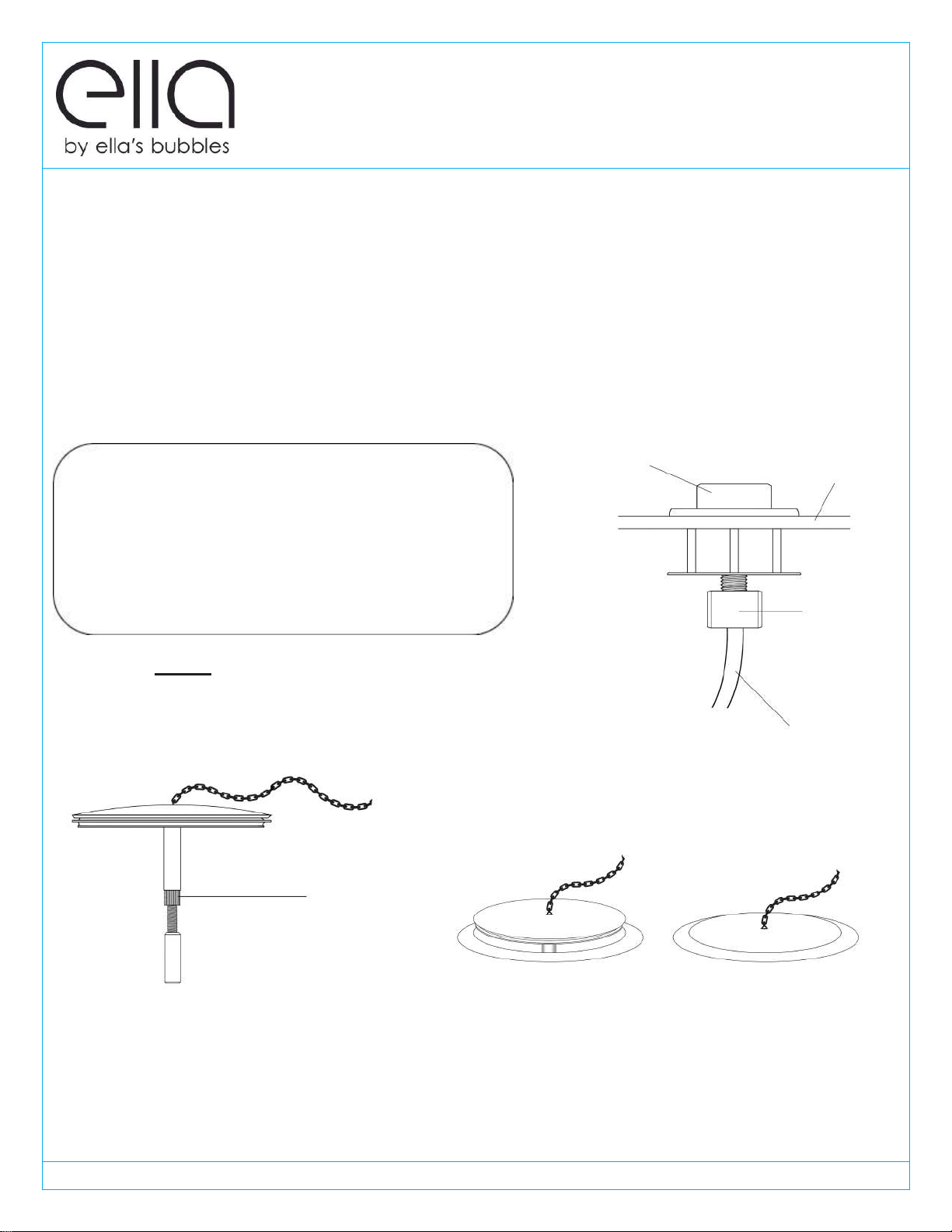

Backnut MUST be securely tightened.
Failure to do so will cause loosening
over time resulting in it coming apart
and falling down the drain.
Drain must open completely to drain
properly and close completely to avoid
unnecessary drainage.
Ella Economy comes equipped with one (1) 2" gravity driven
drain with (1) overflow and opener, one (1) emergency pull-up
up chain.
Drain open
all the way
Drain closed
completely
WARNING
MAKE SURE AIR PIPE CONNECTION TO PUSH
CONTROLS ARE PROPERLY TIGHTENED AND
THATPUSH CONTROLS ARE FUNCTING PROPERLEY
BEFORE FINALIZING INSTALLATION OF THE TUB.
ellasbubbles.com 3/22/23
Page 3 of 24
Push Control
Acrylic Shell
Back nut
Air hose
ellasbubbles.com 3/22/23
Page 4 of 24
Water from the hose can drip down
into the hand shower base and get
behind your tub without the barrel
protection.
3) Take your extension hose and screw the
end to the opposite side of the barrel.
4) Place the barrel in the shower base to plug
the hole.
1) Start by unscrewing your shower head mixer
from the hose.
2) Next take your stainless steel barrel and
screw it on the end of the hose.
5) Finally, screw on the shower head mixer to the
other end of the extension hose.
PLEASE READ BEFORE BEGINNING INSTALLATION
WARNING: Do not attach the hand held shower to the wall unless you have an extension hose
with a barrel protection. This may cause water to leak behind your walk in tub.
TO INSTALL BARREL EXTENSION HOSE:
WARNING!
Exercise caution while entering and exiting your Ella Walk in Bath.
WARNING: Read through the entire manual completely before beginning installation.
Contract a licensed plumber and electrician for installation. Be sure you and your contractor are
aware and follow all local plumbing and electrical codes. Your Ella Walk in Bath is not intended for
outdoor use. Install the tub in accordance with the instructions in the manual. Use ONLY the parts
and accessories provided or as recommended by the manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow all
instructions pertaining to risk of fire, electric shock and injury. Make sure and have your licensed
electrician test all connections to the dedicated line, including the GFCI. Risk of electric shock; Do not
permit electric appliances within 3 feet (1.5m) of the tub. i.e.: hair dryers, lamps, phones, radios,
televisions, etc. To reduce the risk of injury, do not permit children or persons with disabilities to use
this product unless they are supervised by an able-bodied adult at all times. Never drop or insert any
objects into any openings. Do not turn on the Hydro jets without water reaching the waterline. The
waterline is the point where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check and
adjust the temperature before use. Consult your physician before using your Ella Walk in Bath if you
have a heart condition or other health issues. People using medications, herbal remedies, sleep aids,
and/or having adverse medical history should consult a physician before using this product. Pregnant
women should NOT use this product before consulting their physician. Avoid the use of alcohol,
drugs or other medications while using your walk in bath. Be aware, hyperthermia is a risk when
raising body temperature. Do no keep body submerged in heated bath for extended periods of time.
The symptoms of hyperthermia include an increase in body temperature which can cause dizziness,
lethargy, drowsiness and fainting. Avoid using the heated bath after strenuous activity.
Important Safety Instructions
ellasbubbles.com 3/22/23
Page 5 of 24
Important Safety Instructions
WARNING: USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO
INJURY OR DEATH
ellasbubbles.com 3/22/23
Page 6 of 24
BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO
THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE
BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE
DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT
TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!
In the case of bathers who do not have all
functioning limbs or are paralyzed, bather must
be attended by caregiver at all times and use an
installed safety belt at all times.
CORRECT
WRONG POSITIONING
WARNING
Protecting the Bath
Cover and protect the bath shell and fixtures from scratches or other damages during the installation
and tests. Remove the access panels when moving the Walk in Bath and always lift the bathtub from
the frame.
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter (GFCI)
provided and installed by a licensed electrician and tested periodically (refer to instructions provided
by GFCI manufacturer). Operating the pumps without first filling the bath to above the jets can cause
permanent damage to your equipment. Push the GFCI “test” button into “reset” mode. If the GFCI fails
to operate in this manner, there is a ground current flow or a device malfunction, indicating the
possibility of electrical shock. If this occurs, turn OFF the power and do not use the bathtub until the
source of the problem has been identified and corrected.
Water Test
It is important to test that the Hydro and Air Pumps are functioning properly before final in-wall
installation to avoid unnecessary repairs or removal.
A. Place the tub on a completely flat surface in an area where it may be drained after testing.
B. Using a clean rag and warm water wipe down seal to insure it is free of debris.
C. Seal the drains (this can be done with tape) and fill the tub to at least three inches above the
highest jet, or to the bottom of the grab bar if no jets are present.
D. Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.
E. Using appropriately rated three-prong extension cords, all plugged in to separate outlets, operate
all electrical components (air blower, water pump, and heater if applicable) for another 30 minutes
and inspect for leaks again. Inspect the unions around the pump and heater.
F. If a leak persists at a union after tightening, it may have been over-tightened or might have a
displaced O-ring. Disassemble it and make sure the O-ring was seated properly. Do the same if a leak
persists at the heater. Verify that the heater threads match the pipe threads.
Required Steps Prior to Installation
ellasbubbles.com 3/22/23
Page 7 of 24
(One Drain Included)
Ella 2" T-Type Single Port Floor Drain
ellasbubbles.com 3/22/23
Page 8 of 24
Tabla de contenidos
Otros manuales de Bañera de Ella's Bubbles
Ella's Bubbles
Ella's Bubbles ella Monaco Manual de usuario
Ella's Bubbles
Ella's Bubbles ella Capri Manual de usuario
Ella's Bubbles
Ella's Bubbles Ella Monaco OA3252D5PL Manual de usuario
Ella's Bubbles
Ella's Bubbles Ella Capri OA3052D5PL Manual de usuario
Ella's Bubbles
Ella's Bubbles Deluxe H3057 L Manual de usuario
Ella's Bubbles
Ella's Bubbles ella Deluxe M3057 L Manual de usuario
Ella's Bubbles
Ella's Bubbles BIG4TWO Manual de usuario
Ella's Bubbles
Ella's Bubbles Ella TransferXXXL OLA3655 L Series Manual de usuario
Ella's Bubbles
Ella's Bubbles Ultimate 93217 L Manual de usuario
Ella's Bubbles
Ella's Bubbles ella Oasis OW5126S Instrucciones de funcionamiento
Ella's Bubbles
Ella's Bubbles OA3252 L Manual de usuario
Ella's Bubbles
Ella's Bubbles Deluxe AM3057 L Manual de usuario
Ella's Bubbles
Ella's Bubbles ELLA Companion Manual de usuario
Ella's Bubbles
Ella's Bubbles ella Solo30 Manual de usuario
Ella's Bubbles
Ella's Bubbles ella Mobile Manual de usuario
Ella's Bubbles
Ella's Bubbles Front Entry OAF3240 L Single Drain Manual de usuario
Ella's Bubbles
Ella's Bubbles TUB4TWO Manual de usuario
Ella's Bubbles
Ella's Bubbles WALK IN BATHTUB S Series Manual de usuario
Ella's Bubbles
Ella's Bubbles Deluxe Manual de usuario
Manuales populares de Bañera de otras marcas
Lyons
Lyons Elite ETLxx663219 Series Manual de usuario
Woodbridge
Woodbridge BJ500 Instrucciones de montaje
Whirlpool
Whirlpool Ariel ARL-702 Manual de usuario
TEIKO
TEIKO EXCELLENT DUO Manual de usuario
American Standard
American Standard Colony 5-1/2' x 32" Manual de usuario
American Standard
American Standard 3052OD.X0X Guía de inicio rápido
