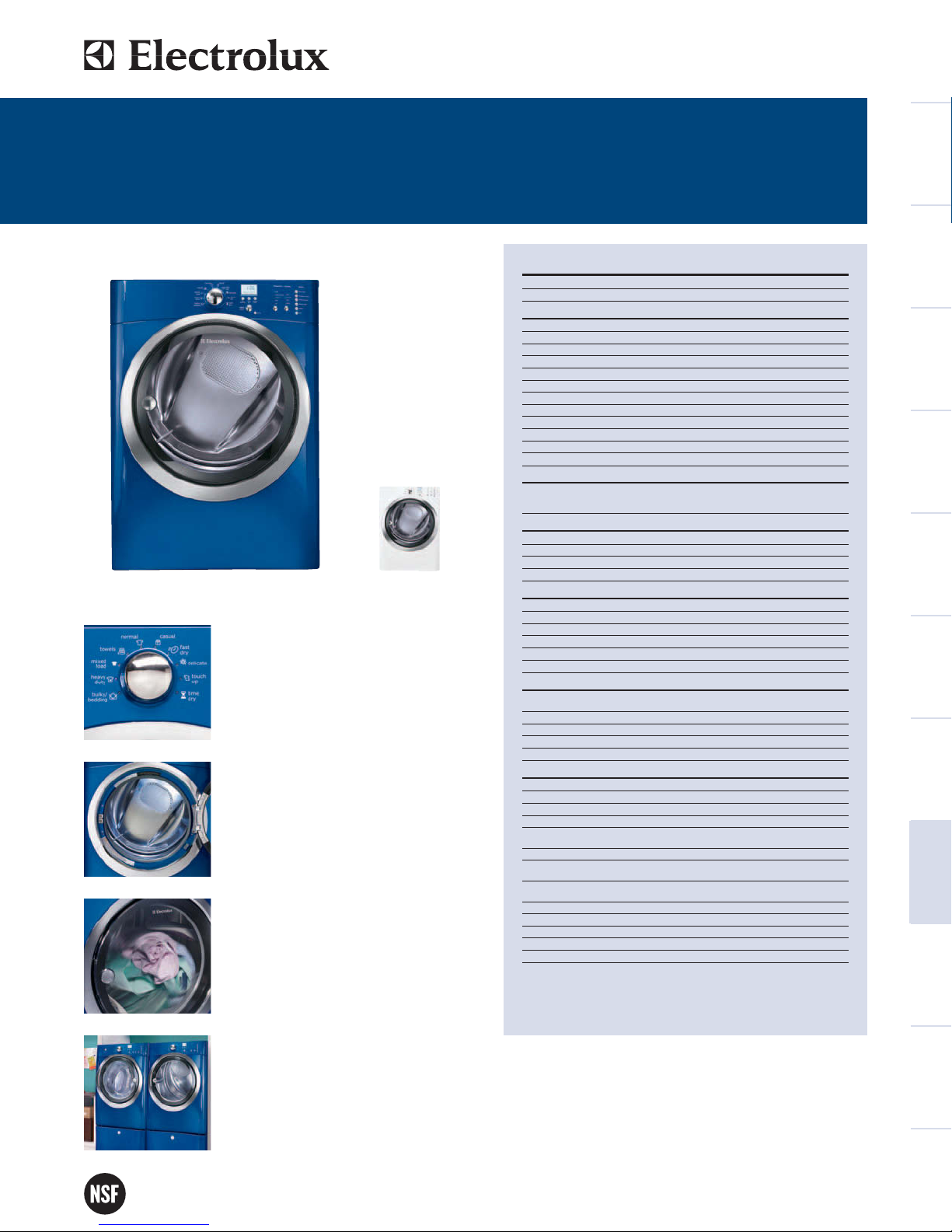

Gas Front Load Dryers

EIGD55H MB, EIGD55H IW

Featuring IQ-Touch™Electronic Controls

27" GAS FRONT LOAD DRYERS

Capacity IEC

NSF®Certified

Features

Signature Soft-Arc Door Design

IQ-Touch™Electronic Controls with LCD Display

Gentle Tumble™Dry System

Luxury-Quiet™Sound Package

Luxury-Design™Lighting

Luxury-Dry™System

Touch-2-Open™/(Close) Door

Exact Dry™Moisture Sensor

Stainless Steel Dryer Drum

Tumble Speed (RPM)

Reversible Door

Adjustable Leveling Legs

Cycles

Fast Dry, My Favorite (1), Heavy Duty,

Bulky/Bedding, Mixed Load, Towels, Normal,

Casual, Delicate, Touch Up, Timed Dry

Options

Temperature Selections

Electronic Auto Dry System

Manual Timed Dry Selections

End-of-Cycle Chime

Installation Options

Freestanding

Under Counter*

Stacked (Above Washer)

Pedestal

Hidden (In Closet)

Second Floor

Accessories

Luxury-Glide™Touch-2-Open™/(Close) Pedestal –

Mediterranean Blue (EPWD15MB), Island White (EPWD15IW)

Dryer Stacking Kit – (134700400)

LP Conversion Kit – (134709300)

Mobile Home Installation Kit – (137067200)

Drying Rack – (134912700)

Specifications

Color –

Mediterranean Blue

Island White

Overall Exterior Dimensions –

Height (Without 15" Pedestal)

(With 15" Pedestal)

Width

Depth (to Center of Arc Including Door and Exhaust)

(with 90° Door Open)

Gas/Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @120 Volts‡

Amps@120 Volts

Heating Element (BTU/HR)

Shipping Weight

*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide

for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

IQ-Touch™Controls

All the custom dry cycles you'll need, including

a “My Favorite” setting. Fastest dry time.1

Largest Capacity Dryer2

Dry the most in one load with our

8.0 cubic foot dryer.

Gentle Tumble™Dry System

Our exclusive dryer design gently separates

and tumbles clothes for even drying.

4-Way Dryer Venting

Our exclusive 4-way venting system is easy

to install without side panel knock-outs, for

ultimate venting flexibility. One of the industry’s

longest dryer vent runs.

electroluxappliances.com

8.0 Cu. Ft.

Yes

Adjustable

Yes

Optional

Included

Optional

Included

38"

53"

27"

31-1/2"

50-5/8"

Bottom Center Rear/

Bottom Right Rear

120V/60Hz/ 15A

1.1

22,000

140 Lbs.

Wall Ovens

Washers / Dryers Warmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

MicrowavesVent HoodsRefrigeratorsFreezersUnder Counter Dishwashers /

Kitchen Cleanup

Mediterranean Blue

EIGD55H MB

Island White

EIGD55H IW

1Fastest time based on smallest load/ Fast Dry cycle selected

for various load compositions.

2Based on manufacturer specifications.

Gas Front Load Dryers

EIGD55H MB, EIGD55H IW

Electrolux Major Appliances, N.A.

USA

•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •

electroluxappliances.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxappliances.ca

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

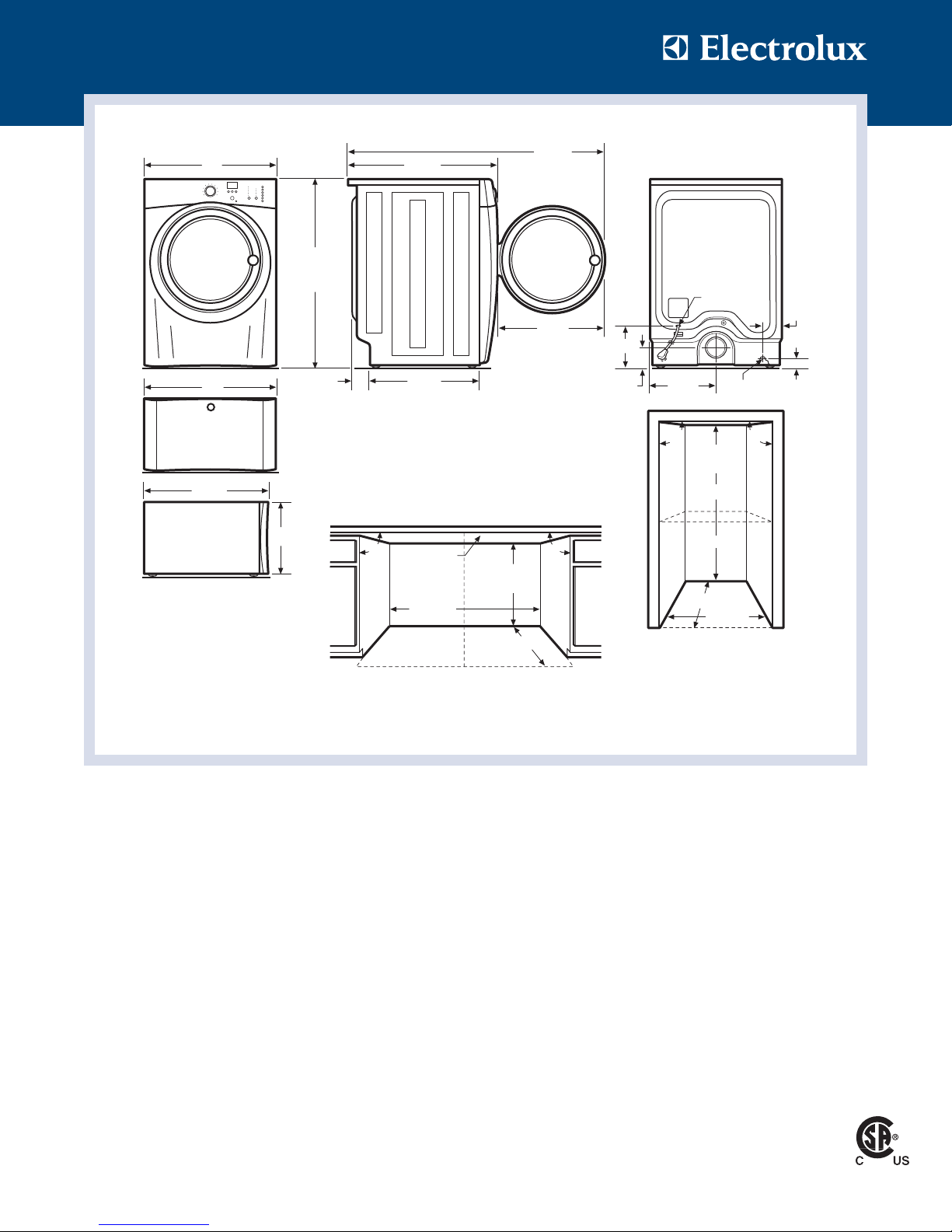

15"Drawer

Pedestal Installation

Elevates dryer height to 53".

For detailed pedestal installation,

refer to instructions included

with pedestal or on web.

Note: Pedestal Installation

requires modified utility hookup

locations. For details, refer to

Product Installation Guide

on web.

267/16"

Left 15"

27"

Front

131/2"Gas supply pipe

33/4"

17/16"

120V

Power cord

Rear

81/2"

37/16"

191/8"

231/2"

505/8"*

311/2"*

Left

Reversible

Door Swing

27"

Front

38"

(53"with

pedestal)

* To achieve minimal depth dimensions or clearances, dryer

MUST be vented straight back or with quick-turn 90°elbow.

Built-In Installations

For built-in installations, NO minimum clearance required

around sides or backs of units. For closet installation, allow

1" clearance between fronts of units and door. Location of

plumbing, exhaust and utility hookups MUST be considered in

built-in installations. For additional installation details, refer

to Product Installation Guides on web.

Side-by-Side Units in Under-Counter Installation

Requires custom-built countertop and/or cabinetry.

54"min.

90°

38"

min.

90°

Countertop

DryerWasher 311/2"* Stacked Units in Recessed

or Closet Installation

For detailed stacked installation, refer

to instructions included with Stacking

Kit or on web. Note:Stacked installation

requires modified utility hookup locations

for dryer. For details, refer to Product

Installation Guide on web.

27" min.

90°

753/4"

min.

311/2"min.*

Dryer

Washer

90°

Gas Dryer Specifications

•

Product Weight – 130 Lbs.

•

An electrical supply with grounded three-prong receptacle is required.The

power supply circuit must be installed in accordance with current edition

of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances.

(Do not use same circuit as washer.)

•

Voltage Rating –120V/60Hz/15 Amps

•

Amps @120 Volts = 9 Amps

•

Connected Load (kW Rating) @120 Volts = 1.1kW

•

Equipped with 120V 3-wire power supply cord, approx. 60" long.

•

Always consult local and/or national electric & gas codes.

•

Can be installed alone, with or without optional 15" drawer pedestal, or

stacked above matching Electrolux Washer, which requires stacking kit

included with dryer. (For installation details, refer to instructions included

with optional pedestal or stacking kit or on web.)

•

Can be built in with matching Electrolux Washer in under-counter,

recessed or closet installation. Installations requiring countertop and/or

cabinetry will require custom building. (Refer to Built-In Installations on

this page for cutout dimensions. For additional installation details, refer to

Product Installation Guide on web.)

•

Closet installation requires vented door with 2 unobstructed louvered

openings, minimum 60 sq.in. each, located 3" from top and bottom of

door. Full-length120 sq.in. opening also acceptable. Allow 1" clearance

between door and fronts of units.

•

Do NOT install in area exposed to dripping water or outdoor weather

conditions, or where gasoline or other flammables, including automobiles,

are kept or stored.

•

Floor MUST be solid with 1" maximum slope. To ensure vibration or

movement does not occur, reinforcement of floor may be necessary.

Do NOT install on carpeted surface.

•

Dryer MUST exhaust to outside of building, NOT into any concealed

space.

•

Exhaust installation requires minimum 4"-diameter rigid or flexible metal

duct with approved vent hood having swing-out damper(s). Do NOT use

flexible plastic or metal foil duct and use shortest run possible.

•

Gas supply line should be 1/2" pipe and MUST have individual shutoff valve.

•

Leveling legs supplied to level dryer properly and reduce excessive

noise and vibration.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

Drawer Pedestals – Mediterranean Blue (EPWD15MB),

Island White (EPWD15IW).

•

Mobile Home Installation Kit – (137067200).

•

Lp Conversion Kit – (134709300).
