Contents

Important safety information ......................3

Disposal ..............................................................3

Tips for environmental protection ............4

Technical specifications................................4

Description of the appliance ......................4

Installation ..........................................................5

• Unpacking ............................................................5

• Positioning ............................................................5

• Electrical connection ............................................5

• Stacking kit ..........................................................5

• Door reversal ........................................................5

Use ........................................................................6

• The control panel ..............................................6-7

• Programme chart ..................................................8

• Operating sequence..............................................9

• Useful hints ........................................................10

Maintenance and Cleaning ........................11

• External cleaning ................................................11

• Cleaning the door ..............................................11

• Cleaning the filters ..............................................11

• Cleaning the condenser unit ..............................11

• Emptying the water reservoir..............................12

• Cleaning the air intake grille................................12

• Cleaning the drum ..............................................12

Something not working? ............................13

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in

the first pages.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle emphasize information that is particularly important for your safety or correct

functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

125992320 gb.qxd 16/10/2003 10:41 Pagina 2

ENGLISH

Important safety information

Installation

• Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Use

• This appliance is designed for domestic use only.

If the machine is used for any other purposes or is

not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be

placed in the dryer.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

• Do not dry canvas shoes or sports shoes, as they

could get stuck between the door and the drum,

thus blocking this latter.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filters after using the tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filters are damaged or without filters.

• Do not allow fluff to accumulate around the dryer.

General safety

• It is dangerous to alter the specifications or

attempt to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Service Centre.

Always insist on genuine spare parts.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children -

danger of suffocation! Keep them out of children’s

reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or

using the appliance.

• Packaging materials

The materials marked with the symbol are

recyclable.

This means that they can be recycled by disposing

of them properly in appropriate collection

containers.

• Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

Disposal

125992320 gb.qxd 16/10/2003 10:41 Pagina 3

Description of the appliance

01 Control panel

02 Water reservoir

03 Fluff filters

04 Rating Plate

05 Condenser Unit

06 Adjustable feet

90

60

30

EDC 5310

30- 60- 90

To save energy and to help protect the environment,

we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

Select the drying programme according to the

type of laundry and the required degree of

dryness.

• To utilize the maximum load, laundry which is to

be dried ready to put away (store dry) can be dried

together with items to be ironed. To do this, select

the programme for iron-dry, remove the iron-dry

items at the end of the programme and then

finish-dry the rest of the load.

• Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

Tips for environmental protection

Technical specifications

DIMENSIONS: Height 85 cm

Width 60 cm

Depth 58 cm

ELECTRICAL CONNECTION: 220/230 V/50 Hz

MAX. POWER ABSORBED: 2400 W

MIN. FUSE RATING: 16 A

MAX. DRYING CAPACITY: Cotton, linen 5 kg

Synthetics 2.5 kg

CONSUMPTION: Cotton, linen 3.64 kWh (5.5 kg store dry)

Cotton, linen 3.64 kWh (5.5 kg iron dry)

Synthetics 1.40kWh (2.5 kg store dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

125992320 gb.qxd 16/10/2003 10:41 Pagina 4

ENGLISH

Installation

Warning!

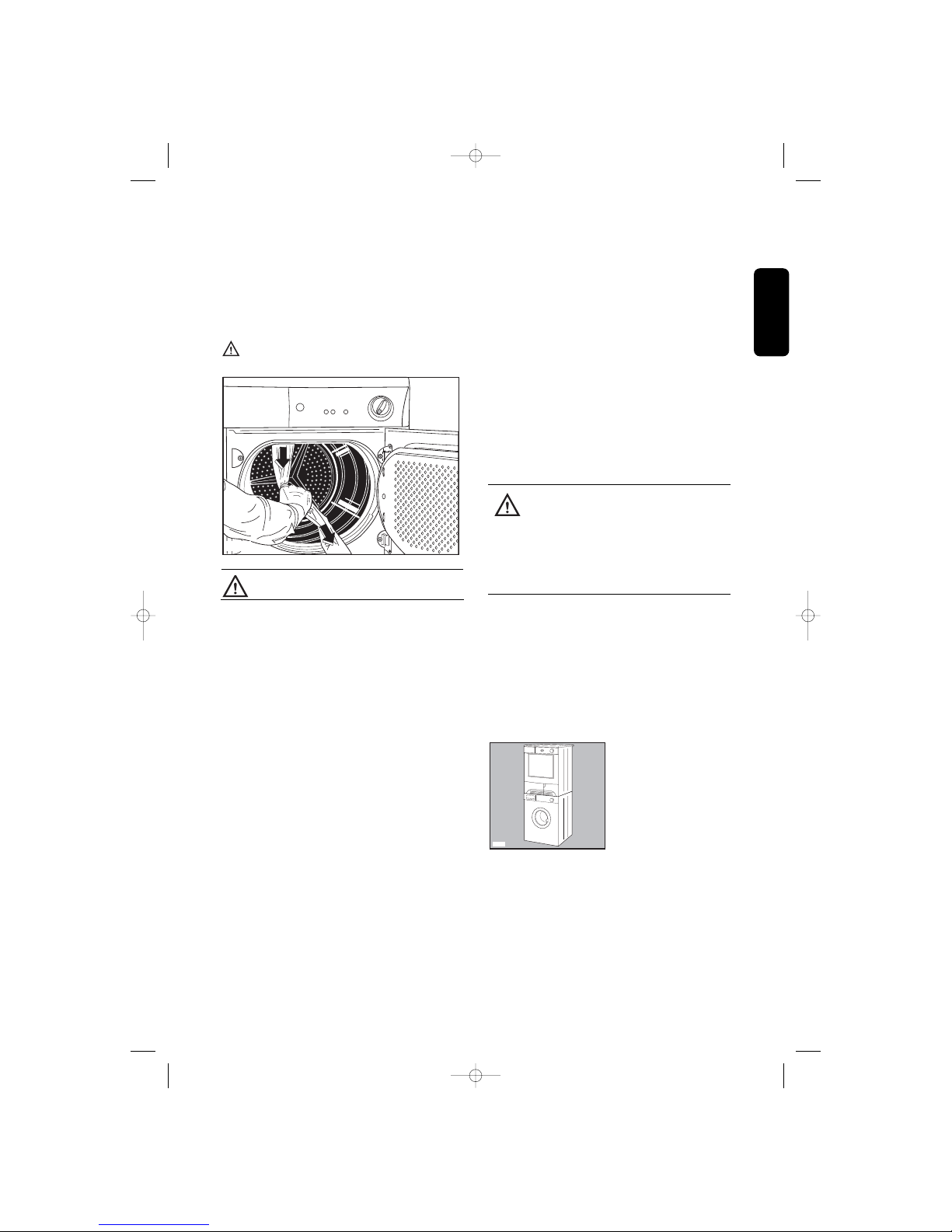

Unpacking

Slide out the polythene bag with the

polystyrene stuffing before using the

appliance.

Should the appliance be moved, it must be

transported vertically.

Positioning

It is recommended that, for your convenience, the

machine is positioned close to your washing

machine.

The tumble dryer must be installed in a clean place,

where dirt does not build up.

Air must be able to circulate freely all round the

appliance. Do not obstruct the front ventilation grille

or the air intake grille at the back of the machine.

To keep vibration and noise to a minimum when the

dryer is in use, it should be placed on a firm, level

surface.

Once in its permanent operating position, check

that the dryer is absolutely level with the aid of a

spirit level. If it is not, raise or lower the feet until

it is.

The feet must never be removed.

Do not restrict the floor clearance through deep-

pile carpets, strips of wood or similar. This might

cause heat build-up which would interfere with

the operation of the appliance.

Important

The hot air emitted by the tumble dryer can reach

temperatures of up to 60°C. The appliance must

therefore not be installed on floors which are not

resistant to high temperatures.

P1106

When operating the tumble dryer, the room

temperature must not be lower than +5°C and

higher than +35°C, as it may affect the performance

of the appliance.

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.4 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury

through failure to comply with the

above safety precaution.

Should the appliance power supply

cable need to be replaced, this must

be carried out by our Service

Centre.

Important!

The power supply cable must be accessible after

installing the machine.

Stacking kit

A special stacking kit is available through your

dealer, to enable the mounting of the dryer on top of

a front loading washing machine with cover’s depth

between 48 and 60 cm.

Read carefully the instructions supplied with the kit.

Door reversal

To make it easier to load or unload the laundry the

door can be reversed.

This operation must be carried out by qualified

personnel.

Please contact the nearest Service Centre.

P1148

125992320 gb.qxd 16/10/2003 10:41 Pagina 5

Use

The control panel

1 234567 8

90

60

30

EDC 5310

30- 60- 90

1 Programme guide

This will help you to select the correct programme

for drying.

2 Quick drying button

By depressing this button the drying time is reduced

in the following COTTON programmes:

• extra dry

• ready to wear

• store dry

The corresponding light illuminates. This option

cannot be selected together with “low temperature”

function .

Buzzer OFF button

A buzzer sounds

• when selecting the programme

• when depressing the buttons

• when an incorrect option selection is made

• when the programme selector dial is turned to

another position during the programme or when

you depress an option button during the cycle

• at the end of the programme

• when the water reservoir is full

• if the machine is not working correctly

• when the door of the appliance or the small door at

the bottom are open

By depressing button the acoustic signal is

switched off in the following cases:

• when selecting the programme

• when depressing the buttons

• when the programme selector dial is turned to

another position during the programme or when

you depress an option button during the cycle

• at the end of the programme.

The corresponding light comes on.

4 Low temperature button

Pressing this button allows drying to be performed

at a lower temperature, for delicate items.

The corresponding pilot light comes on.

This option can also be used for time controlled

drying.

This function cannot be used with QUICK DRYING.

5 DELAYED START button

This button allows you to delay the starting of the

programme by 3, 6 or 9 hours.

Press the button until the light relevant to the

desired delay lights up.

This option must be selected after having selected

the programme and before pressing START/PAUSE

to start the programme.

The machine begins the countdown, which is shown

by the pilot lights. For example, if you have chosen a

9-hour delay (pilot light 9h lit), after 3 hours, 9h goes

out and 6h lights up; after 3 more hours, 6h goes out

and 3h lights up. When the 9 hours are over (pilot

light 3h off), the drying cycle begins.

During the delayed start period, it is not possible to

change the programme or the selected delay. If you

wish to do so, you must first cancel everything by

rotating the programme selector dial to position “0”.

Select the new programme, the options and the

delayed start, then press START/PAUSE.

If you wish to change only the options, this can be

done on condition that the new option(s) is(are)

compatible with the programme. Set the machine to

PAUSE by depressing the relevant button, select the

new option(s) and depress START/PAUSE button

again.

If you wish to add some laundry while the machine

is performing the countdown, after having done so

and having closed the door, press START/PAUSE

again, in order to allow the machine to complete the

remaining countdown time.

125992320 gb.qxd 16/10/2003 10:42 Pagina 6

ENGLISH

6 Start/Pause button

Press this button to start the dryer after having

selected the programme and the options.

The relevant light will stop flashing. If you have

chosen a delayed start, the machine will begin the

countdown.

If the door of the appliance or the small door at

the bottom is opened while the programme is

running, this button must be pressed again after

closing the door in order to restart the programme

from the point at which it was interrupted.

This button must be depressed also after a power

failure and after having re-inserted the water

reservoir, if it has been emptied in the middle of a

programme after lighting up of light .

In both cases the light of the Start/Pause button

flashes to remind you that the start button needs to

be pressed again.

7 Indicator lights

These lights indicate the following functions:

“Drying” light

This light indicates that the appliance is in the drying

phase.

“Cooling” light

This light indicates that the appliance is in the

cooling phase. At the end of drying, there is a

10 minute cooling phase to cool the laundry.

“End of programme” light

This light is on at the end of the cooling phase,

during the anti-creasing phase and at the end of the

programme.

“Filter cleaning” light

This light illuminates at the end of the programme to

remind you that the filters must be cleaned.

“Water reservoir full” light

This light comes on at the end of the programme to

remind you that the water reservoir must be emptied

out. If this light illuminates during a programme this

means that the water reservoir is full. The buzzer

sounds, the programme stops, the light of the

Start/Pause button flashes.

“Condenser cleaning” light

It comes on every 80 cycles to remind you that the

condenser must be cleaned.

8 Programme/Time selector dial

Allows you to select electronically controlled or time

controlled drying.

Turn the dial to the required programme or time.

Electronically controlled drying

(automatic)

The appliance runs these programmes with the help

of probes which detect the degree of dampness of

the laundry.

Simply select the programme according to the type

of laundry and degree of drying required.

Time controlled drying

Can be used to finish off drying if necessary.

Select the 90 or 60 minute programme for cottons

or the 30 minute programme for synthetics.

To cancel a programme which is running, turn the

programme selector dial to “0”.

At the end of drying, turn the selector dial to “0” to

switch the machine off before removing the laundry.

125992320 gb.qxd 16/10/2003 10:42 Pagina 7

Programme chart

Automatic drying (electronic programmes)

(*) According to CEI 1121 Standards.

Type of laundry Degree of drying

required Max-load (1) Programme

Cotton & linen

extra dry

ready to wear

store dry

slightly damp

iron dry

machine iron dry

5 kg

C(*)

E(*)

Time controlled drying

(1) Never overfill the drum (do not load large quilts, for example).

Drying times vary according to:

• The type of laundry

• The size of the load

• The degree of spinning prior to drying.

• The requested drying degree.

Fresh & Cool

This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent

odour of moth-balls). Programme duration 10 mins.

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the

following guidelines:

•cotton, linen: drum full but not too tightly packed;

•synthetics: drum no more than half full;

•delicate fabrics: drum no more than one third full.

Type of laundry Drying time Max-load (1) Programme

selector dial position

Cotton

Synthetics

90 min

60 min

30 min

5 kg

2.5 kg

90’

60’

30’

Synthetics

extra dry

store dry

iron dry

2.5 kg

H(*)

Jumpers Baby cycle 1 kg

(10 jumpers) K

Jackets, trousers,

dresses, skirts. Dry fresh 1 - 4 garments L

• Baby cycle “K” is a special programme for jumpers to be dried “ready to wear”.

• Dry fresh “L” is designed to clean and freshen garments labelled “dry clean only” at home, in your tumble

dryer, using the special product available on the market.

125992320 gb.qxd 16/10/2003 10:42 Pagina 8

ENGLISH

Operating sequence

Before using your tumble dryer for the first time, we

recommend to place a few damp cloths inside the

appliance and dry for 30 minutes.

There may be dust inside a brand new tumble dryer.

Drying

1. Connect the appliance.

2. Open the door.

3. Load the items one at a time, shaking them out

loosely.

4. Close the door. Please check the laundry does

not get caught between the door and filter.

5. Select the drying programme or time. The lights

, and come on.

6. If required, press the low temperature button

and/or the buzzer OFF button or the

QUICK drying button .

7. Select the DELAYED START if required.

8. Press the Start button : the corresponding

light stops flashing and drying starts. Only the

light remains lit. If you have selected the

delayed start, the machine begins its countdown.

If the programme selector dial is turned to

another position, when the machine is running,

the buzzer will sound and the programme phase

indicator lights will flash.

The drum turns alternately in both directions

during drying.

All drying programmes end with a 10 minute

cooling phase (light is on).

You may remove the laundry after this phase.

The lights , and illuminate.

9. If the laundry is not removed at the end of the

cycle, the dryer performs an anti-creasing

phase (duration: 30 minutes maximum).

If you do not remove the laundry, the dryer will stop

automatically at the end of the anti-creasing phase.

Lights , and remain lit and the buzzer

sounds for 2 minutes.

P1108

P1149

10. Turn the programme selector dial to “0”; all the

lights go out. The appliance is switched off.

Remove the laundry.

If you open and then close the door before

turning the selector dial to “0” all the lights

corresponding to the phases making up the

performed programme come on.

After each use

• Clean the filters (see page 11).

• Empty the water reservoir (see page 12).

Important!

If the drying programme has to be stopped before it

reaches the end, we recommend that you turn the

programme selector dial to position and wait

until the end of this cooling phase before removing

the laundry. This will avoid a build-up of heat inside

the appliance.To do this first turn the dial to “0” and

then to and depress Start button .

Modifying the programme

To change a programme which is running, first

cancel it by turning the programme selector dial to

“0”. Select the new programme and press the Start

button .

125992320 gb.qxd 16/10/2003 10:42 Pagina 9

Useful hints

• Try to load to the maximum capacity of the

machine as small loads are uneconomical.

For information, here is a list of the average

weights of some common laundry items.

Sheet 700 - 1000 g

Tablecloth 400 - 500 g

Kitchen towel 70 - 120 g

Table napkin 50 - 100 g

Towelling hand towel 150 - 250 g

Bathrobe 1000 - 1500 g

Man’s shirt 200 - 300 g

Pillowcase 100 - 200 g

Man’s pyjamas 400 - 500 g

Ladies’ nightdress 200 - 250 g

• Never tumble dry the following:

Particularly delicate items such as net curtains,

woollen, silk, fabrics with metal trim, nylon tights,

bulky materials such as anoraks, blankets,

eiderdowns, sleeping bags, feather quilts and any

items containing rubber foam or materials similar

to rubber foam.

• Always follow the instructions on garment labels:

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

• Close pillowcases and covers with fasteners to

prevent small laundry items getting tangled inside

them. Close press studs, zips and hooks and tie

belts and apron strings.

• Sort laundry according to type and degree of

drying required.

• Do not over-dry laundry, this avoids creasing and

saves energy.

• Avoid drying dark clothes with light coloured fluffy

items such as towels as they could attract the

fluff.

• The laundry must be thoroughly spun before

tumble drying.

•Easy-care items, too, e.g. shirts, should be

briefly pre-spun before drying (depending on

crease resistance approx. 30 seconds or using the

special brief spin programme of your washing

machine).

• Knitted textiles (knitted underwear) may shrink a

little during drying. Please do not overdry items of

this type. It is advisable to allow for shrinkage

when choosing the size of new purchases.

• You can also put starched items into your dryer.

However, to achieve the desired starched effect,

choose the programme “iron dry”. To remove any

starch residues, wipe out the internal drum after

drying with a moist cloth and then rub it dry.

• To avoid a static charge when drying is

completed, use either a fabric softener when you

are washing the laundry or a fabric conditioner

specifically for tumble dryers.

• Remove the laundry when the dryer has finished

drying.

• If individual items are still damp after drying, set a

brief post-drying time, but at least 30 minutes.

This will be necessary particularly for multilayered

items (e.g. collars, pockets, etc.).

125992320 gb.qxd 16/10/2003 10:42 Pagina 10

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux DC6-8 Manual de usuario

Electrolux

Electrolux EDE 57160W Manual de usuario

Electrolux

Electrolux EIED55H IW Hoja de instrucciones

Electrolux

Electrolux EDP2074PEW Manual de usuario

Electrolux

Electrolux EIED55IKG - 8.0 cu. Ft. Electric Dryer Manual de usuario

Electrolux

Electrolux EID200QSW00 Manual de funcionamiento

Electrolux

Electrolux EIMED55I MB Manual de usuario

Electrolux

Electrolux EDC47130W Manual de usuario

Electrolux

Electrolux EW7H5835B Manual de usuario

Electrolux

Electrolux EIMED55I MB Manual de usuario

Electrolux

Electrolux LAVATHERM 58860 Manual de usuario

Electrolux

Electrolux T5290 Manual de usuario

Electrolux

Electrolux EDE 67550W Manual de usuario

Electrolux

Electrolux EDH903R9WB Manual de usuario

Electrolux

Electrolux EDC78550W Manual de usuario

Electrolux

Electrolux Frigidaire CAQE7021LW Manual del propietario

Electrolux

Electrolux 96699IH Manual de usuario

Electrolux

Electrolux EDH3386PDW Manual de usuario

Electrolux

Electrolux EEFDG317TIW Manual de usuario

Electrolux

Electrolux EDC2086PDW Manual de usuario

Electrolux

Electrolux EDC78550W Manual de usuario

Electrolux

Electrolux Tumble dryer Manual de usuario

Electrolux

Electrolux EDH804H3WB Manual de usuario

Electrolux

Electrolux LAVATHERM 56840L Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
