EN Tumble Dryer User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................5

3. PRODUCT DESCRIPTION................................................................................ 7

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMME TABLE....................................................................................... 8

6. OPTIONS..........................................................................................................10

7. SETTINGS........................................................................................................11

8. BEFORE FIRST USE....................................................................................... 12

9. DAILY USE....................................................................................................... 12

10. HINTS AND TIPS........................................................................................... 13

11. CARE AND CLEANING..................................................................................13

12. TROUBLESHOOTING....................................................................................16

13. TECHNICAL DATA.........................................................................................17

14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION

1369/2017.............................................................................................................19

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damage that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

ENGLISH 3

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

appliance specified in the instructions supplied with

the accessory. Read it carefully before installation

(refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below a kitchen counter with correct space (refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully open.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•CAUTION: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

www.electrolux.com4

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be lower

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is

levelled correctly with the aid of a

spirit level. If it is not, adjust the feet

accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

ENGLISH 5

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

2.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• If laundry has been washed with a

stain remover, carry out an additional

rinse cycle before starting a drying

cycle.

• Dry only fabrics that are suitable to

dry in the appliance. Follow the

cleaning instruction on the item label.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door

of the appliance.

• Do not dry dripping wet clothes in the

appliance.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Use only neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal

objects.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

www.electrolux.com6

3. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Primary Filter

5Button for condenser door

6Airflow slots

7Adjustable feet

8Condenser door

9Condenser cover

10 Locks for condenser lid

11 Rating plate

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

4. CONTROL PANEL

1Programme knob and OFF switch

2Indicators

3Display

4 Minuterie touchpad

5 Départ Différé touchpad

6 Délicats touchpad

7 Anti-froissage touchpad

8 Départ/Pause touchpad

ENGLISH 7

Press the touch buttons with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate the

control panel. Make sure

that the control panel is

always clean and dry.

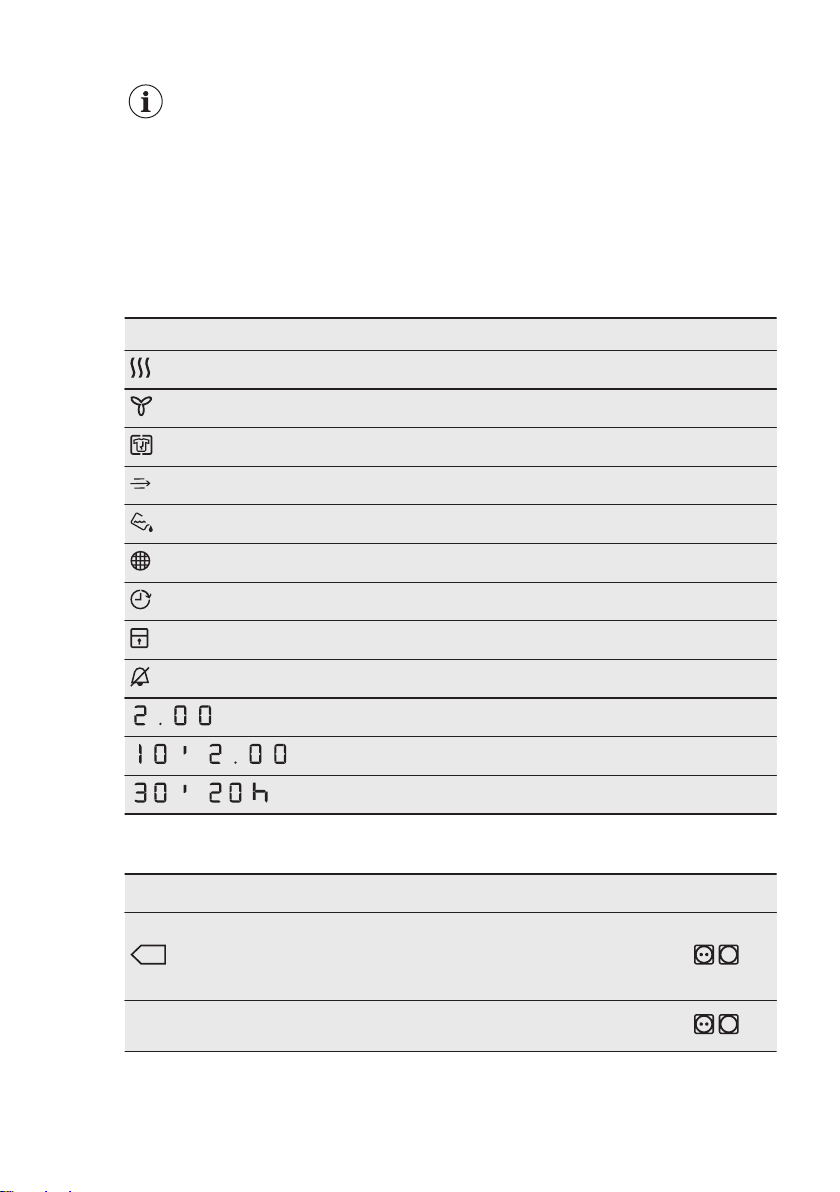

4.1 Indicators

Indicators Description

Drying phase

Cooling phase

Crease guard phase

Condenser

Water container

Filter

Delay start

Child lock

Acoustic signals

Programme duration

- Time Drying duration

- Delay start duration

5. PROGRAMME TABLE

Programme Load 1) Properties / Fabric type2)

3)Coton Eco 7 kg

Cycle to be used to dry cotton

with "cotton cupboard" dryness

level, with maximum energy sav‐

ing.

Coton

Très sec 7 kg Drying level: extra dry. /

www.electrolux.com8

Programme Load 1) Properties / Fabric type2)

Coton

Prêt à Ranger 7 kg

Cycle defined to dry all types of

cotton ready to store (cupboard

dry). /

Coton

Prêt à repasser 7 kg Drying level: suitable for ironing. /

Synthétiques

Très sec 3,5 kg Drying level: extra dry. /

Synthétiques

Prêt à Ranger 3,5 kg Drying level: cupboard dry. /

Repassage Facile 1 kg (or 5

shirts)

Easy care fabrics for which a

minimum of ironing is necessary.

The drying results can be differ‐

ent from one type of fabric to an‐

other. Shake the items before

putting them in the appliance.

When the programme has

ended, immediately remove the

items and put them on a hanger.

Minuterie 5 kg

With this programme you can

use the Minuterie option and set

the programme duration.

Drying time should be adequate

to the load, e.g. 2h for 5 kg of

cotton.

Rafraîchir 1kg Refreshing textiles that were in storage.

Mixtes 3kg

Cotton and synthetic fabrics.

Low temperature programme.

Delicate programme with warm

air.

Sport 2 kg Sportswear, thin and light fab‐

rics, microfiber, polyester. /

Draps 3kg

Bed linen such as single and

double sheets, pillowcases, du‐

vet cover. /

Denim 4 kg

Leisure clothing such as jeans,

sweat-shirts of different material

thicknesses (e.g. at the neck,

cuffs and seams).

ENGLISH 9

Programme Load 1) Properties / Fabric type2)

Délicats 4 kg Delicate fabrics such as viscose,

rayon, acrylic, and their blends. /

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter

HINTS AND TIPS: Preparing the laundry.

3) The Coton Prêt à Ranger ECO programme is the “Standard cotton programme” ac‐

cording to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cot‐

ton laundry and it is the most efficient programme in terms of energy consumption for drying

wet cotton laundry.

6. OPTIONS

6.1 Délicats

With this option you can set a delicate

drying programme that has a low

temperature. Use this option with a

fabrics that have the symbol on the

fabric label (e.g. acrylic, viscose).

6.2 Anti-froissage

Extends the anti-crease phase by 60

minutes at the end of the drying cycle.

This function reduces creases. The

laundry can be removed during the anti-

crease phase.

6.3 Minuterie

This option is applicable only to the

Minuterie programme. You can set the

programme duration, from a minimum of

10 minutes to a maximum of 2 hours.

The required duration is related to the

quantity of laundry in the appliance.

We recommend that you set

a short duration for small

quantities of laundry or for

only one item.

6.4 Options table

Programmes1) Délicats Anti-froissage Minuterie

Coton Eco ■

Coton

Très sec ■ ■

Coton

Prêt à Ranger ■ ■

Coton

Prêt à repasser ■ ■

Synthétiques

Très sec ■ ■

Synthétiques

Prêt à Ranger ■ ■

Repassage Facile ■ ■

Minuterie ■ ■ ■

www.electrolux.com10

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux EIMED55I MB Manual de usuario

Electrolux

Electrolux TW SL EP Manual de usuario

Electrolux

Electrolux EFLS210TIW Manual de usuario

Electrolux

Electrolux Touch-2-Open - EIED55H 27" Electric Dryer Manual de usuario

Electrolux

Electrolux EDH3497RDW Manual de usuario

Electrolux

Electrolux TW GL4 E Manual de usuario

Electrolux

Electrolux EFDE210TIW Manual de usuario

Electrolux

Electrolux DC6-14HP Manual de usuario

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manual de usuario

Electrolux

Electrolux EDE56150W Manual de usuario

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW Manual de usuario

Electrolux

Electrolux EDC 5340 Manual de usuario

Electrolux

Electrolux T5190LE Manual de usuario

Electrolux

Electrolux EDH3488GDE Manual de usuario

Electrolux

Electrolux SEQ7000FS0 Manual de usuario

Electrolux

Electrolux EDC2086PDW Manual de usuario

Electrolux

Electrolux DC6-8HP Q Series Manual de usuario

Electrolux

Electrolux TK SL5 E Manual de usuario

Electrolux

Electrolux EDV805JQSA Manual de usuario

Electrolux

Electrolux EDE 5130 Manual de usuario

Electrolux

Electrolux Wave-Touch 137018100 A Manual de usuario

Electrolux

Electrolux EIMED55IIW - 27" Electric Dryer Manual de servicio

Electrolux

Electrolux EDC 5339 Manual de usuario

Electrolux

Electrolux EW8H259ST Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
