ESL 5201LO
EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 5
4. CONTROL PANEL............................................................................................. 6
5. PROGRAMMES................................................................................................. 6
6. SETTINGS..........................................................................................................7
7. BEFORE FIRST USE......................................................................................... 9
8. DAILY USE....................................................................................................... 10
9. HINTS AND TIPS............................................................................................. 12
10. CARE AND CLEANING..................................................................................13
11. TROUBLESHOOTING....................................................................................15
12. TECHNICAL INFORMATION......................................................................... 18
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance
and understand the potential hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(Mpa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
•Do not keep the appliance door open without
supervision to prevent to fall on it.
ENGLISH 3
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
www.electrolux.com4
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains
plug from the mains socket. Contact
the Authorised Service Centre to
replace the water inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

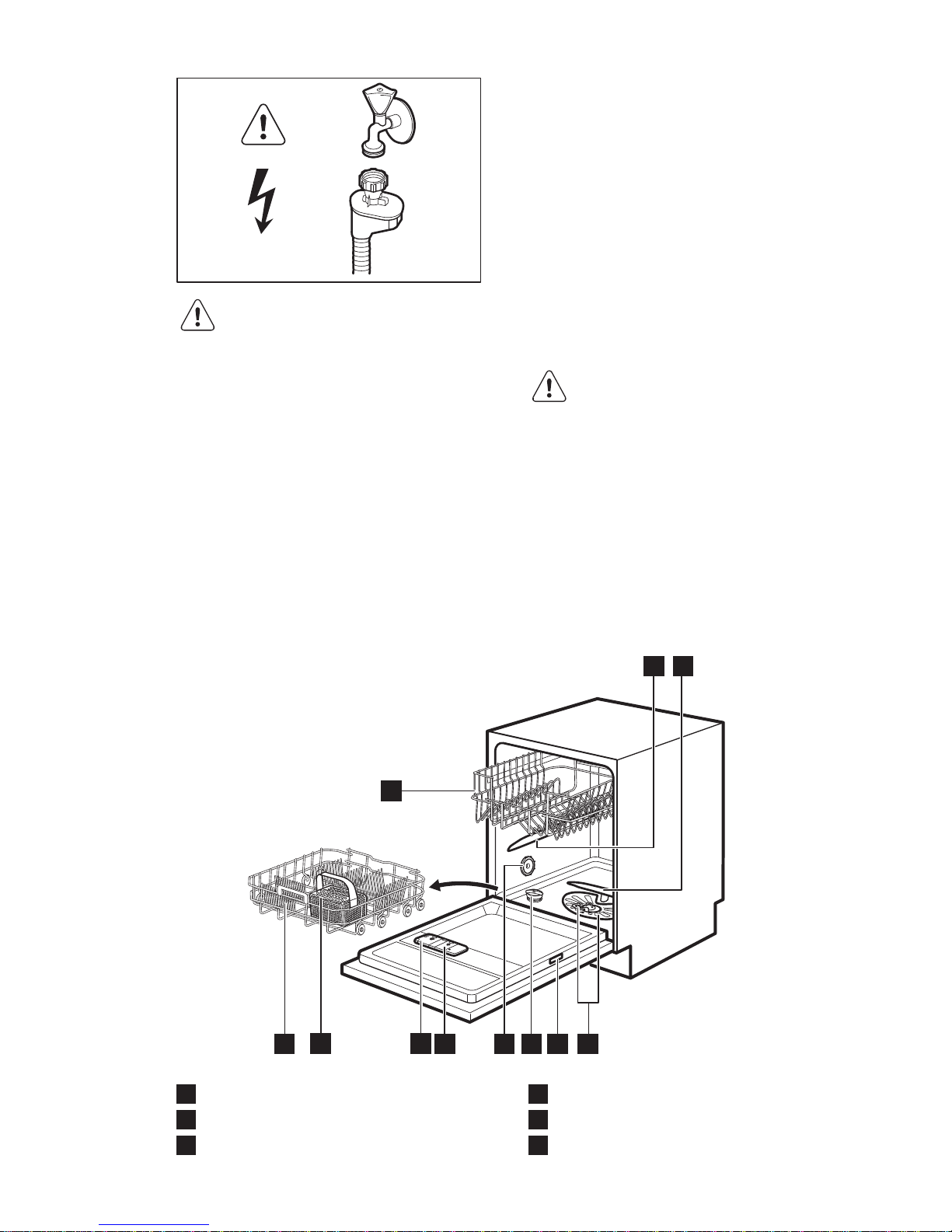

3. PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
ENGLISH 5
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
4. CONTROL PANEL
21
3
45
1On/off button
2Programme indicators
3Indicators
4Programme button
5Delay button
4.1 Indicators
Indicator Description
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme
phases
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.039 11
3) Heavy soil
Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
150 - 170 1.5 - 1.6 13 - 15
www.electrolux.com6
Programme Degree of soil
Type of load
Programme
phases
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
120 - 130 1.3 - 1.6 15 - 17
4) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.8 9
5) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3) This programme has a high temperature rising phase for better hygiene results. During
the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
5) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance. Do not use detergent with
this programme.
5.1 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of
the acoustic signal for end of
programme.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when all the programme indicators
are on.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold the programme button
until the appliance is in programme
selection mode.
ENGLISH 7
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold the programme button until the
indicator starts to flash and
the indicator comes on with
fixed light.
2. Wait until the indicator goes off
and the indicator starts to flash.
The indicator continues to
flash. The intermittent flashing of the
indicator refers to the current set
level.
• E.g. 5 flashes + pause + 5 flashes
= level5.
3. Press programme button repeatedly
to change the setting. Each time you
press programme button the level
number increases. After level 10 you
will start again from level 1.
4. Press the on/off button to confirm the
setting.
www.electrolux.com8
6.3 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold the programme button until the
indicator starts to flash and
the indicator comes on with
fixed light.
2. Press immediately the programme
button.
• The indicator comes on
with fixed light.
• The indicator starts to flash.
3. Wait until the indicator goes
off. The indicator continues to
flash.
• The end indicator indicates the
current setting: End indicator off =
Acoustic signal off.
4. Press the programme button to
change the setting.
• End indicator on = Acoustic signal
on.
5. Press the on/off button confirm the
setting.
7. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener.
It seems that the appliance is not
working. The washing phase starts only
after this procedure is completed. The
procedure will be repeated periodically.
7.1 The salt container
CAUTION!
Only use salt specifically
designed for dishwashers.
The salt is used to recharge the resin in
the water softener and to assure good
washing results in the daily use.
How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt
container (Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening
of the salt container.
ENGLISH 9
5. Turn the cap of the salt container
clockwise to close the salt container.
CAUTION!
Water and salt can come out
of the salt container when
you fill it. After you fill the
salt container, immediately
start a programme to
prevent corrosion.
7.2 How to fill the rinse aid
dispenser
AB
D
C
M
A
X
1
2
3
4
+
-
AB
D
C
CAUTION!
Only use rinse aid
specifically designed for
dishwashers.
1. Press the release button (D) to open
the lid (C).
2. Pour the rinse aid in the dispenser
(A) until the liquid reaches the fill
level 'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the
release button locks into position.
You can turn the selector of
the released quantity (B)
between position 1 (lowest
quantity) and position 4 or 6
(highest quantity).
8. DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the
salt container.
• If the rinse aid indicator is on, fill
the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme
for the type of load and the degree of
soil.
8.1 Using the detergent
30
20
A BD
C
www.electrolux.com10
Otros manuales para ESL 5201LO
2
Tabla de contenidos
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux ESL 5201LO Manual de usuario
Electrolux
Electrolux GA60LIWE Manual de usuario
Electrolux
Electrolux GA45GLV Manual de usuario
Electrolux
Electrolux ESF5559LOX Manual de usuario
Electrolux
Electrolux ESF 64075 Manual de usuario
Electrolux
Electrolux FRIGIDAIRE LFID2459VF1A Manual del propietario
Electrolux
Electrolux EES42210L Manual de usuario
Electrolux
Electrolux GA60PLVC Manual de usuario
Electrolux
Electrolux Zanussi Professional NUC1WS Manual de usuario
Electrolux
Electrolux ESL 6610RO Manual de usuario
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manual de usuario
Electrolux
Electrolux FSE73700P Manual de usuario
Electrolux
Electrolux GA55GLIBR Manual de usuario
Electrolux
Electrolux ESF 66010 Manual de usuario
Electrolux
Electrolux ESF 63020 Manual de usuario
Electrolux
Electrolux ESF6535LOX Manual de usuario
Electrolux
Electrolux ESL 67930 Manual de usuario
Electrolux
Electrolux ESF8735RKX Manual de usuario
Electrolux
Electrolux GA60LV Manual de usuario
Electrolux
Electrolux ESF 6130 Manual de usuario
