EN Dishwasher User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. BEFORE FIRST USE......................................................................................... 8

6. PROGRAMME SELECTION.............................................................................. 9

7. BASIC SETTINGS ........................................................................................... 11

8. DAILY USE....................................................................................................... 14

9. HINTS AND TIPS............................................................................................. 16

10. CARE AND CLEANING..................................................................................18

11. TROUBLESHOOTING....................................................................................20

12. PRODUCT INFORMATION SHEET ..............................................................24

13. ADDITIONAL TECHNICAL INFORMATION...................................................24

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Follow the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not use the appliance before

installing it in the built-in structure due

to safety manner.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

www.electrolux.com4

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance is fitted with a 13 A

mains plug. If it is necessary to

change the mains plug fuse, use only

a 13 A ASTA (BS 1362) fuse (UK and

Ireland only).

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

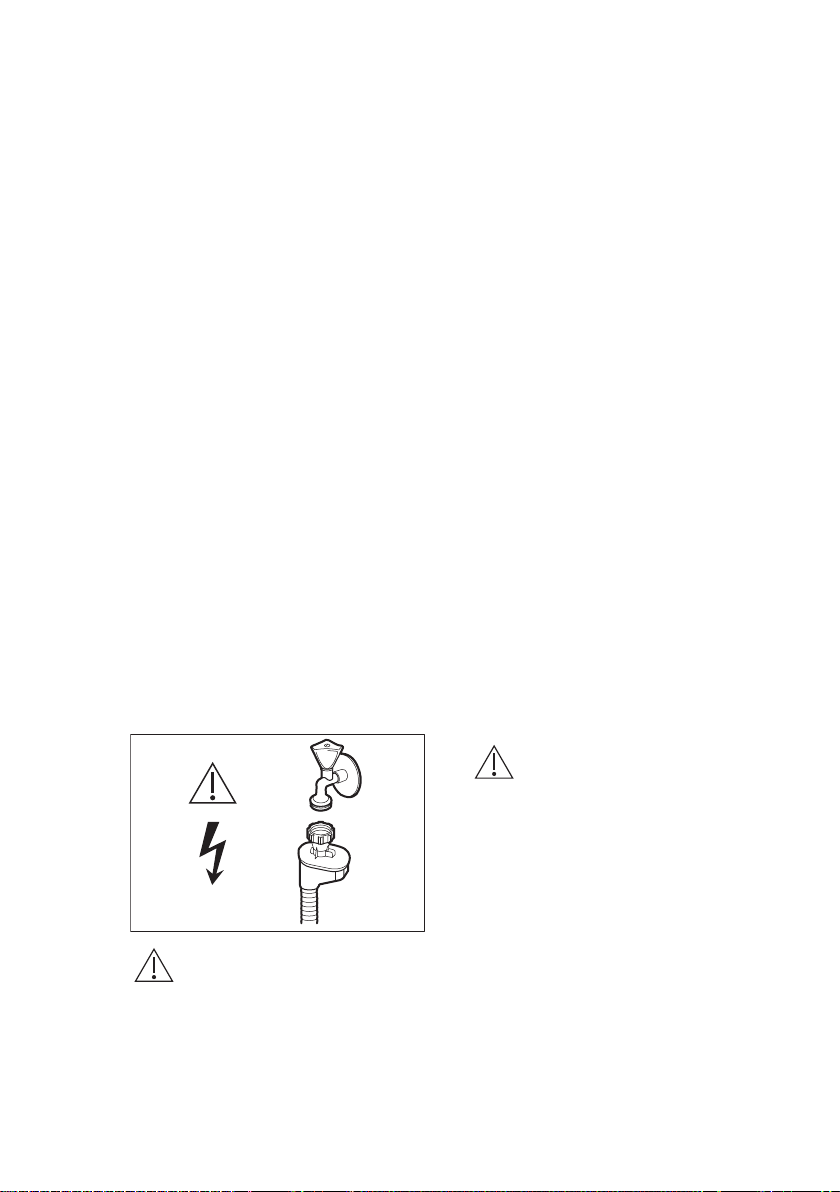

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Dishwasher detergents are

dangerous. Follow the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• Do not sit or stand on the open door

of the appliance.

• The appliance can release hot steam

if you open the door while a

programme operates.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

9 8

10 56

1Upper spray arm

2Lower spray arm

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is

displayed on the floor below the

appliance door.

• When the programme starts, a red

light comes on and stays on for the

duration of the programme.

• When the programme is completed, a

green light comes on.

• When the appliance has a

malfunction, the red light flashes.

The Beam-on-Floor is off

when the appliance is

deactivated.

When AirDry is activated

during the drying phase, the

projection on the floor may

not be completely visible. To

see if the cycle has ended,

check the control panel.

www.electrolux.com6

4. CONTROL PANEL

1 2 3 4 5 6

1On/Off button

2Delay Start button

3Display

4MY TIME selection bar

5EXTRAS buttons

6AUTO Sense button

4.1 Display

CB B

A. ECOMETER

B. Indicators

C. Time indicator

4.2 ECOMETER

ECOMETER

The ECOMETER indicates how the

programme selection impacts energy

and water consumption. The more bars

are on, the lower the consumption is.

indicates the most environmentally

friendly programme selection for a

normally soiled load.

4.3 Indicators

Indicator Description

Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐

ing. Refer to "Before first use".

Salt indicator. It is on when the salt container needs refilling. Refer to

"Before first use".

Machine Care indicator. It is on when the appliance needs internal

cleaning with the Machine Care programme. Refer to "Care and

cleaning".

Drying phase indicator. It is on when a programme with the drying

phase is selected. It flashes when the drying phase operates. Refer to

"Programme selection".

ENGLISH 7

5. BEFORE FIRST USE

1. Make sure that the current level of

the water softener agrees with the

hardness of the water supply. If

not, adjust the level of the water

softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start the programme Quick to

remove any residuals from the

manufacturing process. Do not use

detergent and do not put dishes in

the baskets.

After starting the programme, the

appliance recharges the resin in the

water softener for up to 5 minutes. The

washing phase starts only after this

procedure is complete. The procedure is

repeated periodically.

5.1 The salt container

CAUTION!

Use rough salt designed for

dishwashers only. Fine salt

increases the risk of

corrosion.

The salt is used to recharge the resin in

the water softener and to assure good

washing results in daily use.

How to fill the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (only for the first time).

3. Fill the salt container with 1 kg of salt

(until it is full).

4. Carefully shake the funnel by its

handle to get the last granules inside.

5. Remove the salt around the opening

of the salt container.

6. Turn the cap of the salt container

clockwise to close the salt container.

CAUTION!

Water and salt can come out

of the salt container when

you fill it. After you fill the

salt container, immediately

start a programme to

prevent corrosion.

5.2 How to fill the rinse aid

dispenser

CAUTION!

Only use rinse aid

specifically designed for

dishwashers.

1. Press the release button (D) to open

the lid (C).

2. Pour the rinse aid in the dispenser

(A) until the liquid reaches the fill

level 'max'.

www.electrolux.com8

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much

foam.

4. Close the lid. Make sure that the

release button locks into position.

You can turn the selector of

the released quantity (B)

between position 1 (lowest

quantity) and position 4 or 6

(highest quantity).

6. PROGRAMME SELECTION

6.1 MY TIME

Using MY TIME selection bar, you can

select a suitable wash cycle based on

programme duration, ranging from 30

minutes to four hours.

CA B D E

A. •Quick is the shortest programme

(30min) suitable for washing a

load with fresh and light soil.

• Pre-rinse (15min) is a

programme for rinsing off food

remains from the dishes. It

prevents odours forming in the

appliance. Do not use detergent

with this programme.

B. 1h is a programme suitable for

washing a load with fresh and lightly

dried-on soil.

C. 1h 30min is a programme suitable

for washing and drying normally

soiled items.

D. 2h 40min is a programme suitable

for washing and drying heavily soiled

items.

E. ECO is the longest programme (4h)

offering the most efficient use of

energy and water consumption for

crockery and cutlery with normal soil.

This is the standard programme for

test institutes.

6.2 EXTRAS

You can adjust the programme selection

to your needs by activating EXTRAS.

ExtraPower

ExtraPower improves the washing

results of the selected programme. The

option increases the wash temperature

and duration.

GlassCare

GlassCare provides special care for a

delicate load. The option prevents rapid

changes in the wash temperature of the

selected programme and reduces it to 45

°C. This protects glassware in particular

from damaging.

6.3 AUTO Sense

The AUTO Sense program automatically

adjusts the wash cycle to the type of

load.

The appliance senses the degree of soil

and the amount of dishes in the baskets.

It adjusts the temperature and quantity of

water as well as the wash duration.

ENGLISH 9

6.4 Programmes overview

Pro‐

gramme

Type of load Degree of

soil

Programme phases EXTRAS

Quick • Crockery

• Cutlery

• Fresh • Wash 50 °C

• Intermediate rinse

• Final rinse 45 °C

• AirDry

• ExtraPower

• GlassCare

Pre-rinse

• All types

of loads

• All de‐

grees of

soil

• Prewash EXTRAS are not

applicable to this

programme.

1h • Crockery

• Cutlery

• Fresh

• Lightly

dried-on

• Wash 60 °C

• Intermediate rinse

• Final rinse 50 °C

• AirDry

• ExtraPower

• GlassCare

1h 30min • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly

dried-on

• Wash 60 °C

• Intermediate rinse

• Final rinse 55 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

2h 40min • Crockery

• Cutlery

• Pots

• Pans

• Normal to

heavy

• Dried-on

• Prewash

• Wash 60 °C

• Intermediate rinse

• Final rinse 60 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

ECO • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly

dried-on

• Prewash

• Wash 50 °C

• Intermediate rinse

• Final rinse 55 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

AUTO

Sense

• Crockery

• Cutlery

• Pots

• Pans

The pro‐

gramme ad‐

justs to all de‐

grees of soil.

• Prewash

• Wash 50 - 60 °C

• Intermediate rinse

• Final rinse 60 °C

• Drying

• AirDry

EXTRAS are not

applicable to this

programme.

Machine

Care

• No load The pro‐

gramme

cleans the

appliance in‐

terior.

• Wash 70 °C

• Intermediate rinse

• Final rinse

• AirDry

EXTRAS are not

applicable to this

programme.

www.electrolux.com10

Tabla de contenidos

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux ESL 5201LO Manual de usuario

Electrolux

Electrolux ESF6101 Manual de usuario

Electrolux

Electrolux ESI 602 Manual de usuario

Electrolux

Electrolux FAVORIT 88020I Manual de usuario

Electrolux

Electrolux EES48400L Manual de usuario

Electrolux

Electrolux DIVA 60 Manual de usuario

Electrolux

Electrolux EEZ69410W Manual de usuario

Electrolux

Electrolux GA55LV Manual de usuario

Electrolux

Electrolux ESF5202LOW Manual de usuario

Electrolux

Electrolux Diva EDW 2000 Manual de usuario

Electrolux

Electrolux ESI 65010 Manual de usuario

Electrolux

Electrolux ESL 63040R Manual de usuario

Electrolux

Electrolux ESF 8620ROX Manual de usuario

Electrolux

Electrolux EWDW6505GB1C Manual de usuario

Electrolux

Electrolux GA60GLI222 Manual de usuario

Electrolux

Electrolux ESI 67010 Manual de usuario

Electrolux

Electrolux ESF 8530ROW Manual de usuario

Electrolux

Electrolux U26220 Manual de usuario

Electrolux

Electrolux ESF 6126 Manual de usuario

Electrolux

Electrolux WTM165 Manual de usuario

Electrolux

Electrolux EHT8G Manual de usuario

Electrolux

Electrolux GA60GLISWE Manual de usuario

Electrolux

Electrolux ESF 488 Manual de usuario

Electrolux

Electrolux ComfortLift ESF8735ROX Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
