ESL5322LO

EN Dishwasher User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMMES................................................................................................. 7

6. SETTINGS..........................................................................................................8

7. OPTIONS..........................................................................................................11

8. BEFORE FIRST USE....................................................................................... 12

9. DAILY USE....................................................................................................... 13

10. HINTS AND TIPS........................................................................................... 15

11. CARE AND CLEANING..................................................................................16

12. TROUBLESHOOTING....................................................................................18

13. TECHNICAL INFORMATION......................................................................... 21

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away unless continuously supervised.

•Children of less than 3 years of age should be kept

away unless continuously supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Obey the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

www.electrolux.com4

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS

1362) fuse.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Service

• To repair the appliance contact an

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

9 8

10 56

1Upper spray arm

2Lower spray arm

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is

displayed on the floor below the

appliance door.

• When the programme starts, a red

light comes on and stays on for the

duration of the programme.

• When the programme is completed, a

green light comes on.

• When the appliance has a

malfunction, the red light flashes.

The Beam-on-Floor is off

when the appliance is

deactivated.

When AirDry is activated

during the drying phase, the

projection on the floor may

not be completely visible. To

see if the cycle has ended,

check the control panel.

www.electrolux.com6

4. CONTROL PANEL

1 2 4

1On/off button

2Display

3Delay button

4Programme buttons

5Indicators

4.1 Indicators

Indicator Description

XtraDry indicator.

Rinse aid indicator. It is always off while the programme operates.

Salt indicator. It is always off while the programme operates.

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme phases Options

1) • Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• XtraDry

2) • All

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash from 45 °C to

70 °C

• Rinses

• Dry

• XtraDry

• Heavy soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• XtraDry

3) • Fresh soil

• Crockery and

cutlery

• Wash 60 °C or 65 °C

• Rinses

• XtraDry

ENGLISH 7

Programme Degree of soil

Type of load

Programme phases Options

4) • All • Prewash

1) With this programme you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐

matically adjusts the temperature and the quantity of water, the energy consumption and the

programme duration.

3) With this programme you can wash a load with fresh soil. It gives good washing results in

a short time.

4) With this programme you can quickly rinse dishes to prevent remains of food to bond on

dishes and odours to form in the appliance. Do not use detergent with this programme.

5.1 Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

11 1.039 227

7 - 12 0.7 - 1.4 45 - 156

14 - 15 1.5 - 1.7 155 - 170

10 0.8 30

5 0.1 14

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

5.2 Information for test

institutes

To receive the necessary information for

conducting performance tests (e.g.

according to EN60436), send an email

to:

[email protected]

In your request please include the

product number code (PNC) found on

the rating plate.

For any other questions regarding your

dishwasher please refer to the service

book provided with your appliance.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of the

acoustic signal for the end of a

programme.

• Activation or deactivation of the rinse

aid empty notification.

• Activation or deactivation of AirDry.

www.electrolux.com8

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

How to set the programme

selection mode

The appliance is in programme selection

mode when the programme indicator

flashes and the display shows

the programme duration.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold simultaneously

and until the appliance is in

programme selection mode.

How to enter user mode

Make sure the appliance is in

programme selection mode.

To enter user mode, press and hold

simultaneously and

until the indicators , ,

and flash and the display is

blank.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a negative effect on the washing results

and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Water hardness

German de‐

grees (°dH)

French de‐

grees (°fH)

mmol/l Clarke de‐

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Regardless of the type of detergent

used, set the proper water hardness

level to keep the salt refill indicator

active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

ENGLISH 9

How to set the water softener

level

Make sure the appliance is in user mode.

1. Press .

• The indicators ,

and are off.

• The indicator still flashes.

• The display shows the current

setting: e.g. = level 5.

2. Press repeatedly to change the

setting.

3. Press the on/off button to confirm the

setting.

6.3 The rinse aid empty

notification

The rinse aid helps to dry the dishes

without streaks and stains.

The rinse aid is automatically released

during the hot rinse phase.

When rinse aid chamber is empty, the

rinse aid indicator is turned on notifying

to refill rinse aid. If the drying results are

satisfactory while using multi-tablets only,

it is possible to deactivate the notification

for refilling rinse aid. However, for best

drying performance, always use rinse

aid.

If standard detergent or multi-tablets

without rinse aid are used, activate the

notification to keep the rinse aid refill

indicator active.

How to deactivate the rinse aid

empty notification

Make sure the appliance is in user mode.

1. Press .

• The indicators , and

are off.

• The indicator still flashes.

• The display shows the current

setting:

= the rinse aid empty

notification is activated (factory

setting).

2. Press to change the setting.

= the rinse aid empty notification is

deactivated.

3. Press on/off to confirm the setting.

6.4 Acoustic signals

Acoustic signals sound when a

malfunction of the appliance occurs. It is

not possible to deactivate these acoustic

signals.

There is also an acoustic signal that

sounds when the programme is

completed. By default this acoustic signal

is deactivated but it is possible to

activate it.

How to activate the acoustic

signal for the end of

programme

Make sure the appliance is in user mode.

1. Press .

• The indicators , and

are off.

• The indicator still

flashes.

• The display shows the current

setting:

– = Acoustic signal off.

– = Acoustic signal on.

2. Press to change the

setting.

3. Press on/off to confirm the setting.

6.5 AirDry

AirDry improves the drying results with

less energy consumption.

www.electrolux.com10

Otros manuales para ESL5322LO

Tabla de contenidos

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux ESF 67060 Manual de usuario

Electrolux

Electrolux GA60LI220 Manual de usuario

Electrolux

Electrolux ESF6200LOW Manual de usuario

Electrolux

Electrolux ESI66050 Manual de usuario

Electrolux

Electrolux GA60SLICCN Manual de usuario

Electrolux

Electrolux ESL 63010 Manual de usuario

Electrolux

Electrolux ESF 6126 Manual de usuario

Electrolux

Electrolux EI24ID35Q Manual de usuario

Electrolux

Electrolux ESL 68040 Manual de usuario

Electrolux

Electrolux ESL 9163 Manual de usuario

Electrolux

Electrolux GA55LV Manual de usuario

Electrolux

Electrolux ESL 6163 Manual de usuario

Electrolux

Electrolux EW24ID80QS Manual de usuario

Electrolux

Electrolux ESL 63010 Manual de usuario

Electrolux

Electrolux EIDW6305GB - Semi-Integrated Dishwasher Manual de usuario

Electrolux

Electrolux ESL 68060 Manual de usuario

Electrolux

Electrolux ESF 4130 Manual de usuario

Electrolux

Electrolux GA55GLVSW Manual de usuario

Electrolux

Electrolux ESL 2435 Manual de usuario

Electrolux

Electrolux EIDW6305GS - 24-in Built in Dishwasher Manual de usuario

Electrolux

Electrolux EEC87315L Manual de usuario

Electrolux

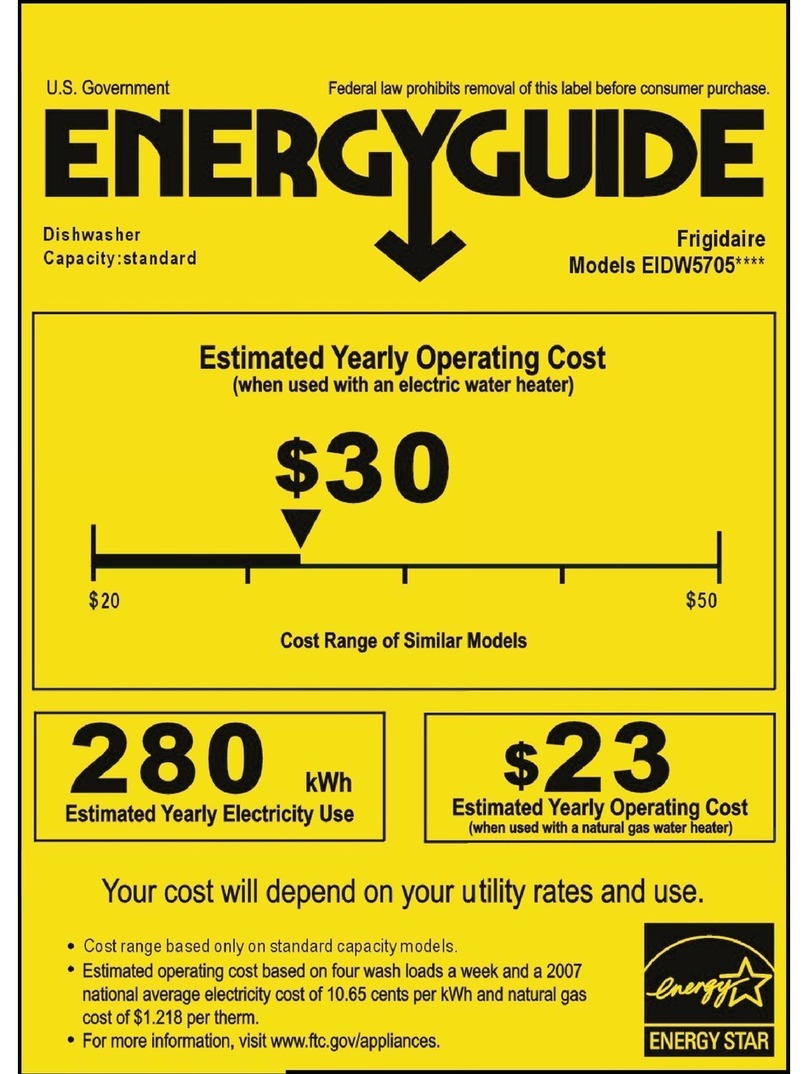

Electrolux EIDW5705PB Instrucciones de montaje

Electrolux

Electrolux Zanussi ZSF 6150 X Manual de usuario

Electrolux

Electrolux DIVA 60 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
