USER GUIDE

EK-Loop

Fan FPT 120/140 FAN

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

productatyourownrisk.Ifyouarenotproperlytrainedorexperiencedorfeel

unsure about the installation procedure, please refrain from installing the

product yourself and contact our tech support for assistance. We disclaim

our liability for any damages to the product and incidental, consequential,

or indirect damages incurred due to improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the installation

process.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

TECHNICAL SPECIFICATIONS AND DIMENSIONS 4

120 mm FAN 4

140 mm FAN 5

INSTALLING THE FAN DIRECTLY 5

INSTALLING THE FAN ON THE RADIATOR 6

EK-QUANTUM SURFACE RADIATOR 6

CONNECTING THE FANS 6

BASIC INFORMATION’S 6

SUPPORT AND SERVICE 10

SOCIAL MEDIA 10

- 4 -

BOX CONTENTS

EK-Loop Fan FPT 120 / 140 FAN

Extension cable (1 pc) FAN Self tapping screw (4 pcs)

TECHNICAL SPECIFICATIONS AND DIMENSIONS

105 mm

119.8 mm

105 mm

26 mm

27 mm

120 mm FAN

- Max Air Flow: 77 CFM = 130.82 m³/h

- Static Pressure: 2.7 mm H20 = 26.81 Pa

- Noise Level: 36 dBA (max. RPM)

- 5 -

STEP 1

EK provides the four (4) self-tapping screws with each Fan. Use

the Phillips head screwdriver to tighten the screws (in a clockwise

direction). Don’t use excessive force while tightening the screws.

EK recommends using the EK-Loop Torque Screwdriver - 0.6Nm:

https://www.ekwb.com/shop/ek-loop-torque-screwdriver-0-6nm

INSTALLING THE FAN DIRECTLY

STEP 1

SELF-TAPPING

SCREW

FPT FAN

125 mm

139.5 mm

125 mm

139.5 mm

27 mm

26 mm

140 mm FAN

- Max Air Flow: 118.01 CFM = 200.5 m³/h

- Static Pressure: 3.57 mm H20 = 35 Pa

- Noise Level: 44.56dBA (max. RPM)

- 6 -

BASIC INFORMATION’S

CONNECTING THE FANS

FAN

CONNECTOR

FEMALE CONNECTOR

MALE CONNECTOR

D-RGB

CONNECTOR

EK-QUANTUM SURFACE RADIATOR

In the case of using the EK-Quantum Surface radiators, selecting

the M4 x 30 Screws (enclosed with the radiator) is recommended to

secure the fans.

The number of enclosed screws depends on the radiator model.

Use the Phillips Head Screwdriver to tighten the screws in a clockwise

direction. Don’t use excessive force while tightening the screws.

INSTALLING THE FAN ON THE RADIATOR

M4 x 30 PHILLIPS

HEAD SCREW

EK-LOOP FAN

FPT

STEP 1

EK-QUANTUM

SURFACE RADIATOR

- 7 -

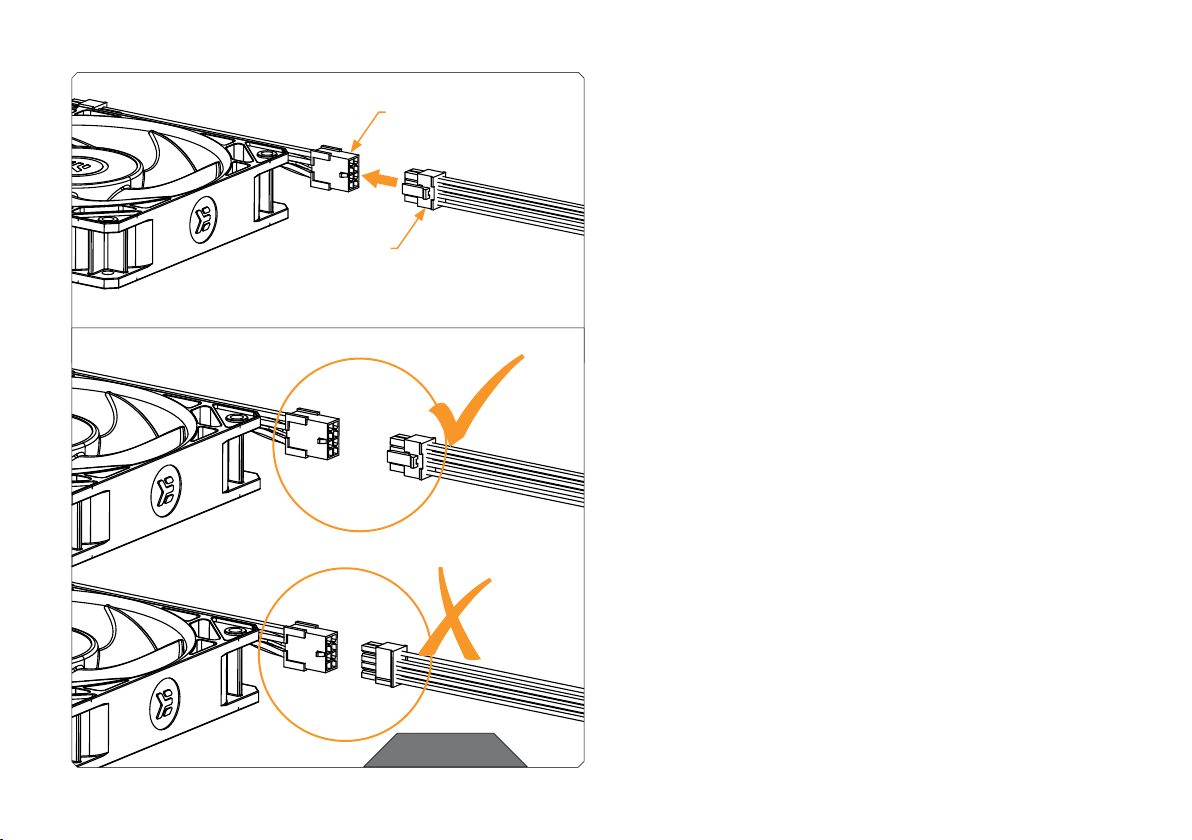

STEP 1

Connect the female connector from the extension cable to the

male connector from the fan.

Make sure to turn the Female connector correctly.

FEMALE

CONNECTOR

MALE CONNECTOR

STEP 1

- 8 -

STEP 1

*In case of using multiple fan-s, connect fan-s in series with the

“daisy-chain”.

Make sure to turn the female connector correctly.

FEMALE

CONNECTOR

MALE CONNECTOR

STEP 1

STEP 2

After connecting the extension cable with the fan, connect the

4-pin fan connector from the extension cable directly to the CPU

fan header on the motherboard.

Always use the CPU fan header. On the majority of

motherboards, these headers usually offer the best

PWM regulation.

STEP 2

FAN CONNECTOR

- 9 -

STEP 3

Plug the 3-pin D-RGB connector from the extension cable into the

D-RGB header on the motherboard.

Please ensure that the arrow indicated on the connector is

plugged into the +5V line as indicated on your motherboard.

If you put LED Diode to the 12V RGB HEADER you can

damage the LEDs.

D-RGB HEADER

RGB HEADER

STEP 3

In case you need assistance or wish to order spare parts or a new

mounting mechanism, please contact:

https://www.ekwb.com/customer-support/

EKWB d.o.o.

Pod lipami 18

1218 Komenda

Slovenia - EU

SUPPORT AND SERVICE

EKWaterBlocks

@EKWaterBlocks

ekwaterblocks

EKWBofﬁcial

SOCIAL MEDIA
