USER GUIDE

EKQuantum

Momentum ROG Strix X570-E D-RGB

MONOBLOCK

This product is intended for installation only by expert users.

Please consult with a qualiﬁed technician for installation. Improper

installation may result in damage to your equipment. EK Water Blocks

assumes no liability whatsoever, expressed or implied, for the use of

these products, nor their installation. The following instructions are

subject to change without notice. Please visit our web site at www.

ekwb.com for updates. Before installation of this product please

read important notice, disclosure and warranty conditions printed

on the back of the box.

Before you start using this product please follow these basic guidelines:

Please carefully read the manual thoroughly before beginning

with the installation process!

Please remove your motherboard from the computer to assure

safest mounting process in order to prevent any possible

damages to your CPU and/or motherboard’s circuit board (PCB).

The EK- Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber o-ring gaskets.

The use of quality, market proved corrosion inhibiting coolants

is always strongly recommended for any liquid cooling system.

- 3 -

TABLE OF CONTENT

PREPARING YOUR MOTHERBOARD 4

REMOVING STOCK COOLER 4

REMOVING OF THE ORIGINAL PLASTIC HOLDDOWN AND THE FACTORY BACKPLATE 5

APPLYING THERMAL COMPOUND 6

CUTTING THERMAL PADS 6

PLACING THERMAL PADS ON THE MOTHERBOARD 6

PLACING THE BLOCK ON TO MOTHERBOARD 7

ATTACHING BLOCK ON THE MOTHERBOARD 7

CONNECTING THE DRGB LED STRIP 8

REQUIRED TOOLS 9

SUPPORT AND SERVICE 10

SOCIAL MEDIA 10

- 4 -

PREPARING YOUR MOTHERBOARD

REMOVING STOCK COOLER

Remove all encircled screws. There are screws on the back of the

motherboard, that needs to be removed in order to remove the

factory installed MOSFET cooling solution. Additional screws need

to be removed to remove I/O cover. You can attach the I/O cover

back, after you mount the Monoblock.

I/O Cover screws

Mosfet screws

- 5 -

REMOVING OF THE ORIGINAL PLASTIC

HOLDDOWN AND THE FACTORY

BACKPLATE

Using Philips-head screwdriver remove the four(4) UNC 6-32 screws

securing the original plastic hold-down clamps around the socket as

shown on the sketch. Remove the original backplate and the hold-

down clamps.

UNC 6-32 Screws

Factory

Backplate

- 6 -

APPLYING THERMAL COMPOUND

Apply thermal compound on CPU heat spreader (IHS) with enclosed

EK-TIM Ectotherm thermal grease. The quantity of about two rice

grains is just about right. There is no need to cover the whole IHS.

Applying too much thermal grease will have negative impact on the

cooling performance!

CUTTING THERMAL PADS

Your block comes with thermal pads which needs to be trimmed

in order to ﬁt the voltage regulation area (MOSFET) on the

motherboard’s circuit board.

1. Thermal PAD F 1,0mm - (120x16mm) EAN: 3830046996732

WARNING: Dimensions on pictures below are scaled.

PLACING THERMAL PADS ON THE

MOTHERBOARD

Place thermal pads on PCB as shown on the picture.

Please remove the protective foil from both sides of the

thermal pads prior to installation!

Thermal Pad F – 1.0 mm

120

Thermal Pad F 1.0mm

- 7 -

PLACING THE BLOCK ON TO MOTHERBOARD

Place the EK-Quantum Momentum ROG Strix X570-E Monoblock

series water block to the motherboard or vice versa (as shown on the

photo). Make sure that mounting holes are aligned.

ATTACHING BLOCK ON THE MOTHERBOARD

STEP 1

Prior to fastening the screws please make sure the mounting holes

on the motherboard’s circuit board are aligned with the water block.

Mosfet part: Use four(4) M2.5X5 AX1 screws with PVC washers.

Tighten the screws evenly. Do not use excessive force when

tightening the screws.

CPU part: Use four (4) M3X10 DIN 7984 with screws. Tighten the

screws using enclosed 2mm Allen Key.

Do not forget install the Backplate Insulator and AM4

Backplate (as shown on the photo).

STEP 1

PVC washer

M3X10 DIN7984 Screw

M2.5x5 AX1 Screw

Backplate

Insulator

AM4 Backplate

- 8 -

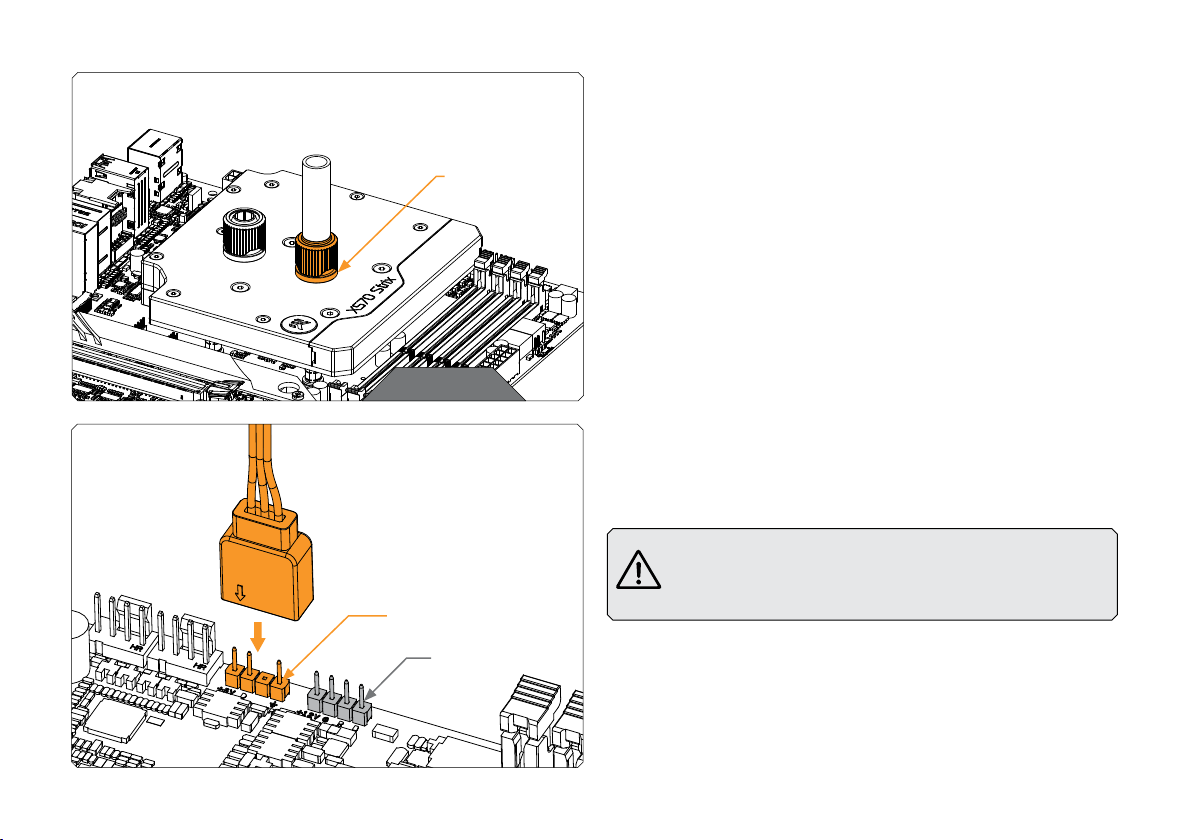

STEP 2

For the EK-Quantum Momentum ROG Strix X570-E Monoblock series

water block to operate properly the G1/4 port nearest to the right

edge of the water block MUST BE USED AS THE INLET PORT.

EK recommends the use of EK-Fittings. When using ﬁttings other

than EK series please use hose clamps or appropriate substitute

to secure the tubing to the barb. The use of biocide containing and

corrosion inhibiting coolant is always recommended for any liquid

cooling system.

CONNECTING THE DRGB LED STRIP

Plug the 3-pin connector from Monoblock D-RGB LED strip to the

motherboard.

Please ensure that the arrow indicated on the connector is

plugged into the +5V line as indicated on your motherboard.

Failure to do so will damage your motherboard or LED strip.

STEP 2

D-RGB Header

RGB Header

IMPORTANT:

Use this opening

as an Inlet Port!

- 9 -

REQUIRED TOOLS

Phillips-head screwdriver Scissors

Allen Key

For assistance please contact:

http://support.ekwb.com/

EKWB d.o.o.

Pod lipami 18

1218 Komenda

Slovenia - EU

EKWaterBlocks

@EKWaterBlocks

ekwaterblocks

EKWBofﬁcial

SUPPORT AND SERVICE

SOCIAL MEDIA
