Edision Mini-triton 2 HD Manual de usuario

User’s Guide

DIGITAL TERRESTRIAL RECEIVER MPEG-4

mini-triton 2 HD

User’s Guide

mini-triton 2 HD

Contents

GENERAL INFORMATION P1

Main Featur .................................................................................................................... P1

For your Safety............................................................................................................... P2

Unpacking....................................................................................................................... P3

General Operation.......................................................................................................... P3

RCU................................................................................................................................ P4

Front / Rear Panel .......................................................................................................... P5

INSTALLATION P6

WELCOME PAGE P7

MAIN MENU P8

1. Edit Channel.............................................................................................................. P8

2. Picture ..................................................................................................................... P10

3. Channel Search ...................................................................................................... P10

4. Time ........................................................................................................................ P11

5. Option...................................................................................................................... P12

6. System .................................................................................................................... P12

7. USB......................................................................................................................... P14

8. Hot Key ................................................................................................................... P16

TROUBLE SHOOTING P18

GENERAL INFORMATION

This Digital Terrestrial Receiver (DTR) mini triton 2 HD, will take you to the new and exciting world

of Digital Television. A world of crystal clear widescreen pictures, digital sound, more information

and new services. All this and more on «Free to Air» Digital Television. To make full use of your

new DTR please take the time to familiarize yourself with the extensive features of the unit detailed

in this User’s Guide. If you need help in setting up please call your dealer or a customer service

adviser..

Main Features

• HD H.264 / SD MPEG-4 & fully DVB-T compliant

• Automatic PAL/NTSC conversion

• 1000 channels TV and Radio programmable

• 8 different favorite groups selection

• On Screen Display with multi-language

• Fully support to 7 days Electronic Program Guide(EPG)

• Picture in Graphics(PIG) support

• 256 colors On Screen Display

• Channel search in automatic, manual search

• Various channel editing functions(favorite, move, lock, rename and sort)

• Parental control for channels

• Ease to use Menu System

• Software upgrades through USB port

• Time set by GMT offset automatic and manual, Summer Time support

• Automatic turn on/off by Timer setting(multiple options)

• Subtitle support DVB EN300743 and EBU

• Teletext support DVB ETS300472 by VBI and OSD

• Automatic save for last channel

• Support Logic Channel Number(LCN)

• Support FAT16/FAT32/FAT12,NTFS(Option)

• MP3/ JPEG/ BMP/ OGG les

• Default 2 hours, user can setting the end time(Support subtitle),

• record scramble program and descramble program

• Lock/Delete/Rename,Preview playback, Browse record les information

• Play/Pause/Stop

• Fast Forward/Fast Backward 2/4/8/16/32,

GENERAL INFORMATION

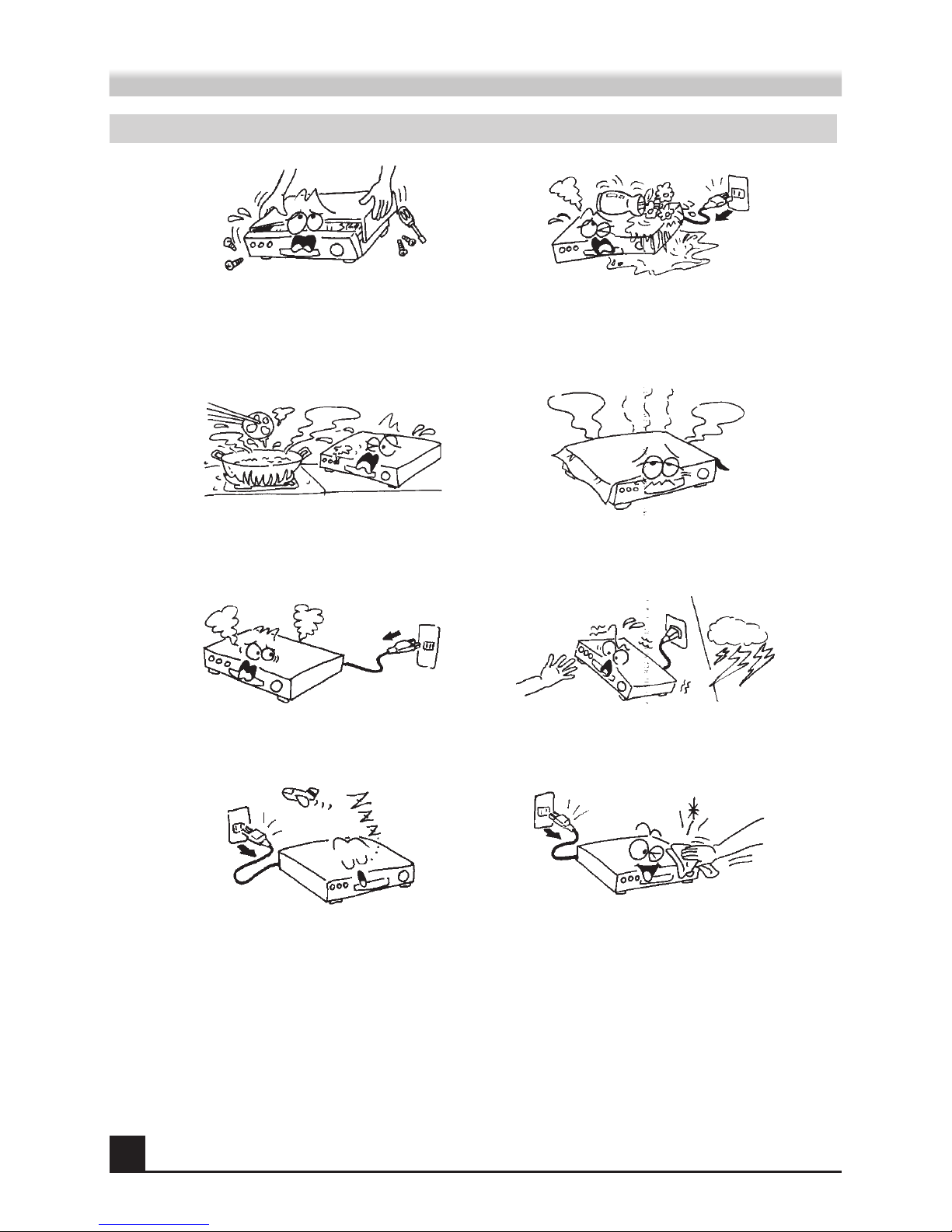

For Your Safety

•To avoid electric-shock hazards, do not

open the cabinet, refer servicing to quali-

ed personnel only.

•Do not expose the receiver un-der the

sunlight. And keep it away from the heat

source.

•When the abnormal phenomenon occur,

you should cut off the power immediately.

•Switch the receiver off whenever it re-

mains out of service for an extended pe-

riod.

• Keep the receiver away from ower

vases, tubs, sinks, etc., in order to avoid

damaging the equipment.

•Do not block ventilation holes of the Re-

ceiver so that air can circulate freely.

•Do not touch the receiver during thun-

der, since that might create electric-shock

hazards.

•Be sure to turn the Receiver off and dis-

connect the AC power cord before clean-

ing the Receiver surface. If the surface is

dirty, wipe clean with a cloth which has

been dipped in a weak soap-andwater

solution and wrung out thoroughly, and

then wipe again with a dry cloth.

GENERAL INFORMATION

User’s Guide

DIGITAL TERRESTRIAL RECEIVER MPEG-4

mini-triton 2 HD

General Operation

• Throughout this manual you will notice that the everyday operation of the receiver is based on

a series of user friendly on screen display and menus. These menus will help you get the most

from your receiver, guiding you through installation, channel organizing, viewing and many other

functions.

• All functions can be carried out using the buttons on the RCU, and some of the functions can also

be carried out using the buttons on the front panel.

• The receiver is easy to use, always at your command and adaptable for future advances.

• Please be aware that new software may change the functionality of the receiver.

• Should you experience any difculties with the operation of your receiver, please consult the

relevant section of this manual, including the Problem Shooting, or alternatively call your dealer or

a customer service adviser.

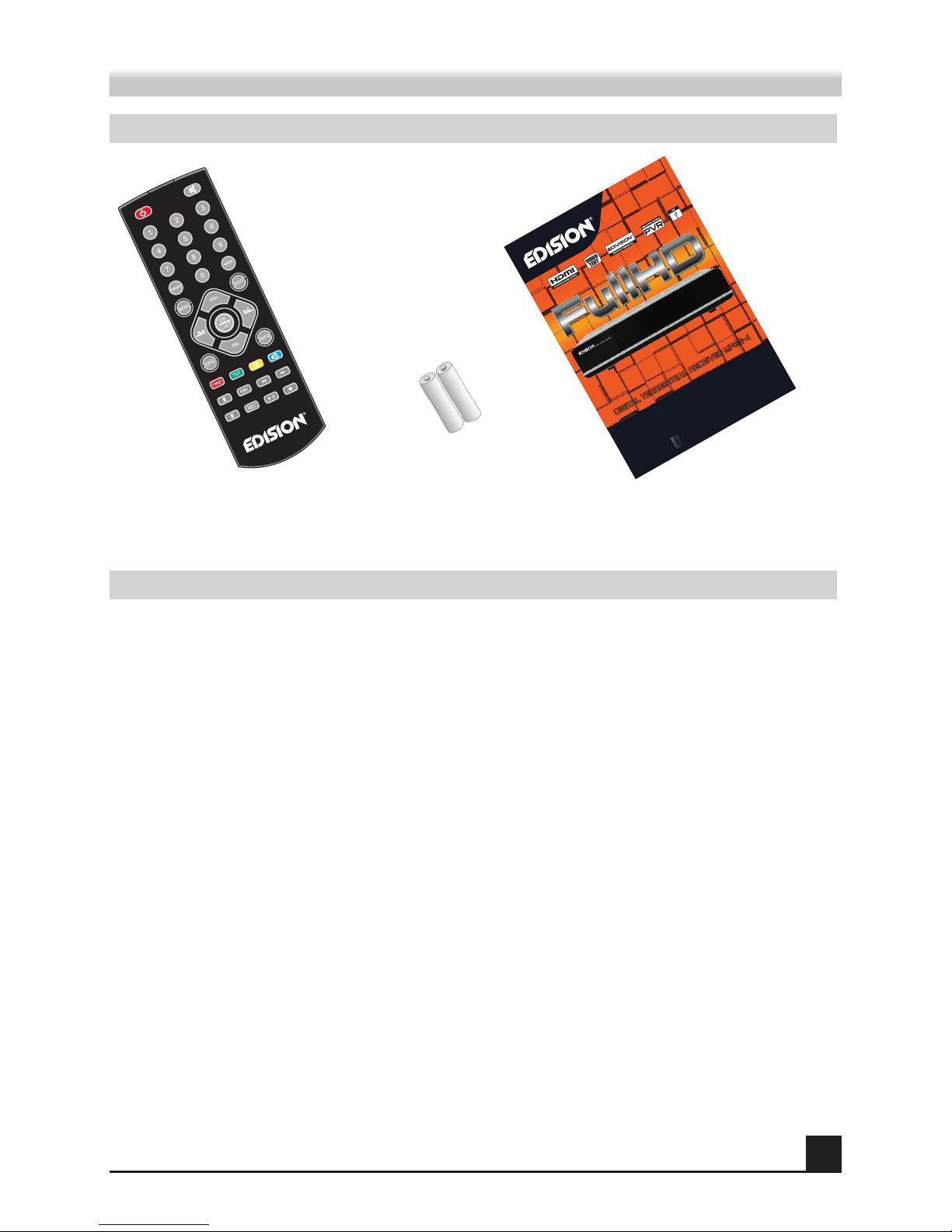

Unpacking (optional)

• Remote Control • Batteries • User’s manual

GENERAL INFORMATION

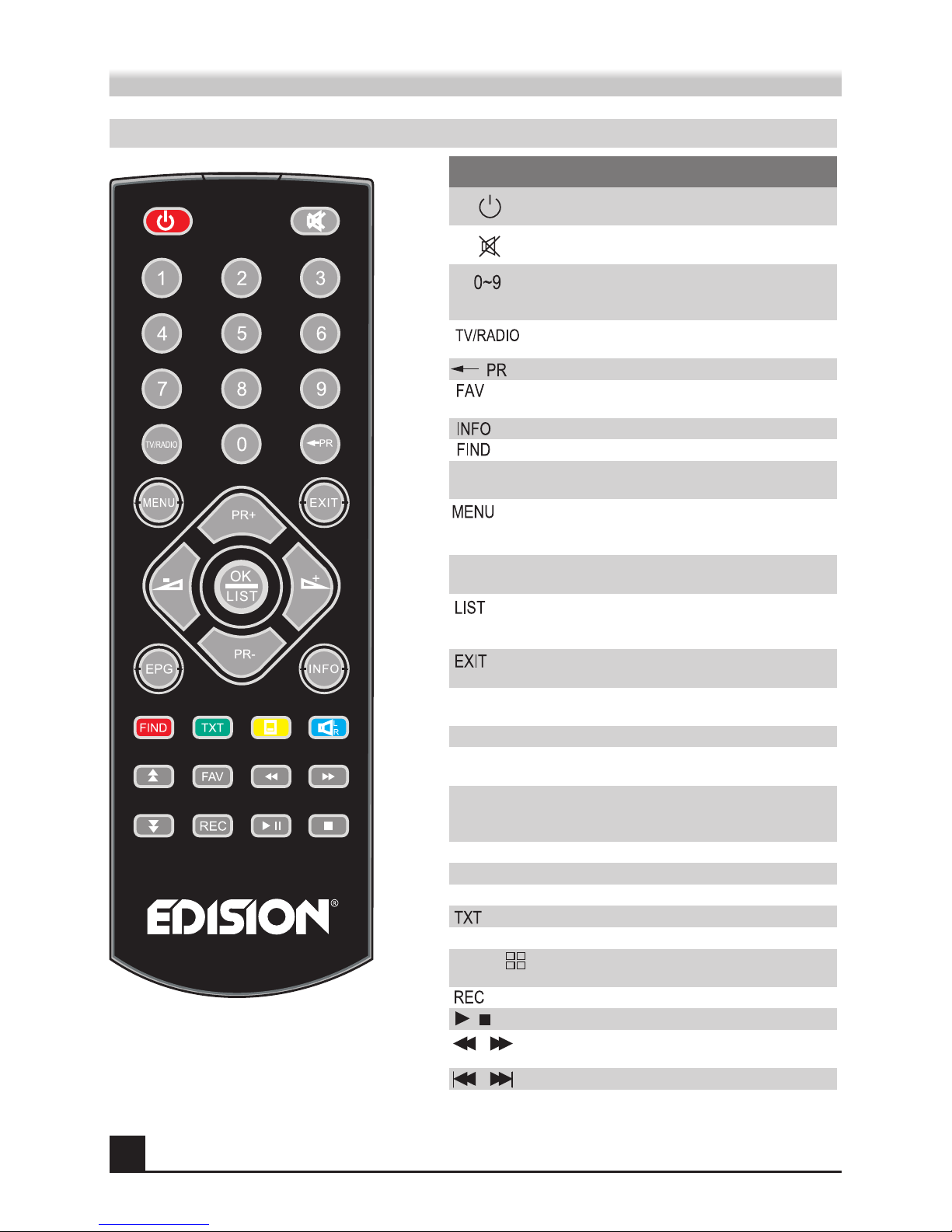

RCU

• The picture is only for reference, please make the object as the standard.

Key Function

Turns power ON/OFF of the DTR

Enter number of the required menu item or

select a program number to watch

Press this key one time to run menu onscreen,

and call command box

Executes the selected item in the menu screen

or enters the desired value in any input mode

Switches back to previous program

Shows information of the current program

Selects the different audio modes

Switch to subtitles

Switch to teletext mode

Play and stop the program

Seek forward or backward

Display the FIND window

Start TIMESHIFT

Resolution

GOTO/USB

Record the program

ASPECT Ratio screen

When watching a program, mute the sound

Moves up / down a page in the program list

When watching a program, change programs or

move to the next higher or lower item in the menu

Returns to the previous menu on the menu

screen or escape from the menu

Enter into the nine-pictures mode displayed

on the screen.

Press once to pause the screen picture, press

once again to go to the normal mode

Switches between TV and Radio mode

Display the favorite program list

When watching a program, adjust the volume or

move to the left or right item in the menu

Calls up the ΕPG

Press to fast forward or fast backward

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

Pg- Pg+

VOL- VOL+

AUDIO

EPG

SUBTITLE

TIMESHIFT

ASPECT

GOTO/USB

ZOOM

PAUSE / II

V-FORMAT

CH+ CH-

GENERAL INFORMATION

SCART

DTR

ANTENNA

• The picture is only for reference, please make the object as the standard.

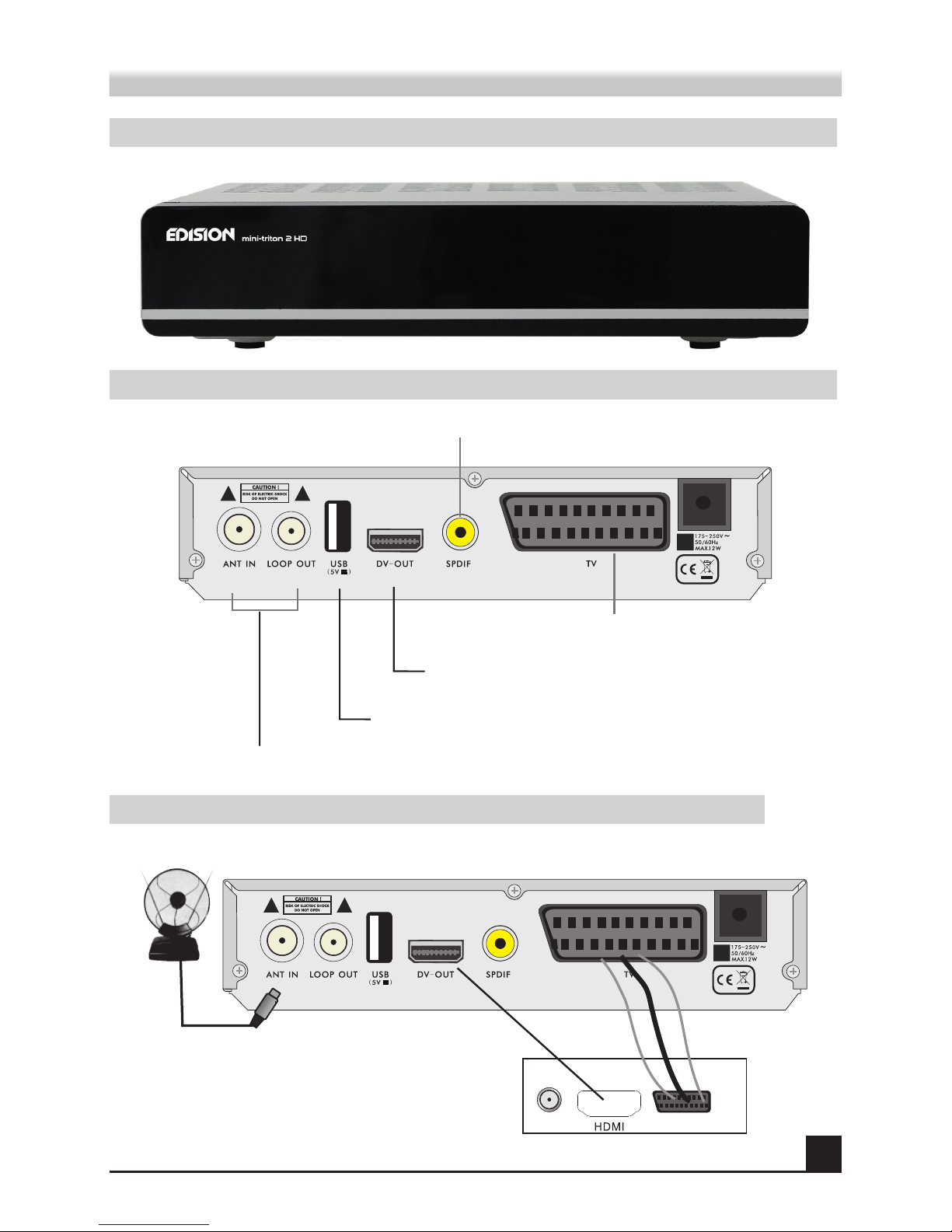

Front Panel

Real Panel

Connecting to TV using SCART support

CONNECT TO digiTal aMPliFiER

CONNECT TO TVUSiNg

a SCaRT CaBlE

CONNECT TO TV SET HdMi-OUT iNPUT

USB

CONNECT TO aNTENNa

CONNECT TO aNOTHER RECEiVER

ISTALLATION

R L

SPEAKER

DIGITAL AUDIO

CONVERTOR

AMPLIFIER

SPDIF

DTR

ANTENNA

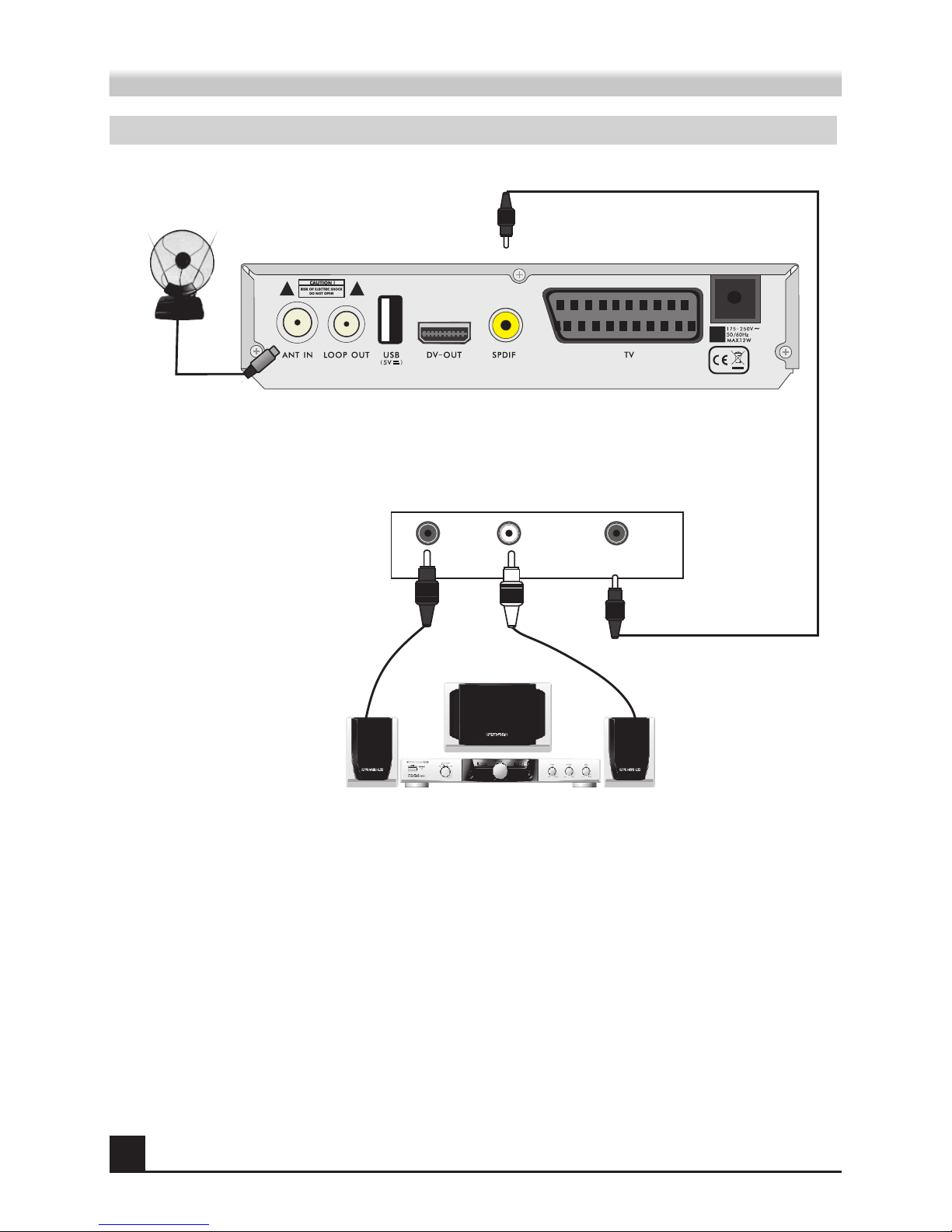

Connecting to Digital Amplier

• The picture is only for reference, please make the object as the standard.

Otros manuales para mini-triton 2 HD

Tabla de contenidos

Otros manuales de Receptor de Edision

Edision

Edision Piccollino S2 + T2/C Manual de usuario

Edision

Edision piccollino S2+T2/C Manual de usuario

Edision

Edision progressiv hybrid Manual de usuario

Edision

Edision Proton LED Manual de usuario

Edision

Edision Ping T2/C Manual de usuario

Edision

Edision argus Pingulux mini Manual de usuario

Edision

Edision Piccollino Manual de usuario

Edision

Edision Progressiv HD c+ Manual de usuario

Edision

Edision OPTIMUSS OS1 Manual de usuario

Edision

Edision Progressiv Hybrid lite Manual de usuario

Edision

Edision Piccollo 3 in 1 plus CI Manual de usuario

Edision

Edision picco T265 pro Manual de usuario

Edision

Edision picco T265 pro Manual de usuario

Edision

Edision mini-triton 2 Manual de usuario

Edision

Edision Progressiv HDC NANO Manual de usuario

Edision

Edision Proton T265 Manual de usuario

Edision

Edision OS MEGA Manual de usuario

Edision

Edision picco T265+ Manual de usuario

Edision

Edision DV3 T2 Manual de usuario

Edision

Edision progressiv hybrid lite LED Manual de usuario

Edision

Edision agrus vip3 Magicvision Manual de instrucciones

Edision

Edision EDI-Rx Manual de usuario

Edision

Edision primo IP S2 Manual de usuario

Edision

Edision picco T265 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario

Edision mini-triton 2 HD Manual de usuario

Manuales populares de Receptor de otras marcas
