EW-7206PDg

Wireless LAN PoE Access Point

User’s Manual

Table of Contents

Chapter 1Introduction....................................................................1

1.1Package Contents............................................................................ 2

1.2Features........................................................................................... 2

1.3Specifications................................................................................... 2

1.4Physical Description......................................................................... 3

Chapter 2Wireless LAN Access Point Connection .....................5

Chapter 3 Wireless LAN Access Point Configuration.................6

3.1Getting Started................................................................................. 6

3.2Configuring the Access Point......................................................... 11

3.2.1 Status and Information..........................................................................11

3.2.2 Wireless Setting....................................................................................12

3.2.3 Advanced Setting..................................................................................22

3.2.4 Security.................................................................................................25

3.2.5 MAC Address Filtering ..........................................................................34

3.2.6 System Utility ........................................................................................36

3.2.7 Configuration Tool.................................................................................40

3.2.8 Firmware Upgrade ................................................................................42

3.2.9 Reset.....................................................................................................43

Chapter 4Troubleshooting...........................................................44

Introduction

Chapter 1 Introduction

This product is an access point for IEEE 802.11g/b 2.4GHz wireless network.

You can use this access point to build up a wireless LAN. Any wireless LAN

station can join the wireless network by using the “Infrastructure Mode”.

The product supports WEP, WPA, ESSID and MAC address filter functions to

consolidate the wireless network security. With ESSID authentication, 64/128

bit WEP encryption and MAC address filtering you can prevent unauthorized

wireless stations from accessing your wireless network.

The product’s dipole antenna is detachable by connecting to a RP-SMA

connector. Users can install a high gain antenna to the connector for better

network link quality so that you can build wireless network with more flexibility.

This product provides easy to use user interface and allows users to

configuring from web browser. Also it integrates DHCP server to provide

multiple wireless and wired users to get their IP address automatically. With

the versatile of features, this product is the best choice for you to integrate

your wireless and wired network seamlessly.

Linux Open-Source Code

Certain Edimax products include software code developed by third parties, including software code

subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").

Please see the GNU and LPGL Web sites to view the terms of each license.

To access to the GPL Code and LGPL Code used in Edimax products, select a product from the list

below. The GPL Code and LGPL Code used in Edimax products is distributed without any warranty and

is subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code

licenses. You can download the firmware-files under "Download" page.

Introduction

1.1 Package Contents

The Access Point includes the following items:

yOne Access Point

yOne Power Adapter

yOne User’s Manual

1.2 Features

yComplies with the IEEE 802.11b/g (DSSS) 2.4GHz specification.

yHigh data rate 54Mbps network speed.

ySeamlessly integrate wireless and wired Ethernet LAN networks.

yAuto rate fallback in case of obstacles or interferences.

yProvide 64/128-bit WEP and WPA Data Encryption function to protect

the wireless data transmissions.

yBuilt-in DHCP server supports auto IP addresses assignment.

ySupports Web-based configuration.

1.3 Specifications

yStandards: IEEE 802.11b/g (Wireless), IEEE 802.3 (Wired)

yData Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback

ySecurity: 64/128-bit WEP and WPA Data Encryption

yFrequency Band: 2.400~2.4835GHz (Industrial Scientific Medical

Band)

yModulation: CCK@11/5.5Mbps, DQPSK@2Mbps and

DBPSK@1Mbps

yRadio Technology: Direct Sequence Spread Spectrum (DSSS)

yAntenna: External detachable dipole antenna (with RP-SMA

connector)

yConnectors: 10/100Mbps RJ-45 x 1

yPower: 12VDC, 0.5A

yTransmit Power: 15dBm (Typical)

yLEDs: Power, LAN Link/Activity, Wireless Activity

yDimension: 30(H) x 127(W) x 96(D) mm

Introduction

yTemperature:

Operating: 32~131°F (0~55°C)

Storage: -4~158°F(-20~70°C)

yHumidity: 10-90% (Non-condensing)

yCertification: FCC, CE

1.4 Physical Description

Front Panel

On the Access Point’s front panel there are LED lights that inform you of the

Access Point’s current status. Below is an explanation of each LED.

LED Color Status Description

Lit Power is supplied.

Power Green Off No Power.

Flash Antenna is transmitting or receiving data.

Wireless

Activity Green Off Antenna is not transmitting or receiving

data.

On A valid link is established.

Flash It is transmitting or receiving data.

LAN

Link/Activity Green Off No link is established.

Back Panel

Access Point’s connection ports are located on the back panel. Below is the

description of each connection port.

Introduction

yAntenna Connector

This round connection is standard Reverse SMA connector where any

antennas with Reverse SMA connector can connect to the Access Point.

yDC Adapter Port

Insert the power jack of the power adapter into this port.

yLAN Port

The Access Point’s LAN port is where you connect to your LAN’s network

devices.

yReset

The Reset button allows you to do one of two things.

1) If problems occur with your Access Point, press the reset button with

a pencil tip (for less than 4 seconds) and the Access Point will re-

boot itself, keeping your original configurations.

2) If problems persist or you experience extreme problems or you

forgot your password, press the reset button for longer than 4

seconds and the Access Point will reset itself to the factory default

settings (warning: your original configurations will be replaced with

the factory default settings).

Wireless LAN Access Point Connection

Chapter 2 Wireless LAN Access Point

Connection

Using Power Adapter

1. Locate an optimum location for the Wireless LAN Access Point.

The best location for your Access Point is usually at the center of your

wireless network, with line of sight to all of your mobile stations.

2. Connect the Wireless LAN Access Point to your router, hub or switch.

Connect one end of standard UTP cable to the Access Point’s LAN Port

and connect the other end of the cable to a switch, a router or a hub. The

Access Point will then be connected to your existed wired LAN Network.

3. Connect the DC Power Adapter to the Wireless LAN Access Point’s

Power Socket.

Only use the power adapter supplied with the Access Point. Using a

different adapter may damage the product.

Using PoE (Power over Ethernet)

1. Locate an optimum location for the Wireless LAN Access Point.

The best location for your Access Point is usually at the center of your

wireless network, with line of sight to all of your mobile stations.

2. Connect the Wireless LAN Access Point to your PoE adapter, router,

hub or switch.

Connect one end of standard UTP cable to the Access Point’s LAN Port

and connect the other end of the cable to a powered Ethernet port on a

PoE switch, a PoE router, a PoE hub, or a PoE adapter. The Access Point

will then be connected to your existed wired LAN Network.

The Hardware Installation is complete.

Wireless LAN Access Point Configuration

Chapter 3 Wireless LAN Access Point

Configuration

3.1 Getting Started

This Access Point provides web-based configuration tool allowing you to

configure from wired or wireless stations. Follow the instructions below to get

started configuration.

From Wired Station

1. Make sure your wired station is in the same subnet with the Access

Point.

The default IP Address and Sub Mask of the Access Point is:

Default IP Address: 192.168.2.1

Default Subnet: 255.255.255.0

Configure your PC to be in the same subnet with the Access Point.

1a) Windows 95/98/Me

1. Click the Start button and select Settings, then click Control Panel. The Control Panel

window will appear.

2. Double-click Network icon. The Network window will appear.

3. Check your list of Network Components. If TCP/IP is not installed, click the Add button to

install it now. If TCP/IP is installed, go to step 6.

4. In the Network Component Type dialog box, select Protocol and click Add button.

5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the

OK button to start installing the TCP/IP protocol. You may need your Windows CD to

complete the installation.

6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of

Network Components and then click the Properties button.

7. Check each of the tabs and verify the following settings:

•Bindings: Check Client for Microsoft Networks and File and printer sharing for

Microsoft Networks.

•Gateway: All fields are blank.

•DNS Configuration: Select Disable DNS.

Wireless LAN Access Point Configuration

•WINS Configuration: Select Disable WINS Resolution.

•IP Address: Select Specify an IP Address. Specify the IP Address and Subnet Mask

as following example.

9IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is

available, do not setup 192.168.2.1)

9Subnet Mask: 255.255.255.0

8. Reboot the PC. Your PC will now have the IP Address you specified.

1b) Windows XP

1: Click the Start button and select Settings, then click Network Connections. The Network

Connections window will appear.

2: Double-click Local Area Connection icon. The Local Area Connection window will appear.

3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list.

Select it and click the Properties button.

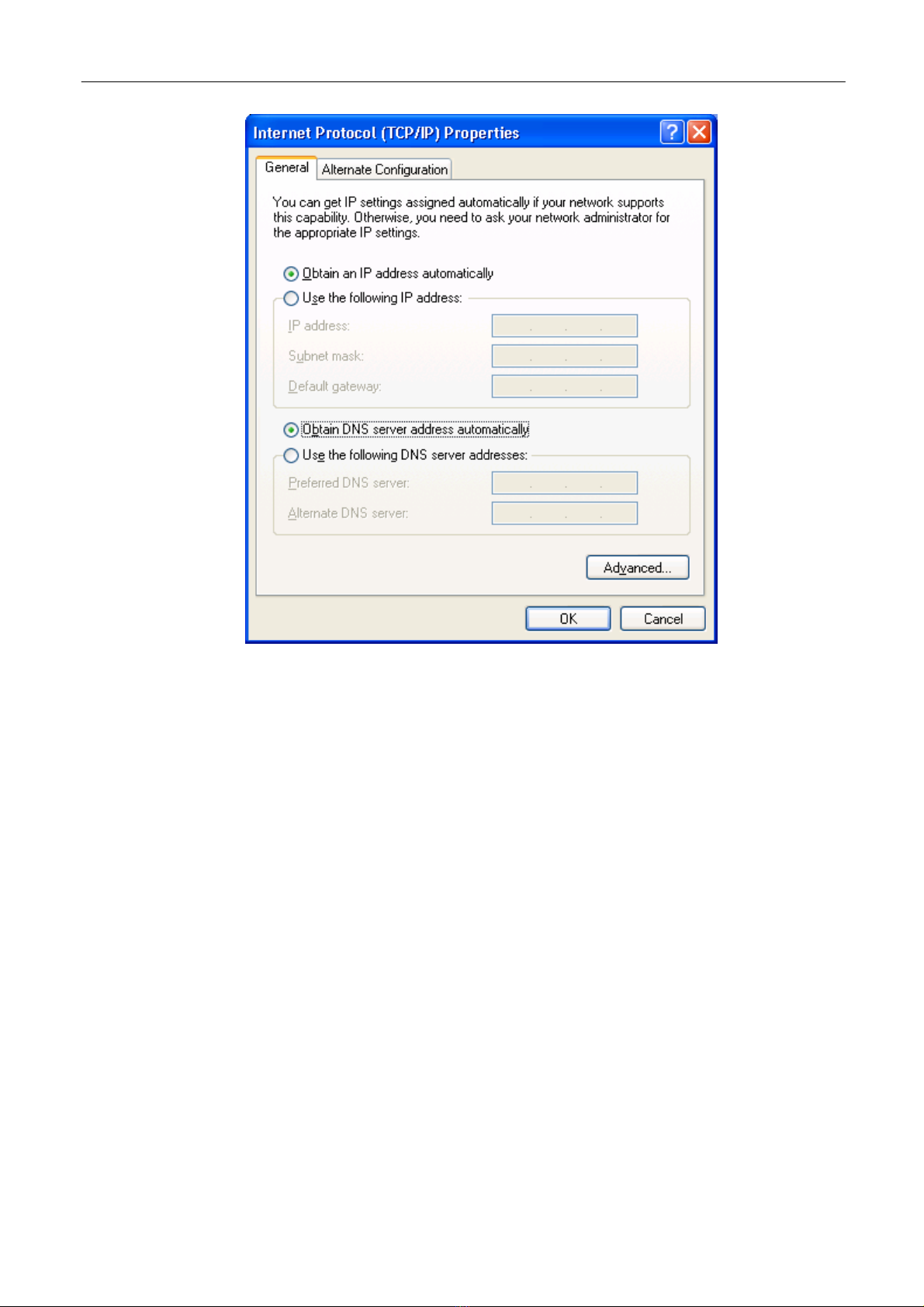

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and

Obtain DNS server address automatically as shown on the following screen.

Wireless LAN Access Point Configuration

5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router’s DHCP server.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server

available on your LAN.

Once you’ve configured your PC to obtain an IP address automatically, please proceed to

Step 3.

1c) Windows 2000

1. Click the Start button and select Settings, then click Control Panel. The Control Panel

window will appear.

2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up

Connection window, double-click Local Area Connection icon. The Local Area Connection

window will appear.

3. In the Local Area Connection window, click the Properties button.

4. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on

your list. Select it and click the Properties button.

5. In the Internet Protocol (TCP/IP) Properties window, select Use the following IP address

and specify the IP Address and Subnet mask as following.

Otros manuales para EW-7206PDg

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Edimax

Edimax

Edimax EW-7206PDg Manual de usuario

Edimax

Edimax EW-7316APn Manual de usuario

Edimax

Edimax EW-7206APg Manual de usuario

Edimax

Edimax EW-7303HPn V2 Manual de instrucciones

Edimax

Edimax EW-7428HCn Manual de usuario

Edimax

Edimax EW-7206APg Manual de usuario

Edimax

Edimax HP-8501APg Manual de usuario

Edimax

Edimax EW-7206APg Manual de usuario

Edimax

Edimax CV-7438nDM N600 Manual de usuario

Edimax

Edimax EW-7428HCn Manual de usuario

Edimax

Edimax EW-7228APn Manual de usuario

Edimax

Edimax HP-8501APg Manual de usuario

Edimax

Edimax BR-6208AC Manual de usuario

Edimax

Edimax EW-7303HPn V2 Manual de usuario

Edimax

Edimax EW-7209APg Manual de usuario

Edimax

Edimax EW-7478APC Guía de instalación

Edimax

Edimax EW-7303HPn V2 Manual de usuario

Edimax

Edimax EW-7679WAC Manual de usuario

Edimax

Edimax EW-7288APC Manual de usuario

Edimax

Edimax EW-7416APn v2 Manual de usuario

Edimax

Edimax EW-7416APn v2 Manual de usuario

Edimax

Edimax EW-7206APg Manual de usuario

Edimax

Edimax EW-7438RPn V2 Manual del propietario

Edimax

Edimax CV-7428nS Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario
