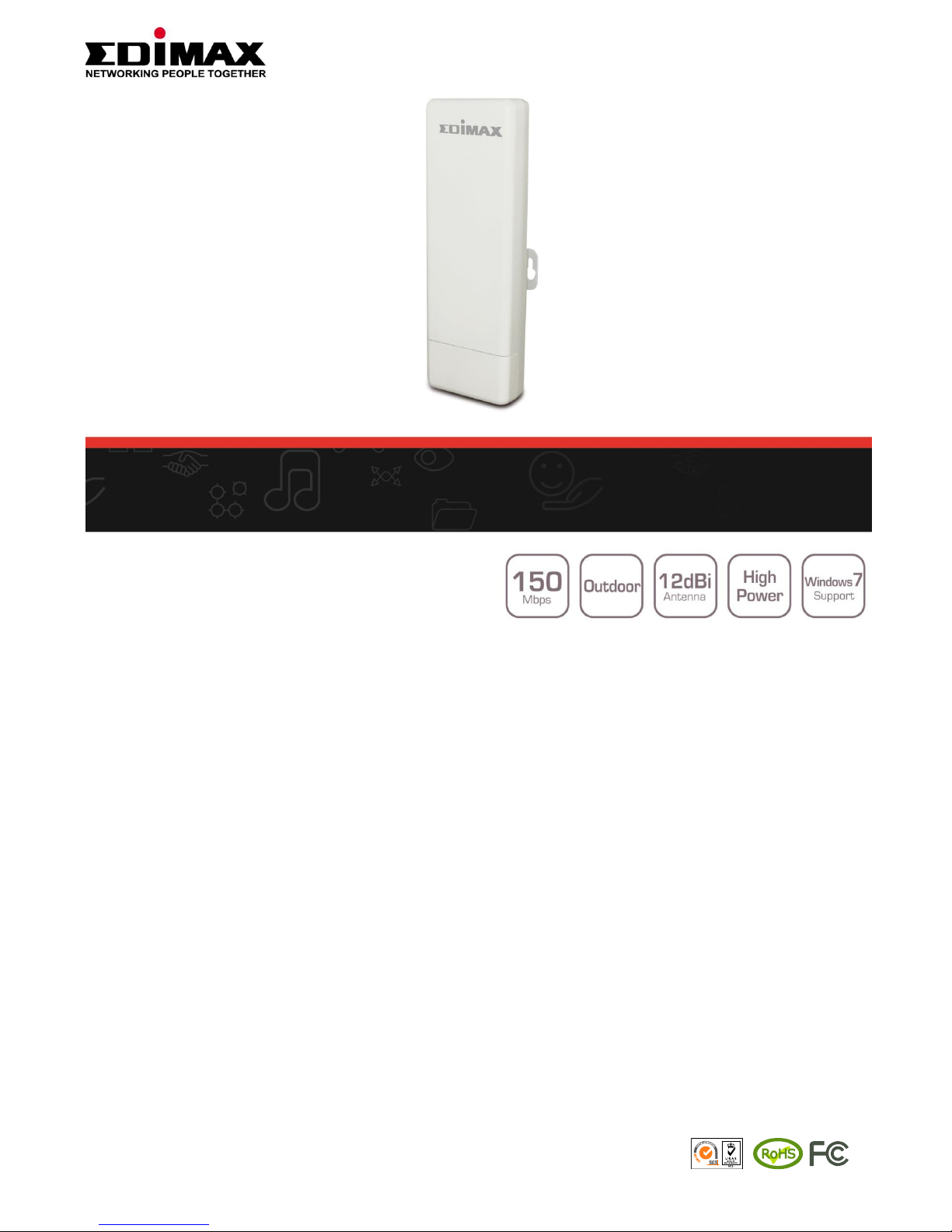

Edimax EW-7303HPn V2 Manual de usuario
N150 High Power Outdoor Wireless Access Point/Range
Extender with Built-in 12dBi Antenna
High Power Output for Enhanced Coverage and Signal Strength
The Edimax EW-7303HPn V2 is a high power outdoor range extender/access point that complies with wireless
802.11b/g/n standards. Its high power design boosts wireless output power to 600mW, providing Wi-Fi
coverage of up to 5 kilometers*. A combination of cost-effectiveness and outstanding wireless performance
make the EW-7303HPn V2 the best choice for long distance wireless connectivity.
12dBi High-Gain Antenna
The outstanding high power performance of the EW-7303HPn V2 is complimented by a built-in 12dBi
directional panel antenna. This high-gain antenna not only increases the transmission distance, but also
stabilizes the wireless signal for superb wireless performance. Additionally, the EW-7303HPn V2 is designed
with an SMA connector that enables the user to connect external antennas to the access point/range extender.
Users can boost the transmission distance even further with a high dBi antenna or set up a Wi-Fi central station
with an omni-directional antenna.
Multiple Operation Modes
The Edimax EW-7303HPn V2 can be configured to operate in four modes: AP mode, WDS mode, WDS with AP
mode, and repeater mode. With multiple operation modes, the EW-7303HPn V2 is a versatile solution perfect
for a wide range of wireless applications.
Wireless 802.11n Standard (Data Rates up to 150Mbps)
The Edimax EW-7303HPn V2 is a high-speed solution that complies with IEEE 802.11b/g/n standards. The latest
wireless technology is built-in to broaden wireless coverage and reduce dead spots within the wireless range.
When connected to wireless 802.11n compatible devices, the EW-7303HPn V2 can achieve transmission rates
of up to 150Mbps.
EW-7303HPn V2
www.edimax.com
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Maximum performance, actual data rates, and coverage will vary depending on network
conditions and environmental factors. Product specifications and design are subject to change without notice.
Features
•Complies with IEEE 802.11b/g/n standards
•Supports 2.4000 to 2.4835GHz frequency bands
•Network data rates up to 150Mbps
•Auto rate fallback in cases of interference
•Features WDS (Wireless Distribution System) repeater mode
•Supports WDS with AP mode
•Supports WEP, WPA, WPA2, AE2, 802.1x authentication
•Features WPS (Wi-Fi Protected Setup)
•Web-based configuration interface
•Firmware upgradable
•Features LNA (Low Noise Amplifier)
•Supports gateway, bridge and WISP operation modes
•Supports VPN pass-through for PPTP, IPsec and L2TP connections
Product 150Mbps Wireless High Power Outdoor Range
Extender/Access Point
Frequency Bands 2.4 - 2.484GHz
Flash 4MB NOR Flash
RAM 32MB SDRAM
LAN Port 10/100M Passive PoE Port x 1
Antenna Internal: 12dBi directional panel antenna
External (optional): SMA connector
Output Power
11n: 22±1dBm, -89dBm
11g: 26±1dBm, -91dBm
11b: 27±1dBm, -93dBm
Power 12V DC, 1A
Dimensions 225 (H) x 77 (W) x 59 (D) mm
Weight 250g (8.82oz)
Temperature Operating: -20 to 70°C
Humidity Operating: 10-90% (non-condensing)
Storage: Max. 95% (non-condensing)
Certification FCC
Specifications
*Maximum performance, actual data rates and coverage may vary depending on network conditions and environmental factors. Stated ranges
are based on independent test results and are not guaranteed. Long range coverage requires an additional high power access point to receive
the wireless signal from the EW-7303HPn V2 –coverage range from an EW-7303HPn directly to a computer/wireless device is significantly less.
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Product specifications and design are subject to change without notice.
