Edimax EW-7205APS Manual de usuario
Wireless LAN Access Point
with 5-Port Switch
EW-7205APS
User’s Manual
Table of Contents
Chapter 1 Introduction............................................................................. 1
1.1 Package Contents .......................................................................................... 1
1.2 Features ......................................................................................................... 2
1.3 Specifications................................................................................................ 2
1.4 Physical Description ..................................................................................... 3
Chapter 2 Wireless LAN Access Point Connection................................ 5
Chapter 3 Wireless LAN Access Point Configuration ........................... 6
3.1 Getting Started .............................................................................................. 6
3.2 Configuring the Access Point ....................................................................... 9
3.2.1 System Information..............................................................................................9
3.2.2 Channel and ESSID ...........................................................................................10
3.2.3 Encryption..........................................................................................................11
3.2.4 MAC Address Filtering......................................................................................14
3.2.5 IEEE 802.1X ......................................................................................................15
3.2.6 System Utility ....................................................................................................20
3.2.7 DHCP Client Log...............................................................................................23
3.2.8 Configuration Tools ...........................................................................................24
3.2.9 Firmware Upgrade .............................................................................................25
3.2.10 Reset...................................................................................................................26
Chapter 4 Troubleshooting .................................................................... 28
Introduction
1
Chapter 1 Introduction
This product is a Wireless LAN Access Point with 5-port 10/100Mbps Fast Ethernet
Switch, which allows you to build your wireless network without buying an
additional hub or switch. It is the ideal product that provides you the best solution for
building both wireless network and 10/100Mbps Fast Ethernet backbone.
The product supports advanced user authentication including 64/128-bit WEP
Encryption and IEEE 802.1X ensures a high level of security for wireless networking.
In additional to corporate use, this Access Point can also be implemented in the
public arena such as airports, hotels based on the advanced 802.1X authentication
mechanism.
The product’s dipole antenna is detachable by connecting to a RP-SMA connector.
Users can install a high gain antenna to the connector for better network link quality
so that you can build wireless network with more flexibility.
This product provides easy to use user interface and allows users to configuring from
web browser. Also it integrates DHCP server to provide multiple wireless and wired
users to get their IP address automatically. With the versatile of features, this product
is the best choice for you to integrate your wireless and wired network seamlessly.
1.1 Package Contents
The Access Point includes the following items:
One Access Point
One Power Adapter
One User’s Manual
Introduction
2
1.2 Features
Complies with the IEEE 802.11b (DSSS) 2.4GHz specification.
High data rate 11, 5.5, 2 and 1Mbps network speed.
Seamlessly integrate wireless and wired Ethernet LAN networks.
Provides an internal 5-port switch for wired Ethernet connection.
Detachable external antenna provides users flexibility to install the wireless
network with high gain antenna.
Auto rate fallback in case of obstacles or interferences.
Provides 64/128-bit WEP Data Encryption function to protect the wireless
data transmissions.
Supports IEEE 802.1X, enabling enhanced WLAN security.
Built-in proprietary authentication server based on the IEEE 802.1X standard.
Built-in DHCP Server supports auto IP address assignment.
Supports Web-based configuration.
1.3 Specifications
Standards: IEEE 802.11b (Wireless), IEEE 802.3 and IEEE 802.3u (Wired),
IEEE 802.11X
Data Rate: 11/5.5/2/1Mbps auto fallback
Security: 64/128-bit WEP Data Encryption, IEEE 802.1X
Frequency Band: 2.400~2.4835GHz (Industrial Scientific Medical Band)
Modulation: CCK@11/5.5Mbps, DQPSK@2Mbps and DBPSK@1Mbps
Radio Technology: Direct Sequence Spread Spectrum (DSSS)
Antenna: External detachable dipole antenna (with RP-SMA connector)
Connectors: 10/100Mbps RJ-45 x 5 (Normal x 4, Uplink x 1)
Power: 12VDC, 1A
Transmit Power: 15dBm (Typical)
LEDs: Power, LAN Link/Activity and 10/100M Speed, Wireless
Link/Activity
Dimension: 33(H) x 188(W) x 135(D) mm
Introduction
3
Temperature:
Operating: 32~131°F (0~55°C)
Storage: -4~158°F(-20~70°C)
Humidity: 0-90% (Noncondensing)
Certification: FCC, CE
1.4 Physical Description
Front Panel
On the Access Point’s front panel there are LED lights that inform you of the Access
Point’s current status. Below is an explanation of each LED.
LED Color Status Description
Lit Power is supplied.
Power Green Off No Power.
Flash Antenna is transmitting or receiving data.Wireless
TX/RX Green Off Antenna is not transmitting or receiving data.
Lit A valid link is established.
Flash Data packets are received.
Amber
(100Mbps) Off No link is established.
Lit A valid link is established.
Flash Data packets are received.
LAN
Link/Activity Green
(10Mbps) Off No link is established.

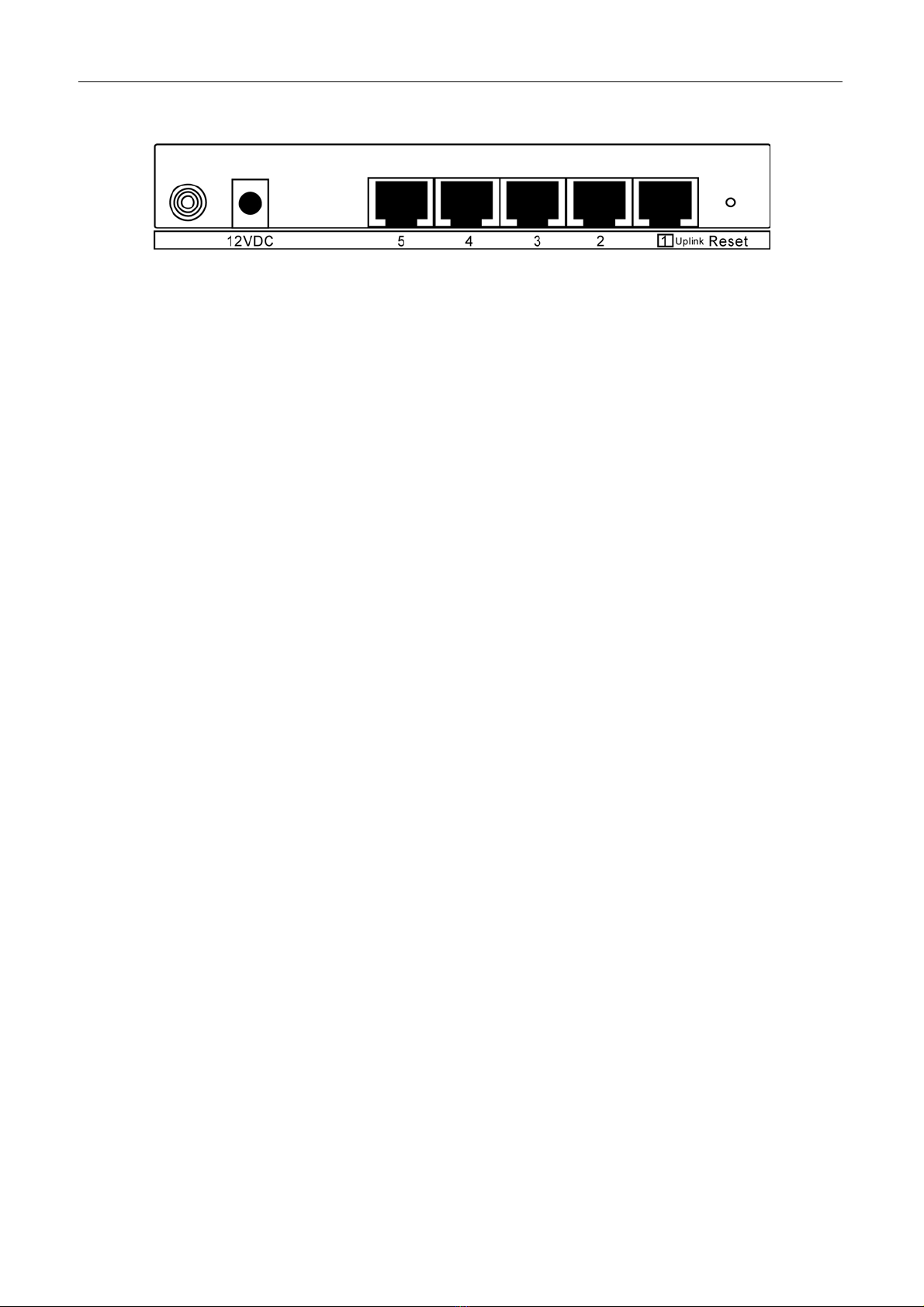

Back Panel
Access Point’s connection ports are located on the back panel. Below is the
description of each connection port.
Introduction
4
Antenna Connector
This round connection is standard Reverse SMA connector where any antennas
with Reverse SMA connector can connect to the Access Point.
DC Adapter Port
Insert the power jack of the power adapter into this port.
10/100Mbps
The Access Point’s LAN ports are where you connect your LAN’s PCs.
Uplink Port
Using this port connects to Ethernet network devices, such as a hub, switch, or
router directly.
Reset
The Reset button allows you to do one of two things.
1) If problems occur with your Access Point, press the reset button with a
pencil tip (for less than 4 seconds) and the Access Point will re-boot itself,
keeping your original configurations.
2) If problems persist or you experience extreme problems or you forgot your
password, press the reset button for longer than 4 seconds and the Access
Point will reset itself to the factory default settings (warning: your original
configurations will be replaced with the factory default settings).
Wireless LAN Access Point Connection
5
Chapter 2 Wireless LAN Access Point
Connection
1. Locate an optimum location for the Wireless LAN Access Point.
The best location for your Access Point is usually at the center of your wireless
network, with line of sight to all of your mobile stations.
2. Connect the Wireless LAN Access Point to your 10/100Mbps network.
Connect one end of standard UTP cable to the Access Point’s Uplink Port and
connect the other end of the cable to a switch or a hub’s regular port. The Access
Point will then be connected to your existed 10/100Mbps Network.
3. Connect your PCs to the Wireless LAN Access Point directly.
This Access Point has a built-in 5-Port Fast Ethernet Switch, allowing you to
build a wired LAN network directly by connecting your PCs to the Access Point.
Connect one end of standard UTP cable to the Access Point and connect the other
end of the cable to your PCs. A small LAN network will be built.
4. Connect the AC Power Adapter to the Wireless LAN Access Point’s Power
Socket.
Only use the power adapter supplied with the Access Point. Using a different
adapter may damage the product.
The Hardware Installation is complete.
Wireless LAN Access Point Configuration
6
Chapter 3 Wireless LAN Access Point
Configuration
3.1 Getting Started
This Access Point provides web-based configuration tool allowing you to configure
from wired or wireless stations. Follow the instructions below to get started
configuration.
From Wired Station
1. Make sure your wired station is in the same subnet with the Access Point.
The default IP Address and Sub Mask of the Access Point is:
Default IP Address: 192.168.2.1
Default Subnet: 255.255.255.0
Configure your PC to be in the same subnet with the Access Point.
1a) Windows 95/98/Me
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear.
3. Check your list of Network Components. If TCP/IP is not installed, click the Add button to
install it now. If TCP/IP is installed, go to step 6.
4. In the Network Component Type dialog box, select Protocol and click Add button.
5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the
OK button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of
Network Components and then click the Properties button.
7. Check each of the tabs and verify the following settings:
• Bindings: Check Client for Microsoft Networks and File and printer sharing for
Microsoft Networks.
• Gateway: All fields are blank.
• DNS Configuration: Select Disable DNS.
• WINS Configuration: Select Disable WINS Resolution.
Wireless LAN Access Point Configuration
7
• IP Address: Select Specify an IP Address. Specify the IP Address and Subnet Mask
as following example.
IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
Subnet Mask: 255.255.255.0
8. Reboot the PC. Your PC will now have the IP Address you specified.
1b) Windows 2000
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area Connection
window will appear.
3. In the Local Area Connection window, click the Properties button.
4. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5. In the Internet Protocol (TCP/IP) Properties window, select Use the following IP address
and specify the IP Address and Subnet mask as following.
IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
Subnet Mask: 255.255.255.0
6. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
1c) Windows NT
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear. Select the Protocol tab from
the Network window.
3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed,
click the Add button to install it now. If TCP/IP is installed, go to step 5.
4. In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok
button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of
Network Protocols and then click the Properties button.
6. Check each of the tabs and verify the following settings:
Wireless LAN Access Point Configuration
8
• IP Address: Select Specify an IP address. Specify the IP Address and Subnet Mask
as following example.
IP Address: 192.168.2.3 (any IP address within 192.168.2.2~192.168.2.254 is
available, do not setup 192.168.2.1)
Subnet Mask: 255.255.255.0
• DNS: Let all fields are blank.
• WINS: Let all fields are blank.
• Routing: Let all fields are blank.
7. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
2. Enter 192.168.2.1 from Web Browser to get into the Access Point’s
configuration tool.
3. The default Password for the Access Point is blank. Press Login button directly.
4. You can start configuring the Access Point.
Tabla de contenidos
Otros manuales de Enrutador de red de Edimax
Edimax
Edimax BR-6624 Manual de usuario
Edimax
Edimax 3G-6200nL V2 Guía de referencia
Edimax
Edimax AR-7167WnA Manual de usuario
Edimax
Edimax BR-6524n Manual de usuario
Edimax
Edimax BR-6478 AC V2 Manual de usuario
Edimax
Edimax 3G-6218n Manual de usuario
Edimax
Edimax AR-7182WnA Manual de usuario
Edimax
Edimax GS-5208P Manual de usuario
Edimax
Edimax BR-6675nD Manual de usuario
Edimax
Edimax AR-7084gA/B Manual de usuario
Edimax
Edimax BR-6473AX Manual de usuario
Edimax
Edimax ES-3105P Manual de usuario
Edimax
Edimax AR-7167WnA Manual de usuario
Edimax
Edimax BR-6478Gn Manual de usuario
Edimax
Edimax CV-7438nDM Manual de usuario
Edimax
Edimax EW-7303APn v2 Manual de usuario
Edimax
Edimax BR-6435nD Manual de usuario
Edimax
Edimax Network Router Manual de usuario
Edimax
Edimax BR-6641 Manual de usuario
Edimax
Edimax CV-7438nDM Guía de referencia
Manuales populares de Enrutador de red de otras marcas
NETGEAR
NETGEAR FS526T - Switch Manual de usuario
Korenix
Korenix JetNet 5710G Series Manual de usuario
Automated Logic
Automated Logic ZN551 Manual del propietario
Cisco
Cisco ASR 1000 Series Manual del operador
EnGenius
EnGenius ESR-9710 Manual de usuario
Cisco
Cisco 805 Series Instrucciones de funcionamiento y seguridad
