Edimax AR-7182WnA Manual de usuario

AR-7182WnA / AR-7182WnB

Quick Installation Guide

8-2013 / v1.0

this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission from

Edimax Technology Co., Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties,

either expressed or implied, with respect to the contents hereof and

specifically disclaims any warranties, merchantability, or fitness for any

particular purpose. Any software described in this manual is sold or licensed

as is. Should the programs prove defective following their purchase, the

buyer (and not this company, its distributor, or its dealer) assumes the entire

cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software. Edimax Technology Co.,

Ltd. reserves the right to revise this publication and to make changes from

time to time in the contents hereof without the obligation to notify any

person of such revision or changes.

The product you have purchased and the setup screen may appear

slightly different from those shown in this QIG. For more information about

this product, please refer to the user manual on the CD-ROM. The software

and specifications are subject to change without notice. Please visit our

website www.edimax.com for updates. All brand and product names

mentioned in this manual are trademarks and/or registered trademarks of

their respective holders.

Edimax Technology Co., Ltd.

Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan

Tel: +886-2-77396888

Email: sales@edimax.com.tw

-L

(

)

eš

št

: Českého průvodce rychlou instalací naleznete na přiloženém CD s

ovladači

Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD

añ

ño

:Incluido en el CD el G.R.I. en Español.

nç

ça

Veuillez trouver l’français G.I.R ci-joint dans le CD

Incluso nel CD il Q.I.G. in Italiano.

A magyar telepítési útmutató megtalálható a mellékelt CD-n

: De nederlandse Q.I.G. treft u aan op de bijgesloten CD

: Skrócona instrukcja instalacji w języku polskim znajduje się na

załączonej płycie CD

uê

ês

:Incluído no CD o G.I.R. em Portugues

Ру

ус

сс

ск

ки

ий

й:

Найдите Q.I.G. на pусскoмязыке на приложеном CD

Tü

ür

kç

çe

Ü rün ile beraber gelen CD içinde Türkçe Hızlı Kurulum Kılavuzu'nu

bulabilirsiniz

Ук

кр

ра

аї

їн

нс

сь

ьк

ка

а:

Для швидкого налаштування Вашого пристрою, будь ласка,

ознайомтесь з інструкцією на CD

PRODUCT INTRODUCTION

Package Contents

Before you start using this product, please check if there is anything missing

in the package and contact your dealer to claim the missing item(s):

ADSL2+ router (AR-7182WnA or AR-7182WnB)

12V power adapter

1 meter RJ-45 Ethernet cable

1.8M RJ-11 telephone line x 2

Quick installation guide

CD containing setup wizard, user manual & multi-language QIG

Splitter

5dBi antenna

System Requirements

A 10/100 base-T Ethernet card installed in your PC.

A hub or switch (connected to several PCs through one of the Ethernet

interfaces on the device).

Windows 98 SE, Windows 2000, Windows ME, Windows XP, Windows

7, Windows 8.

Internet Explorer V5.0 or higher, Netscape V4.0 or higher or Firefox

1.5 or higher.

LED Status

Front Panel:

LED

Color

Status

Description

Power

Green

ADSL2+ router is on.

Off

ADSL2+ router Is off.

Red

ADSL broadband initial self-test failed or upgrading

firmware.

ADSL

Green

ADSL line is synchronized and ready to use.

Slow Flashing

ADSL synchronization failed ( please refer to

Note i. below)

Quick Flashing

ADSL negotiation is in progress.

Internet

Green

Internet connected in router mode

Flashing

Internet activity (transferring/receiving data) in

router mode.

Off

Device in bridged mode.

Red

Internet not connected in router mode

(Please refer to Note ii. below).

LAN

Green

LAN port connected.

Flashing

LAN activity (transferring/receiving data).

Off

LAN port not connected.

WLAN

Green

Successful WLAN connection.

Flashing

WLAN activity (transferring/receiving data).

Off

WLAN connection failed.

WPS

Green

Off

WPS is disabled.

Flashing

WPS is enabled and waiting for client to negotiate.

Note i. If the ADSL LED is off, please check your Internet

connection. Refer to A. Hardware Installation for more

information about how to connect the router correctly. If

all connections are correct, please contact your ISP to

check if there is a problem with your Internet service.

ii.If the Internet LED is red, please check your ADSL LED first.

If the ADSL LED is off, refer to Note 1. If the green ADSL

LED is ON, please check your Internet configuration. You

may need to check with your ISP that your Internet is

configured correctly.

Rear Panel:

Item

Description

Power On/Off

Button

Switches the router on or off.

Power

Power port for included 12V power adapter.

Wireless

On/Off Button

Switch the wireless signal on or off.

WPS Button

Activate WPS (Wi-Fi Protected Setup)

LAN

RJ-45 Ethernet port.

Reset Button

Hold for less than 5 seconds to restart the device, and hold for more

than 10 seconds to reset the device to factory default settings.

Line

RJ-11 port for standard telephone line.

GETTING STARTED

A. Hardware Installation

1. Connect the ADSL line.

Connect the line port of the router of the device to the modem interface of

a splitter using a telephone cable. Connect a telephone to the Phone

interface of the splitter using a telephone cable. Connect the Line interface

of the splitter to your existing, incoming line.

The splitter has three interfaces:

Line: Connect to a wall phone jack (RJ-11 jack).

Modem: Connect to the ADSL jack of the device.

Phone: Connect to a telephone set.

2. Connect the router to your LAN network.

Connect the LAN interface of the router to your PC, hub or switch using an

Ethernet cable.

3. Connect the power adapter to the router.

Plug one end of the power adapter into a wall outlet and connect the other

end to the 12V interface of the device. The following diagram shows how to

correctly connect the router, PC, splitter and telephone sets.

4. Check the ADSL LED status.

Please check the ADSL LED on the front panel. This light indicates the status

of your ADSL broadband through your telephone line. If the light is on, you

can continue setup. However if the light is flashing, there is no broadband

line detected. Please call your Internet Service Provider (ISP) and inform

them about the flashing ADSL light to resolve the issue.

5. Firewall settings.

Please turn off all personal firewalls before you continue the setup –firewalls

can block communication between your PC and router.

Note: You must use the power adapter included in the package with the

router, do NOT attempt to use a third-party power adapter.

6. PC LAN IP configuration.

Configure your PC’s LAN settings to automatically obtain an IP address from

the router by following the steps below:

1. Click “Start” and then select “Control Panel”.

2. Click “Switch to Classic View” in the top left to show additional setting

icons.

3. Locate the “Network Connections”icon and double-click to open

network connection settings.

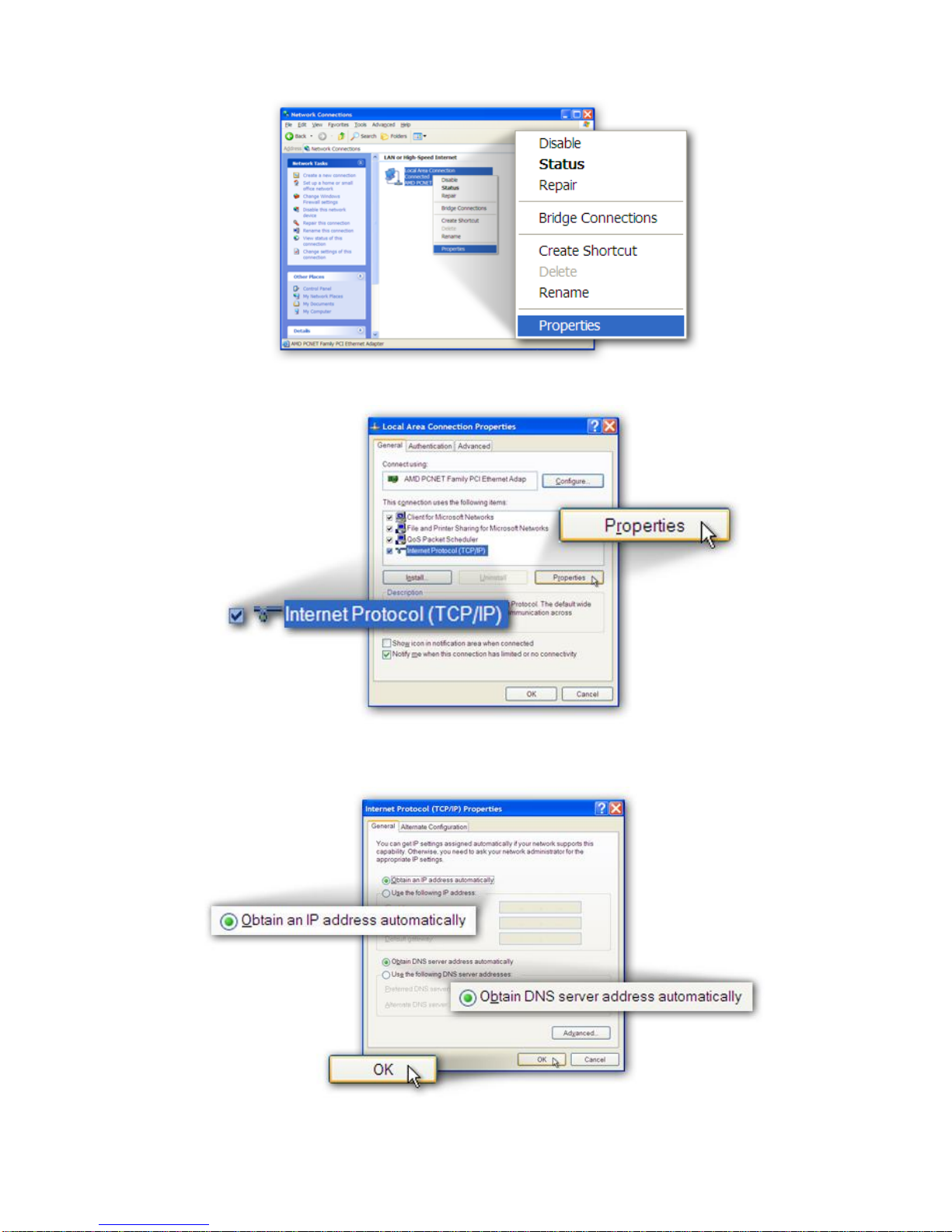

4. Select the “Local Area Connection” icon and right-click it to open the

sub-menu, then select “Properties”.

5. Select “Internet Protocol (TCP/IP)” and then click “Properties”

6. Ensure that “Obtain an IP address automatically” and “Obtain DNS

server address automatically” are selected and then press “OK”.
