PRODUCT INTRODUCTION

Package Contents

Before you start using this product, please check if there is anything

missing in the package and contact your dealer to claim the missing

item(s):

ADSL2+ router (AR-7211A V2 or AR-7211B V2)

Power adapter

1 meter RJ-45 Ethernet cable

1.8M RJ-11 telephone line x 2

Quick installation guide

CD containing setup wizard, user manual & multi-language QIG

System Requirements

Recommended system requirements are as follows.

A 10/100 base-T Ethernet card installed in your PC

A hub or Switch (connected to several PCs through one of the Ethernet

interfaces on the device)

Operating system: Windows 98 SE, Windows 2000, Windows ME,

Windows XP or higher

Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox

1.5 or higher

LED & Button Definitions

Front Panel

Figure 1

LEDs

Color

Status

Description

Green

Powered on

OFF

Powered off

Red

ADSL broadband initial self-test failed or upgrading

firmware

ADSL

Green

ADSL line is synchronized and ready to use

SLOW

BLINK

ADSL synchronization failed ( Please refer to Note

FAST BLINK

ADSL negotiation is in progress.

Internet

Green

Internet connected in router mode

BLINK

Internet activity (transferring/receiving data) in

router mode

OFF

Device in bridged mode

Red

Internet not connected in router mode

(Please refer to Note 2)

LAN

Green

LAN port connected

BLINK

LAN activity (transferring/receiving data)

OFF

LAN port not connected

Note:

1) If the ADSL LED is off, please check your Internet connection. Refer to A .

Hardware Installation for more information about how to connect the

router correctly. If all connections are correct, please contact your ISP to

check if there is a problem with your Internet service.

2) If the Internet LED is red, please check your ADSL LED first. If your ADSL

LED is off, refer to Note 1. If the green ADSL LED is ON, please check your

Internet configuration. You may need to check with your ISP that your

Internet is configured correctly.

Rear Panel

Figure 2

Items

Description

Power ON/OFF

Power connector

LAN

Ethernet RJ-45 port

Reset

Resets device to factory defaults

(to reset to factory defaults, push a paper clip into the hole when the device is

powered and hold for more than 10 seconds)

Line

Line RJ-11 port

GETTING STARTED

A. Hardware Installation

Step 1: Connect the ADSL line

Connect the Line interface of the device to the Modem interface of a

splitter using a telephone cable. Connect a telephone to the Phone

interface of the splitter using a telephone cable. Connect the Line interface

of the splitter to your existing, incoming line.

The splitter has three interfaces:

Line: Connect to a wall phone jack (RJ-11 jack).

Modem: Connect to the ADSL jack of the device.

Phone: Connect to a telephone set.

Step 2: Connect the router to your LAN network

Connect the LAN interface of the router to your PC, Hub or Switch using an

Ethernet cable (MDI/MDIX).

Note:

Use twisted-pair Ethernet cables to connect the router to a hub or

switch.

Step 3: Connect the power adapter to the router

Plug one end of the power adapter into a wall outlet and connect the other

end to the 5V interface of the device.

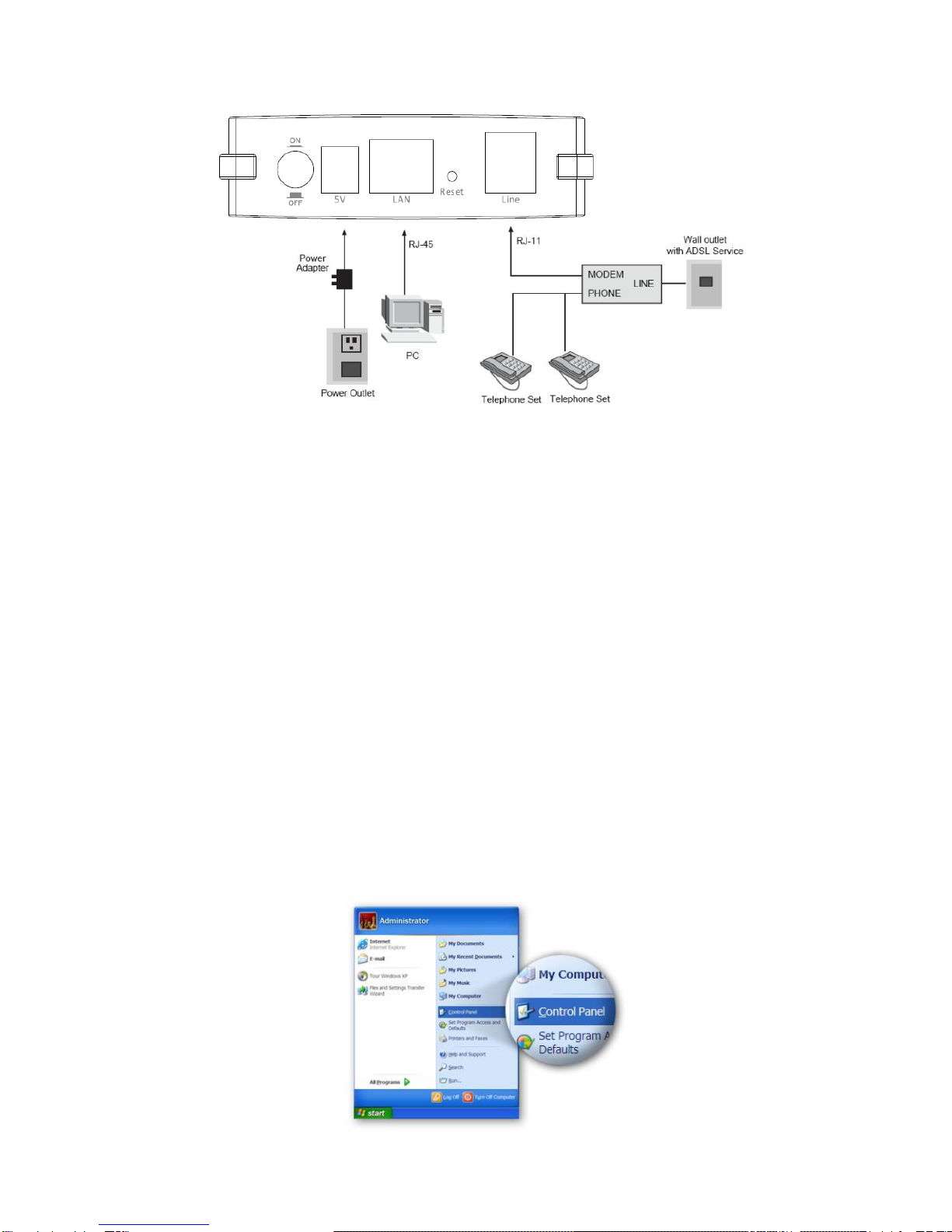

The following diagram shows how to correctly connect the router, PC,

splitter and the telephone sets.

Step 4: Check the ADSL LED status

Please check the ADSL LED on the front panel. This light indicates the status

of your ADSL broadband through your telephone line. If the light is on, you

can continue setup. However if the light is flashing, there is no broadband

line detected. Please call your Internet Service Provider (ISP) and inform

them about the flashing ADSL light to resolve the issue.

Step 5: Firewall settings

Please turn off all personal firewalls before you continue the setup –firewalls

can block communication between your PC and router.

Note: You must use the power adapter included in the package with the

router, do NOT attempt to use a third-party power adapter.

Step 6: PC LAN IP configuration

Configure your PC’s LAN settings to automatically obtain an IP address from

the router by following the steps below:

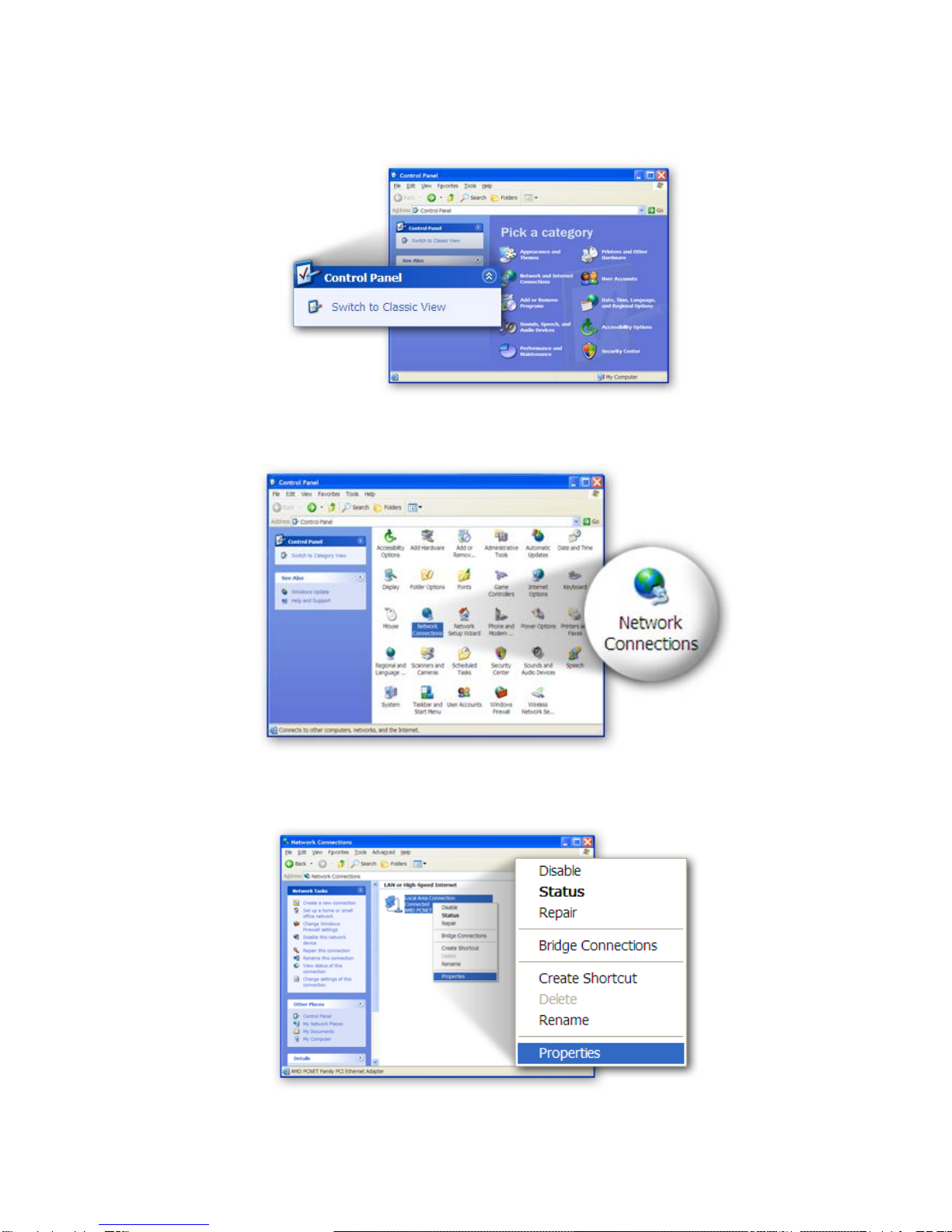

1. Click “Start” and then select “Control Panel”.

2. Click “Switch to Classic View” in the top left to show additional setting

icons.

3. Locate the “Network Connections”icon and double-click to open

network connection settings.

4. Select the “Local Area Connection” icon and right-click it to open the

sub-menu, then select “Properties”.

5. Select “Internet Protocol (TCP/IP)” and then click “Properties”

6. Ensure that “Obtain an IP address automatically” and “Obtain DNS

server address automatically” are selected and then press “OK”.

B. Internet Connection

You can configure the router by running the setup wizard on the CD-ROM

included in the package contents. The wizard enables you to configure

your Internet connection, upgrade the firmware and change the router’s

password. When you start the setup wizard, you will see the following

screen. Please choose a language and follow the on screen instructions

until setup is complete.

Alternatively, if you lose the CD-ROM or prefer a web based setup, you can

from there using the web-based interface. Please follow the instructions

below:

1. Enter the router’s default IP address: “192.168.2.1” into your PC’s web

browser and press “Enter”.

2. The login screen below will appear. Enter the default username “admin”

and default password “1234” and click “OK”.

3. You will arrive at the system status page as shown below.

4. In the navigation bar across the top of the screen, click “Wizard”. The

Wizard page of the web-based interface allows fast configuration of the

Internet connection and other parameters. Please refer to the user manual

for detailed information on these parameters. Enter the required

information on each page of the wizard and click “Next” until the wizard is

complete.
