Edimax CV-7438nDM Manual de usuario
CV-7438nDM
N600 Universal Dual-Band Wi-Fi Bridge
for Smart TV, Blu-ray, Gaming & Music Streaming
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
Edimax CV-7348nDM N600 Universal Dual-Band Wi-Fi Bridge, an ideal solution for home entertainment, features
a high-speed wireless connection to convert your Ethernet-enabled devices to be wireless, and a dual-band
option (either the 2.4 or 5 GHz radio bands) to avoid interference with other devices. Additionally, CV-7438nDM is
designed with an audio jack which enables the music streaming directly by exiting audio speakers from the apps of
PCs or smartphones.
Convert Wired Ethernet to Wireless
Eliminates annoying cables
Universal Compatibility
Supports two simultaneous connections and works
with any Ethernet device, including smart TVs, Blu-ray
/DVD players, game consoles, DVRs and set-top boxes
Plug & Play with no CD required
Hardware WPS button for easy one-touch setup
Music Streaming
Wireless music streaming to your audio system
FEATURES
Upgrade to 5GHz for HD video streaming
Converts any wired LAN device to wireless and complies with wireless IEEE 802.11a/b/g/n standards for data
rates up to 300Mbps (2.4GHz 300Mbps or 5GHz 300Mbps). The CV-7438nDM dual-band wireless bridge is also
an ideal solution to upgrade your existing, slow and out-dated 54Mbps 11b/g devices to super-fast 300Mbps
802.11n speeds. Upgrade your PS3, Xbox or other game console and connect to your existing Wi-Fi router for
high performance, stable and robust wireless connectivity.
Support for two devices
Equipped with 2 LAN ports to provide Wi-Fi connectivity for two devices simultaneously. Connect smart TVs,
Blu-ray/DVD players, DVRs, PCs, set-top boxes, game consoles or any Ethernet-cable device to your Wi-Fi
network. Say goodbye to unsightly, inconvenient cables and enjoy HD video & high-quality digital audio
streaming in style.
Wireless music streaming to your audio system
Features a standard 3.5mm audio jack to connect to your speakers or home theater system - listen to your
iPhone®, iPad® or iTunes® music library wirelessly from your living room or any audio system around your
home.
WPS hardware button
A built-in Wi-Fi Protected Setup (WPS) button allows for easy integration into existing home wireless network
environments. Simply press the WPS button on both the CV-7428nDM and your home wireless router to
establish a quick, easy and secure wireless connection.
Smart iQ Setup
Setup couldn’t be easier with our user-friendly, browser-based iQ Setup. iQ Setup can run from any browser on
a smartphone, tablet or computer and ensures a smart, automated process to get your Wi-Fi bridge running
efficiently. Simply select the 2.4GHz or 5GHz network you want to connect to and follow the on-screen
instructions to complete setup with a few easy clicks.
Energy saving power on/off switch
Switch off the Wi-Fi bridge when it’s not in use and contribute to a greener environment.
Gigabit Ethernet port
The CV-7438nDM is equipped with a super-fast Gigabit Ethernet port (1000Mbps) to connect to Gigabit devices
for the fastest possible wired transfer speeds.
WPA/WPA2 advanced wireless encryption
Supports various wireless encryptions protocols, including WEP 64/128 bit, WPA and WPA2.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
www.edimax.com
N600 Universal Dual-Band Wi-Fi Bridge
for Smart TV, Blu-ray, Gaming & Music Streaming
CV-7438nDM
Application Diagram
Bridges Wired Internet Devices
The Wi-Fi bridge offers a wireless connection to wired devices, allowing even Ethernet-only devices to go online
wirelessly.
Suitable for Home Theatres
The CV-7438nDM connects to a home theatre system via a standard 3.5mm audio jack –stream music wirelessly
from your smartphone, tablet or PC to your home entertainment/speaker system.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
www.edimax.com
N600 Universal Dual-Band Wi-Fi Bridge
for Smart TV, Blu-ray, Gaming & Music Streaming
CV-7438nDM
Features
•Wireless music streaming
•HDTV video streaming
•Enjoy Internet video, music and
online games
•Play music anywhere
Frequency Band
•2.4GHz or 5GHz
Wireless Standards and Data Rates
•IEEE 802.11ab/g/n (up to 300Mbps)
Audio sample rate and resolution
•DAC Signal-to-Noise Ratio (SNR) up
to 100dB
•Analog playback
44.1K/48K/88.2K/96K/176.4K/192K
Hz @ 16-bit/24-bit audio file
Hardware Interface
•2 x RJ-45 LAN ports (1 x Gigabit)
•Status LED indicators
•Internal high power antenna
•WPS/Reset button
•3.5mm audio jack
•Power on/off switch
•Power jack
Management
•11-language user interface
•Upgradable firmware
Security
•64/128-bit WEP encryption and WPA-
PSK, WPA2-PSK security
•802.1x authentication
•Wi-Fi Protected Setup (WPS)
System Requirements
•Internet/Smart TV or any Ethernet-
enabled device
•Existing wireless home network (2.4GHz
or 5GHz)
•Device with web browser for software
configuration: Microsoft®Internet
Explorer®8.0, Google Chrome®, Firefox®or
Safari®, iOS, Android latest version
•Speaker with 3.5mm audio jack for music
streaming
Package Contents
•CV-7428nDM
•Quick Installation Guide (QIG)
•CD with multi-language QIG and user
manual
•RJ45 Ethernet Cable
•DC 5V 1.2A power adapter with power
cable
•Access Key card
Installation
•Multi-language iQ Setup
(browser interface)
•Hardware WPS button
Humidity & Temperature
•10-90% (Non-condensing)
•0-40oC (32 - 104°F)
Power Adapter
•DC 5V 1.2A switching power
adapter
Antenna
•2 x internal high-power 5dBi gain
antenna
Dimensions
•95 (H) x 97 (W) x 100 (D) mm
Weight
•250 g
Certifications
•CE, FCC
Product Appearance
Product Specifications
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
www.edimax.com
N600 Universal Dual-Band Wi-Fi Bridge
for Smart TV, Blu-ray, Gaming & Music Streaming
CV-7438nDM

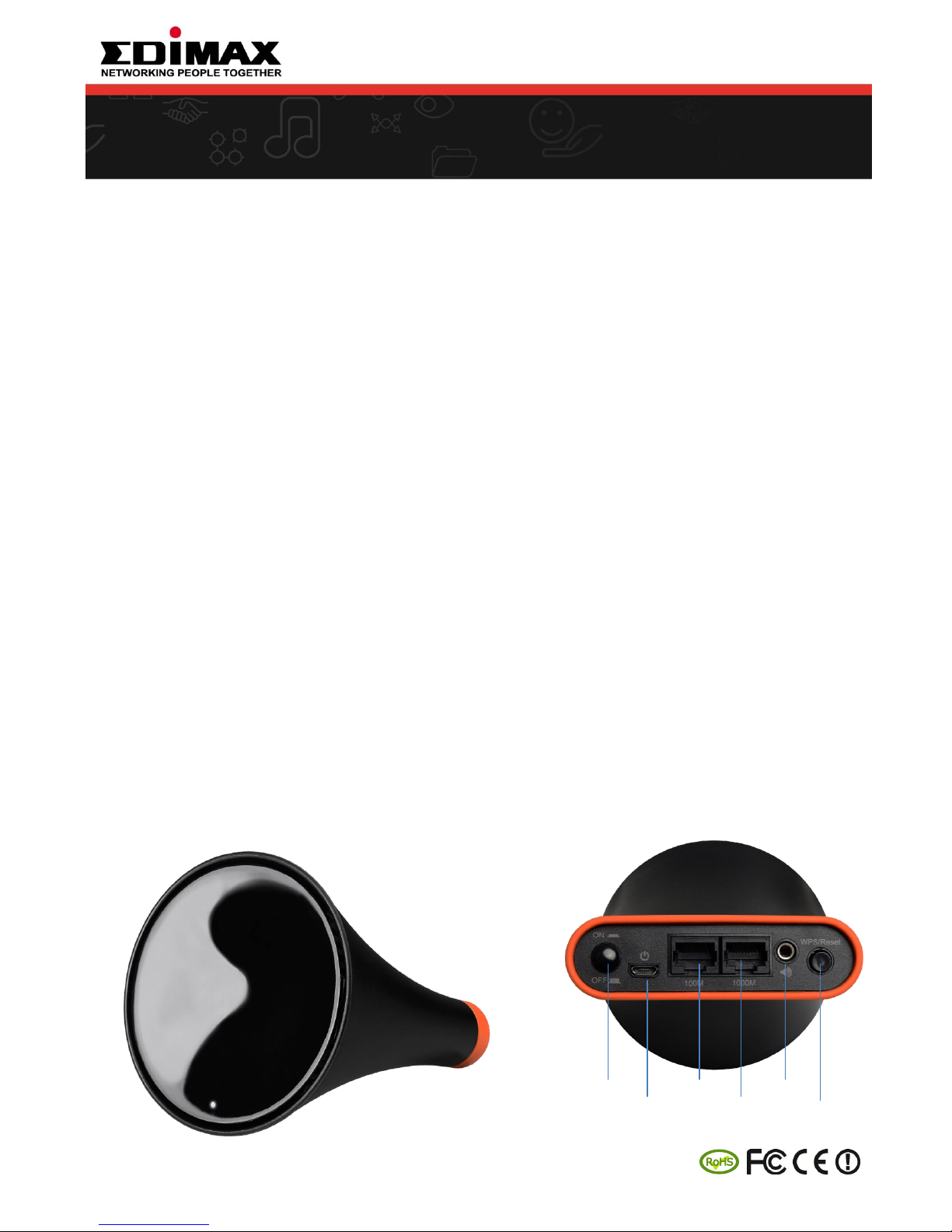

Power On/Off Switch
Power Port
100Mbps Port
1000Mbps Port
3.5mm
WPS Button
Audio Jack
