Eddy Wireless EDW-30T Manual de usuario

GPS

Personal

Tracker

User Manual

V6.1

EDW-30T

- 2 -

Contents

1.Product Overview................................................................................................................ - 3 -

2.For Your Safety................................................................................................................... - 3 -

3.EDW-30T Characteristics ...................................................................................................... - 4 -

4.Getting Started .................................................................................................................. - 4 -

4.1 Hardware and Accessories ........................................................................................... - 4 -

4.2 View......................................................................................................................... - 5 -

4.3 Functional Parts.......................................................................................................... - 5 -

4.4 First Use ................................................................................................................... - 6 -

5. Change Password............................................................................................................... - 7 -

6. Time Zone ........................................................................................................................ - 7 -

7. Track ............................................................................................................................... - 7 -

7.1 Track by SMS............................................................................................................. - 7 -

7.2 Track by Calling.......................................................................................................... - 8 -

7.3 Track by Preset Interval............................................................................................... - 8 -

7.4 Google Earth and Google Map....................................................................................... - 8 -

7.5 Track by MS01 ........................................................................................................... - 9 -

7.6 Track by GPRS between Server and Tracker.................................................................... - 9 -

7.6.1 Set Tracker’s GPRS ID......................................................................................... - 9 -

7.6.2 Set APN ...........................................................................................................- 10 -

7.6.3 Set IP and Port..................................................................................................- 10 -

7.6.4 Set DNS Server IP (optional)...............................................................................- 10 -

7.6.5 Enable GPRS Tracking ........................................................................................- 10 -

7.6.6 Set GPRS Interval..............................................................................................- 11 -

7.7 Track by GpsGate ......................................................................................................- 11 -

8. Authorization ...................................................................................................................- 11 -

9. Call Function....................................................................................................................- 11 -

9.1 Receiving Phone Call ..................................................................................................- 12 -

9.2 Making Phone Call .....................................................................................................- 12 -

9.3 Volume Adjustment....................................................................................................- 12 -

10. Low Battery Alarm ..........................................................................................................- 12 -

11. Speeding Alarm ..............................................................................................................- 12 -

12. Movement/Geo-fence ......................................................................................................- 12 -

12.1 Movement Alarm .....................................................................................................- 13 -

12.2 Geo-fence Alarm......................................................................................................- 13 -

13. Power Down...................................................................................................................- 13 -

14. Initialization ...................................................................................................................- 14 -

15. Password Initialization .....................................................................................................- 14 -

16. Parameter Editor.............................................................................................................- 14 -

Annex 1. SMS Command List .................................................................................................- 15 -

Annex 2. Troubleshooting ......................................................................................................- 19 -

Contacts .............................................................................................................................- 20 -

- 3 -

1.Product Overview

The EDW-30T is a GPS/GPRS based personal tracking device, which is compact and easy to use.

EDW-30T has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send

the position data to a specified mobile phone or server base to allow users to monitor people or pets using

the tracker.

EDW-30T supports two way voice communications and can be activated either by the guardian calling the

tracker or the tracker holder activating the SOS button. The tracker can be configured to report its

location to the server base or mobile phone at preset intervals.

EDW-30T has the following functions and features:

SMS and GPRS TCP/UDP Communication

Track on demand

Show Location Directly on Mobile Phone

Track by Time Interval

Two-way Audio

SOS Panic Button

Movement Alarm

Geo-fencing Control

Low Battery Alarm

Speeding Alarm

GPS Blind Area Alarm (in/out)

Three Buttons for Making Phone Call and/or Sending Message

Built-in Super Magnet (Optional)

2.For Your Safety

Read these simple guidelines. Not following them may be dangerous or illegal.

Switch onsafely Do not switch onEDW-30T when wireless phone use is prohibited orwhen itmay

cause interference ordanger.

Switch off in hospitals Follow any restrictions. Switch EDW-30T off near medical equipment.

Switch off in aircraft Follow any restrictions. Wireless devices can cause interference in aircraft.

Switch off when refueling Do not use EDW-30T when at a refueling point. Do not use near fuels or

chemicals.

Switch off near blasting

Qualified service

Water resistance

Follow any restrictions. Do not use EDW-30T when blasting is in progress.

Only qualified personnel can repair EDW-30T is not fully water

resistant. Keep it dry. Use waterproof bag if

necessary.

- 4 -

3.EDW-30T Characteristics

Items Specification

Charging Voltage DC 4.2-5.5V/400mA (Mini USB port)

Internal Battery Rechargeable and replaceable 1350 mAh battery (3.7V),

Dimension 77 mm × 51 mm × 25 mm

Weight 80g (with battery)

Operating temperature -20° to 55° C

Humidity 5% to 95% Non-condensing

GSM module Tri Band GSM 900/1800/1900Mhz or Quad Band GSM 850/900/1800/1900Mhz

GPS Chipset latest GPS SIRF-Star III chipset

GPS Sensitivity -158Db

GPS Frequency L1, 1575.42 MHz

C/A Code 1.023 MHz chip rate

Channels 20 channel all-in-view tracking

Position Accuracy 10 meters, 2D RMS

Velocity Accuracy 0.1 m/s

Time Accuracy 1 us synchronized to GPS time

Default datum WGS-84

Reacquisition 0.1 sec., average

Hot start 1 sec., average

Warm start 38 sec., average

Cold start 42 sec., average

Altitude Limit 18,000 meters (60,000 feet) max.

Velocity Limit 515 meters/second (1000 knots) max.

Acceleration Limit Less than 4g

Jerk Limit 20 m/sec

Work time 55 hours in power-saving mode and 12 hours in normal working mode

LED 3 LED lights to show power, GPS, GSM and other status.

Button 3 buttons(SOS/B/C) for making phone calls and sending SMS

4.Getting Started

This section will describe how to set up your EDW-30T.

4.1 Hardware and Accessories

EDW-30T is supplied in a box which includes:

- 5 -

EDW-30T with Battery Car Charger Wall Charger Earphone with Mic USB Cable CD

4.2 View

Front View Side View Back View

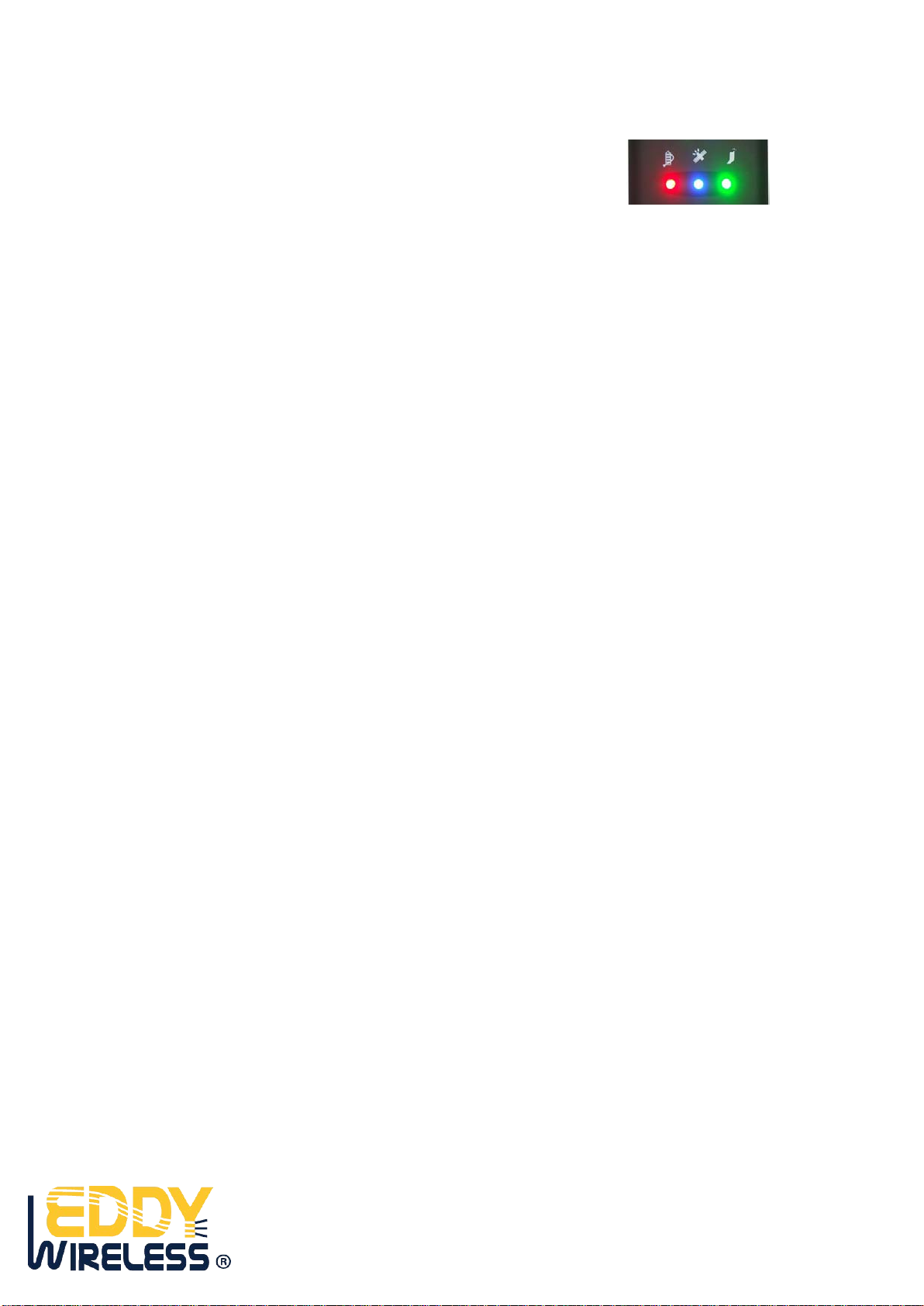

4.3 Functional Parts

Your EDW-30T has four buttons and three LEDs with three different colors to indicate the status of the

unit.

Red LED - indicating battery status

Off Power is off or charging is complete

Flashing (every 0.1 second) Low battery

On Charging

Flashing (1 second on and 2 seconds off) Working

Blue LED - indicating GPS status

On One button is being pressed

Flashing ( every 0.1 second) The unit is being initialized

Flashing (0.1 second on and 2.9 seconds off) EDW-30T has a GPS fix

Flashing (1 second on and 2 seconds off) EDW-30T has no GPS fix

Green LED - indicating GSM status

- 6 -

On One call is coming in / one call is being made

Flashing ( every 0.1 second) The unit is being initialized

Flashing (0.1 second on and 2.9 seconds off) EDW-30T is connected tothe GSM network

Flashing (1 second on and 2 seconds off) EDW-30T is not connected tothe GSM network

Buttons

Power On/Off Button To turn on/off EDW-30T

SOS Button To make a phone call and/or send an SMS to the preauthorized phone

number.

Press it to receive an incoming call.

Press it to increase volume during conversation.

Call B To make a phone call and/or send an SMS to the preauthorized phone

number.

Press it to reject a call, cancel calling or complete a conversation.

Call C To make a phone call and/or send an SMS to the preauthorized phone

number.

Press it to decrease volume during conversation.

Other Connectors

Mini USB Used for charging, firmware update and configuration on PC.

(USB-to-

Serial Adaptor is required for firmware update and

configuration)

SIM Card To insert SIM card here

Earphone Plug For connecting earphone

Lanyard Loop For connecting lanyard.

4.4 First Use

Please read this manual before using your EDW-30T.

4.4.1 Ensure that your EDW-30T has a working SIM card

installed. - Check that the SIM has not run out of credit (Test

the SIM in a phone to make sure it can send and receive SMS)

- Check that the SIM Lock code is turned off

- If you require the function of sending an SMS location report

to the authorized phone number when it makes a call to the

EDW-30T,please make sure the SIM installed supports

displaying caller ID.

4.4.2 Charge the battery for at least 3 hours in power-off status

using the wall charger or car charger. Or you can connect the

tracker directly to computer by USB for charging. Red light is on

during charging and off when charging is complete.

4.4.3 Push the Power On/Off button to the ON side and wait for

about 20 seconds. It will then enter standby mode. It is suggested

that you be in an outer place where it can receive better GPS when

you turn on the device.

- 7 -

Check that the Red LED (Battery) is flashing 1 second on and 2

seconds off.

Check that the Green LED (GSM) is flashing 0.1 second on and 2.9

seconds off.

Check that the Blue LED (GPS) is flashing 0.1 second on and for

2.9 seconds off.

5. Change Password

Command: W******,001,######

Description: Change user’s password.

Note:

1. ****** is user’s password and the default password is 000000. The tracker will only accept commands

from a user with the correct password. Commands with wrong password will be ignored.

2. ###### is the new password. Password should be 6 digits.

Example:

W000000,001,123456

W123456,001,999999

6. Time Zone

Command: W******,032,T

Description: Correct time into your local time

Note:

1. Default time of the tracker is GMT

2. This correction is applied to location reports by SMS and SMS alarms.

T=0, to turn off this function.

T=[1, 65535] to set time difference in minute to GMT.

For those ahead of GMT, just input the time difference in minute directly. For example, GMT+8,

W000000,032,480

‘-‘is required for those behind GMT. For example, W000000,032,-120.

Example:

W000000,032,480

W000000,032,-120

7. Track

7.1 Track by SMS

- Track on Demand - Reply with longitude, latitude, speed and date

Command: W******,000

- 8 -

Description: Get the current location of the tracker, send this SMS or make a telephone call directly to the

tracker and it will report its longitude and latitude by SMS with format as follows:-

Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50

Example:

W000000,000

- Track on Demand - Reply with a Google link

Command: W******,100

Description: Send this command to the tracker and then you receive an SMS with an http link. Click on the

link then the location can be shown directly on Google Map on your mobile phone. For example:

http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329&ie=UTF8&z=16&iwloc=addr&om=1

Notes: Only smart phones and PDA support this function.

Example:

W000000,100

7.2 Track by Calling

Make a missed call to the tracker and it will report its longitude and latitude by SMS with format as follows:-

Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50

7.3 Track by Preset Interval

Command: W******,002,XXX

Description: Set an interval for the tracker to continuously return its location by SMS

Note:

1. XXX is the interval in minute.

2. If XXX=000 to turn off tracking by time interval

Example:

W000000,002,030

The tracker will send location data back to your mobile phone every 30 minutes.

7.4 Google Earth and Google Map

Download Google Earth from http://earth.google.com/.

Start Google Earth (For more information about Google Earth please refer to http://earth.google.com/) or

go to http://maps.google.com in your Internet Explorer

- 9 -

Input the latitude and longitude that you receive from the tracker by SMS and click the search button.

Google Earth or Google Maps will display the location for you.

Example:

When you receive: Latitude = 22 32 40.05N Longitude = 114 04 57.74E

Type as the following picture shows:

(Note: you should input the latitude and longitude as: 22 32 40.05N 114 04 57.74E)

And then you can find the location of your tracker:

Or you can use local map software on PDA or car navigation device to input the coordinates.

7.5 Track by MS01

If you have bought our GPS Tracking Software MS01, after proper configuration, you can do tracking on

MS01.

GPS Tracking Software - MS01

Please refer to MS01 User Guide for more information.

7.6 Track by GPRS between Server and Tracker

7.6.1 Set Tracker’s GPRS ID

Command: W******,010,ID

Description: Set a digital GPRS ID for the tracker.

- 10 -

Note: GPRS ID must not over 14 digits.

Example:

W000000,010,00001

7.6.2 Set APN

Command: W******,011,APN,Username,Password

Description: Set APN details for the tracker

Note:

1. APN username and password are optional. If no APN username and password are required, just input APN

only;

2. APN defaulted as ‘CMNET’;

3. APN + username + password should not over 39 characters.

Example:

W000000,011,CMNET,trackingmate,6688

W000000,011,CMNET

7.6.3 Set IP and Port

Command: W******,012,IP,Port

Description: Set IP and Port for tracker for GPRS communication.

Note:

1. IP is your server’s IP or the domain name.

2. Port: [1,65534]

Example:

W000000,012, 220.121.7.89,8500

W000000,012,www.trackingmate.com,8500

7.6.4 Set DNS Server IP (optional)

Command: W******,009,DNS Server IP

Description: In case the domain name you set by the last command (W******,012,IP, Port) doesn’t work,

which means your server IP is not properly set. You can first use this command to set DNS Server IP (please

check with your DNS server provider for the DNS Server IP) and then redo the command W******,012,IP,

Port.

Example: W000000,009,220.23.4.90

7.6.5 Enable GPRS Tracking

Command: W******,013,X

Description: Enable GPRS tracking function.

Note:

X=0, to turn off GPRS tracking (default);

X=1, to enable GPRS tracking via TCP

X=2, to enable GPRS tracking via UDP

Example: W000000,013,1

Otros manuales para EDW-30T

Tabla de contenidos

Otros manuales de GPS de Eddy Wireless

Eddy Wireless

Eddy Wireless EDW-30T Manual de usuario

Eddy Wireless

Eddy Wireless EDW-310BB Manual de usuario

Eddy Wireless

Eddy Wireless EDW-310 Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
