Congratulations on your purchase of the Ecovacs DEEBOT patented floor cleaning

robot. We hope it brings you many years of satisfaction. We trust the purchase of

your new product will help you to keep your home clean and provide you more quality

time to enjoy other things.

Before you go any further, we suggest you register your product on the Ecovacs

website at www.Ecovacs.com/register.html. We also suggest you record your model

number, serial number, date of purchase and attach your receipt to this page for safe

keeping. (The serial number is located on a label in the robot under the dust bin and

on the last page of the Instruction Manual)

MODEL # ________________

SERIAL # ________________

DATE OF PURCHASE ___ / ___ / ___

Should you have any problems programming the unit or getting your product to

function properly, please call us before contacting or returning the product to the

place of purchase. Call 1-844-ECOVACS (1-844-326-8227) for assistance.

Thank you for choosing Ecovacs!

Contents

1. Safety Instructions

1.1 User Guidelines

1.2 Power Supply

1.3 Product Application Range

1.4 Notes Before Cleaning

2. Package Contents and Technical Specifications

2.1 Package Contents

2.2 Technical Specifications

2.3 Product Diagram

2.4 Robot Control Panel

2.5 Remote Control with LED Panel

3. Operation and Programming

3.1 Assemble and Charge

3.2 Choose Suction Option

3.3 Power ON, Pause, Power OFF, Start

3.4 Mode Selection

3.5 Optional Mopping Feature

3.6 Programming the Robot

3.7 Voice Reporting

4. Maintenance

4.1 Multi-Function Cleaning Tool

4.2 Cleaning the Robot and Charging Dock

4.3 Main Brush, Side Brushes and Driving Wheels

4.4 Dust Bin and Filter

4.5 Cleaning the Robot’s Dust Sensors and Anti-Drop Sensors

5. Troubleshooting

Contents

1. Safety Instructions

1.1 User Guidelines

1.2 Power Supply

1.3 Product Application Range

1.4 Notes Before Cleaning

2. Package Contents and Technical Specifications

2.1 Package Contents

2.2 Technical Specifications

2.3 Product Diagram

2.4 Robot Control Panel

2.5 Remote Control with LED Panel

3. Operation and Programming

3.1 Assemble and Charge

3.2 Choose Suction Option

3.3 Power ON, Pause, Power OFF, Start

3.4 Mode Selection

3.5 Optional Mopping Feature

3.6 Programming the Robot

3.7 Voice Reporting

4. Maintenance

4.1 Multi-Function Cleaning Tool

4.2 Cleaning the Robot and Charging Dock

4.3 Main Brush, Side Brushes and Driving Wheels

4.4 Dust Bin and Filter

4.5 Cleaning the Robot’s Dust Sensors and Anti-Drop Sensors

5. Troubleshooting

Safety Instructions

1. Safety Instructions

1.1 User Guidelines

1.2 Power Supply

Use only the original rechargeable battery and charging equipment provided with the product.

Please make sure your power supply voltage matches the power voltage marked on charging dock.

Take care not to damage the cord. Do not remove plug from the power supply by pulling on the cord.

To unplug, grasp the plug, not the cord.

When not using the charging dock for a long period of time, please unplug it.

Ecovacs Robotics, Inc. is an eco-friendly company. Please dispose of used batteries in accordance

with your local regulations.

DEEBOT must be used in

accordance with the

directions in the Instruction

Manual. Ecovacs Robotics,

Inc. cannot be held liable or

responsible for any

damages or injuries caused

by improper use.

If there is a drop off in the

cleaning area due to a step or

stairs, you should operate the

unit to ensure that it can detect

the step without falling over

the edge. It may become

necessary to place a physical

barrier at the edge to keep the

unit from falling. Make sure the

physical barrier is not a trip

hazard.

This product is NOT

intended for use by children

or anyone lacking

knowledge on proper use.

Supervision may be

necessary.

The product and its

charging equipment

should be kept away from

water and fire.

When the product is

working, please inform your

family and supervise

children/pets.

Should you encounter situat-

ions that have not been pro-

perly addressed to your

satisfaction in this Instruction

Manual, we ask that you

contact our Customer Service

Center at 1-844-ECOVACS

(1-844-326-8227) where a

Technician can properly

address your specific problem

or question.

Customer Service Center Telephone:

1-844-ECOVACS

(1-844-326-8227)

Safety Instructions

1.3 Product Application Range

DEEBOT is capable of cleaning all types of flooring, whether it’s wood, marble, tile, linoleum or short-pile carpet

(up to 0.79 inch). It is not suitable for use on long-pile (longer than 0.79 inch) carpet.

1.4 Notes before Cleaning

Inappropriate Environments :

Do not allow the unit to ingest the following

Liquid, such as water or

cleansing solution, etc.

Wet floors or floors with

standing water. Extremely hot or cold

environments (below 32˚F

or above 85˚F)

Outdoor, commercial or

industrial sites.

Sharp objects, such as

pins, paper clips or broken

glass, etc.

Large objects like stones,

large pieces of paper,

debris, or any other item

that may clog the machine

or cause motor damage.

Soot, coals, burning

cigarette butts, matches,

laser printer or copier

toner, or any other items

that could cause a fire.

Before operating DEEBOT, take a few moments to survey the area of operation and remove obstacles that may

cause the robot to stop working.

Please be aware that the robot

needs at least a 4-inch

clearance to clean under

furniture without complications.

D8 is equipped with Anti-Tangle

Technology which helps the robot avoid

getting tangled in items in its path,

however, we still recommend preparing

the environment. Remove power cords

and small objects from the floor that

could entangle the product. Tuck rug

fringe under the rug base, and lift items

such as curtains and tablecloths off the

floor.

Ensure the Dust Bin, Main Brush and

Side Brushes are correctly installed.

Make sure the Anti-Drop Sensors and

Dust Sensors are wiped clean with the

provided Multi-Function Cleaning Tool.

When using the mopping

feature with the Cleaning

Cloths attached, please fold

area rug edges under

themselves so the robot will

avoid the rug.

Note:The robot can be used without the

main brush installed for direct suction.

This avoids hair tangling around the

Main Brush.

2. Package Contents and Technical Specifications

2.1 Package Contents

Remote Control

with Batteries

2.2 Technical Specifications

Robot Charging Dock (4) Side Brushes

Package Contents and Technical Specifications

Instruction Manual

and Quick Start Guide

Direct Suction

Option

(for D83 ONLY)

(10) Disposal Dry

Cleaning Cloths (10) Disposal Wet

Cleaning Cloths

Washable/Reusable

Microfiber

Cleaning Cloth

Cleaning

Cloth Plate

Working Voltage (V)

Rated Power (W)

Battery Capacity (mAh)

Interchangeable Suction Options

Speed (in/s)

Dust Bin Capacity (L)

Charging Time (h)

Working Time Per Charge (min)

Noise (dB)

Size (in)

Net Weight (lb)

Carpet Capability (in)

Rated Input Voltage (V)

Rated Output Voltage (V)

Rated Output Current (A)

Rated Power (W)

Working Voltage (V) 3

2500

11.4

0.7

Approximately 3~4

≤56

13.27*13.27*3.47

6.17

0.79

120~

14.5

0.75

* Technical and design specifications may be changed in the course of continuous product improvement.

Robot Model: D83D80

Charging Dock Model:

Remote Control Model:

DEEBOT (Dry)

OPEN

Certified

Accessory

DEEBOTCleaning Pad (Wet)

OPEN

Certified

Accessory

Main Brush Option

(pre-installed)

Multi-Function

Cleaning Tool

Main Brush Option or

Direct Suction Option

CH1442

RC1360A

Main Brush Option

120 100

2.3 Product Diagram

Top Cover

Dust Bin

Suction Motor

Dust Bin Handle

Filter Net

Air Outlet

Advanced

Anti-bacterial Filter

Dust Sensors

Anti-Drop Sensors

Side Brushes

Main Brush

Universal Wheel

Bottom Power Switch

All-Terrain Driving

Wheels

Interchangeable

Suction Components

Battery Cover

Cleaning Cloth Plate

Charging Dock

Electrode

Main Unit

Elevation of Robot

Bottom ViewFront View

Control

Panel

Bumper Rail with

Anti-Collision Sensors

Dust Bin

Charging Dock

Top View

Charging Dock

Package Contents and Technical Specifications

Infrared Receiver

for Remote Control

D8 has a small, unobtrusive, and stylish charging dock that fits with any decor. Its new design ensures a

proper connection every time the robot returns for charging.

Infrared Signal

Generator

Charging Pin

Infrared Signal

Generator

Notice

Package Contents and Technical Specifications

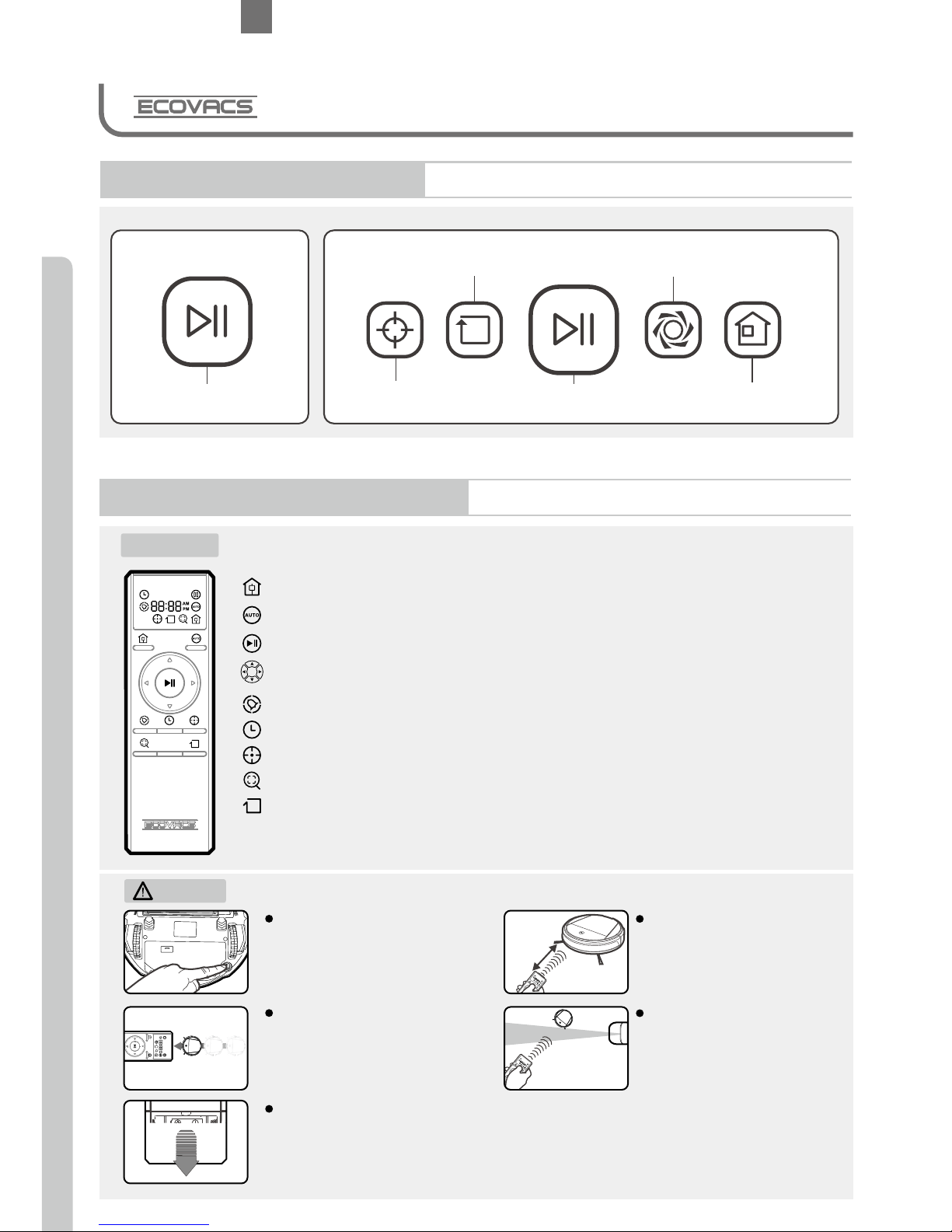

2.4 Robot Control Panel

Return to Charger Button: Start Return to Charger Mode.

AUTO Cleaning Mode Button: Start AUTO Cleaning Mode.

Start/Pause/Confirm Button: Push to Start or Pause the current function

Direction Control Button: Push and hold the appropriate button to drive the robot in

any direction.

Front View

D80 D83

Spot Cleaning

Mode key

Edge Cleaning

Mode key

START/PAUSE key

Intensive Cleaning

Mode key

Return to Charger

Mode key

2.5 Remote Control with LED Screen

Please make sure the Remote

Control’s batteries are properly

installed and Bottom Power

Switch ON.

Remove batteries if Remote

Control will not be used for

a long time.

The robot is not able to vacuum

when it is being moved using

the Remote Control.

When using the Remote

Control, be sure to point it

towards the infrared signal

receiver on the robot, and be

within 16 feet of the robot.

The Charging Dock or other

sources that use an infrared

signal may interfere with the

Remote Control signal.

Spot Cleaning Mode Button: Start Spot Cleaning Mode.

Edge Cleaning Mode Button: Start Edge Cleaning Mode.

Intensive Cleaning Mode Button: Start Intensive Cleaning Mode.

Set Current Time Button: Set the current time of day.

Set Cleaning Time Button: Set the time for the robot to automatically clean.

START

???

START

16 feet

3. Operating and Programming

3.1 Assemble and Charge

Charging Dock Placement

Assemble the Charging Dock and place it on a level floor surface with the base

perpendicular to the ground. Keep the immediate area in front of the charger

(approximately 5 feet) clear of objects and reflective surfaces that would interfere

with the infrared receiver. Plug the Charging Dock in.

Charge the Robot

The START/PAUSE key on the robot blinks when the robot is charging.

Charging normally takes about 3 hours.

After charging finishes, the START/PAUSE key on the robot stays illuminated.

After the robot’s battery is fully charged, DEEBOT’s battery management system will reduce to a trickle charge

to save electricity.

To confirm the robot is charging when it is on the Charging Dock, please make sure the START/PAUSE key is

blinking or stays illuminated.

Turn the switch on the bottom of the robot to the ON position.

Charge the robot at least 12 hours before the first 3 uses.

Place the robot on the Charging Dock making sure the Charging Dock electrode and the Charging Pin on the

robot make a connection.

Automatic Charging

Three Ways to Charge

The robot can perceive a low

battery when it is working, and

will automatically switch to

Back to Charger Mode when

necessary.

You can command the robot

to switch to Back to Charger

Mode at any time with the

Remote Control or the button

on the robot’s control panel.

Command Charging Manual Charging

Turn ON the power switch on the

bottom of the robot and place it

on the Charging Dock by hand.

Ensure that the Charging Dock

Electrode and the Charging Pin

on the robot make a connection.

Notice

Operation and Programming

5 feet

1.7feet 1.7 feet

When the batteries are fully discharged or not used for a long time, their capacity may decrease, so it’s

suggested to reactivate them.

Method of reactivating batteries: place the robot on the Charging Dock by hand, remove after charging for

3 minutes; repeat 3 times, then charge normally for 3-5 hours.

Note

Operation and Programming

To remove or replace the robot’s batteries:

① Unscrew the battery cover screws, remove battery cover, and take out batteries.

② Insert new batteries according to the corresponding positive and negative electrodes.

③ Reassemble the battery cover.

12 3

Remove batteries if the robot will not be used for a long time or before the robot is recycled.

Tabla de contenidos

Idiomas:

Otros manuales de Aspiradora de ECOVACS

ECOVACS

ECOVACS ECO D62 Manual de usuario

ECOVACS

ECOVACS Deebot 4 Manual de usuario

ECOVACS

ECOVACS DEEBOT 601 Manual de usuario

ECOVACS

ECOVACS Deebot Slim Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO T8+ Manual de usuario

ECOVACS

ECOVACS Deebot N8 Pro Manual de usuario

ECOVACS

ECOVACS Winbot 9 Manual de usuario

ECOVACS

ECOVACS DEEBOT M82 Manual de usuario

ECOVACS

ECOVACS Deebot D56 Manual de usuario

ECOVACS

ECOVACS Deebot 4 Manual de usuario

ECOVACS

ECOVACS Deepoo ECO D58 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 920 Manual de usuario

ECOVACS

ECOVACS DEEBOT T10 PLUS Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 960 Manual de usuario

ECOVACS

ECOVACS WINBOT Manual de usuario

ECOVACS

ECOVACS deebot m88 Manual de usuario

ECOVACS

ECOVACS DEEBOT T20 OMNI Manual de usuario

ECOVACS

ECOVACS DEEBOT SLIM2 Manual de usuario

ECOVACS

ECOVACS DEEBOT NEO+ Manual de usuario

ECOVACS

ECOVACS DEEBOT U2 Series Manual de usuario

ECOVACS

ECOVACS DEEBOT T9+ Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 930 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 937 Manual de usuario

ECOVACS

ECOVACS ECO D54 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
