ECOVACS Deebot D56 Manual de usuario

D56 User Guide

Robot Vacuum Cleaner

Thanks for purchasing

products Hope you can enjoy it

Thanks again for your choice!

patented

. !

Robot

Vacuum Cleaner

1. Safety Instruction....................... ..

User Guide............................ .... ... 10. Maintenance.................... .............

Power Supply for the Product......... .....

The Spectrum of Product Use....... ....... Dust Box Cleaning

Notes before Cleaning.................. ..... Cotton Filter Cleaing............ ............

Child Safety................... ............. ... Sponge Filter Replacement

Battery Replacement and Disposal Main Brush Cleaning.......... ..............

Resource Utilization Side Brush Cleaning

When Product is in Failure.......... ......

2. Content in the Original Package and

Technical Parameter......... ... ......

3. Name of Parts

The Host ................................ . ... 11. Alarming................... .... .......

12. Common Failure............... ..............

4. Battery Charging.................... .. Other Problems.......... ....... ............

Assembly Charging Block.......... .......

Robot Charging................ ..

5. Power On/Pause/Power Off....... .....

Power On..................... .... ..... .

Pause................... ............ .........

Power Off................. ....................

Mode Selection............... ..........

Automatic Cleaning Mode ....... ...

Border Cleaning Mode.... ....... .... ..

Fixed Point Cleaning Mode........... ...

Cleaning Mode....... .. . ..

Go Back Charging Mode......... .... ....

8. Appointment Time Setting.................

Set Current Time Cleaning

... 9. Day-to-Day Storage.......................... 16

.. ..... 3 .... 16

.. 3 Host Cleaning....................................16

.. 4 ..............................16

... 5 ... 17

. ..... 5 .................18

........6 ... 18

.............................6 ...........................19

..... 6 Side Brush Replacement.....................19

Driving Wheel Cleaning.......................19

...... ... 7 Up-Ground Height Sensor Cleaning....19

.................................... 8 Dust Sensor Cleaning.........................20

. ........ 8 ....... ...... 20

LCD and Control Panel..........................9 .. 21

.......... 9 13. . .. 22

..... 9

................ 10

... 11

....... .... . 11

...... .. 11

...... 11

6. ......... 12

......... . 12

... ... . 13

.... 13

Intensive ..... . ... 13

.. ... 13

7. Automatic Charging...........................14

Set Appointment Time Cleaning...........14

...................15

...3

Content

1.Safety Instruction

The User Guide

Please conform to the basic safety precautions as follows:

● Read the content in this user guide carefully and install the robot according to the detailed instructions.

● Safekeeping this guide. If you transfer this machine to another person, please make sure attach this booklet.

● Any inconsistent operation with this guide would probably cause serious damage to both human being and the

machine itself.

Power Supply for the Product

● The power supply is from a Ni-MH chargeable battery inside the host of the

robot and it is specially assigned with a charging block to do recyclable

charge.

● Please double check the marked supply voltage on the charging block and

make sure it is applied according to the instructions.

● Do not use the damaged power cord or plug, while contact our after-sales

service or find our authorized supplier to maintain.

● As the charging block is heavy, please never drag the block via pulling it’s

power cord.

● Remember never twist, swing or screw the power cord excessively.

Neither block it when close the door. Also we should not put heavy

things on the robot as well.

● Do not let power cord touch hot or sharp surfaces.

● Do not draw out the plug by pulling the cord.

● Keep wet hands away from the plug or machine.

● Pull the plug out of socket when you no longer use the charging block for

some time.

● Use dry cloth to wipe the dust on the plug frequently.

Enjo y S m a r t e r Life!

Note：

War ning：Where there is a drop off in the cleaning area due to a step or

stairs and they are not carpeted, you should operate the unit to see that the

unit can detect the step without falling over the edge. It may become

necessary to place a physical barrier at the edge to keep the unit from falling

over the drop but make sure the physical barrier is high enough so that you

or a family member will not trip on the barrier and cause themselves injury.

Do not open the equipment. The components inside the robot host are beyond repair by

user himself.

This product is only for domestic use, not suitable for industry or outdoor surroundings.

Please do not press LCD.

Guardrail

Set up

Guardrail

Cloth

cleaning

CorrectCorrect

Electricity

leakage

Draw out

the plug

Draw out

the plug

The Spectrum of the Product Use

● The robot is applicable to domestic sweeping, including wooden floor,

rubber floor, ceramic tile, linoleum and medium or shorthaired carpet.

However, it is inapplicable to longhaired carpet.

● It can not be used for the floor as below:

--- - Have water on the surface ( including flammable liquids), such

as wet floor.

--- - Inside toilet, shower room or other humid situation.

--- - Staircase.

--- - The room with furnace or flame.

● The following objects are definitely forbidden:

--- - Not extinguished soot, burning cigarette butts or match, because

these objects would cause fire.

--- - Sharp objects like glass debris, pin, paper clip,stones, gypsum,

and large piece of paper. These things may block the machine.

--- - Water or other kind of liquid, especially detergent, kerosene,

petrol, paint, alcohol, perfume, as well as carpet or floor cleaning solution.

It would make the interior of the machine wet, so that may cause short-

circuit.

--- - The toner of laser printer and copier which may bring fire and

explosion.

● Please keep the machine away from hot source such as oven and

fireplace, because the hot can distort the crust.

● Do not use the machine in the surroundings with any explosion risk.

For example, at gas station, oil depot, chemical plant and so on.

● Never use the machine outdoors. As rain or solid dust may get inside it and

cause damage.

● Do not repair or change any performance by yourself.

● Do not throw or bend the machine.

● Do not dampen it, or else the short-circuit would cause fire or electric

shock accident.

● Take care of routine maintenance and keep it in a clean place.

● Do not expose the machine in the extreme hot or cold surroundings. This

product is not allowed to long-time kept in the temperature below zero or

over thirty degree.

● Do not keep the machine in the liquid or expose it to high humidity.

● Do not place the machine close to burning cigarette or fire.

Notes before Cleaning

● Take extra care of the robot when the first it works. Please remove the

obstacles when it is beyond the robot.

● Make precautions to solve the problem which may make the cleaning in

trouble, such as:

Keep the easily knock over objects in a safe place.

--- - Permian the edge of the carpet.

--- - The hanging tablecloth and curtain should not touch the ground.

--- - The flammable object should be cut from the fire source.

--- - Sort out the tangled power cord on the floor.

● Check whether the main brush is correctly fixed inside the robot before

cleaning.

● Examine if the dust box is empty and insure it is fixed.

● Please check whether up-ground height sensor and dust sensor have

been wiped clean.

● Please close the door if you just want to clean one room.

--- -

● Children, physically or mentally disabled people are not allowed to use it,

unless their safety supervisors accompany them to give instruction.

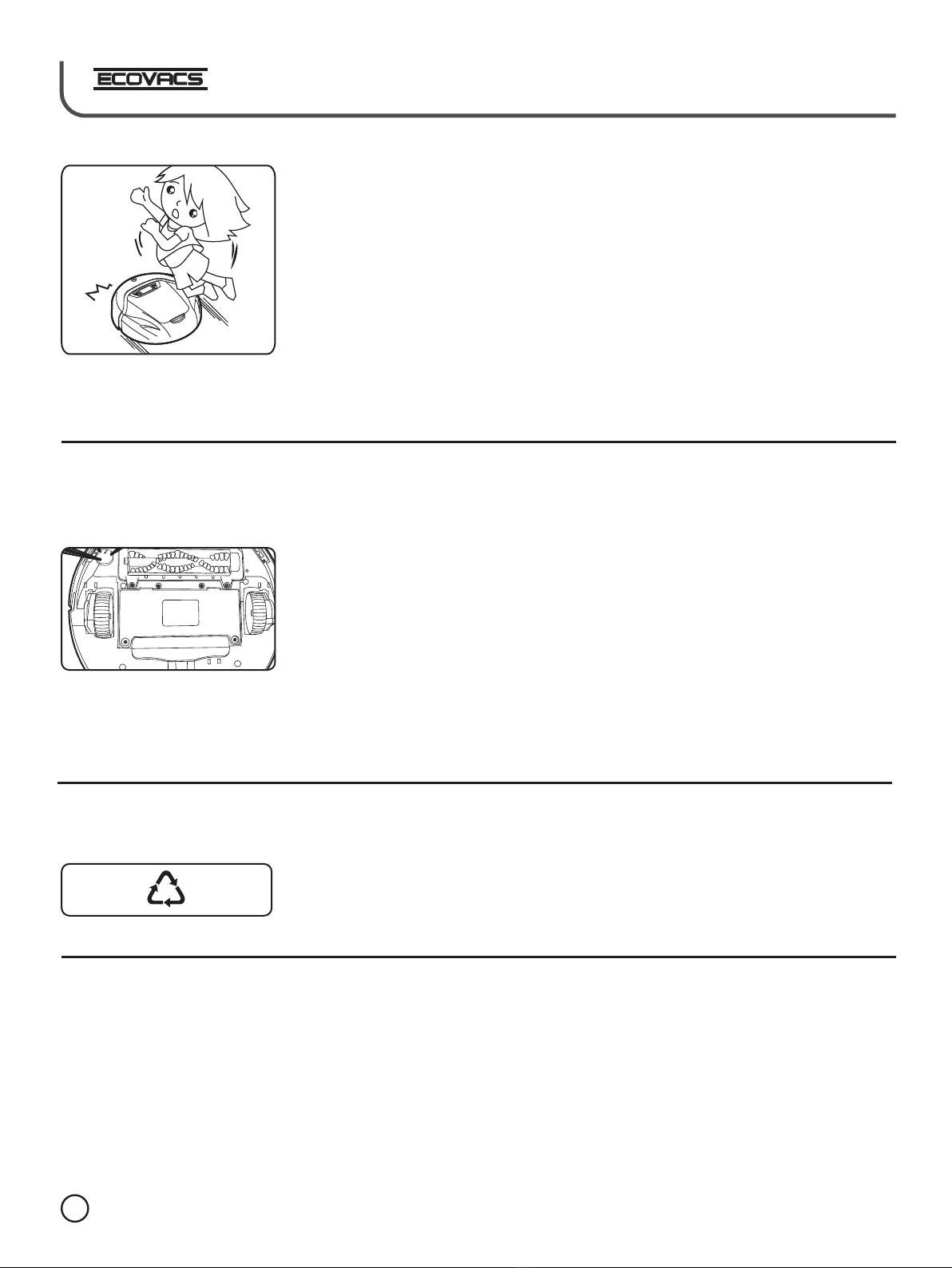

Child Safety

Enjo y S m a r t e r Life!

● Take good care of the product and keep it beyond children and people who

cannot judge danger nearby. Extra attention should be paid when the

robot starts working.

● You should get the people inside the room know that the machine is working

to avoid man-made damage like damaging.

● Do not take robot as toy. Carefully attention should be paid when child or

pet is around.

● The plastic package may bring danger of asphyxia and is supposed to keep

away from children.

● You should contact our after-sales when you want to change the battery. It

will cause explosion if you use the wrong battery.

● There is potential danger if you use other producer's battery and charging

block, which is not within our warranty.

● Please dispose the old battery properly, because there is hazardous

substance, which may pollute the environment.

● Conform to the local environmental legislation and dispose it at the recovery

site.

● Do not take the package material as domestic garbage and discard it

freely.

● Please deliver the package material to proper recovery site for recycle.

● Do not repair or disassemble the machine when there is damage of the

power cord.

● Contact our after-sales service or our designate maintenance organization

for professional repair.

Battery Replacement

and Disposal

Resource Utilization

When Product is in Failure

D5 6 U se r G ui d e

Ro b ot Vacu u m C lean e r

Roll brush clean-up

gadget

DC14.4V AC220-240V

DC17.5V

50Hz

30W

0.7A

30W

0.25m/s

0.7L

≤62dB

About 4~5 hours

60 minutes

120-150 2

335×335×100mm

2.8Kg

The host The charging block

Working voltage In-put voltage

rated out-put voltage

rated frequency

rated power

rated out-put

currency

Rated power

Speed

Capacity of dust box

Noise

Charging duration

Duration upon full

battery 60 minutes

Max Coverage upon

full battery

Size

Net weight

technique parameter

2.Co nt e nt

Host Charging block

Side brush

User guide

Enjo y S m a r t e r Life!

3.Name of parts

control button

wind gate

rotating side brush

up-ground height sensor

All-round

wheel

suspended

driving wheel

rubber scraper

on/off switch

dust sensor

dust box

dust box handle

ash exit

antibacterial

sponge filter

lock of dust box

charging and alarm

open button of upper cover

docking electrode

wind gate

power cord

power indicator

infrared transmitter

anti-skid band

main brush

welted

induction

infrared

receiver

buffer plate

LCD

bottom view

of robot

elevation of robot

charging block

dust box

host

charging dock

electrode

Otros manuales para Deebot D56

Tabla de contenidos

Otros manuales de Aspiradora de ECOVACS

ECOVACS

ECOVACS DEEBOT T20 OMNI Manual de usuario

ECOVACS

ECOVACS DEEBOT U2 Series Manual de usuario

ECOVACS

ECOVACS DEEBOT3 D35 Manual de usuario

ECOVACS

ECOVACS DEEBOT NEO DLN26 Manual de usuario

ECOVACS

ECOVACS DEEBOT 710 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 930 Manual de usuario

ECOVACS

ECOVACS DEEBOT 601 Manual de usuario

ECOVACS

ECOVACS DEEBOT T10 OMNI Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO T8 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO Slim10 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 920 Manual de usuario

ECOVACS

ECOVACS DEEBOT T20 OMNI Manual de usuario

ECOVACS

ECOVACS Deebot 500 Manual de usuario

ECOVACS

ECOVACS DEEBOT U2 Series Manual de usuario

ECOVACS

ECOVACS Deebot3 Manual de usuario

ECOVACS

ECOVACS 7 Series Manual de usuario

ECOVACS

ECOVACS Winbot 9 Manual de usuario

ECOVACS

ECOVACS DEEBOT NEO+ Manual de usuario

ECOVACS

ECOVACS DEEBOT 661 Manual de usuario

ECOVACS

ECOVACS Deebot M8 Manual de usuario

ECOVACS

ECOVACS DEEBOT 900 Manual de usuario

ECOVACS

ECOVACS DEEBOT M82 Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMOT8+ Manual de usuario

ECOVACS

ECOVACS DEEBOT OZMO 610 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
